DELIVERY INFORMATION
Weight | 25 kgs (45 lbs) |
Payload Capacity | 120 kgs (265 lbs) |
Top Speed | 120 kgs (265 lbs) |
Range | 120 kgs (265 lbs) |
SPECIFICATIONS
| Frame | Aluminum alloy frame with basket mounting holes (compatible with GALAXY basket) |
|---|---|

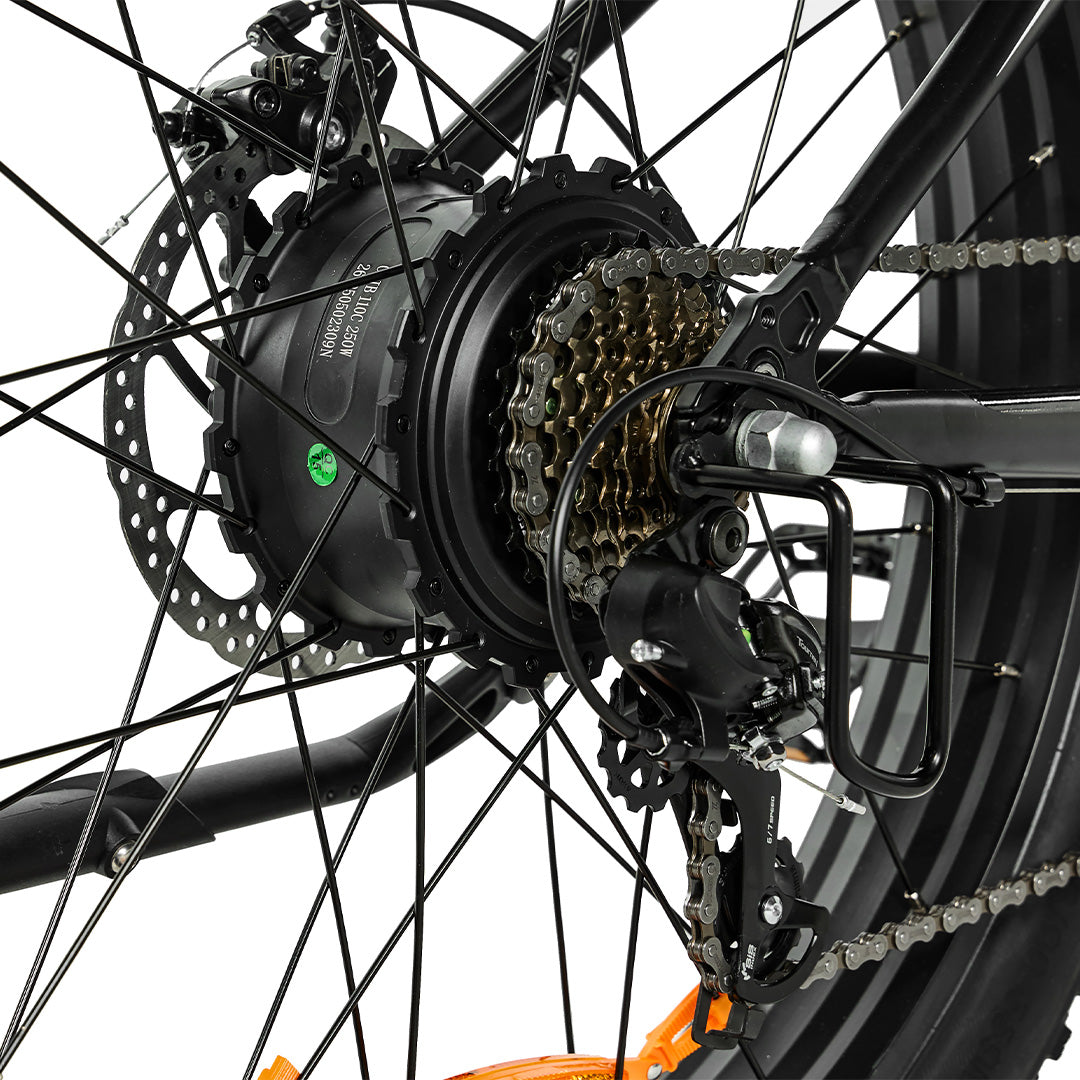

| Motor | 48V 500W brushless hub motor (JIABO brand) |

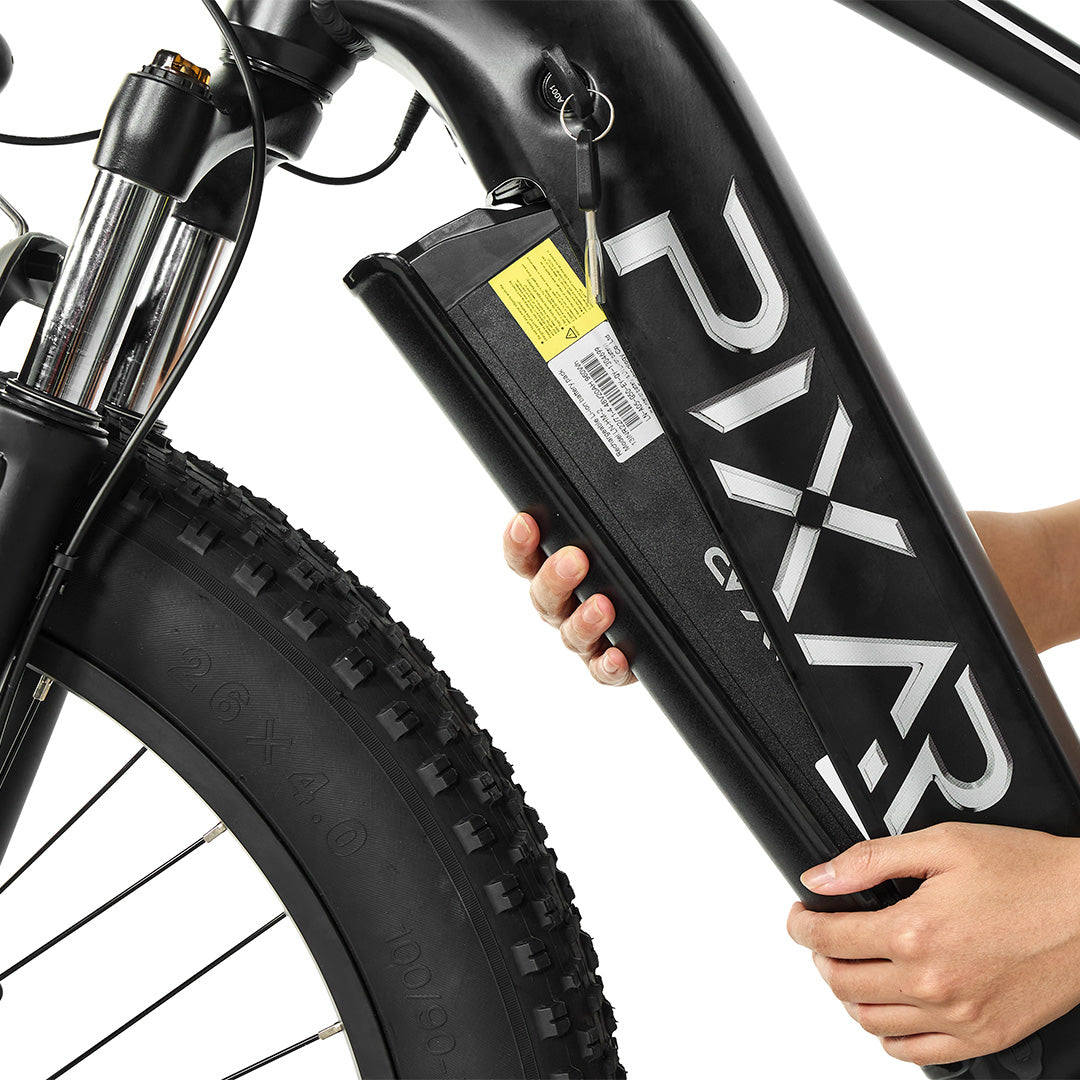

| Battery | Dual 48V lithium-ion (front 10Ah + rear 10.4Ah, total 20.4Ah, EVE brand) |
| Controller | 48V / 9-tube controller (XI GE SI brand) |

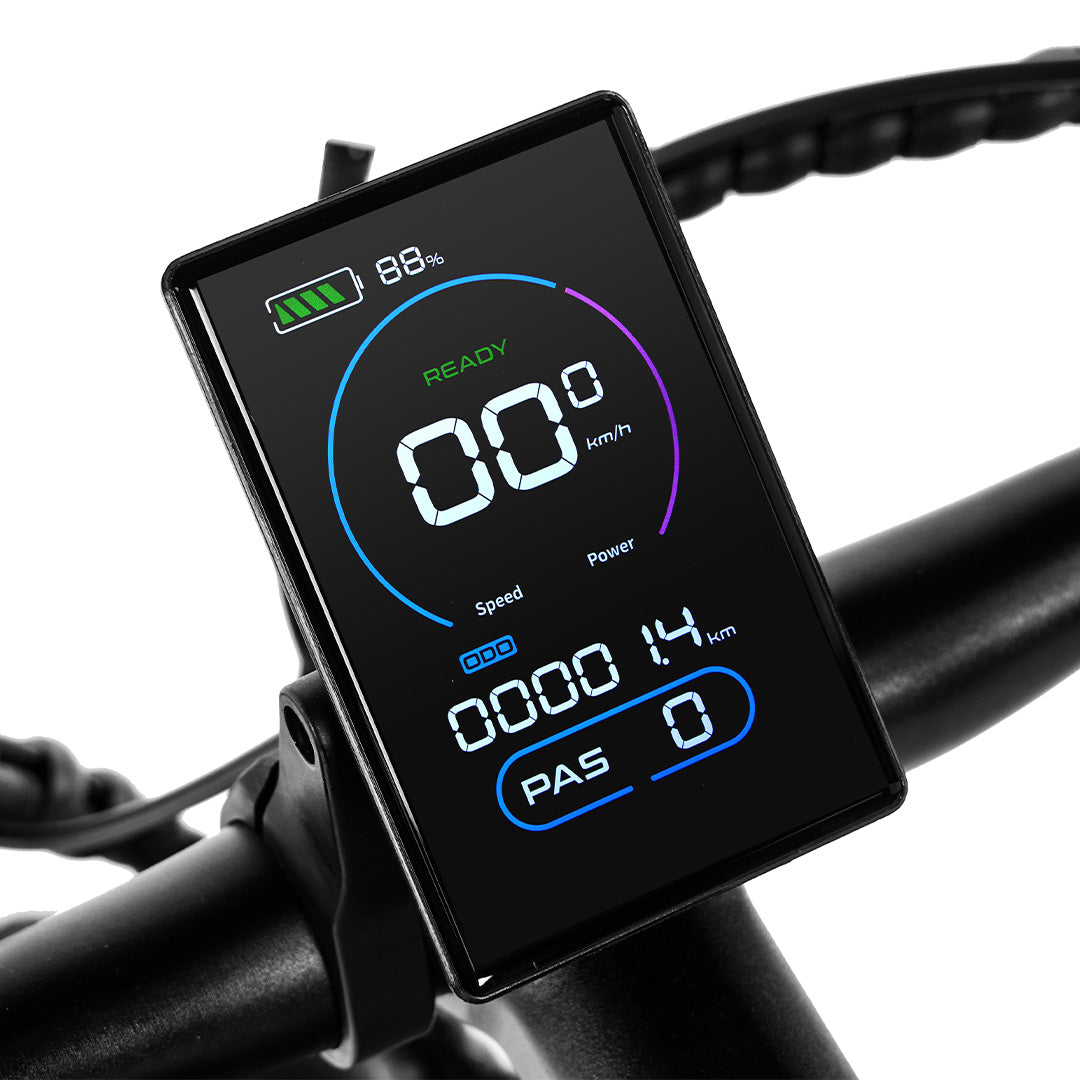

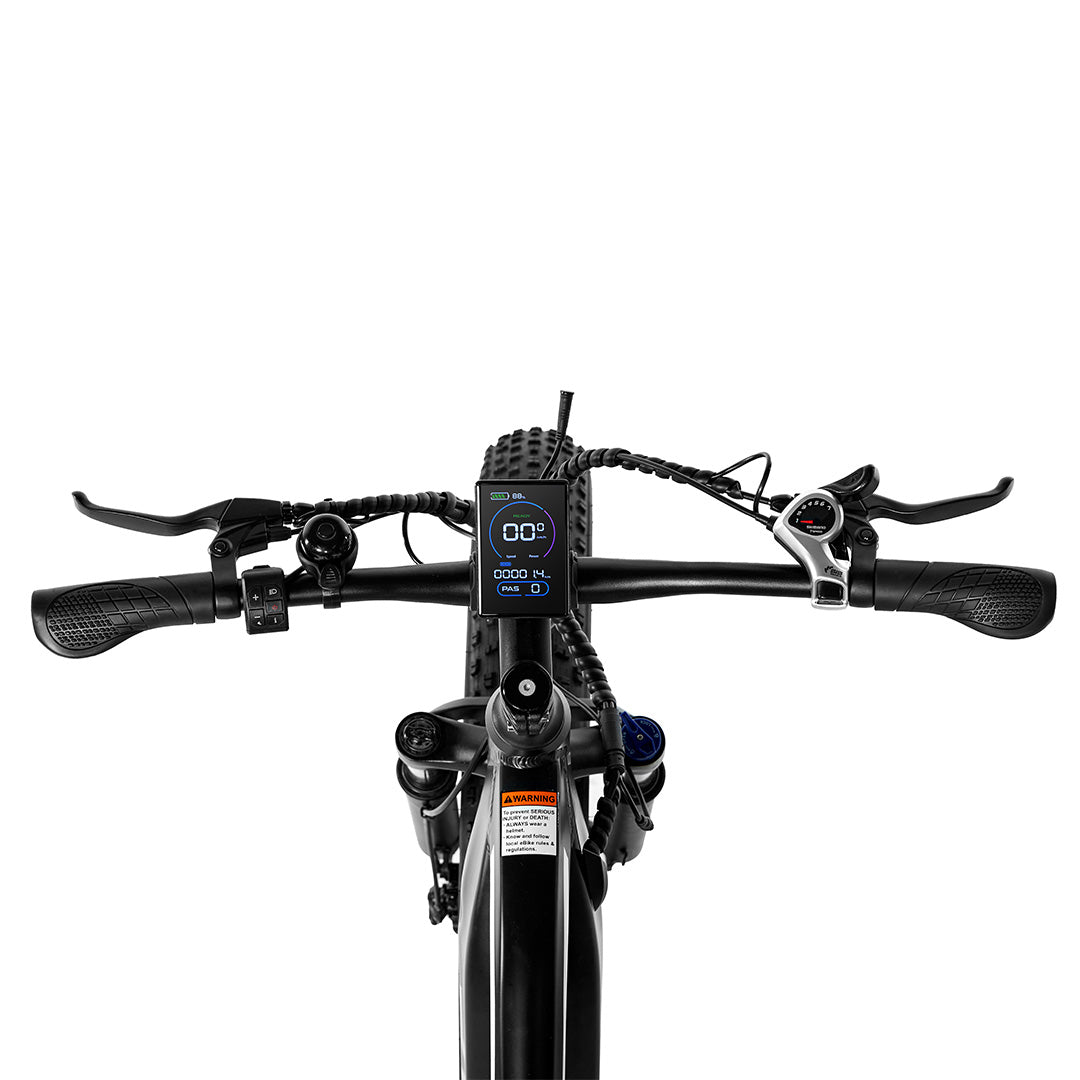

| Display | Middle LCD display |
| Charger | 54.6V 2A charger |
| Range (Throttle Only) | ~60 km (20.4Ah) / ~30 km (10Ah) |
| Range (Pedal Assist) | ~120 km (20.4Ah) / ~60 km (10Ah) |
| Top Speed | 25 km/h (unlockable up to 32 km/h) |

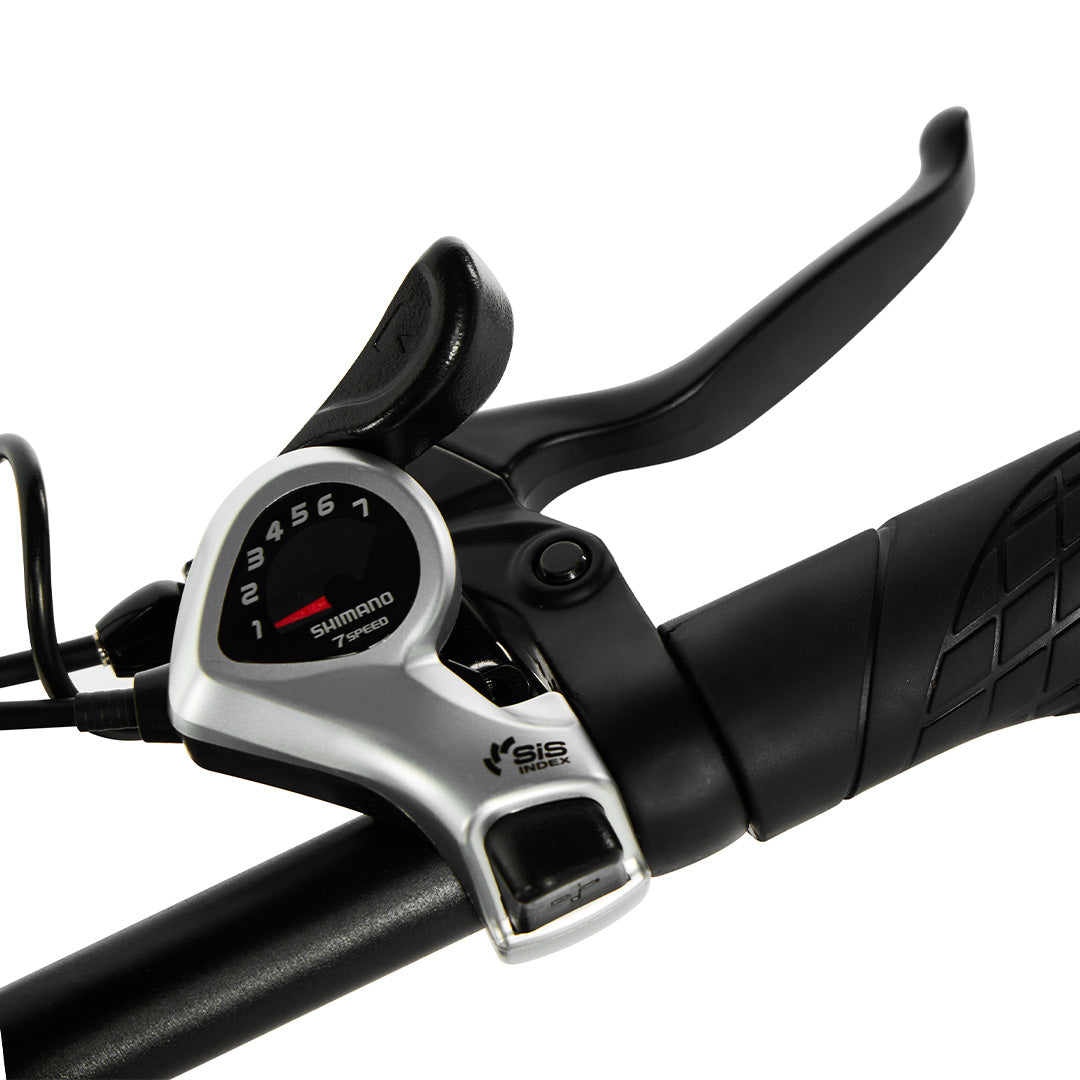

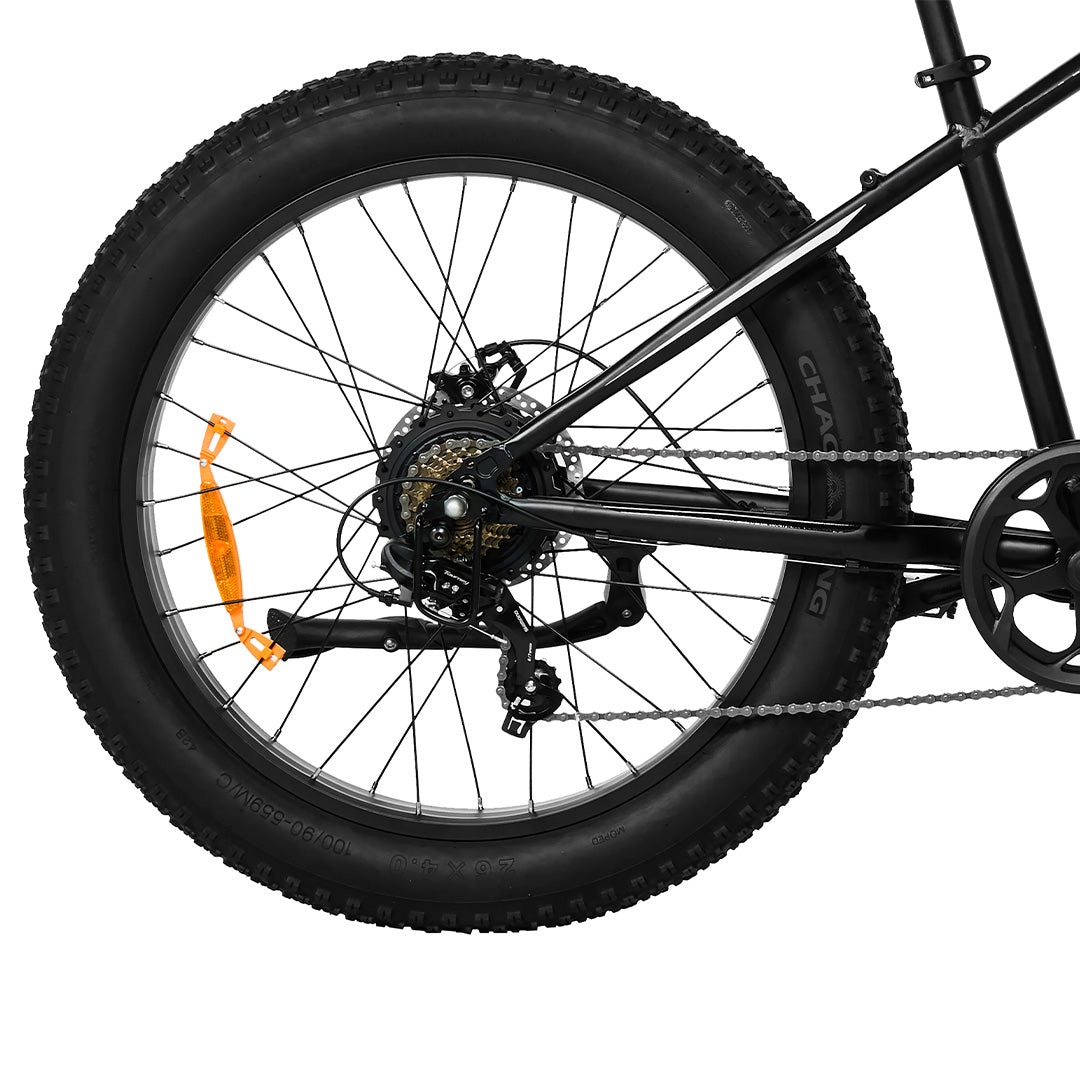

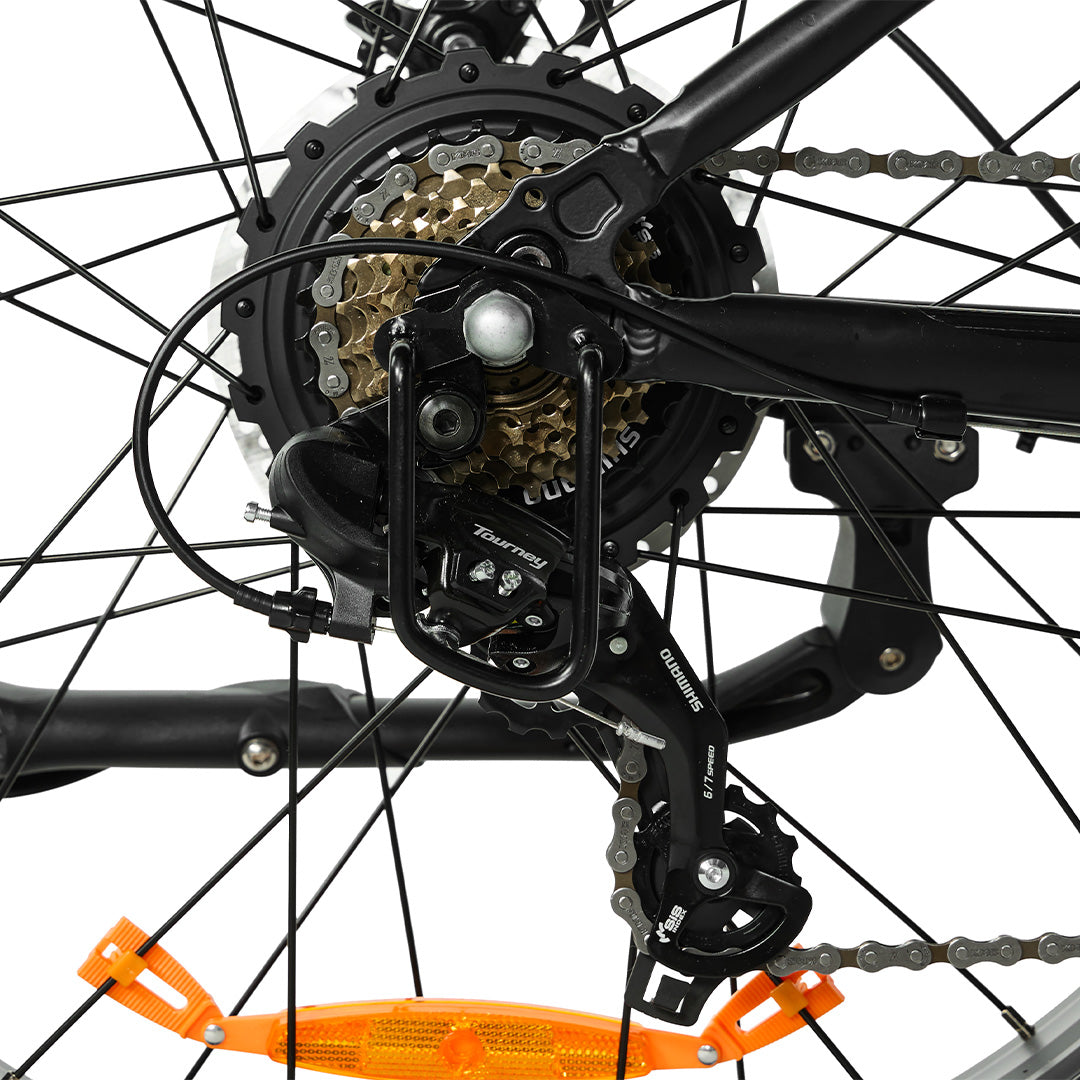

| Gearing | Shimano 7-speed thumb shifter (TX50), ATA freewheel, rear derailleur RD-TY21 with derailleur protector |
| Brakes | Mechanical disc brakes (FILAIR brand), EU-law compliant brake lever setup (left lever = rear, right lever = front), square-shaped pads |

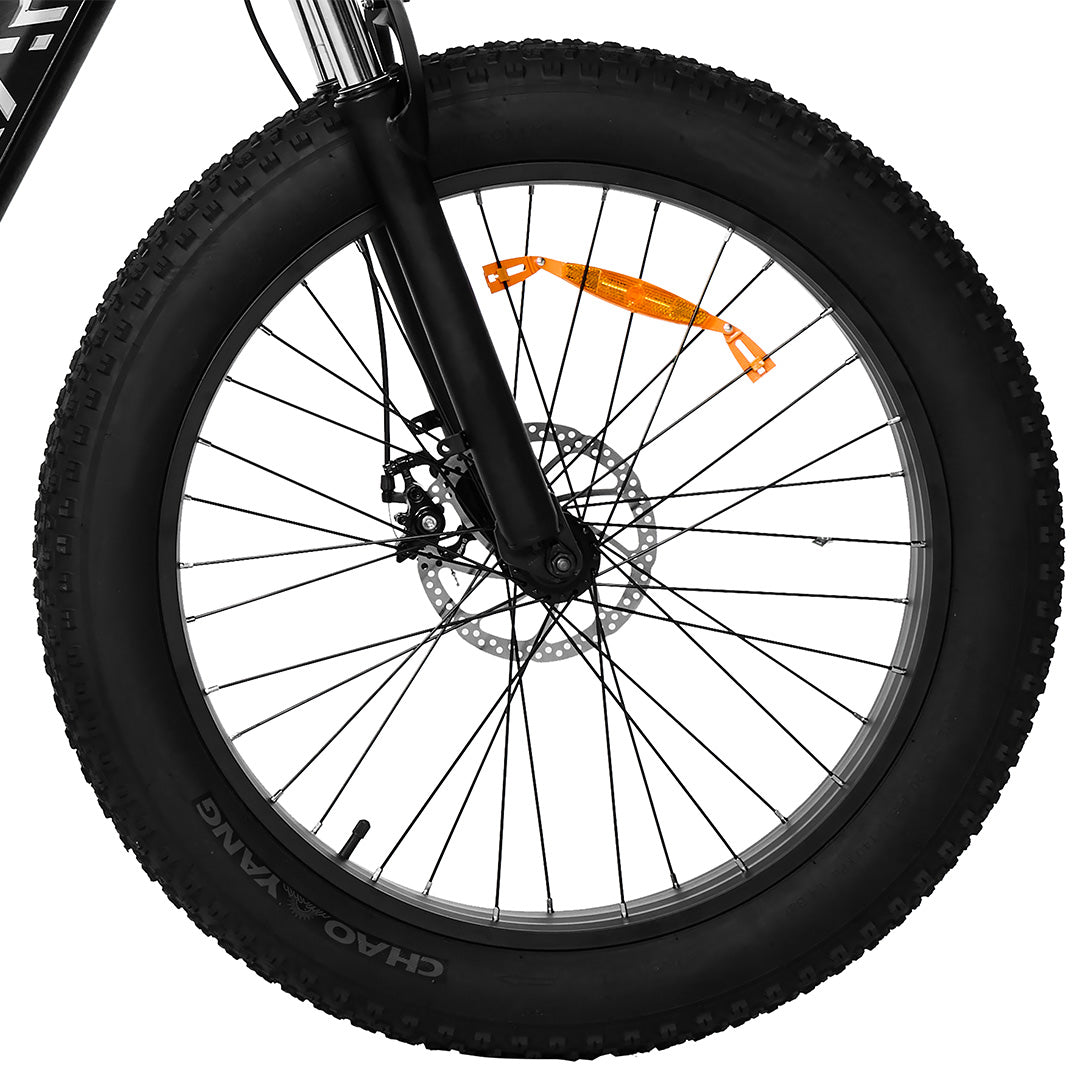

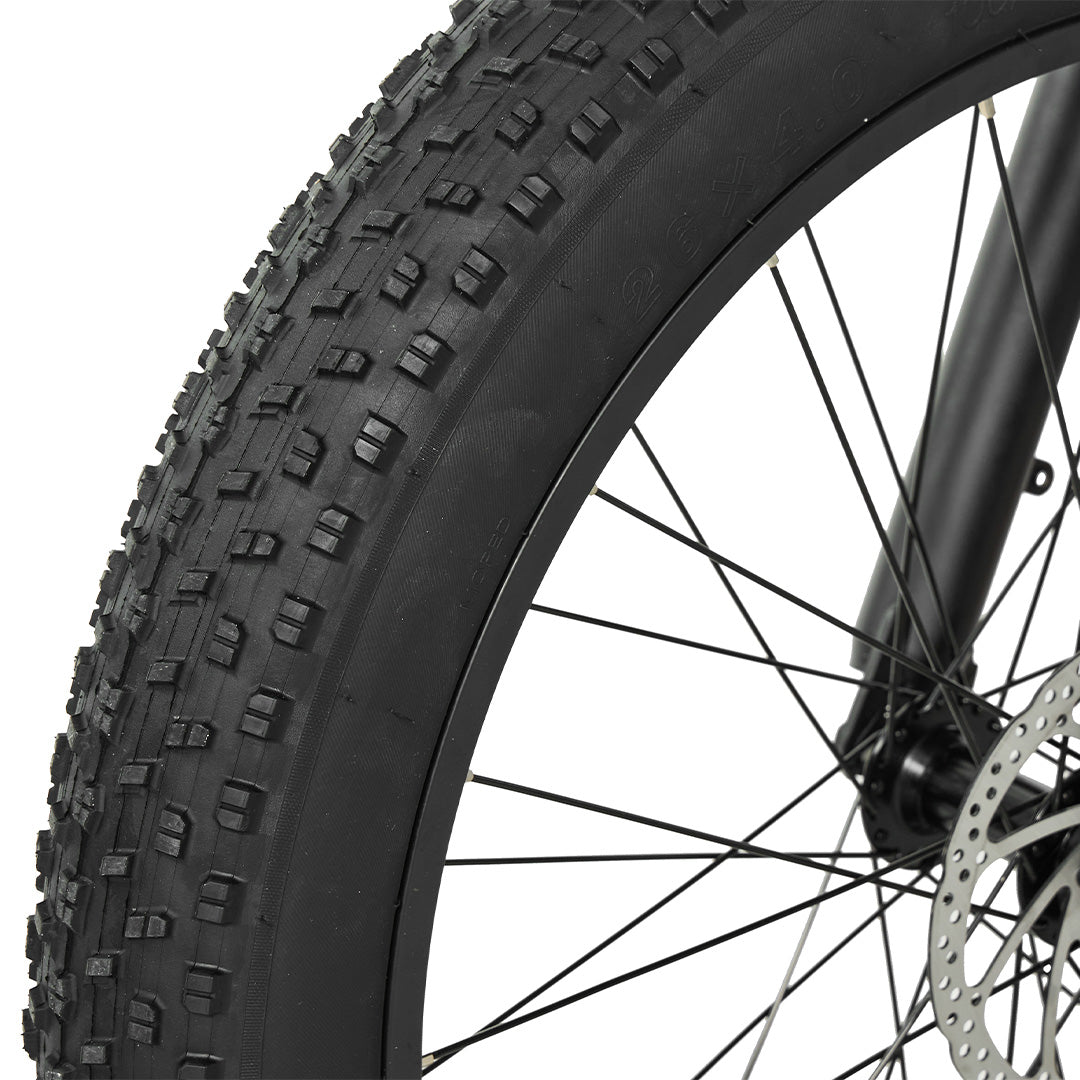

| Tires | 20″ × 3.0″ Chaoyang fat tires |

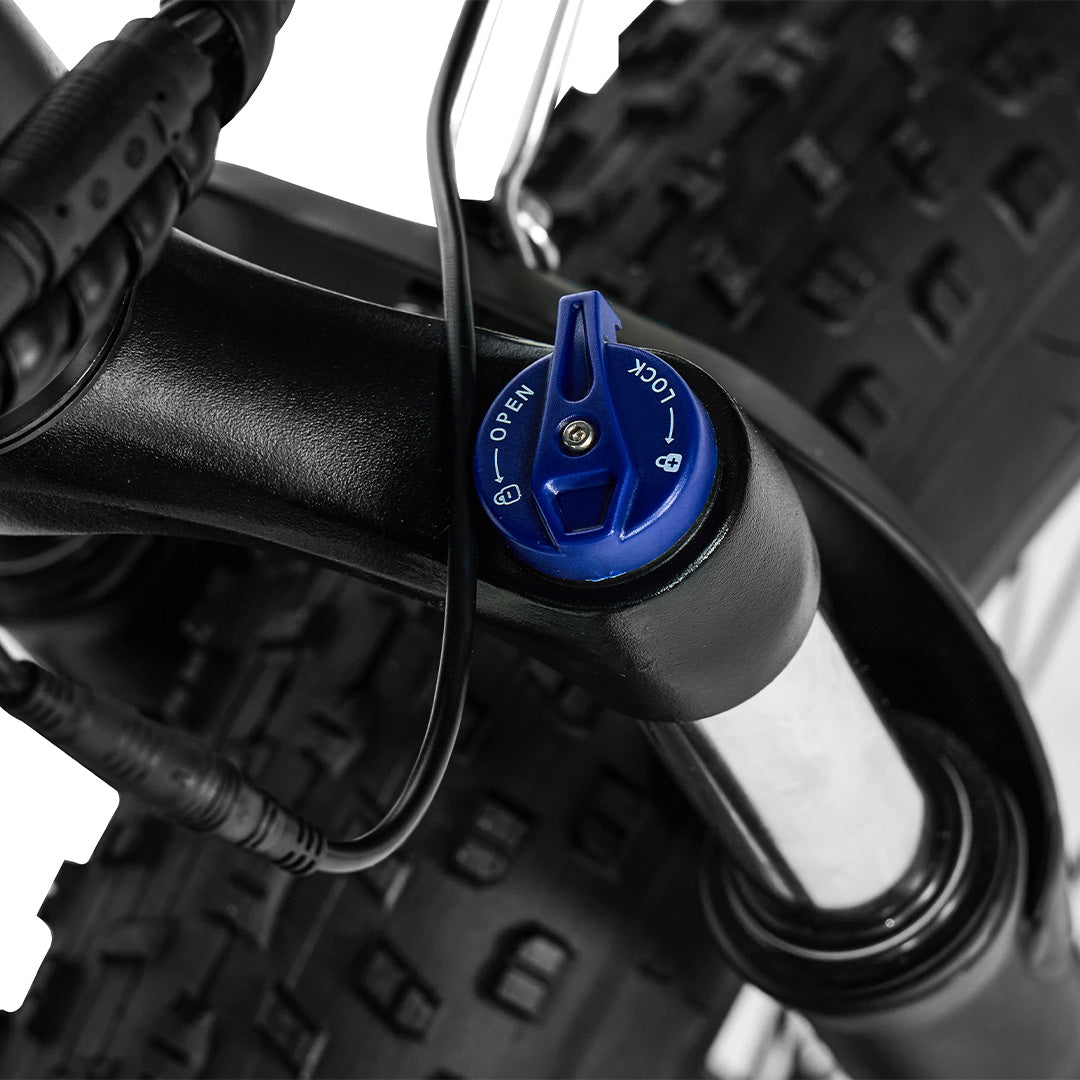

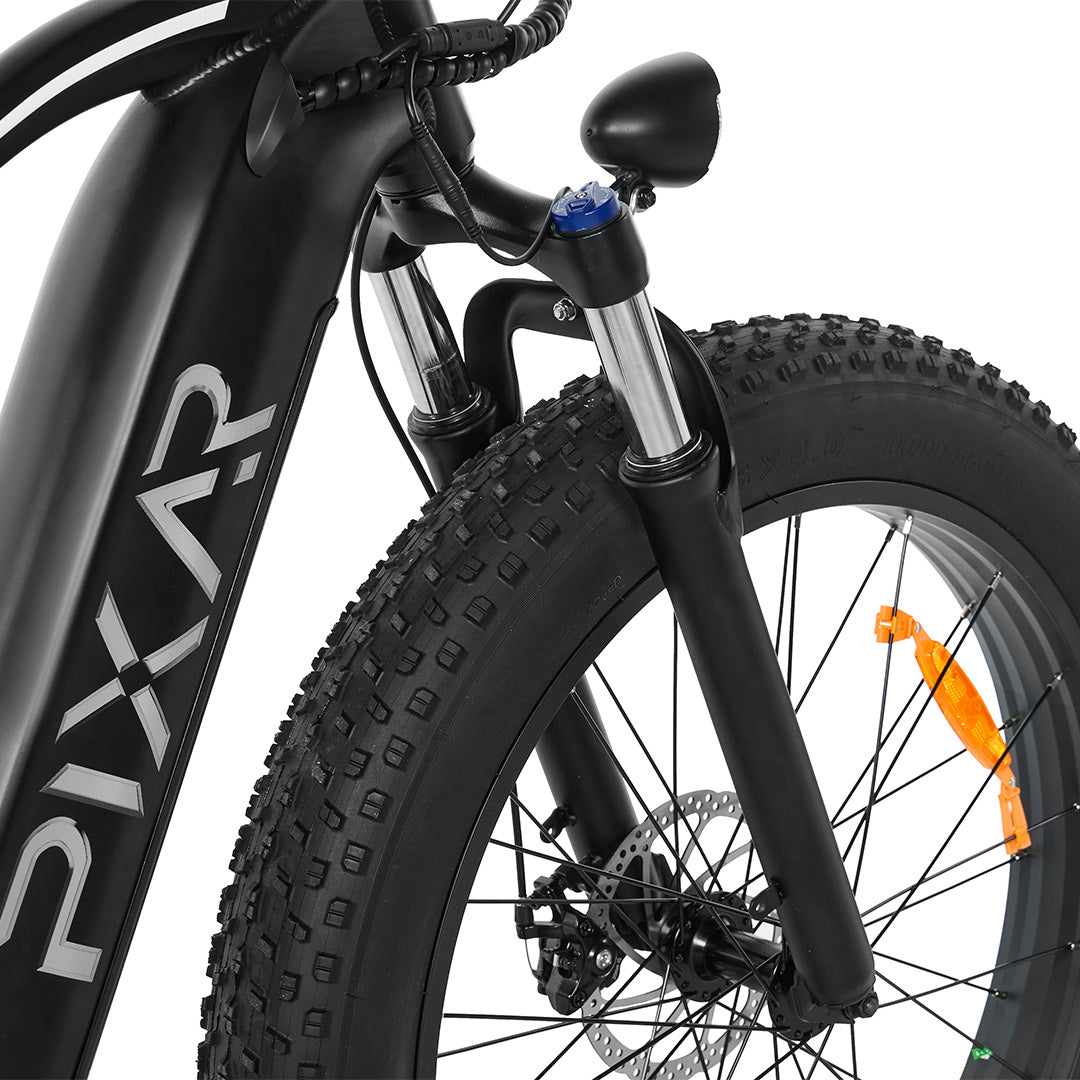

| Fork | Suspension fork with steel stanchion + aluminum crown, lockout feature |
| Crankset | 52T × 170 mm |

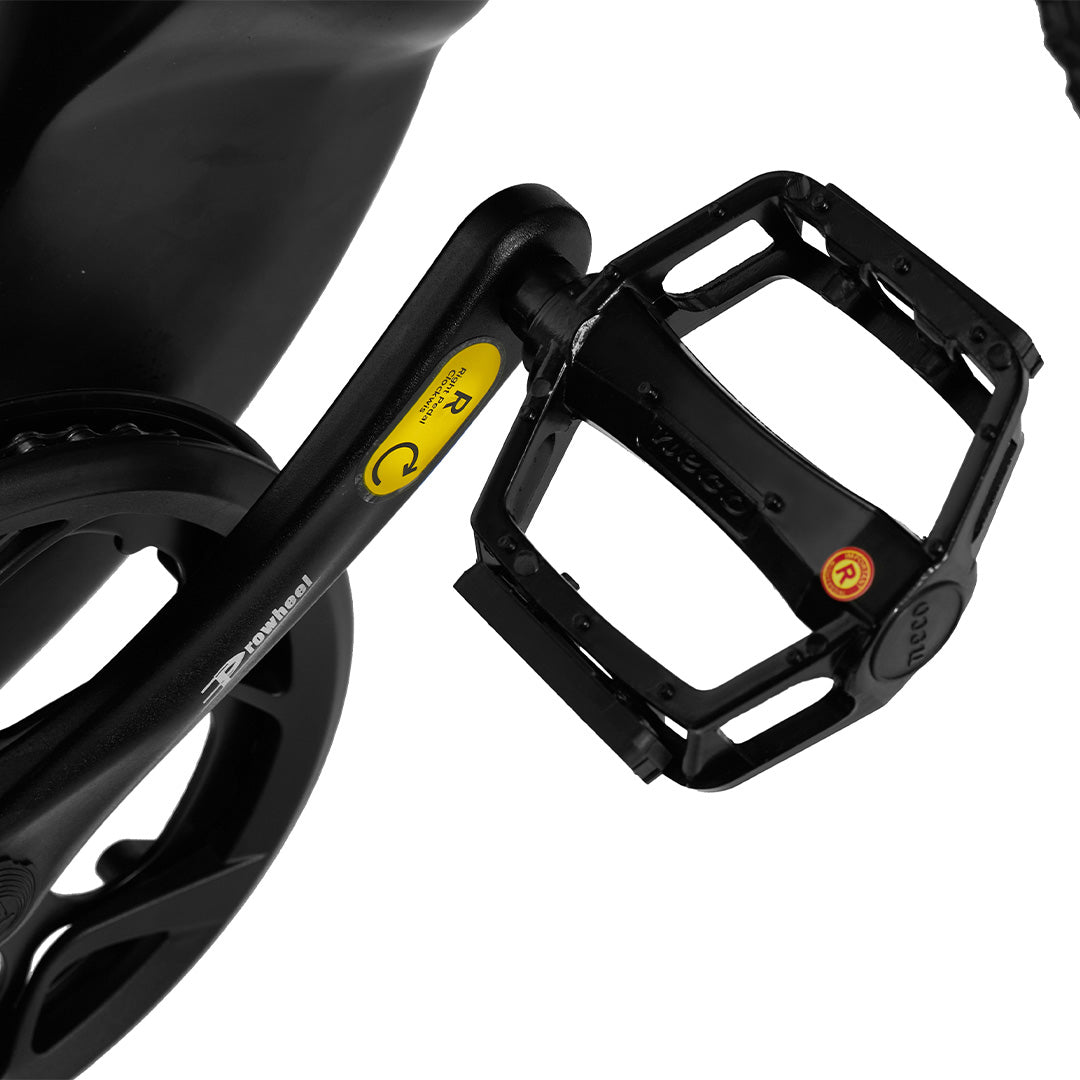

| Pedals | Plastic pedals with reflectors |
| Chain | Standard chain |
| Fenders | PVC plastic, matte black (front & rear) |
| Racks | Heavy-duty steel rear rack integrated into frame |

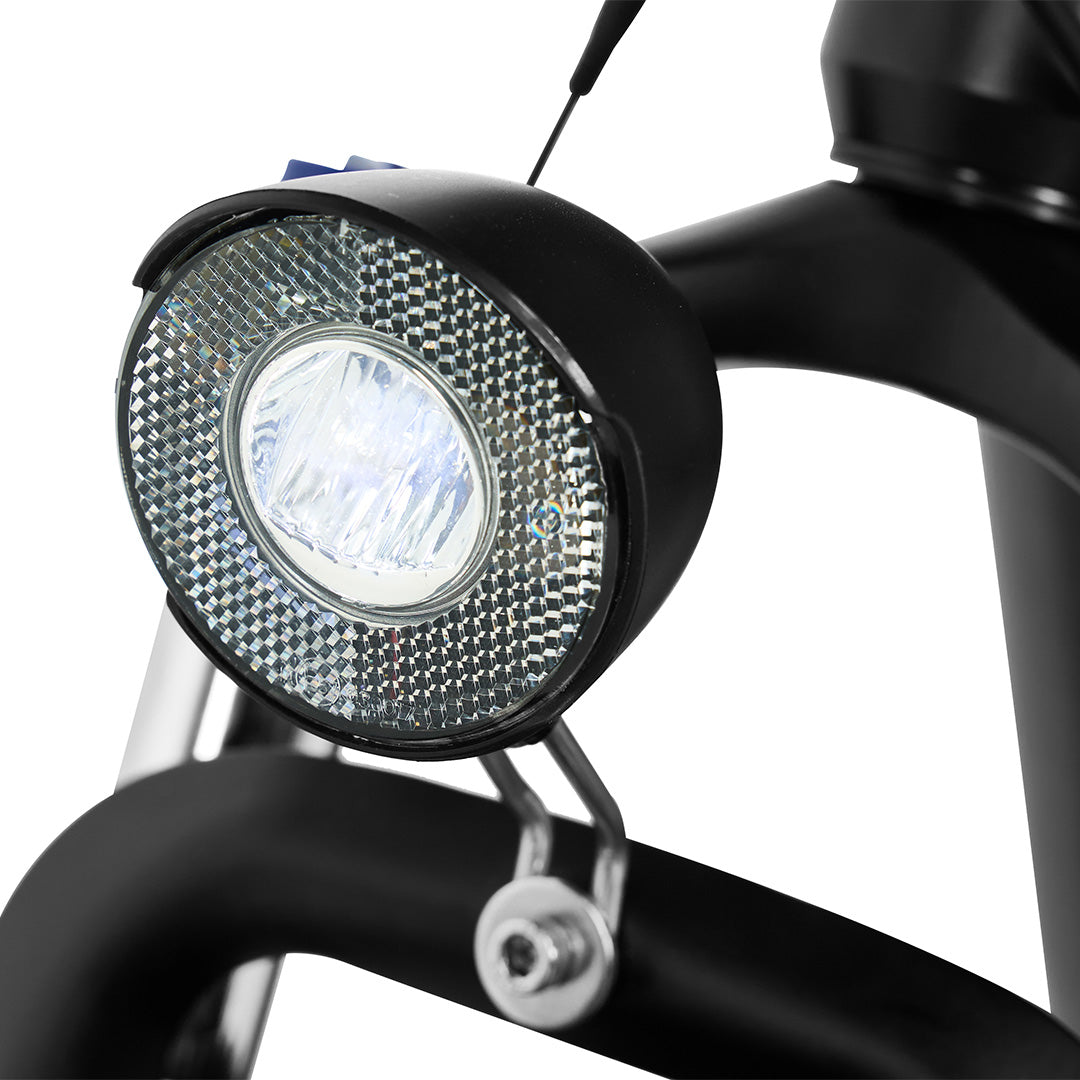

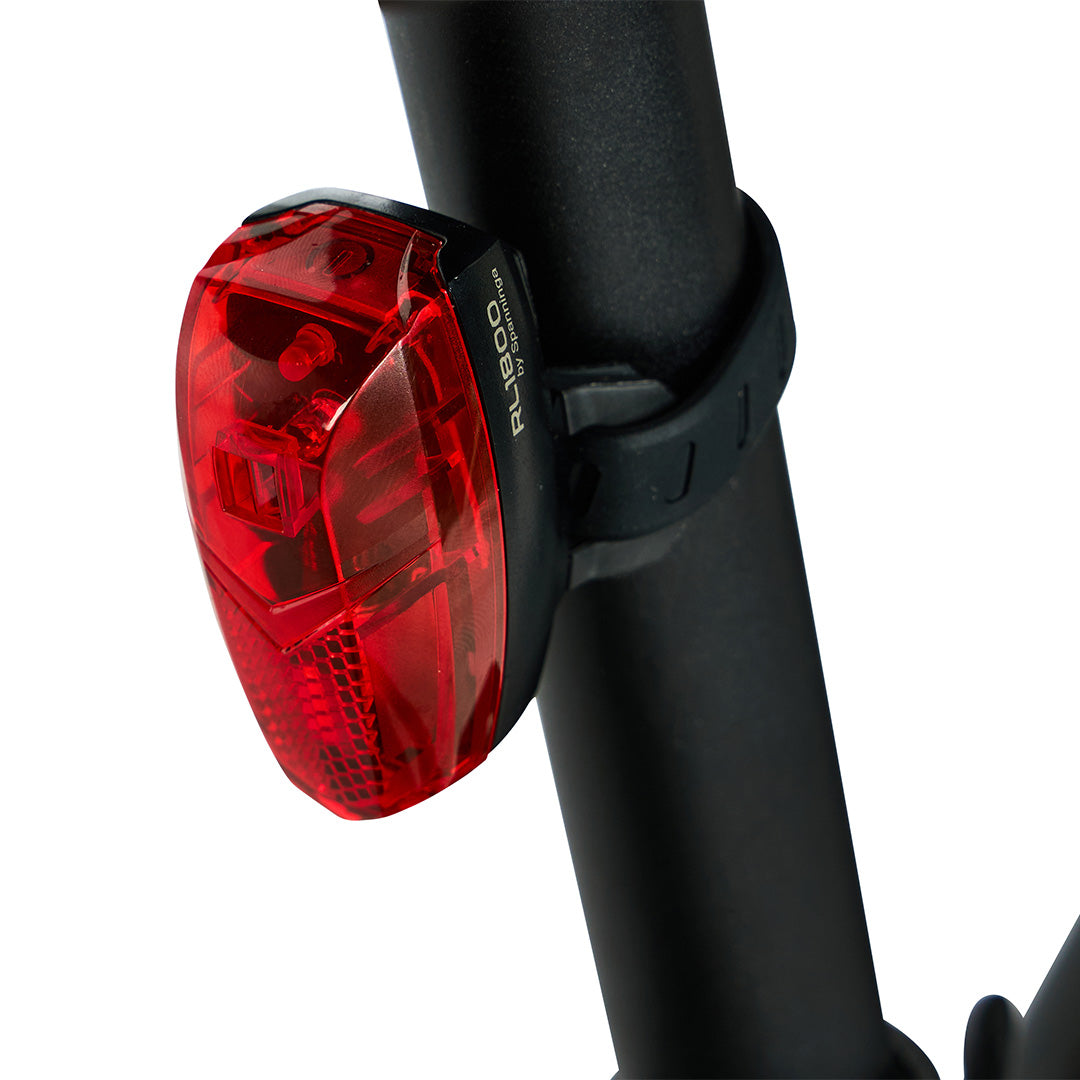

| Lights | Front and rear LED lights with waterproof disconnects |
| Kickstand | Steel kickstand |
| Horn | Electric horn with handlebar remote |
| Sensors | Speed sensor, 12-magnet |
| PAS | 5 pedal assist levels |
| Weight | Net: 37.5 kg / Gross: 48.2 kg |
| Load Capacity | 150 kg |
| Charging Time | ~5.2 hours |
| Other | Rust-resistant screws, connected out of the box, includes toolkit + PDF user manual |
*Specifications may vary based on terrain, rider weight, and usage conditions.
