DELIVERY INFORMATION
Weight | 25 kgs (45 lbs) |
Payload Capacity | 120 kgs (265 lbs) |
Top Speed | 120 kgs (265 lbs) |
Range | 120 kgs (265 lbs) |
SPECIFICATIONS

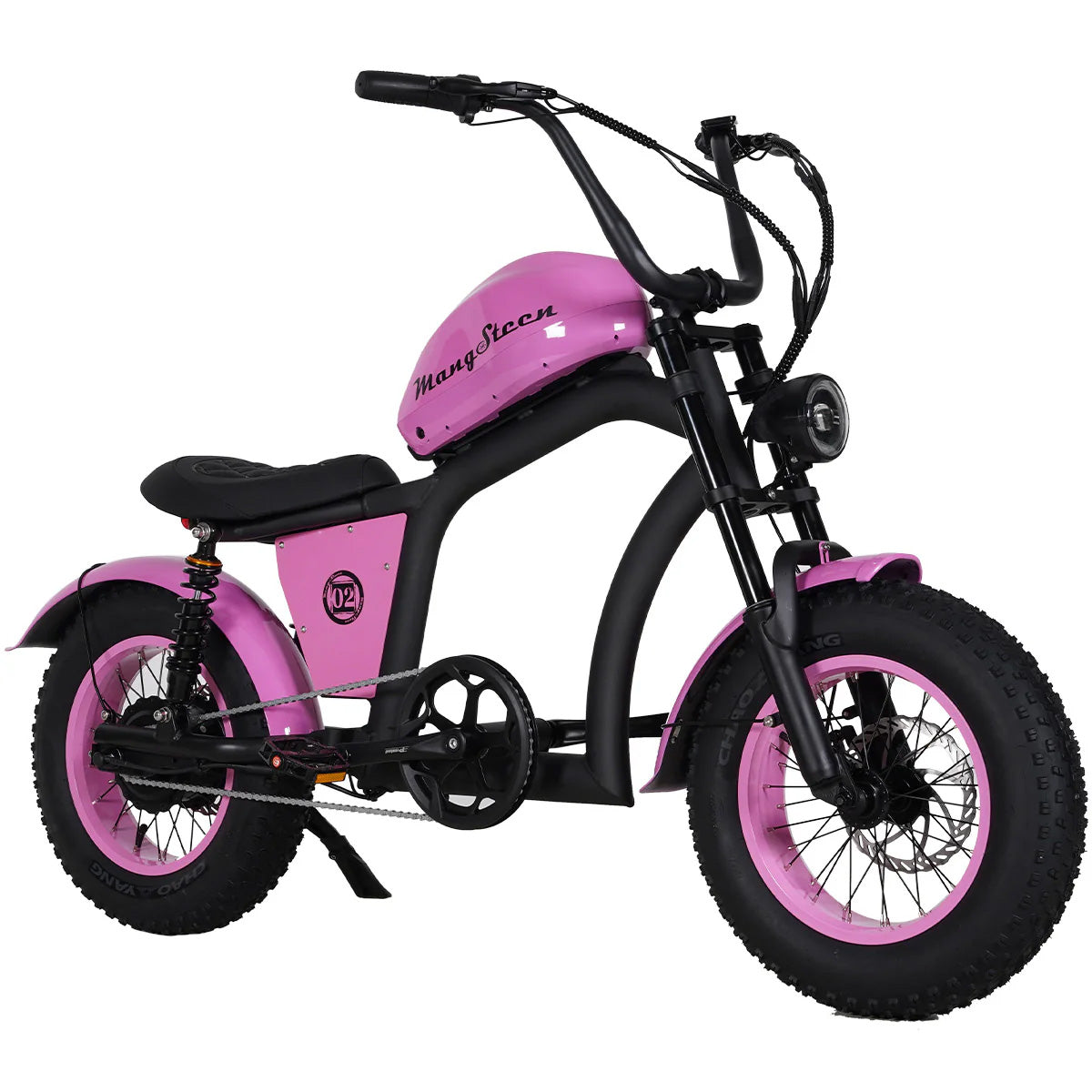

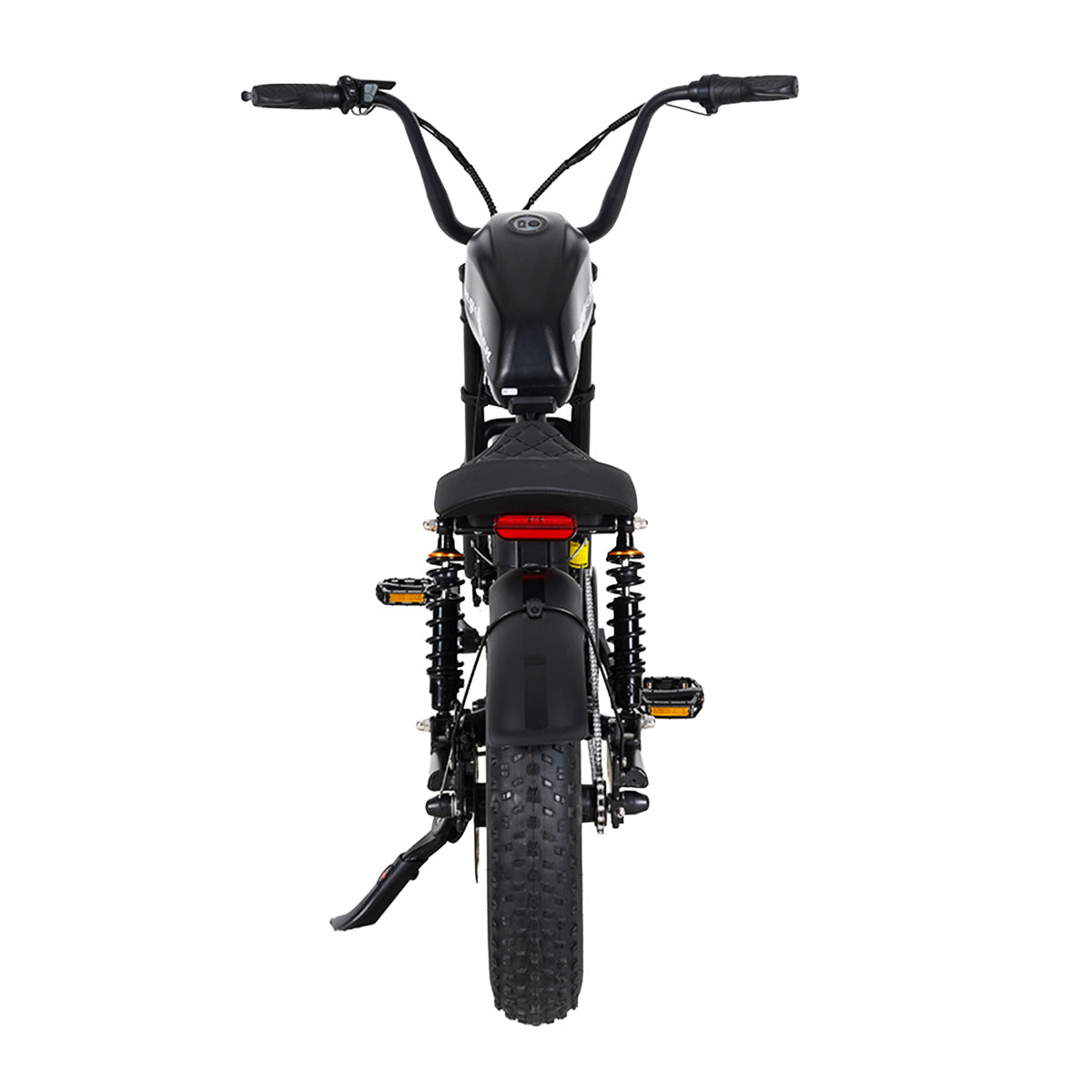

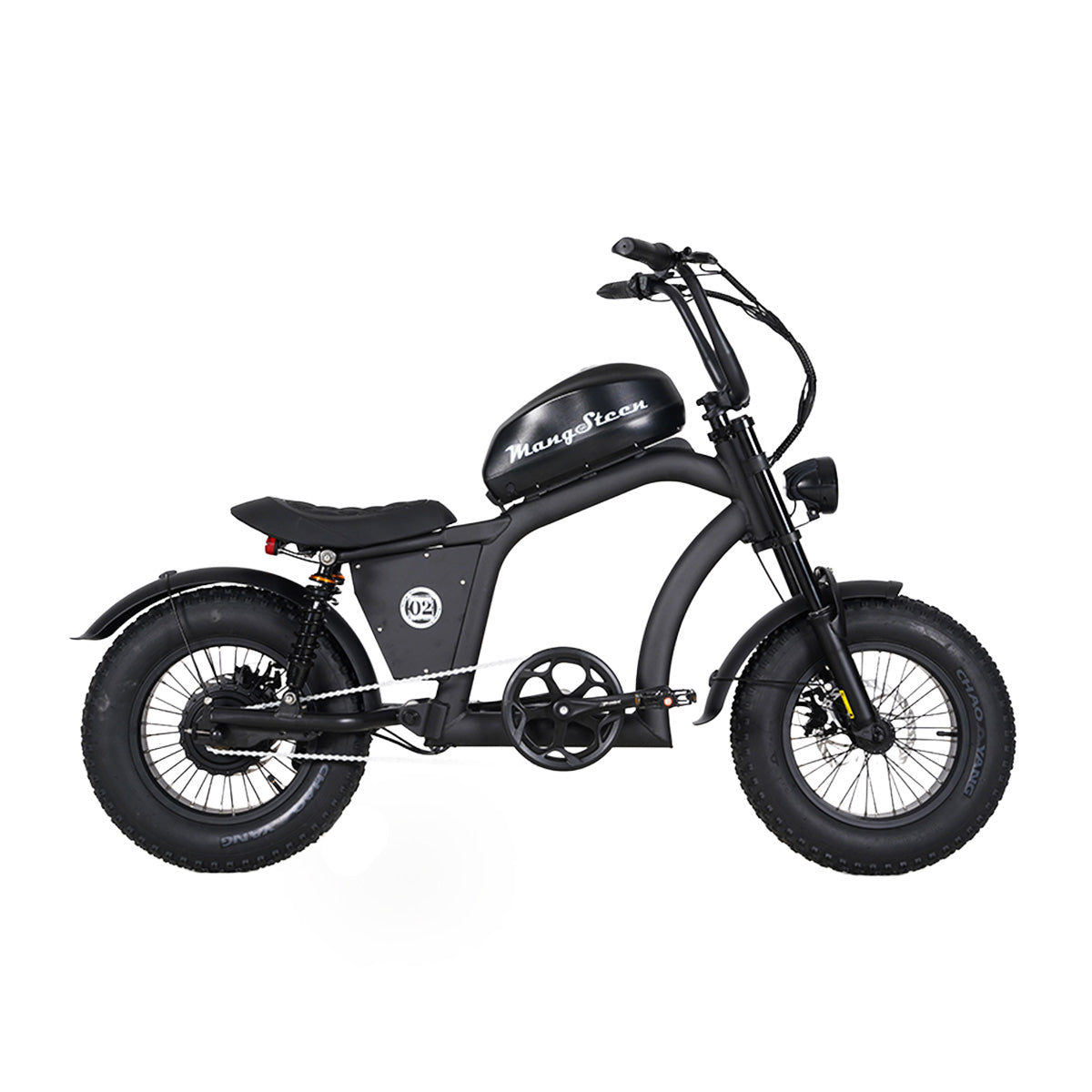

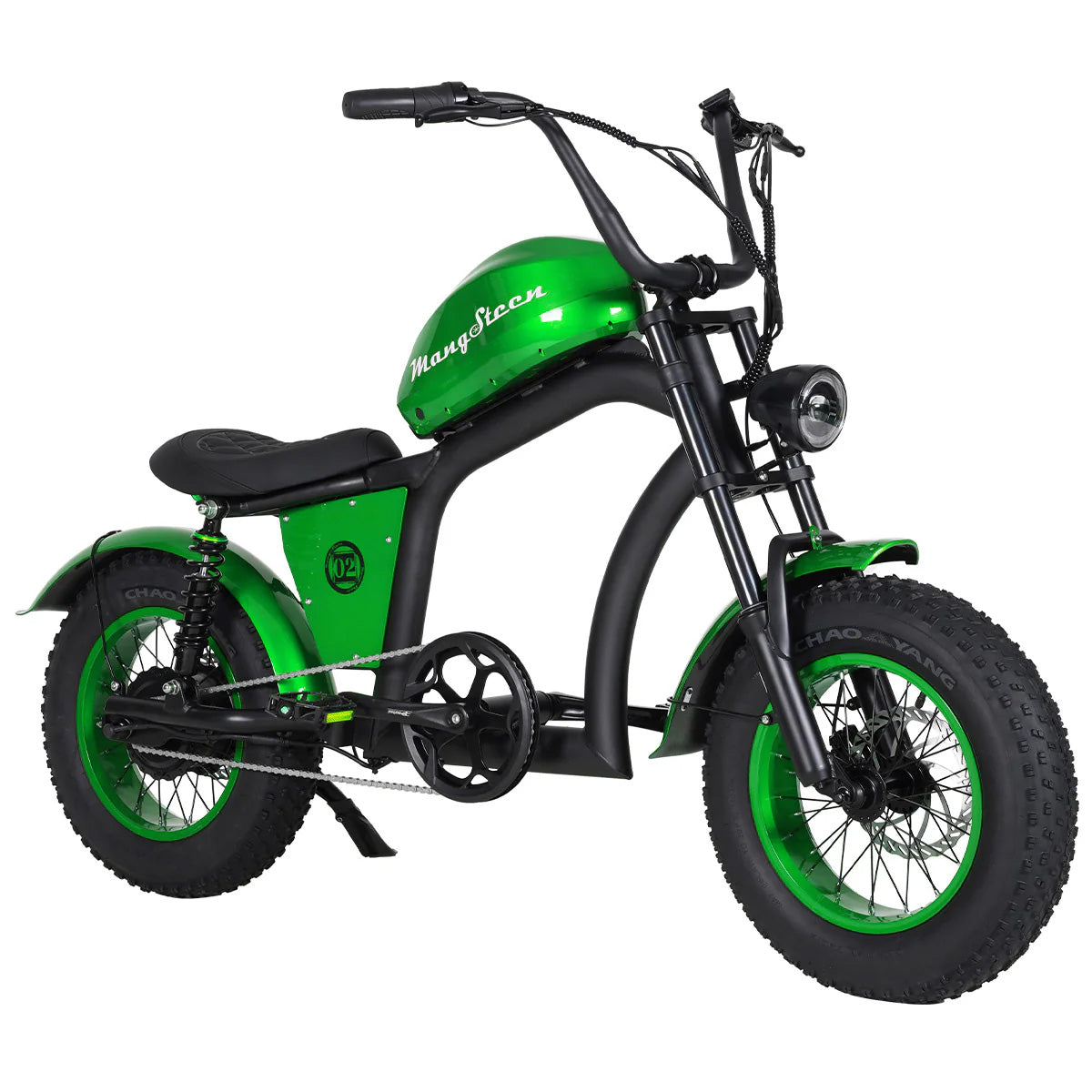

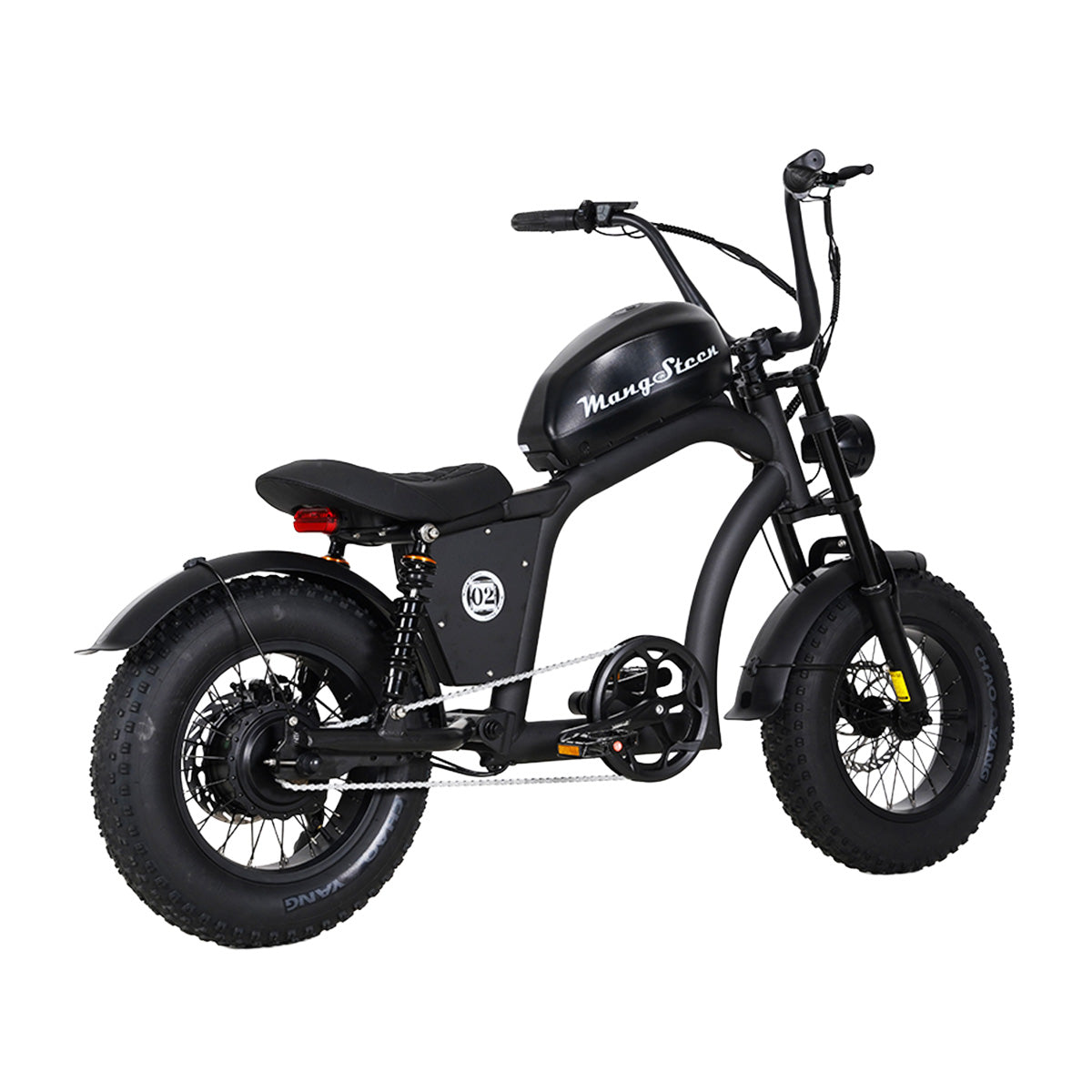

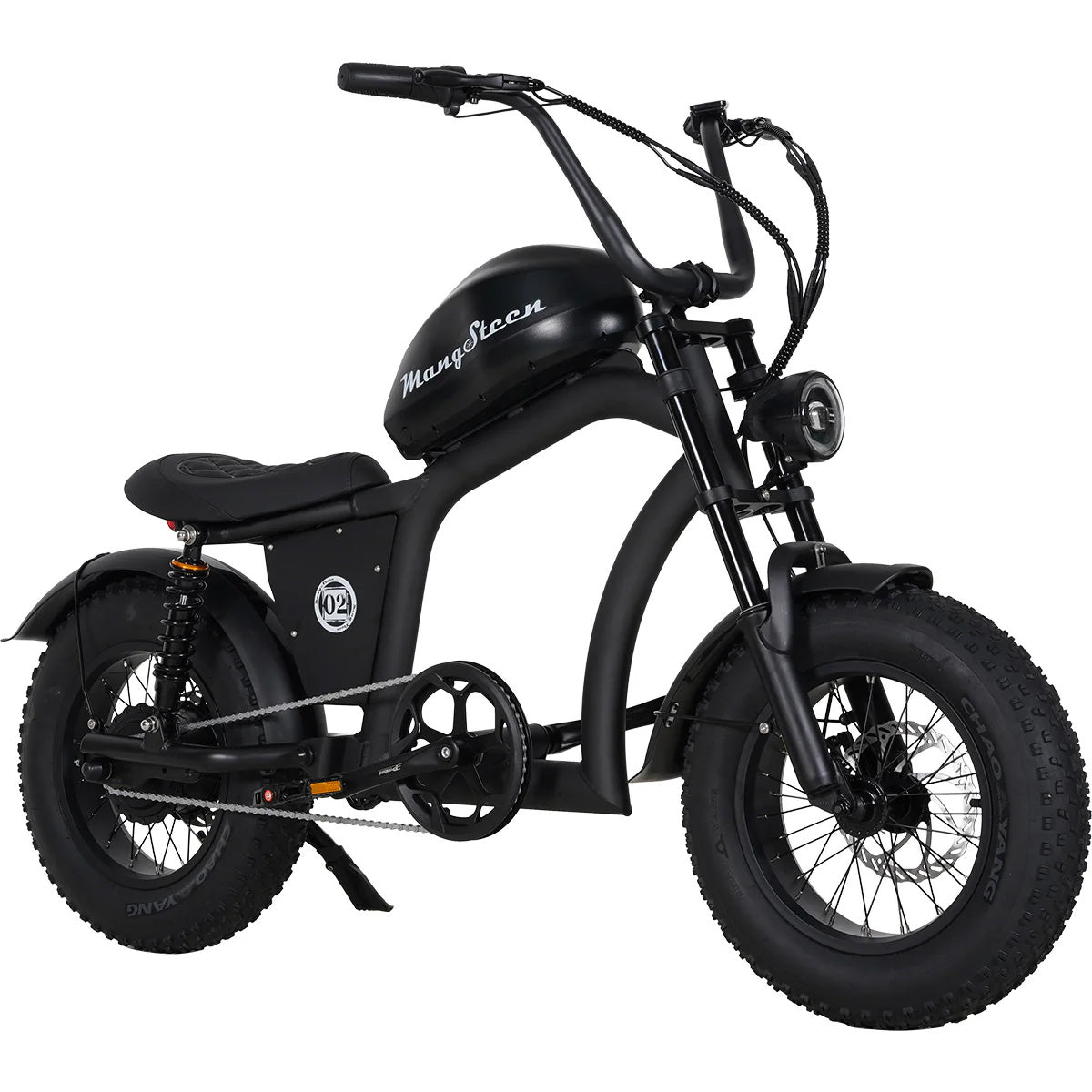

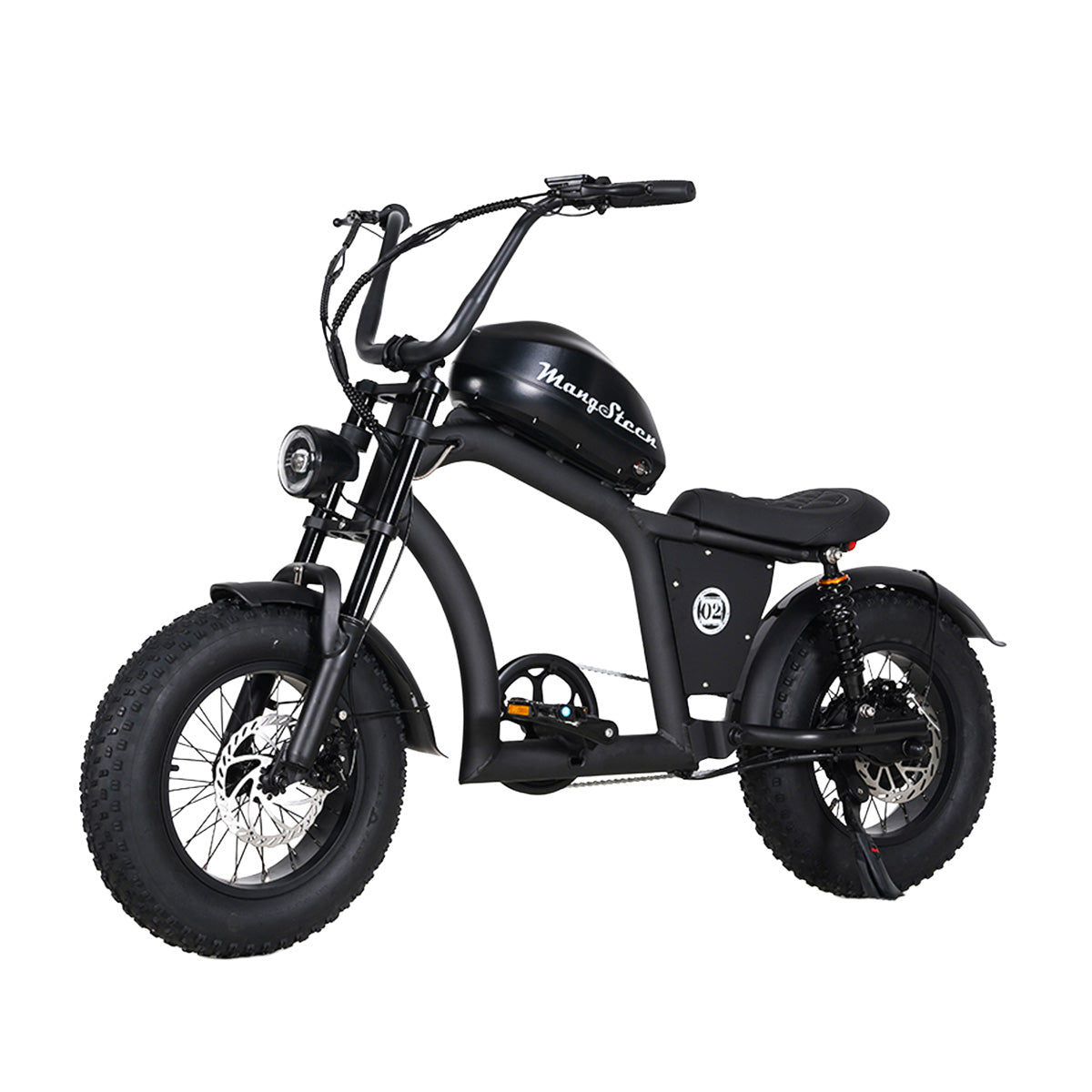

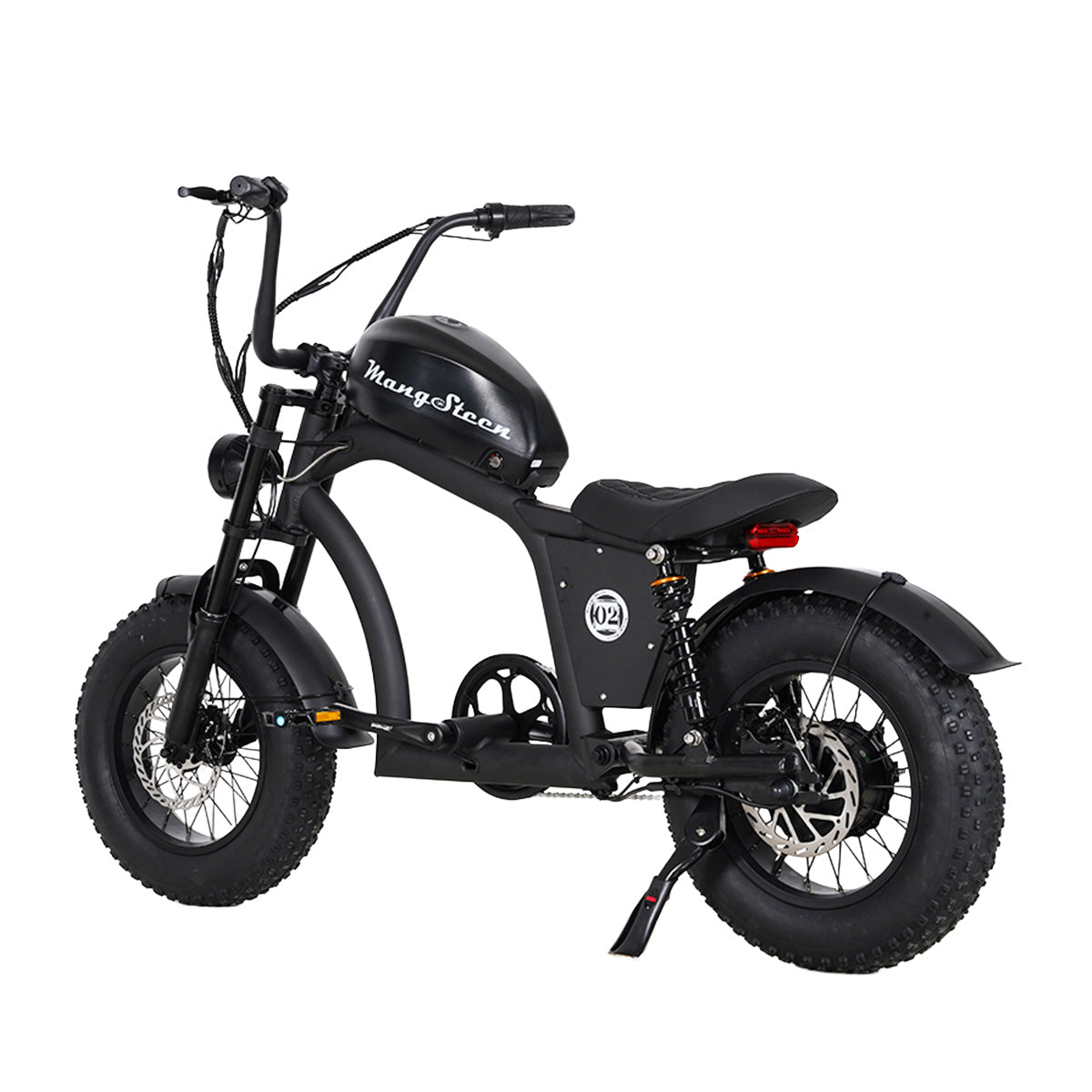

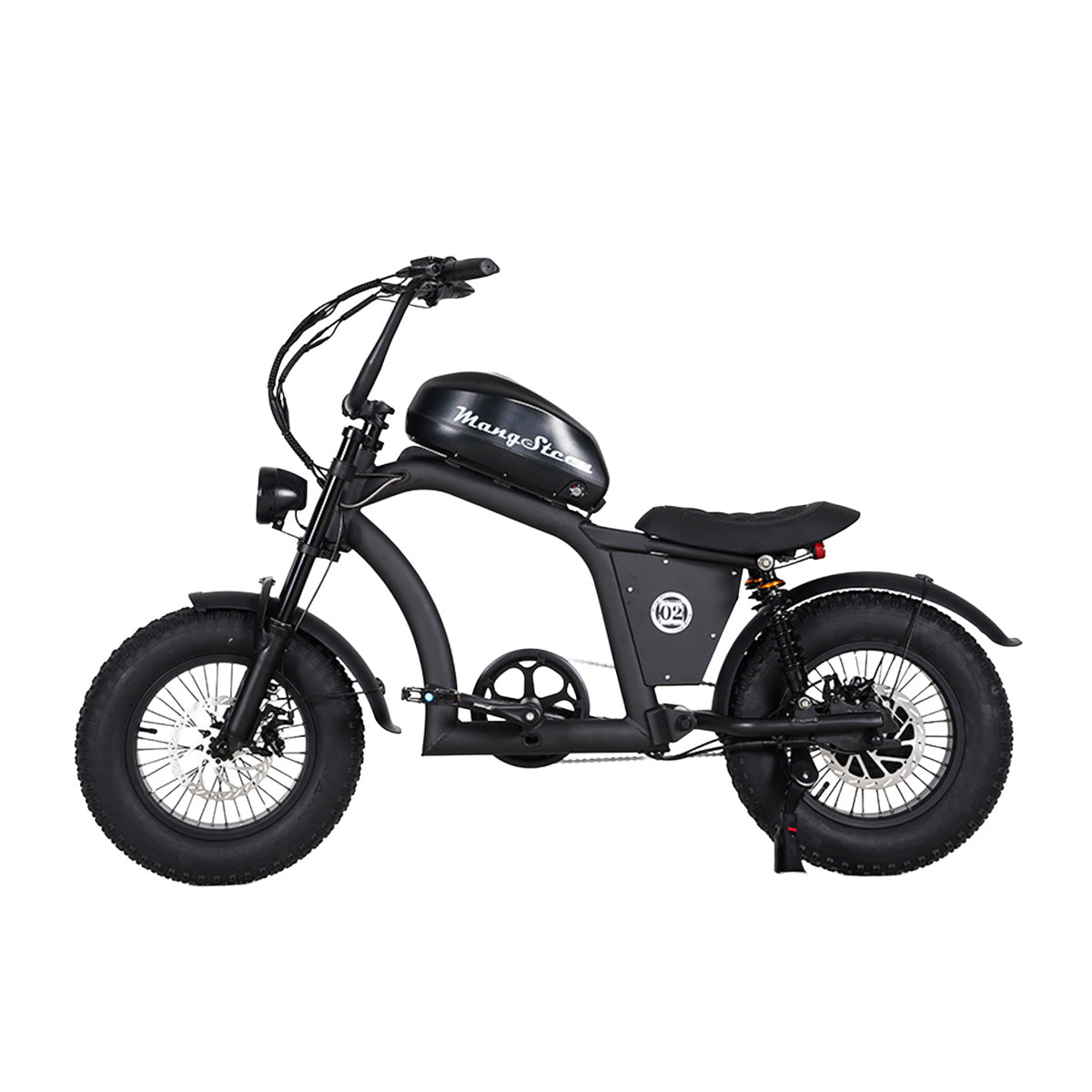

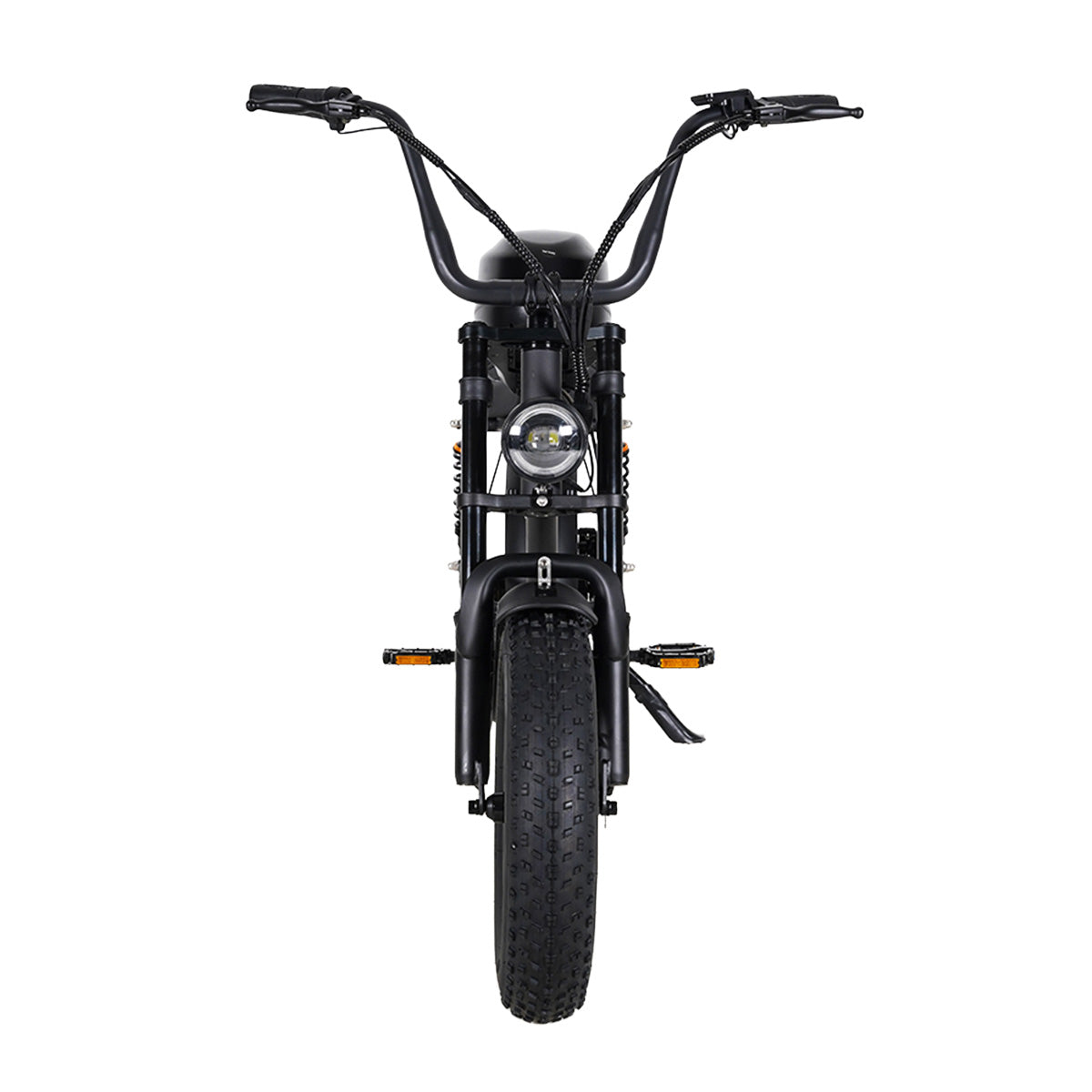

| Model | Mangosteen FT02 Mini E-Bike – Latest 2025 Model |
|---|---|
| Type | Mini Electric Bike / E-Bike |
| Motor | 250W Geared Hub Motor (500W Peak Output) |
| Battery | 48V 22.5Ah (≈1080Wh) Removable Lithium-Ion |
| Top Speed | 25 km/h (≈15.5 mph) Standard – Unlockable up to 40 km/h (≈25 mph) |
| Range | Up to 90 km (≈56 miles) Electric Mode / 90–120 km (≈56–75 miles) Pedal-Assist |
| Climbing Ability | Up to 15° Gradient |
| Frame | All-Aluminum Alloy Frame, Lightweight & Durable |
| Suspension | Front & Rear Hydraulic Spring Shocks |
| Tires | 16″ × 4.0″ (≈40.6 × 10 cm) Fat Tires, City Road Pattern |
| Tire Pressure | 100–200 kPa (14.5–29 psi) |
| Brakes | Front & Rear Hydraulic Disc Brakes |
| Display | LCD Dashboard – Speed, Battery, Odometer, Gear Level |
| Lights | LED Headlight & Taillight for Safety |
| Throttle | Half-Grip Twist Throttle |
| Riding Modes | Pedal Assist (3 Levels), Throttle Mode, Cruise, Walk Assist |
| Charging Time | ≈4.5–5 Hours with 3A Charger |
| Max Load | 120 kg (≈265 lbs) |
| Net Weight | 41 kg (≈90 lbs) |
| Dimensions | 161 × 77 × 103 cm (≈63.4 × 30.3 × 40.5 in) |
| Seat | Cushioned Ergonomic Saddle |
| Fenders | Painted Plastic Front & Rear Fenders |
| Certification | CE & EEC Certified – EU Compliant |
*Performance may vary depending on rider weight, terrain, riding style, and environmental conditions.
