PIXAR Ride1 Fat-Tyre City Electric Bike
- 48V 500W JIABO Hub Motor
- Up to 60 km Pedal-Assist Range
- Shimano 7-Speed Drivetrain
- 20″ × 4.0″ Fat Tyres
- Heavy-Duty Steel Frame + Rear Rack
- Color:
- Black
Pairs well with
Delivery in 2 to 4 working days
Hassle-Free Returns within 30 Days
2-Year Warranty Coverage
Trusted, Award-Winning Support Team
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Waterproof IP65
Long-Range Power
Fat Tire Stability
Cargo-Ready Design
Smart LCD Display

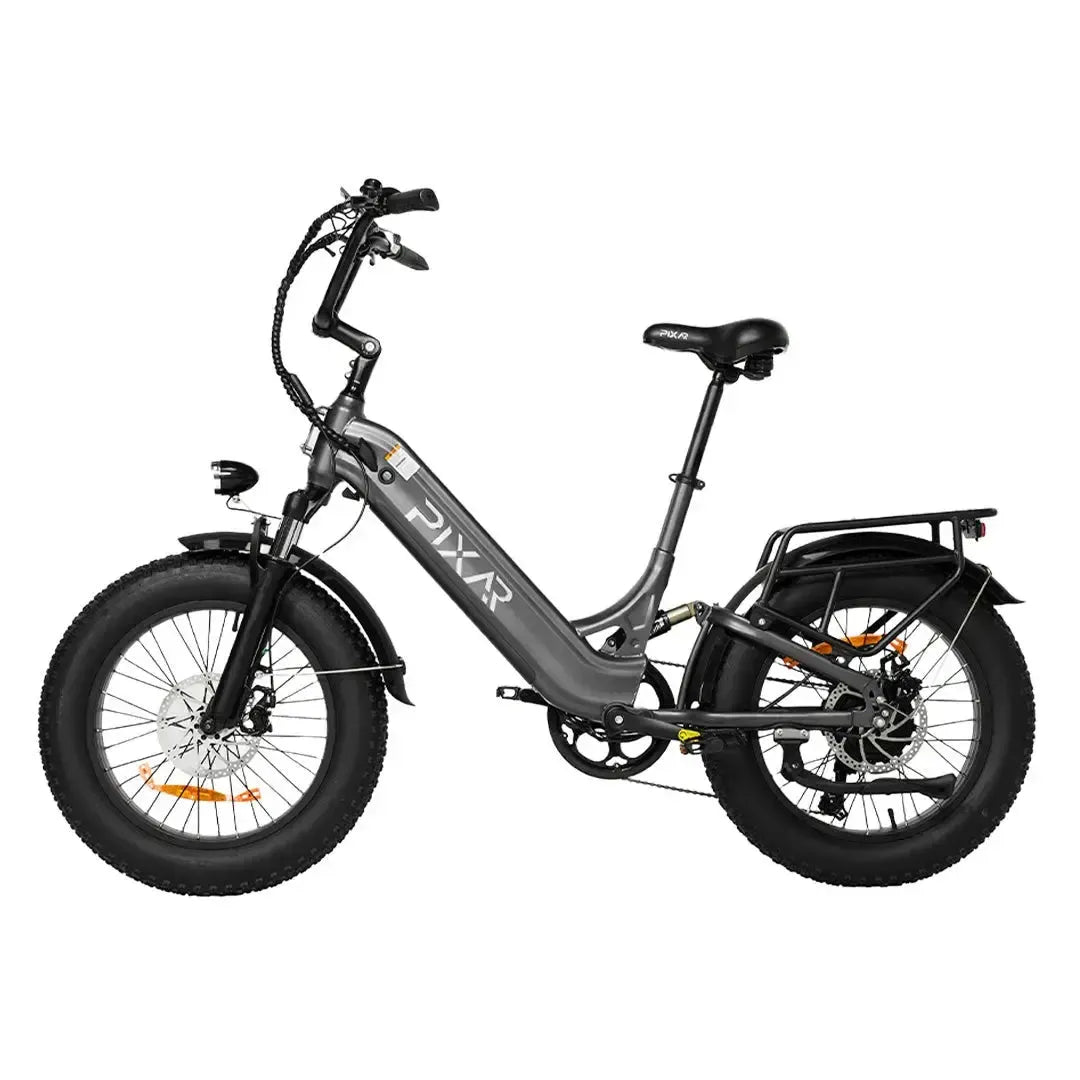

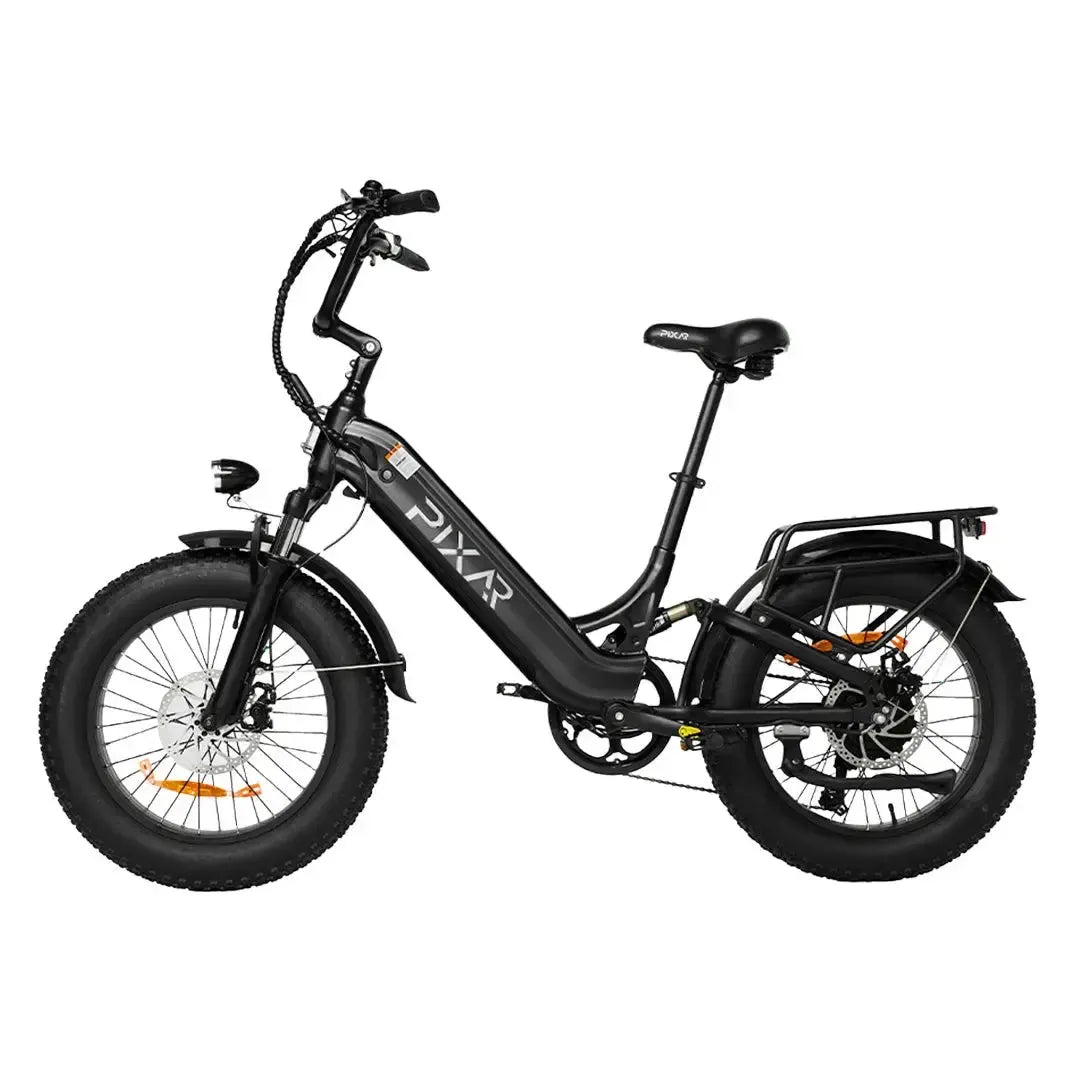

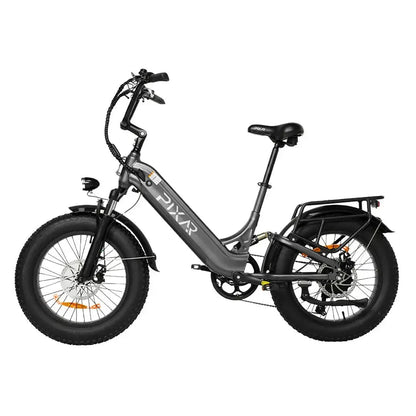

The PIXAR RIDE1

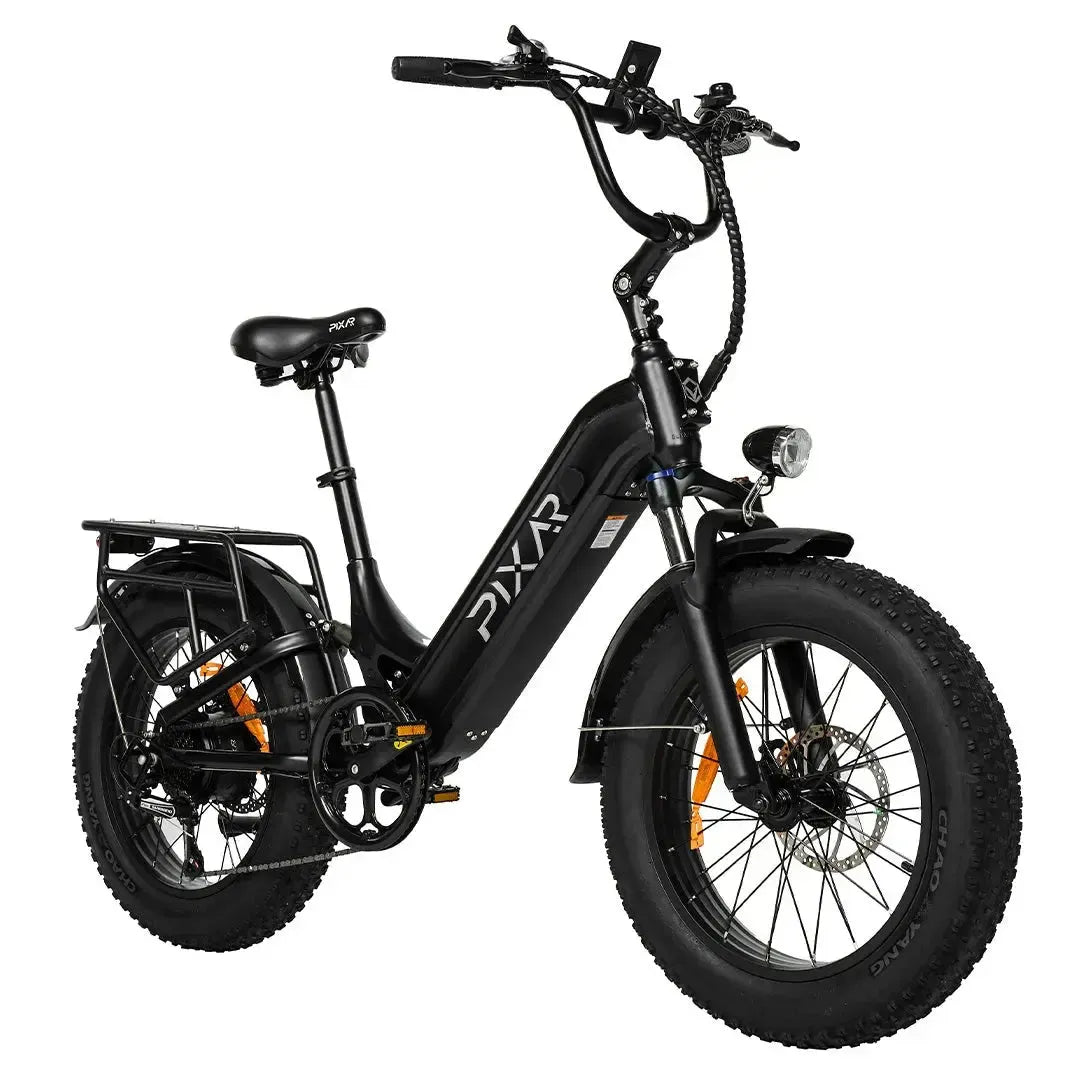

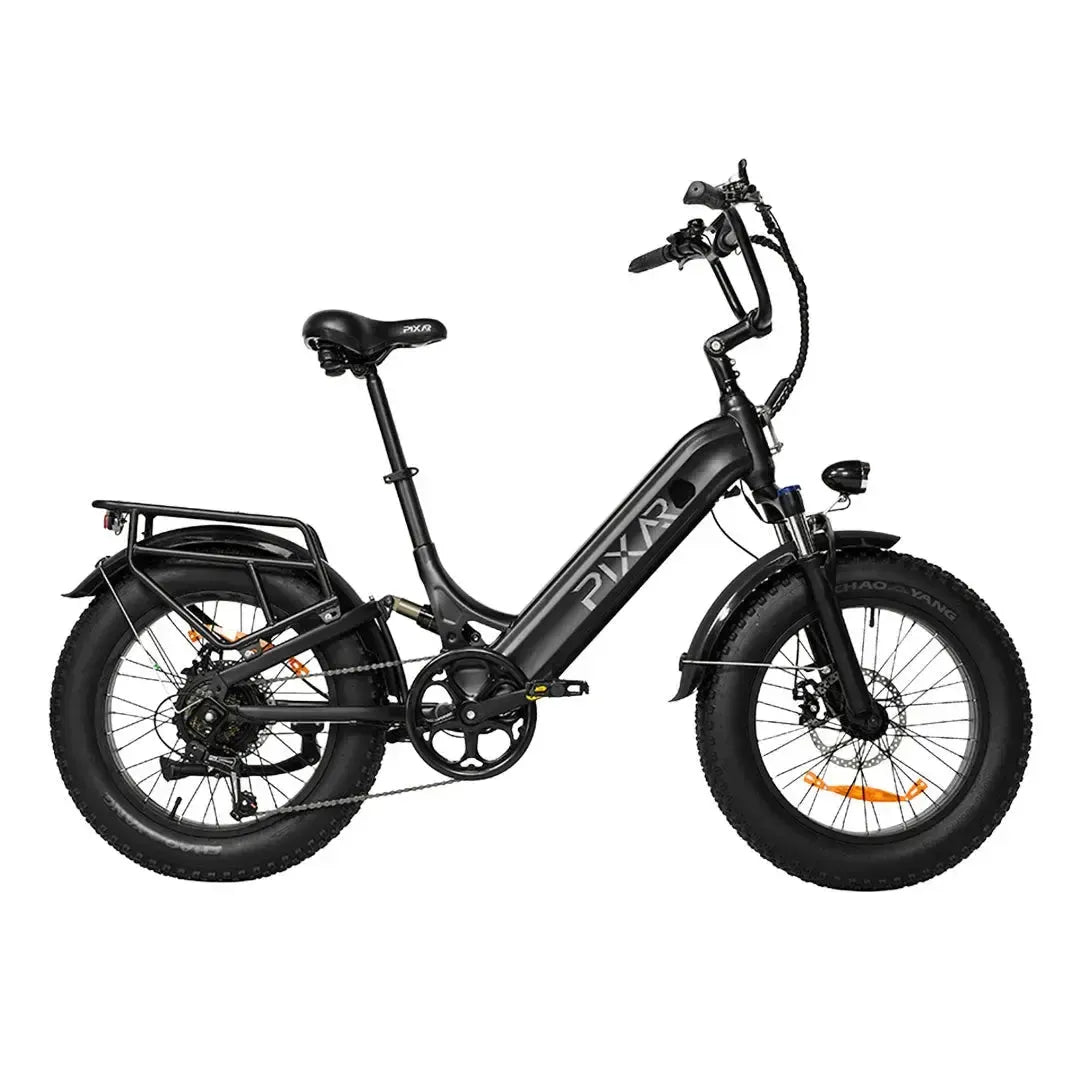

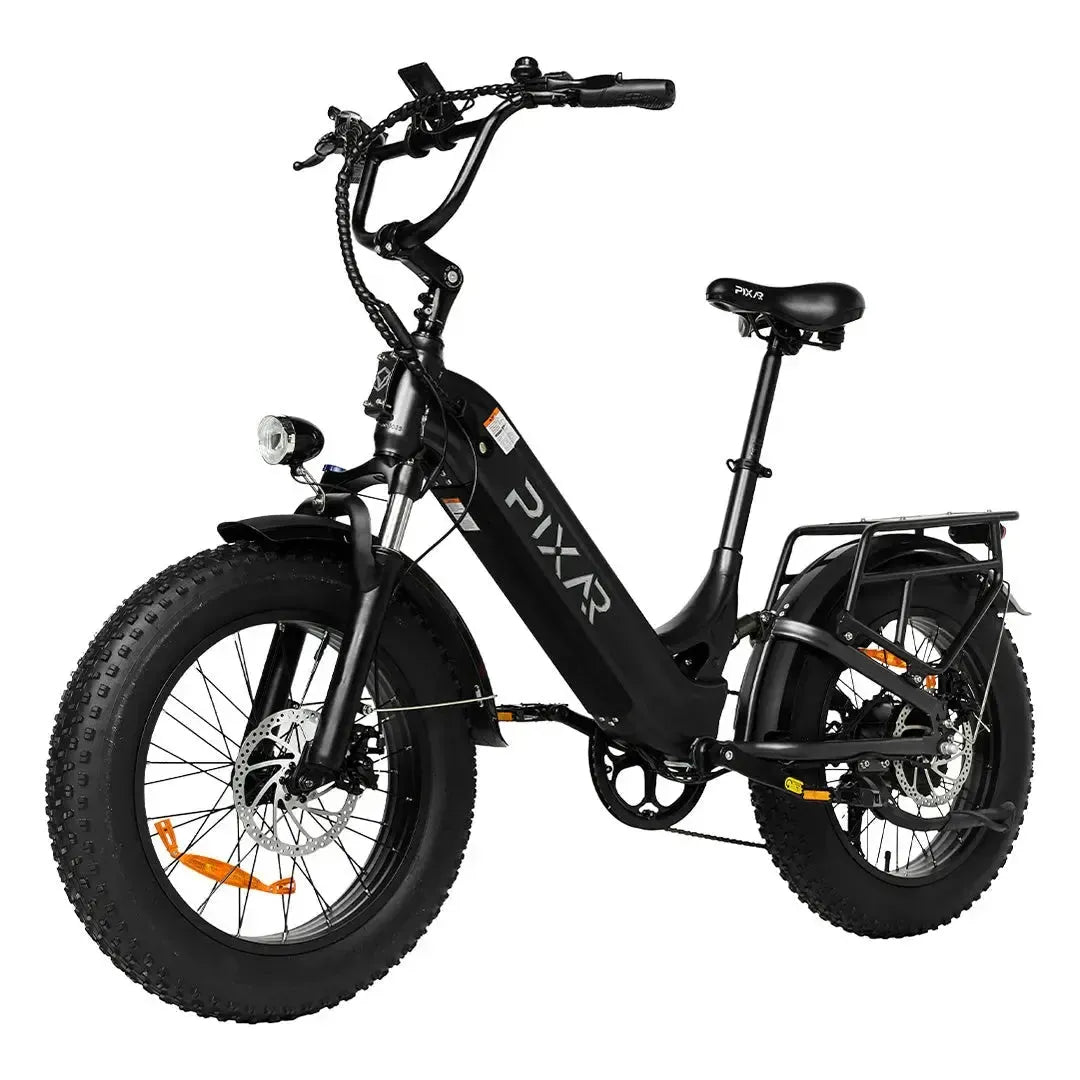

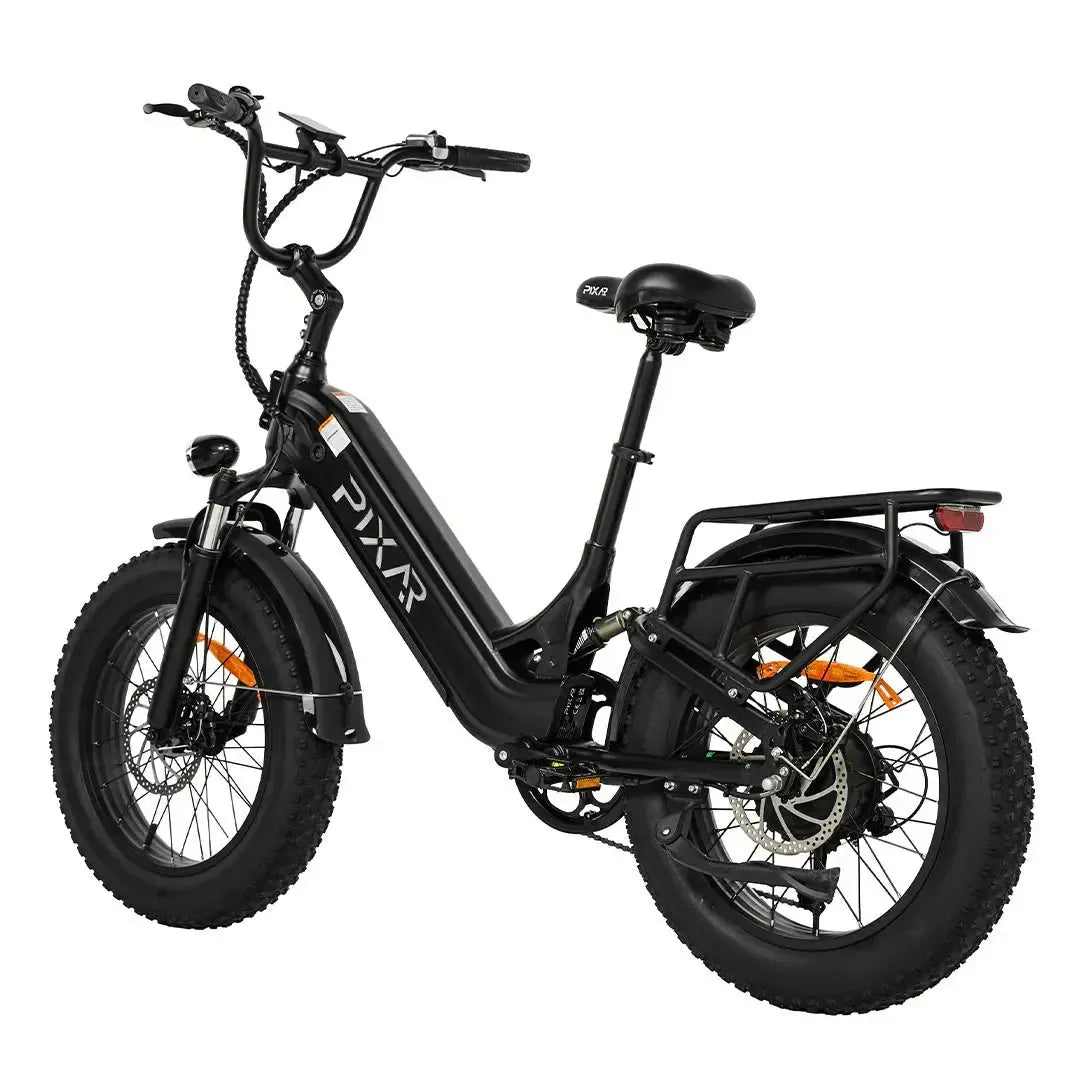

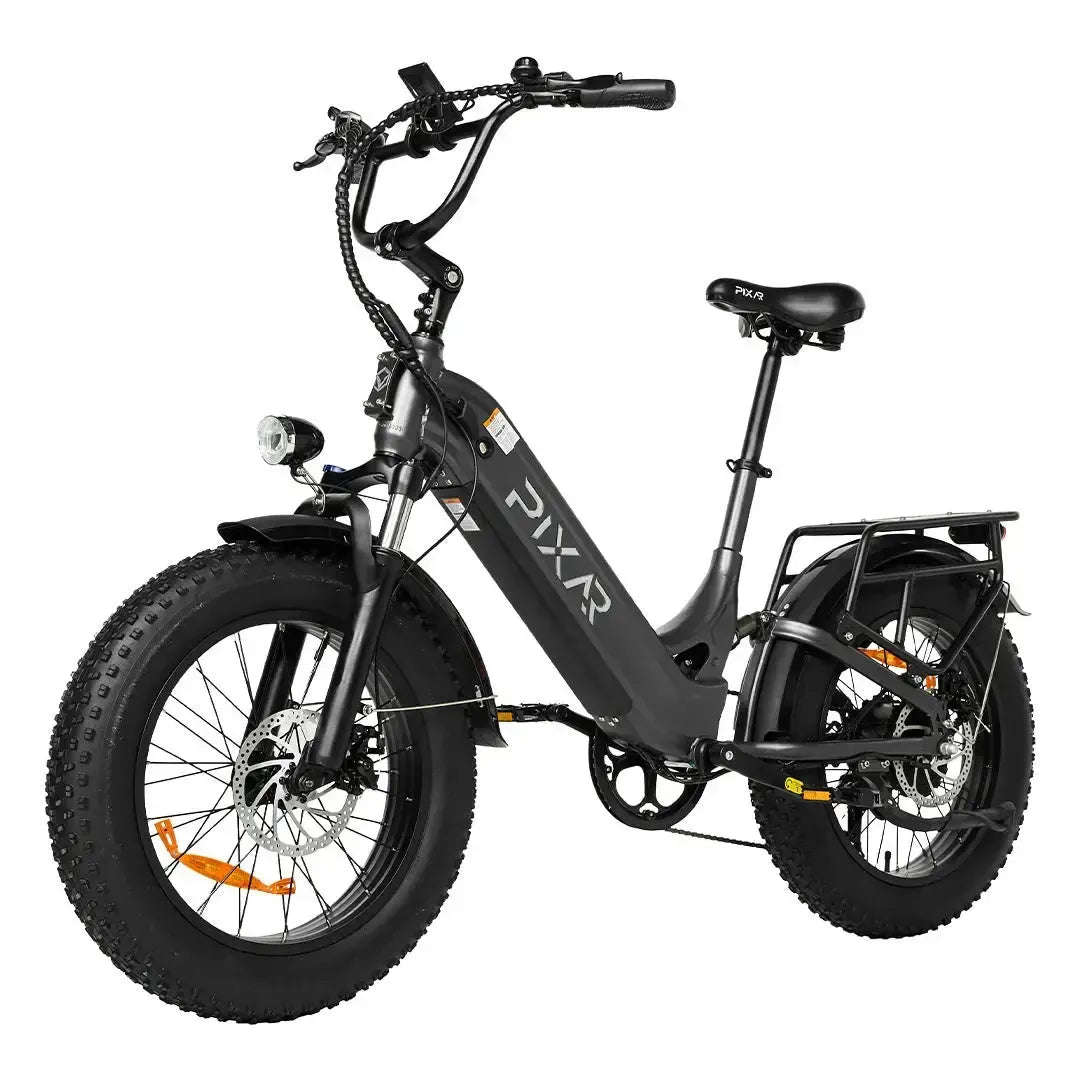

The PIXAR® Ride1 Electric Bike delivers a powerful and practical ride, ideal for both urban commutes and weekend adventures. Equipped with a 48V 500W JIABO hub motor and a 48V 10.4Ah lithium battery (EVE 21700 cells), the Ride1 offers up to 60 km pedal-assist range or 30 km on throttle-only. Its steel frame, suspension fork with lockout, and Chaoyang 20″ × 4.0″ fat tyres provide durability, comfort, and stability across varied terrains. With Shimano 7-speed gearing, mechanical disc brakes, and a mid-mounted LCD display with USB Type-C charging, the Ride1 blends performance, safety, and everyday practicality. Finished with integrated lights, PVC fenders, and a strong rear rack, this e-bike is designed for heavy-duty riders who need both power and utility.
PIXAR
PIXAR E-Bike was founded in 2013, bringing together over a decade of experience in the bicycle industry. The brand is built on three core values: Integrity, Innovation, and Win-Win Collaboration, which shape how they design, produce, and support their e-bikes. From the start, PIXAR has emphasized high-grade materials, rigorous manufacturing standards, and safety compliance to earn a reputation for dependable, premium electric bikes.
Here’s a fun detail: despite sharing a name with the famous animation studio, PIXAR E-Bike is entirely unrelated—they chose the name because it evokes creativity, dynamism, and forward motion, tying nicely into their mission of “powering the e-bike revolution” whether for city commuting, boulevard cruising or weekend getaways.
Specifications
General Details
- Steel frame with GALAXY basket mounting compatibility
- Suspension fork with lockout
- Net weight: 37.5 kg / Gross: 48.2 kg
- Max load: 150 kg
- Toolkit & PDF manual included
Performance & Battery
- 48V 500W JIABO brushless hub motor

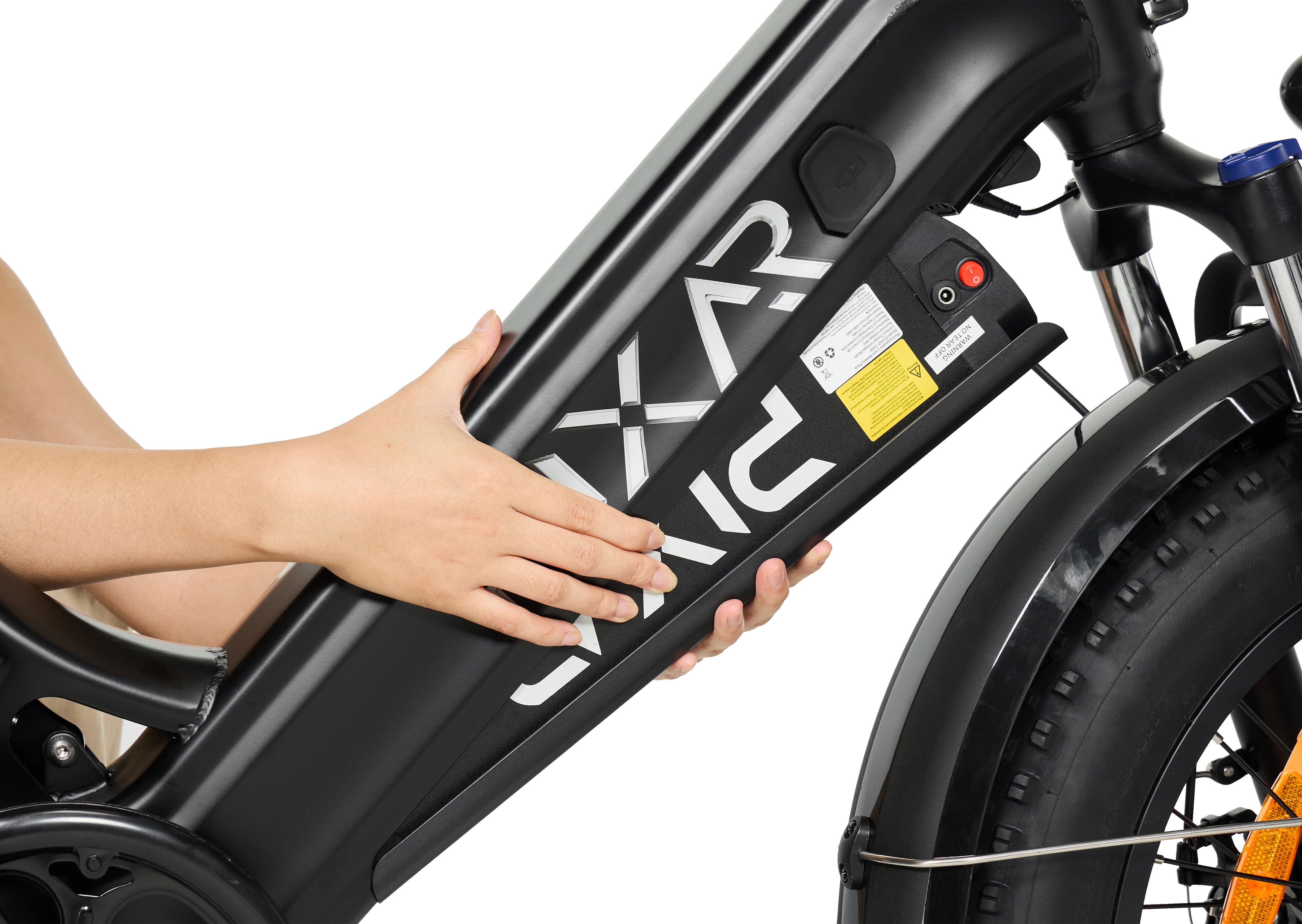

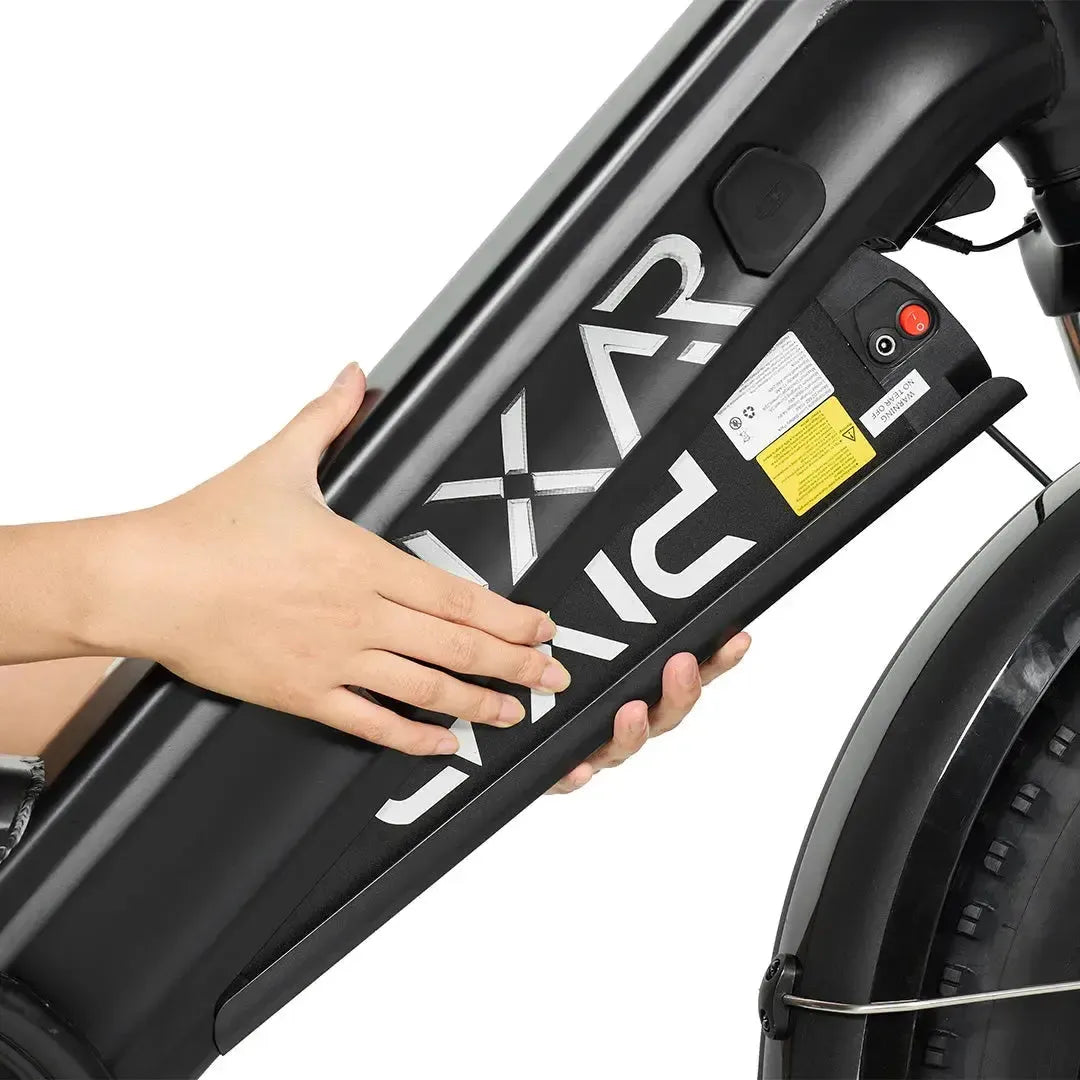

- 48V 10.4Ah lithium-ion battery (EVE 21700 cells)
- Range: 60 km PAS / 30 km throttle
- Charging time: ~5.2 hours (54.6V 2A charger)
Speed & Motor
- EU-legal 25 km/h, unlockable to 32 km/h
- 5 pedal-assist levels
- Half-grip throttle with waterproof connector
- 12-magnet speed sensor
Dimensions & Weight
- Tyres: Chaoyang 20″ × 4.0″ fat tyres

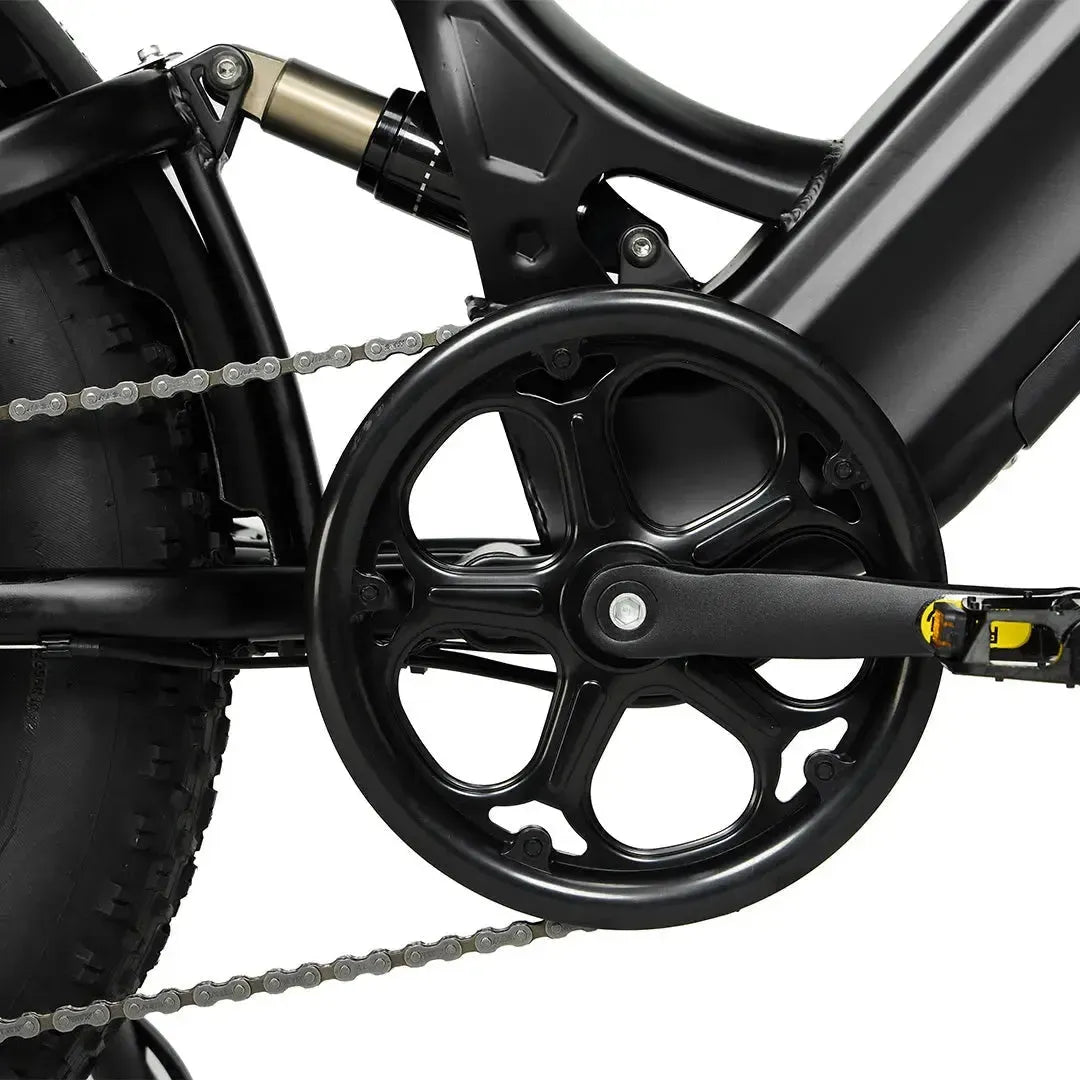

- Crankset: 52T × 170 mm
- Net weight: 37.5 kg
- Max load capacity: 150 kg
Load & Climbing
- Max load capacity: 150 kg
- 500W motor with strong climbing torque
- Shimano 7-speed gearing (TX50 shifter, TY21 derailleur)

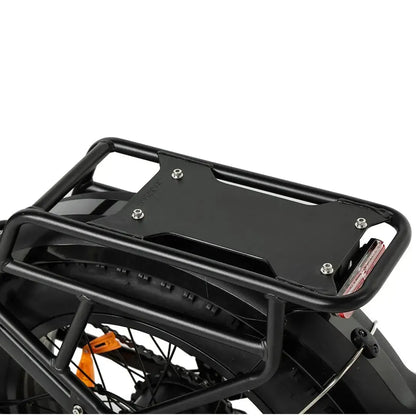

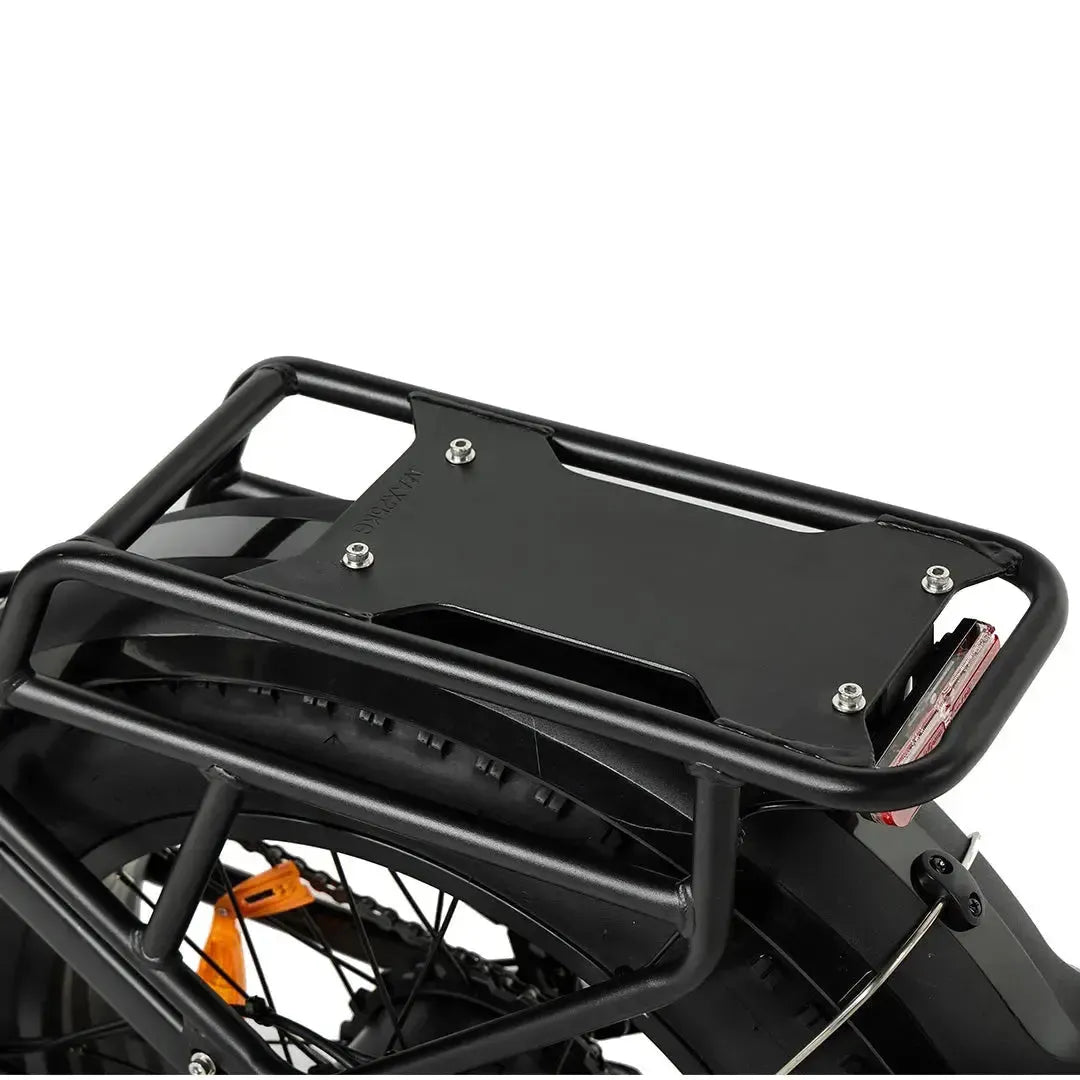

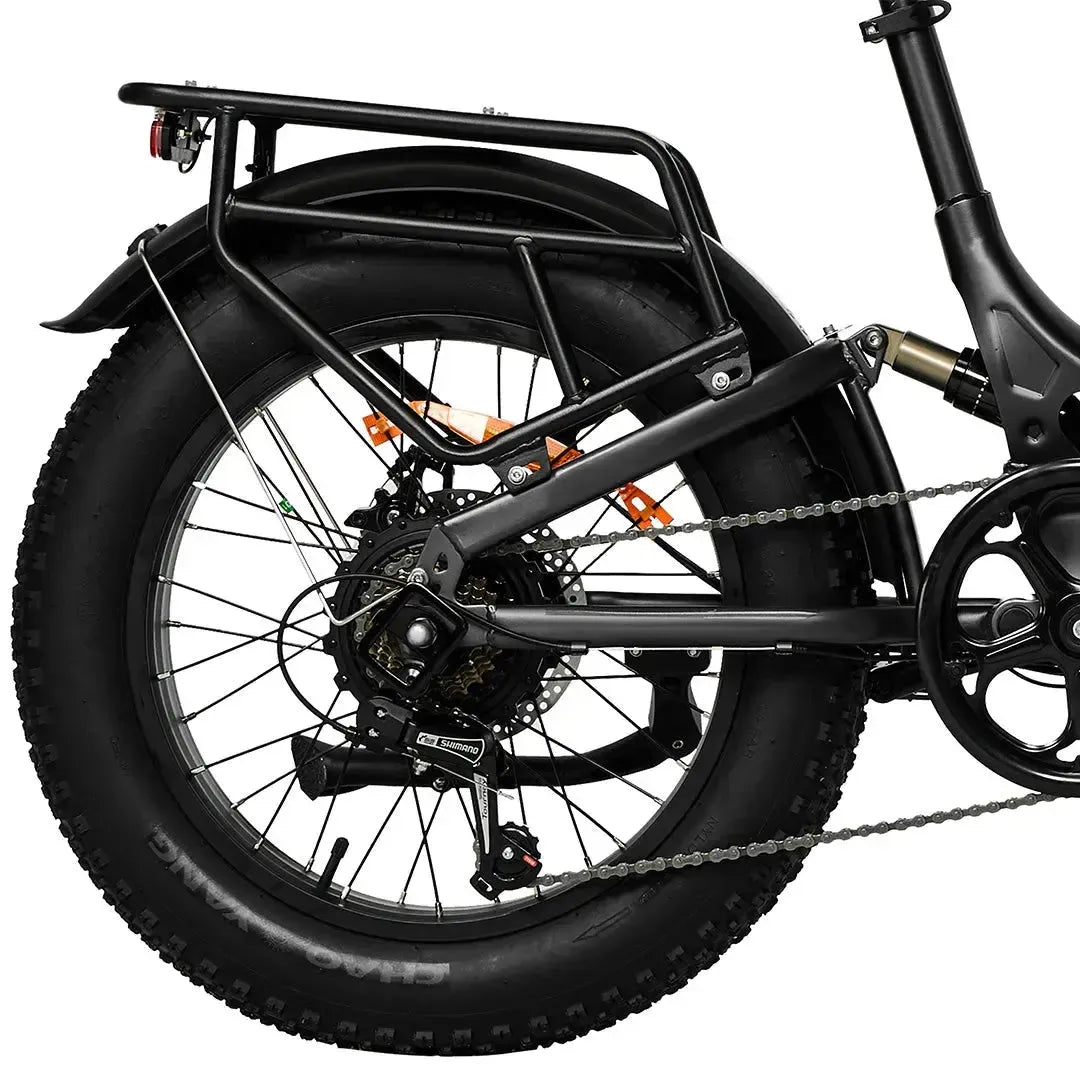

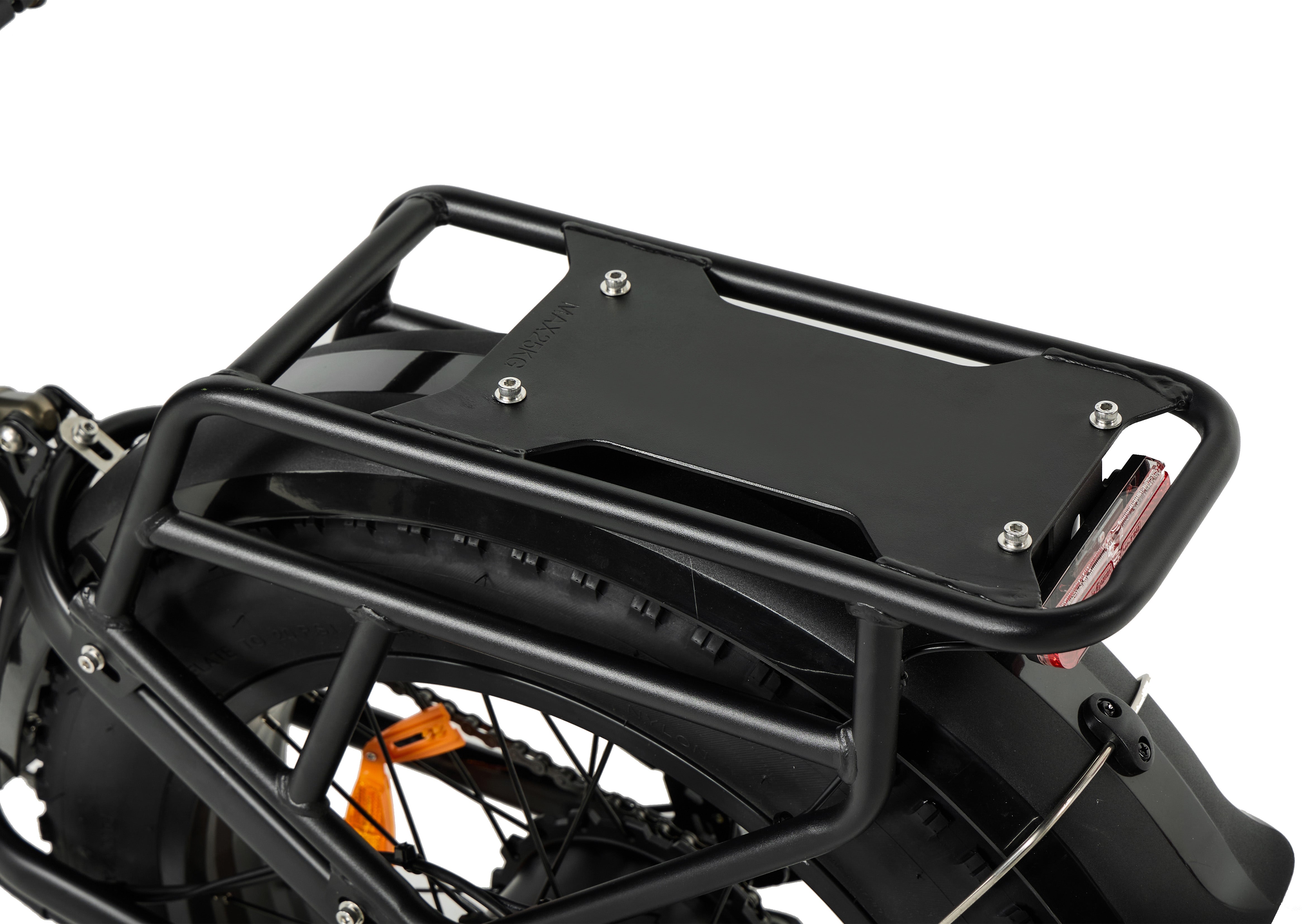

- Rear steel rack for utility use
- Steel frame built for durability
Tires, Brakes & Waterproofing

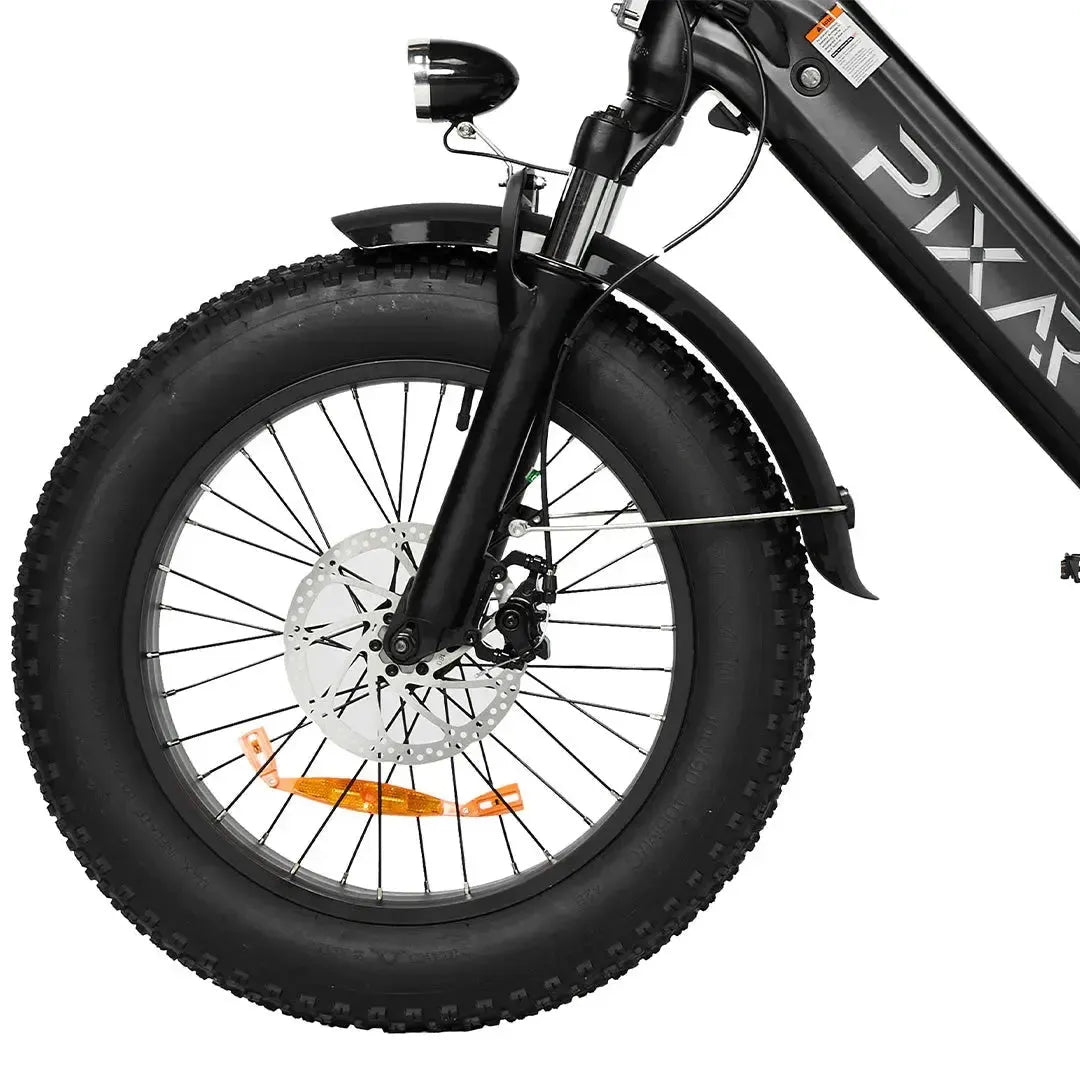

- 20″ × 4.0″ Chaoyang fat tyres for traction and stability

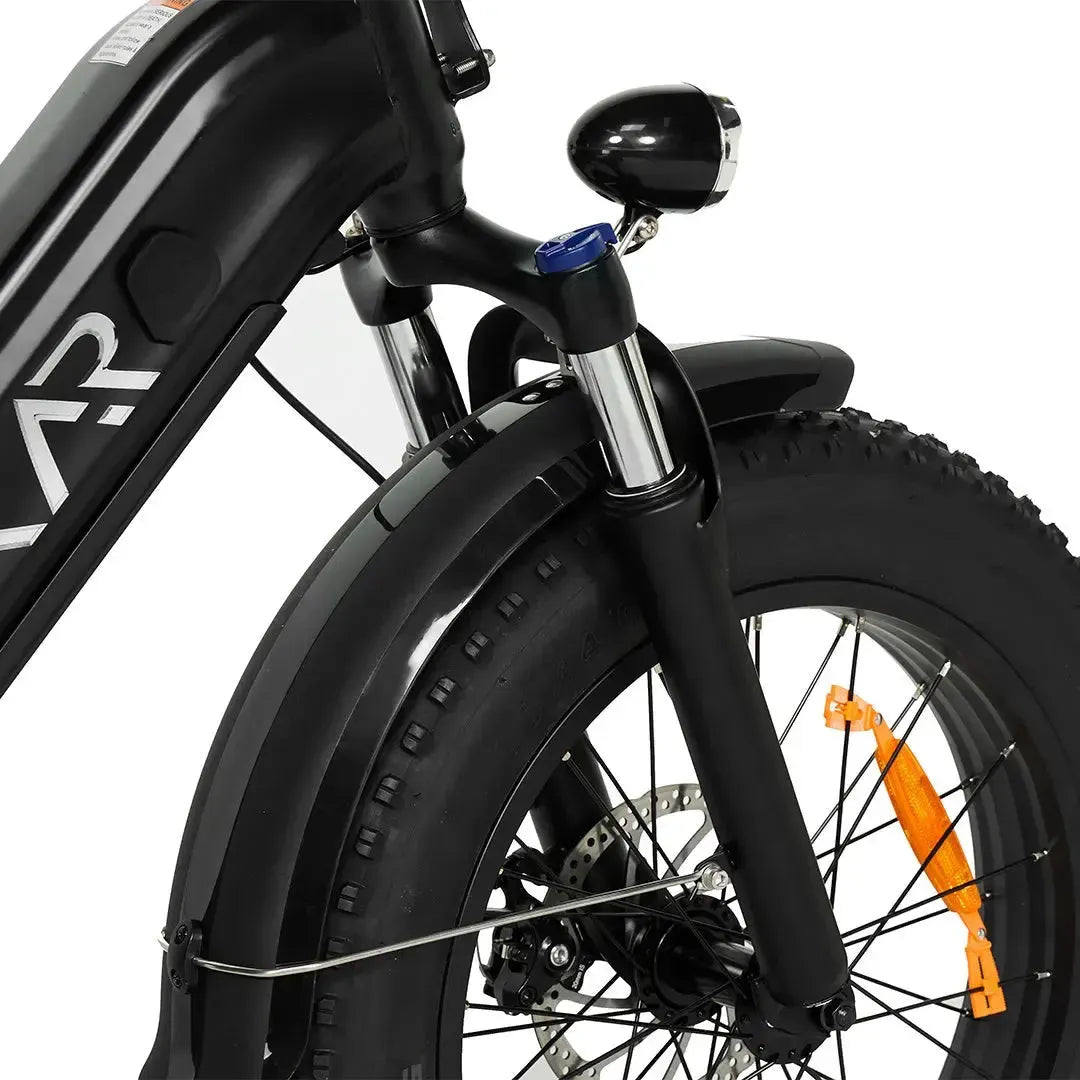

- Suspension fork (steel stanchion + aluminium crown)
- Mechanical disc brakes (FILAIR) with square pads
- Front & rear PVC matte black fenders
More Features

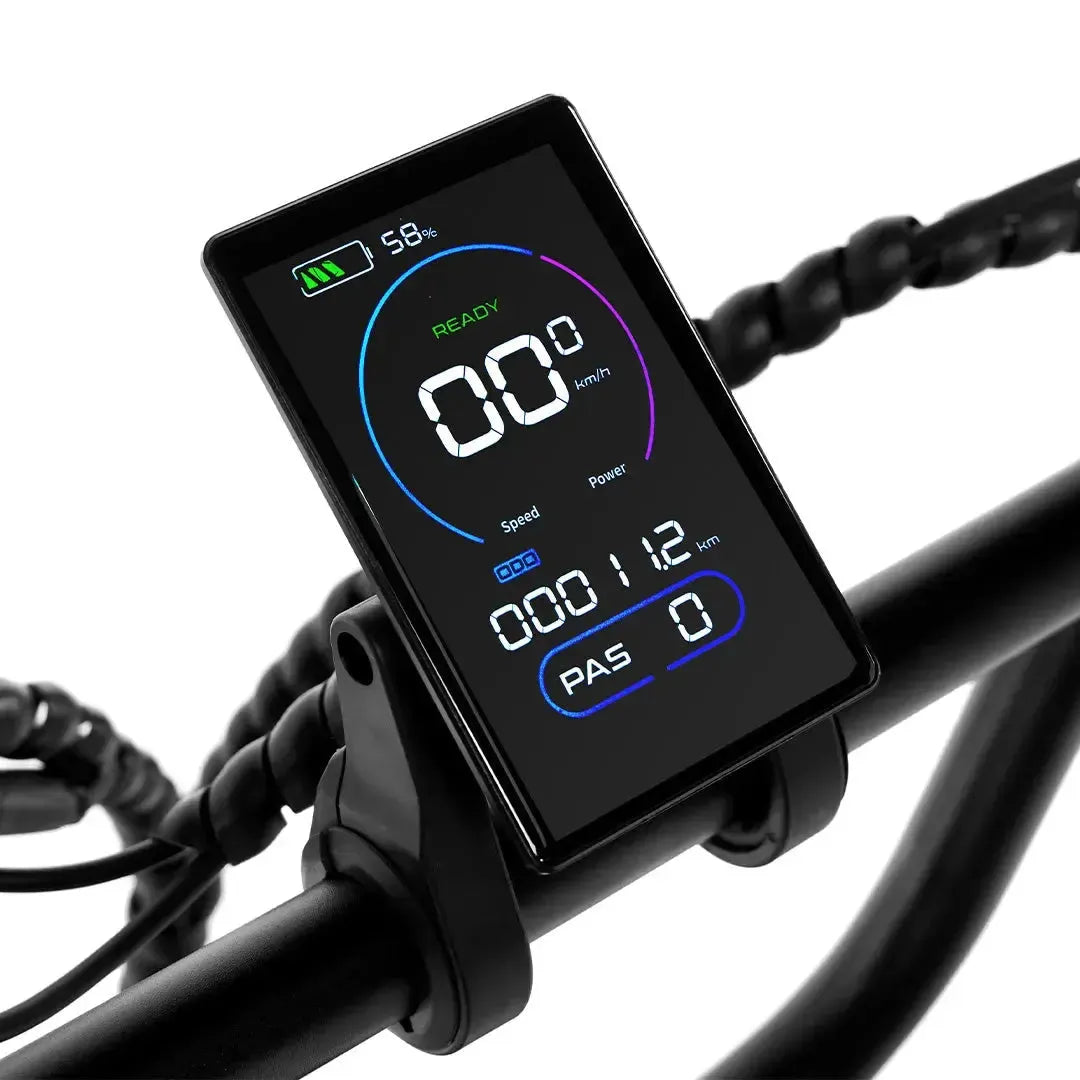

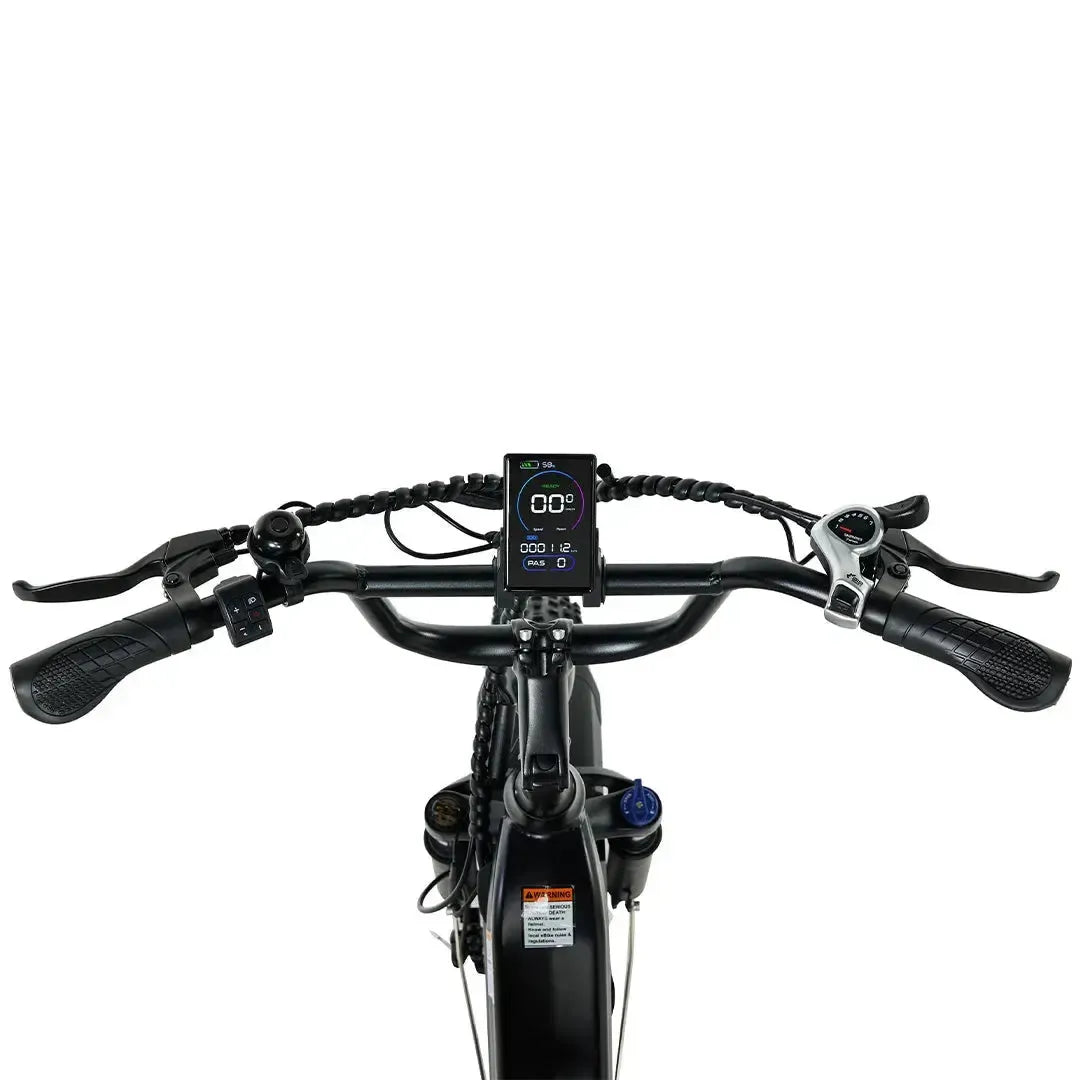

- Mid-mounted LCD display (PAS, battery, speed, trip, USB-C port)

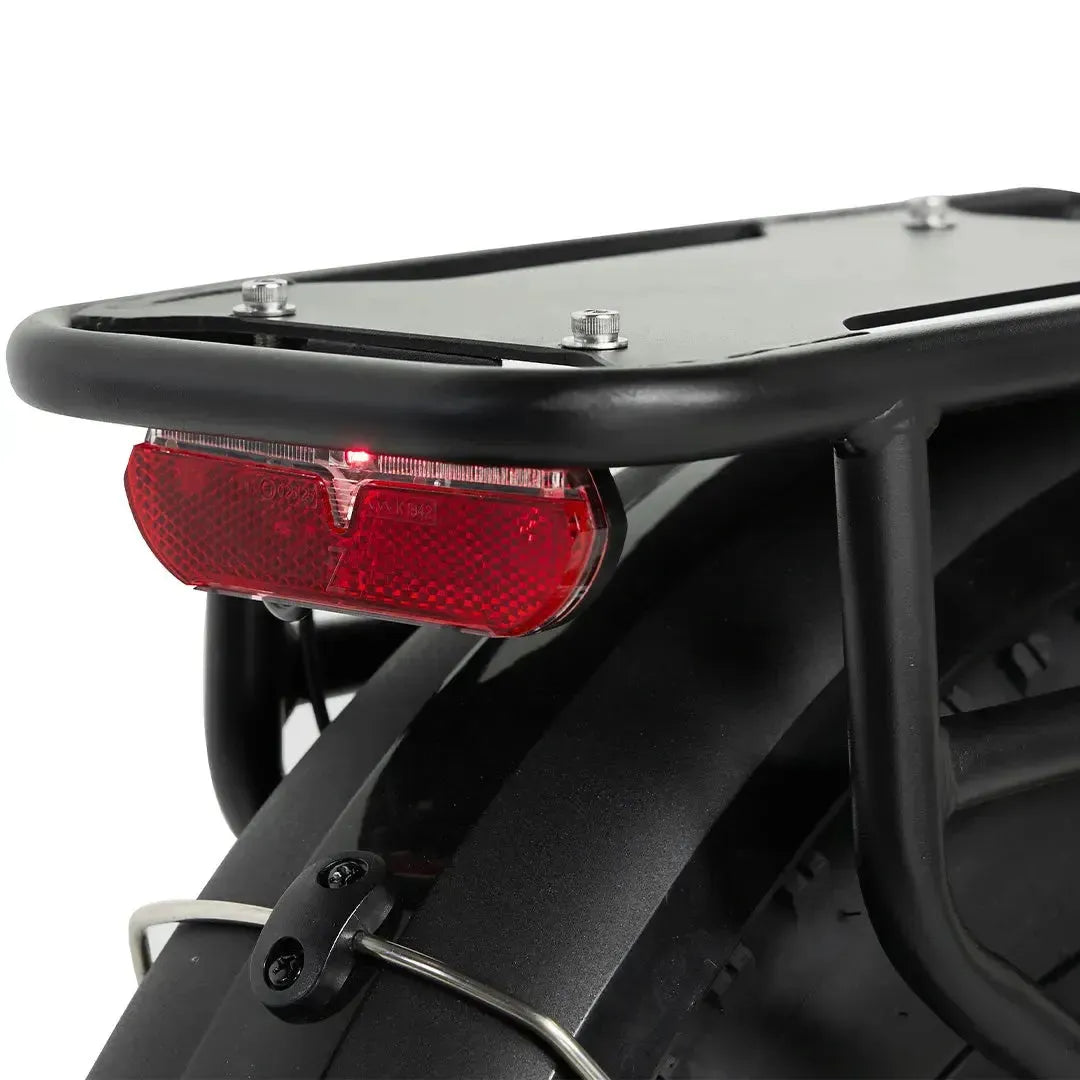

- Front & rear LED lights with waterproof connectors

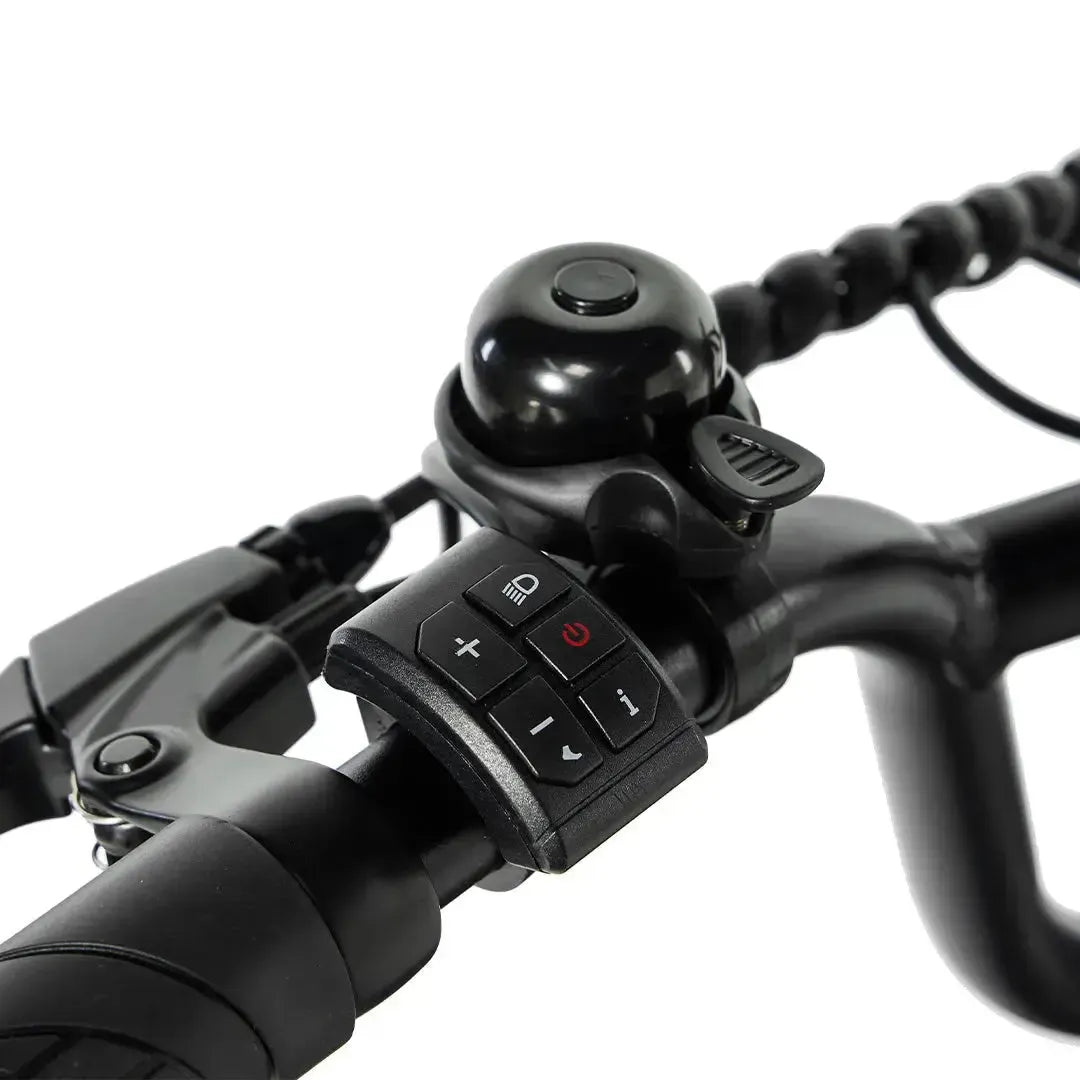

- Included bell and electric horn remote
- Waterproof wiring and rust-resistant fasteners

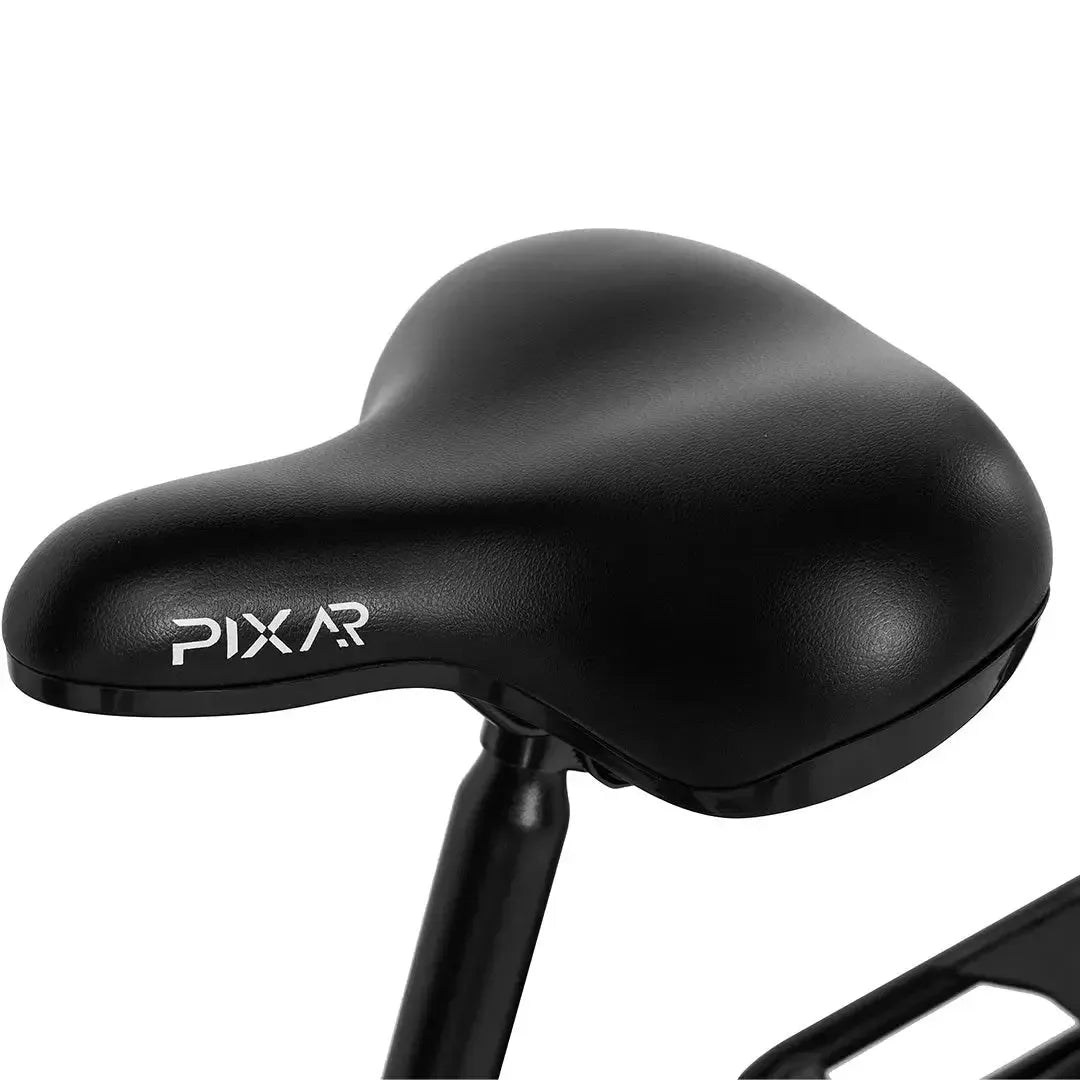

- Steel kickstand and comfort saddle
Full Description
The PIXAR® Ride1 Electric Bike is engineered for rugged performance and everyday convenience. Its 48V 500W JIABO brushless hub motor, managed by a KCHQ 48V controller, delivers smooth power and reliable acceleration. The 48V 10.4Ah lithium-ion battery (26 × 5000 mAh EVE 21700 cells) provides up to 60 km pedal-assist range or 30 km throttle-only, making it versatile for commuting or recreation.

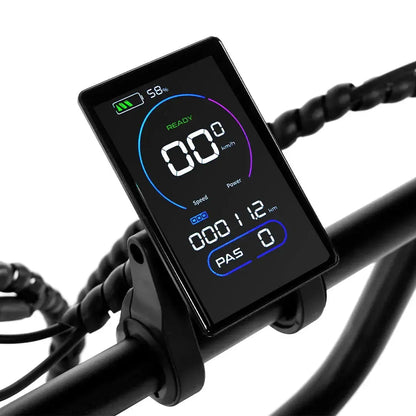

A mid-mounted LCD display provides ride data including PAS level, battery status, speed, and trip details, while also offering a USB Type-C port for charging devices. The bike supports 5 PAS levels, walk assist, and includes a half-grip throttle with waterproof connection.
Built on a durable steel frame with GALAXY basket mounting compatibility, the Ride1 weighs 37.5 kg net and can carry up to 150 kg load capacity. A 20″ suspension fork with lockout and 20″ × 4.0″ Chaoyang fat tyres deliver stability, traction, and comfort on both paved and off-road paths.

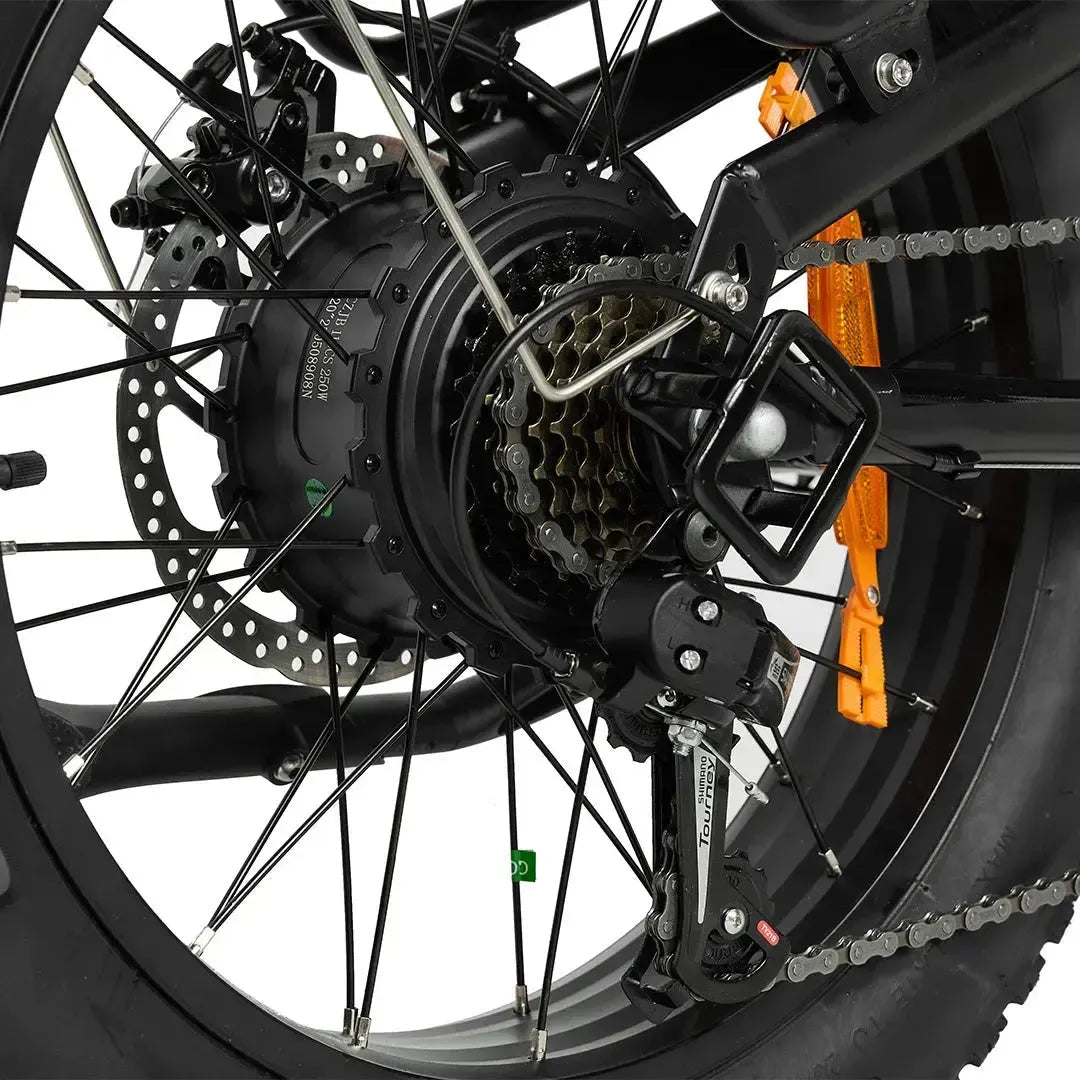

The Shimano 7-speed drivetrain (TX50 shifter, RD-TY21 derailleur, ATA freewheel) ensures smooth shifting across different terrains. Safety comes from FILAIR mechanical disc brakes with square pads, paired with front and rear LED lights and an included bell.
Practical extras include rust-resistant screws, pre-connected waterproof wiring, PVC matte fenders, a steel kickstand, and a heavy-duty rear rack for cargo. Charging takes approximately 5.2 hours with the 54.6V 2A charger, making it efficient for daily use.
With IP54 water resistance, a 12-magnet speed sensor, and a comfort-oriented design, the PIXAR Ride1 stands out as a reliable fat-tyre e-bike built for performance, safety, and durability.
What's in the Box?
PIXAR RIDE1
Charger
Tool Kit
User Manual
FAQs
Delivery
2–4 days standard shipping. Need it sooner? Express shipping is available at checkout.
Warranty
Includes a 2-year warranty. Any issues? Just head over to our Warranties page
Payments
We accept all major payment methods—credit & debit cards, PayPal, and more.
Returns
Easy 30-day returns from delivery—just send it back in its original condition for a refund or exchange.
Legal Use Disclaimer
Electric scooters and e-bikes are subject to local laws and regulations, which vary by country, region, and city. Before purchasing or operating this product, it is the customer’s responsibility to check and comply with all applicable road, traffic, and safety regulations in their area.
This product may be restricted to private property use only in some locations. The seller accepts no responsibility for misuse or use that violates local laws. Always wear appropriate safety gear and ride responsibly.
