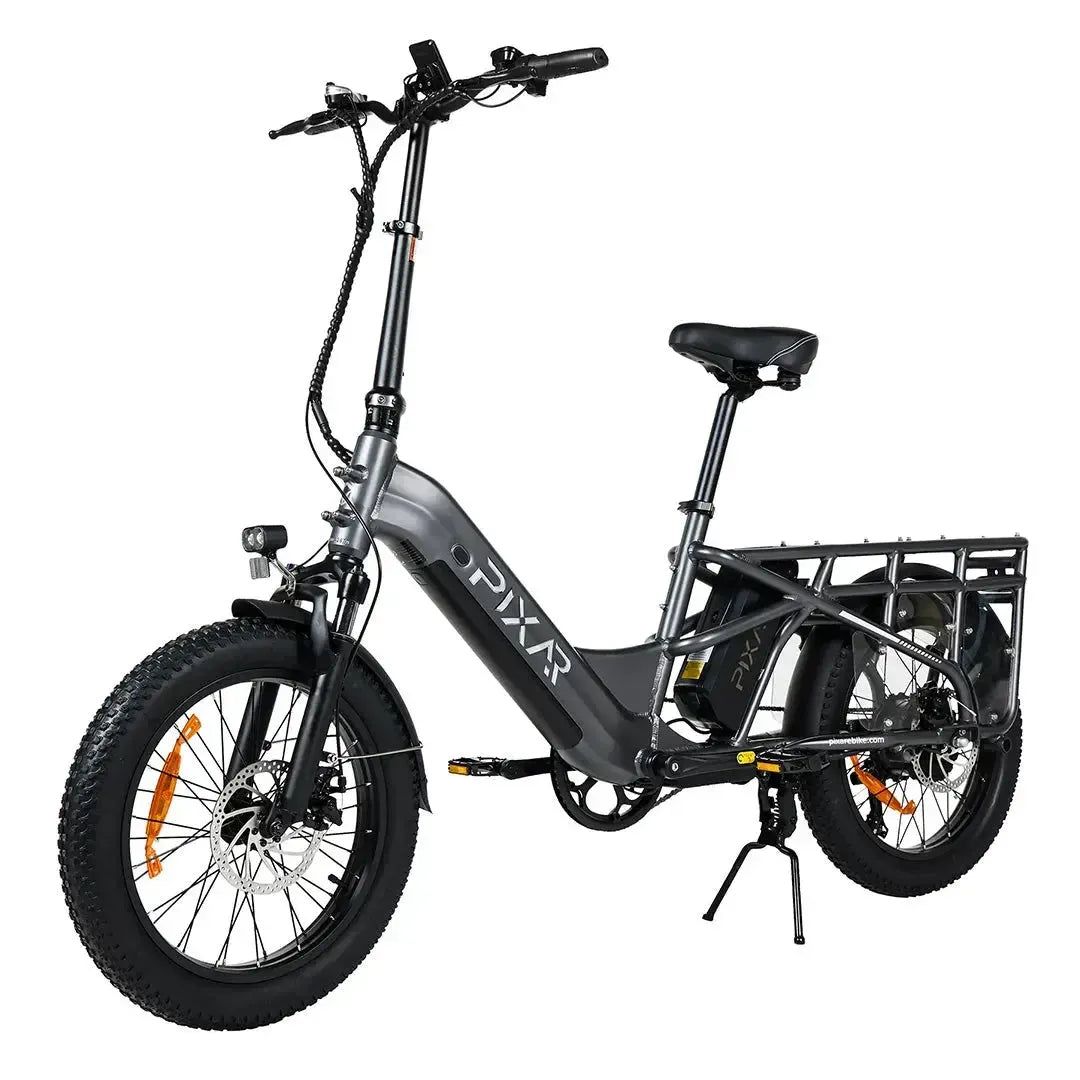

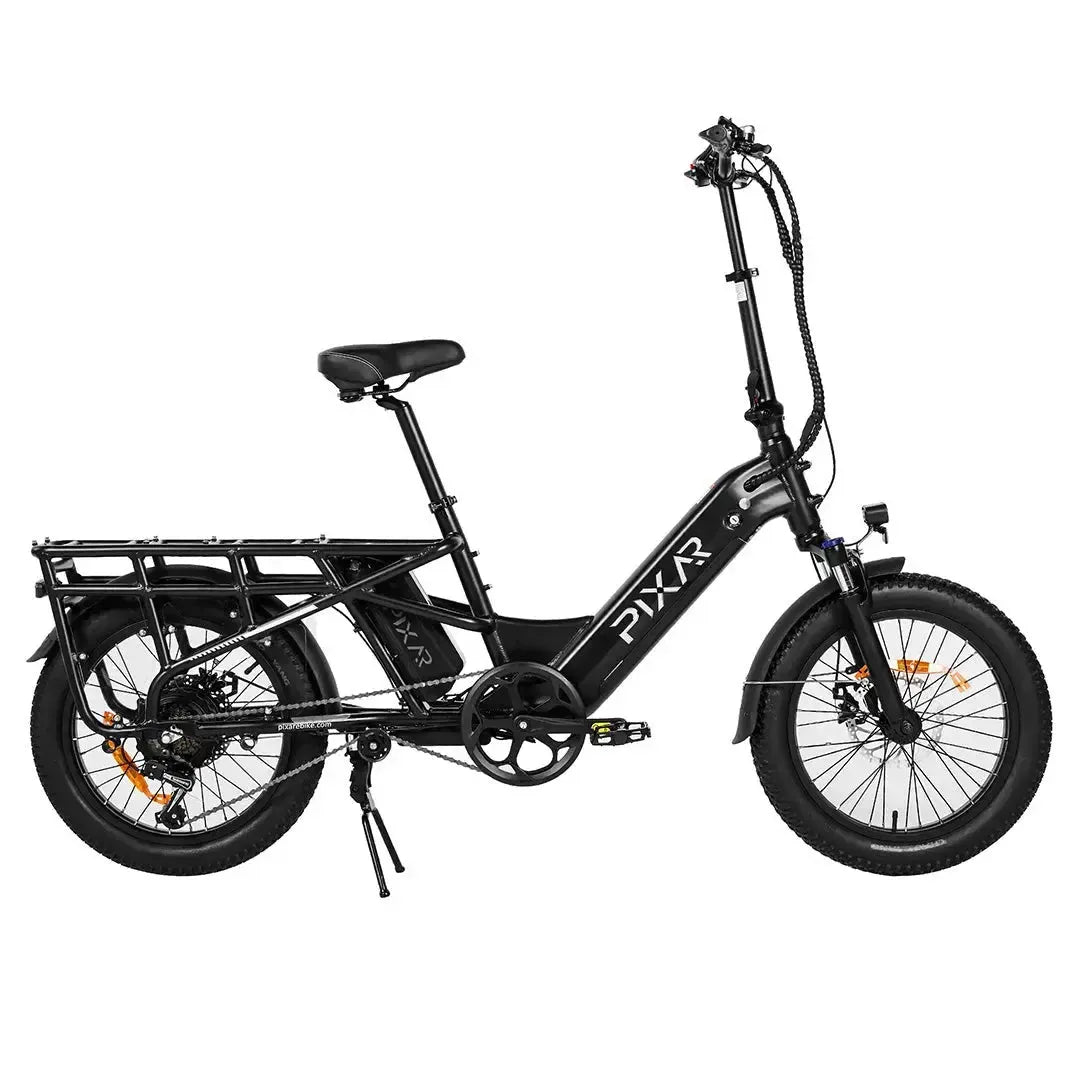

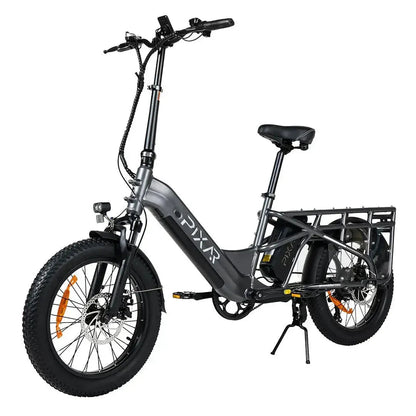

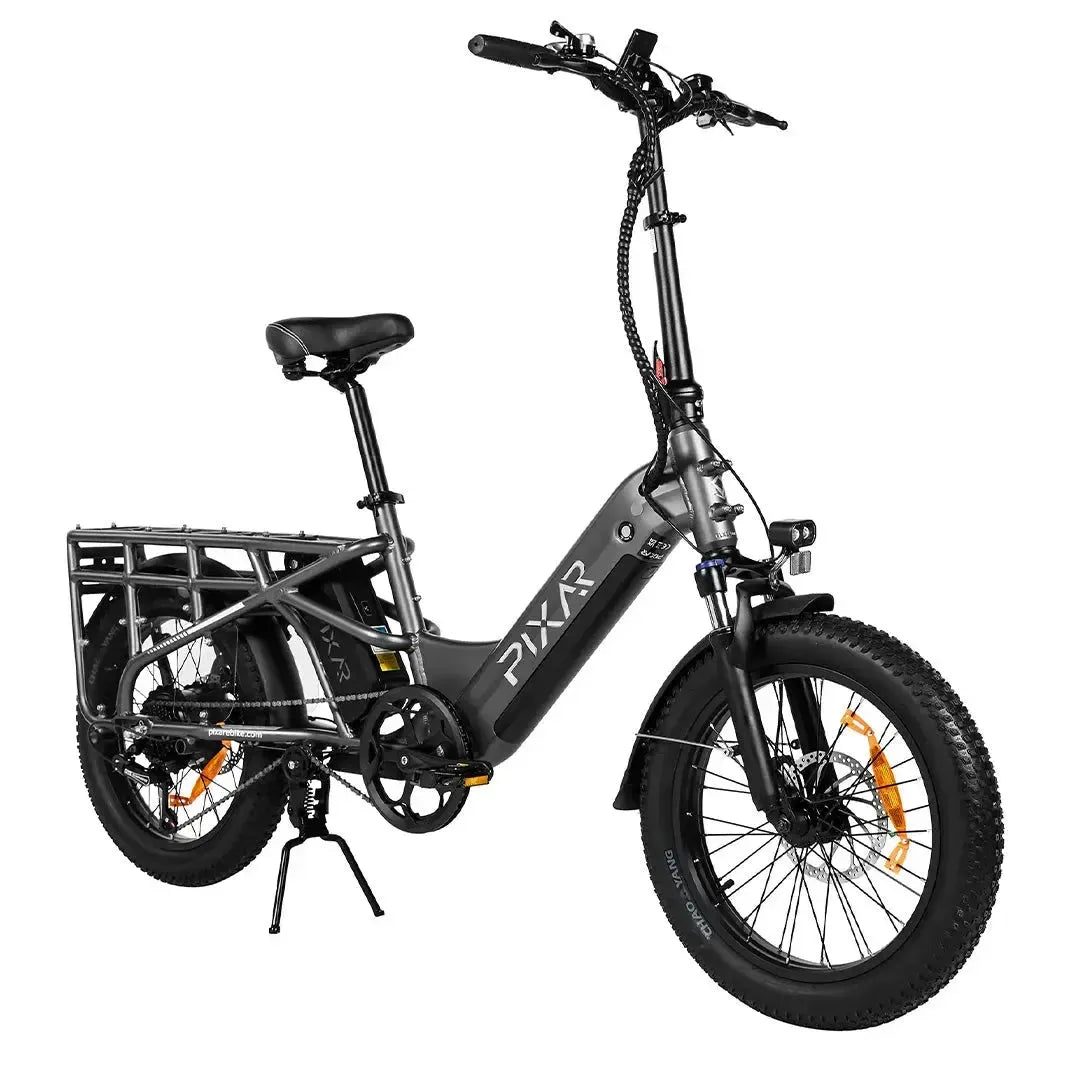

PIXAR® Plus7 Fat-Tyre Electric Bike
- 48V 500W JIABO Hub Motor
- Dual Battery Option (20.4Ah total)
- Up to 120 km Pedal-Assist Range
- Shimano 7-Speed Gearing System
- 20″ × 3.0″ Chaoyang Fat Tyres
- Color:
- Black
- Battery Capacity:
- 10AH
Pairs well with
Delivery in 2 to 4 working days
Hassle-Free Returns within 30 Days
2-Year Warranty Coverage
Trusted, Award-Winning Support Team
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Dual Battery Power
Fat-Tyre Comfort
Shimano 7-Speed
Long-Range Capability
Smart LCD Display

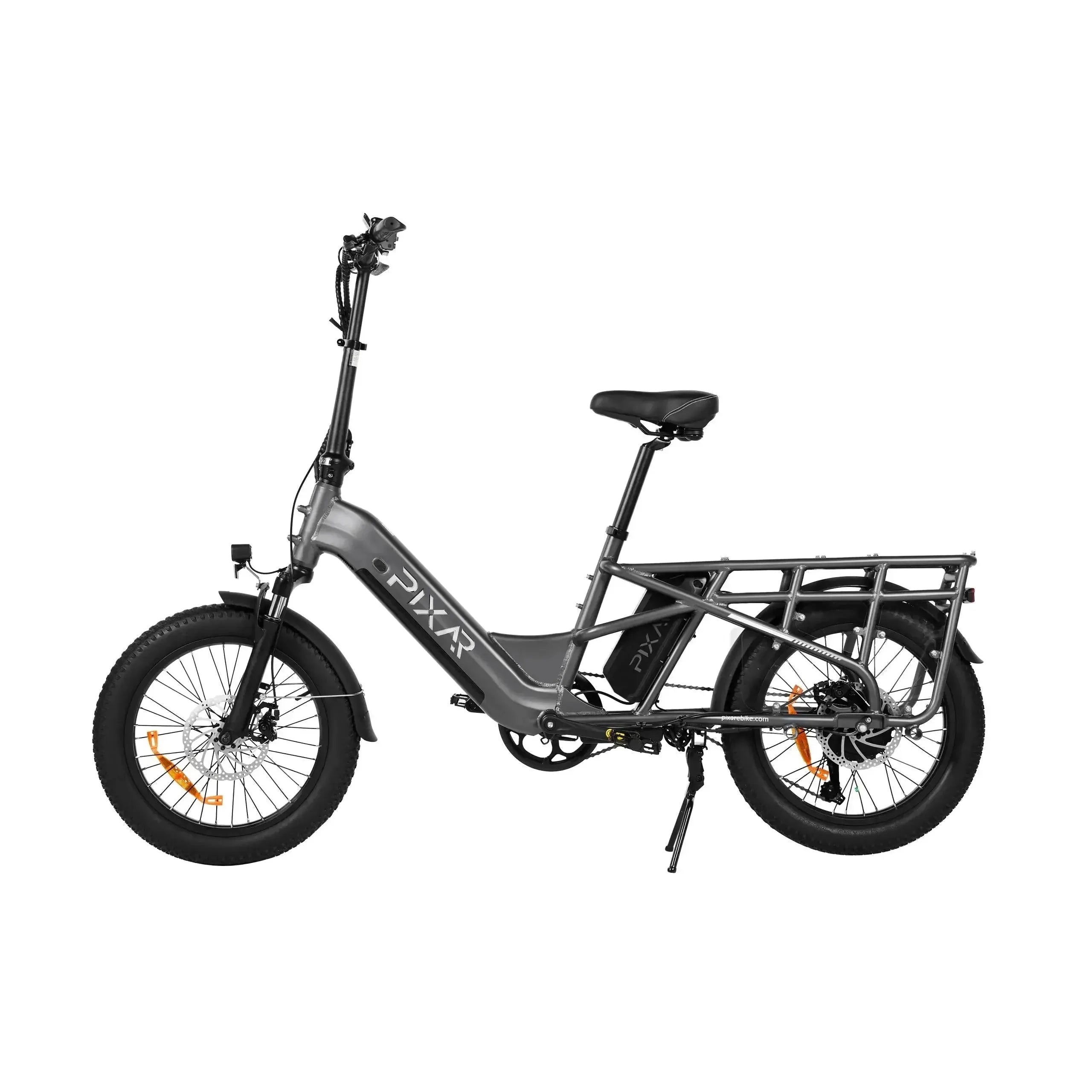

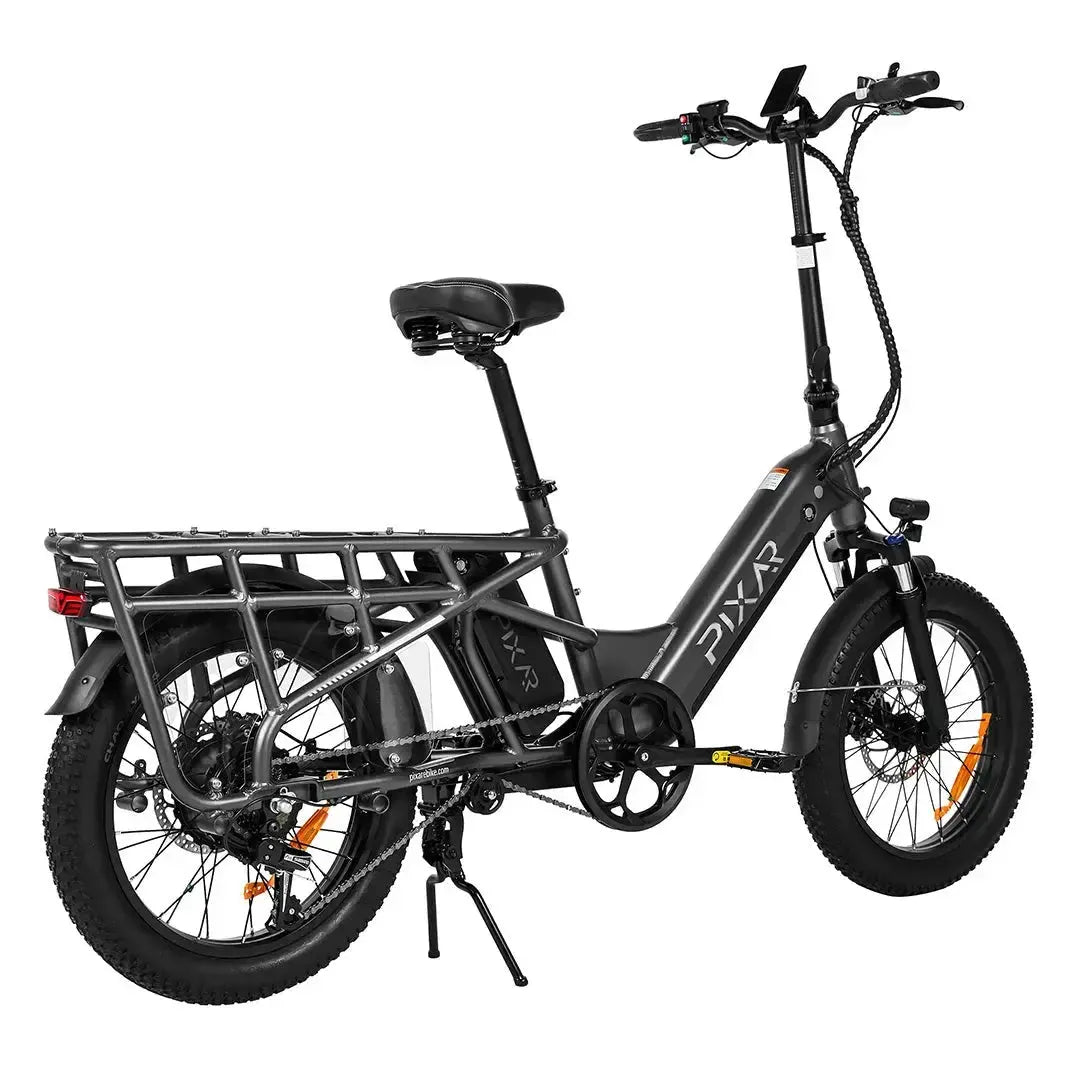

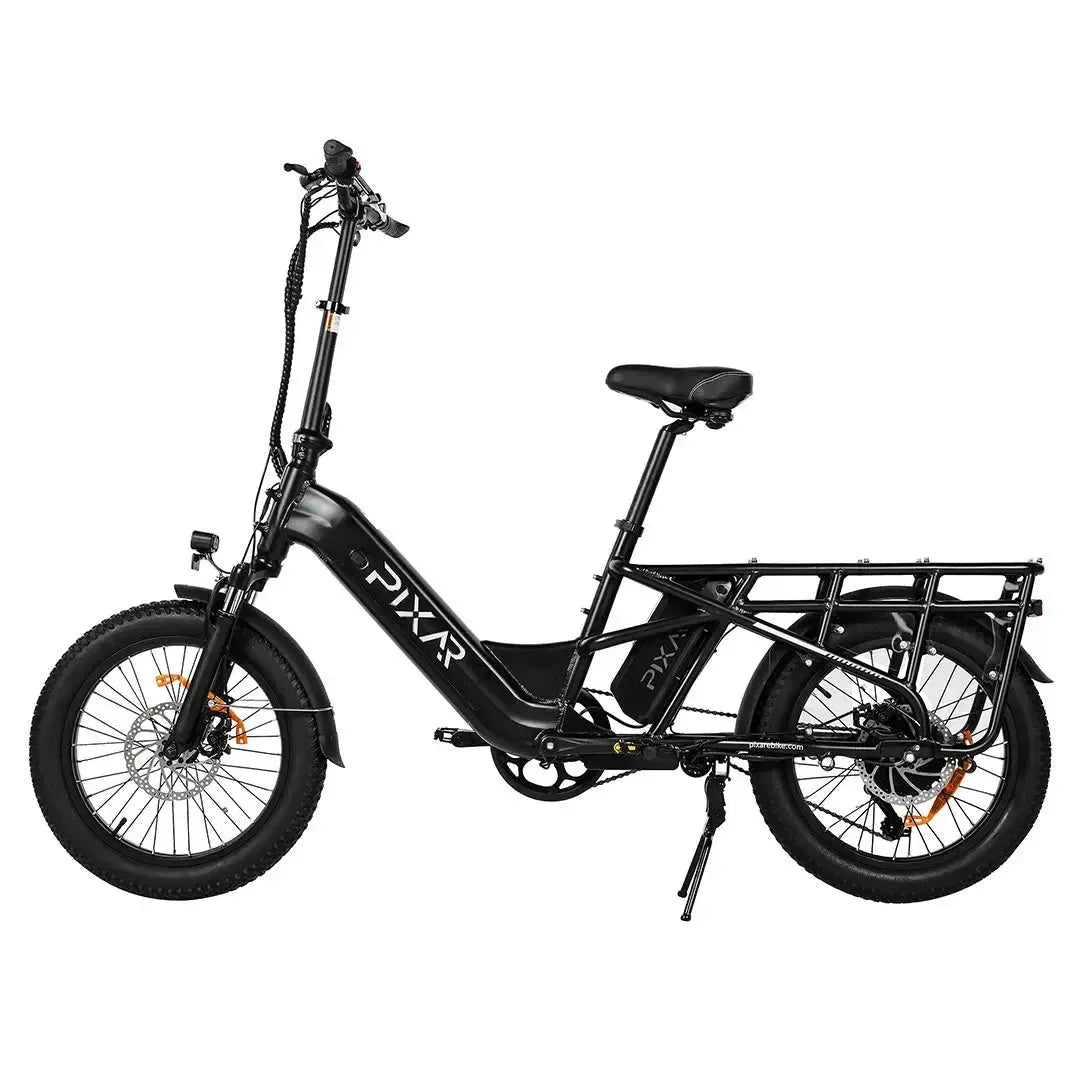

The PIXAR PLUS7

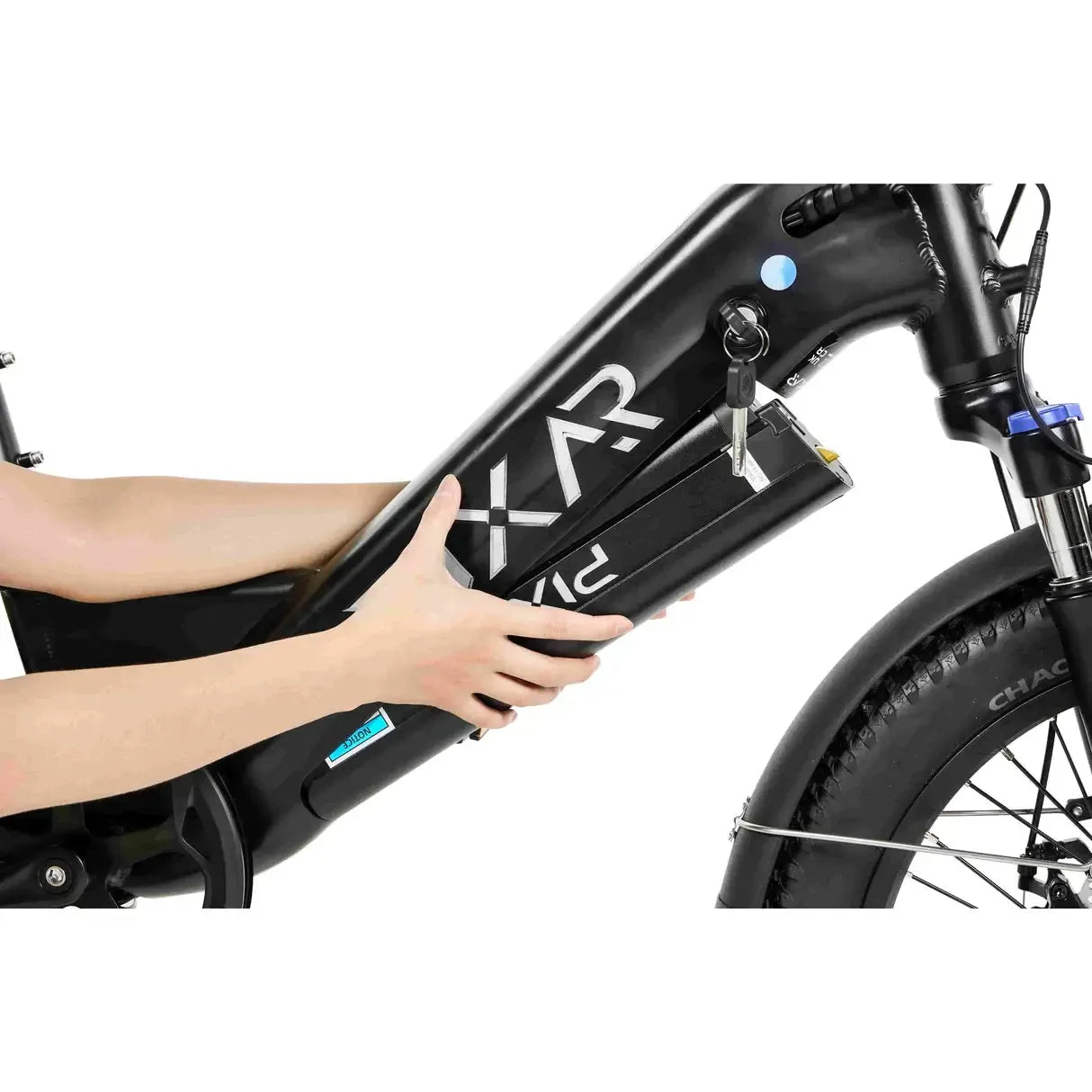

The PIXAR® Plus7 Electric Bike combines a 48V 500W JIABO brushless hub motor with a choice of single or dual battery configurations for outstanding versatility. Riders can choose the standard 48V 10.4Ah battery for everyday commuting or upgrade to the dual-battery system (20.4Ah total, using EVE cells) for extended range. With the dual setup, the Plus7 achieves up to 120 km pedal-assist range and 60 km throttle-only, making it ideal for long rides.

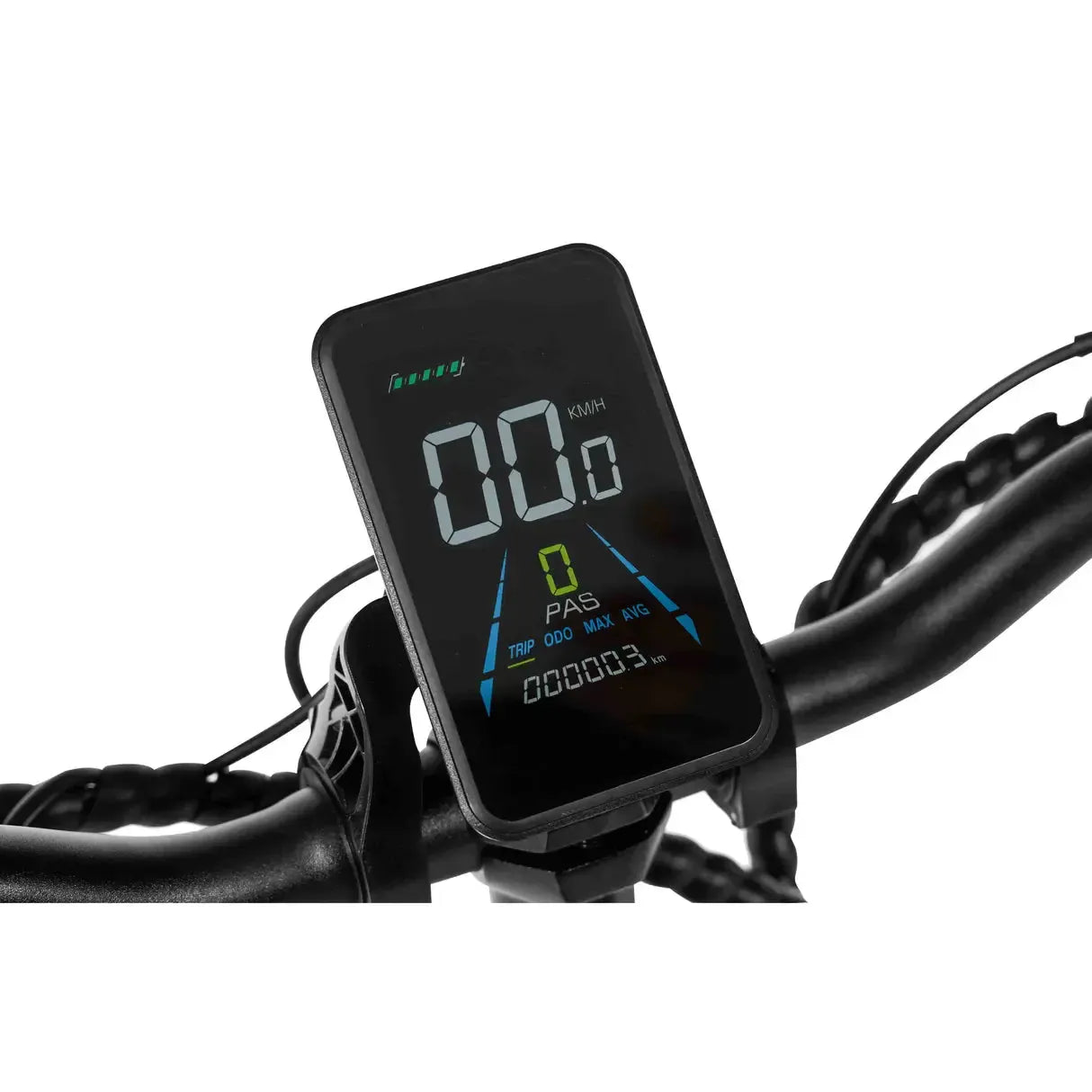

Performance is managed by a 48V 9-tube XI GE SE controller and a centre-mounted LCD display, which provides real-time feedback on speed, PAS level, and battery status. Riders can select from 5 pedal-assist levels, while a half-grip throttle with waterproof disconnect ensures effortless acceleration.

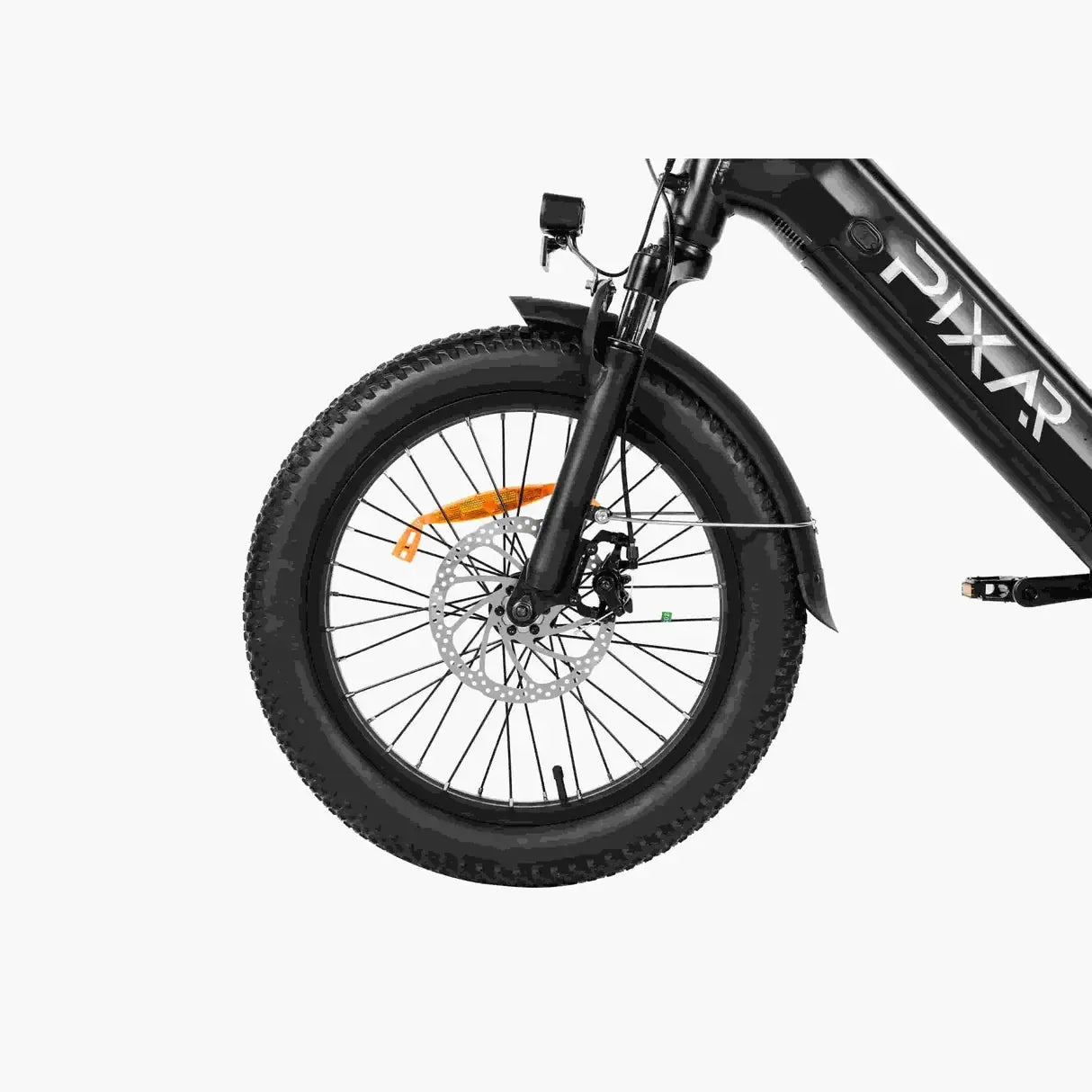

The aluminium alloy frame keeps the bike strong yet lighter than steel alternatives, and its built-in basket mounting holes are compatible with GALAXY baskets for additional storage. A 20″ suspension fork with lockout absorbs shocks on rough surfaces, while 20″ × 3.0″ Chaoyang fat tyres add traction and stability.
The Shimano 7-speed drivetrain (TX50 shifter, RD-TY21 derailleur with protector, ATA freewheel) provides reliable shifting for varied terrains. Safety is supported by mechanical disc brakes (FILAIR) with square pads, paired with front and rear LED lights and an electric horn.
Additional details include rust-resistant screws, pre-connected waterproof wiring, PVC matte black fenders, a steel kickstand, and a heavy-duty rear rack for carrying cargo. The bike weighs 37.5 kg net and supports up to 150 kg load capacity. Charging takes approximately 5.2 hours with the included 54.6V 2A charger.
With IP54 water resistance, a 12-magnet speed sensor, and a practical design, the PIXAR Plus7 is built for riders who need a balance of long range, rugged reliability, and everyday convenience.
PIXAR
PIXAR E-Bike was founded in 2013, bringing together over a decade of experience in the bicycle industry. The brand is built on three core values: Integrity, Innovation, and Win-Win Collaboration, which shape how they design, produce, and support their e-bikes. From the start, PIXAR has emphasized high-grade materials, rigorous manufacturing standards, and safety compliance to earn a reputation for dependable, premium electric bikes.
Here’s a fun detail: despite sharing a name with the famous animation studio, PIXAR E-Bike is entirely unrelated—they chose the name because it evokes creativity, dynamism, and forward motion, tying nicely into their mission of “powering the e-bike revolution” whether for city commuting, boulevard cruising or weekend getaways.
Specifications
General Details
- Aluminium alloy frame with basket mounting holes
- GALAXY basket compatibility
- Net weight: 37.5 kg / Gross: 48.2 kg
- Max load: 150 kg
- Toolkit & PDF manual included
Performance & Battery
- 48V 500W JIABO brushless hub motor
- Battery options: 10.4Ah or dual 20.4Ah (EVE cells)
- Range: 60 km PAS / 30 km throttle (10.4Ah)
- Range: 120 km PAS / 60 km throttle (20.4Ah)
- Charging time: ~5.2 hours (54.6V 2A charger)
Speed & Motor
- EU-legal 25 km/h, unlockable to 32 km/h
- 5 pedal-assist levels
- Half-grip throttle with waterproof disconnect
- 12-magnet speed sensor
Dimensions & Weight
- Tyres: Chaoyang 20″ × 3.0″ fat tyres
- Crankset: 52T × 170 mm
- Net weight: 37.5 kg
- Max load capacity: 150 kg
Load & Climbing
- Dual-battery option for extended range
- Shimano 7-speed gearing (TX50 shifter, TY21 derailleur)
- Strong rear rack (frame-mounted) for cargo
- Suspension fork with lockout for climbing comfort
Tires, Brakes & Waterproofing
- Chaoyang 20″ × 3.0″ fat tyres (~50.8 × 7.6 cm)
- Suspension fork (steel stanchion + aluminium crown)
- Mechanical disc brakes (FILAIR) with square pads
- Front and rear PVC fenders (matte black)
More Features

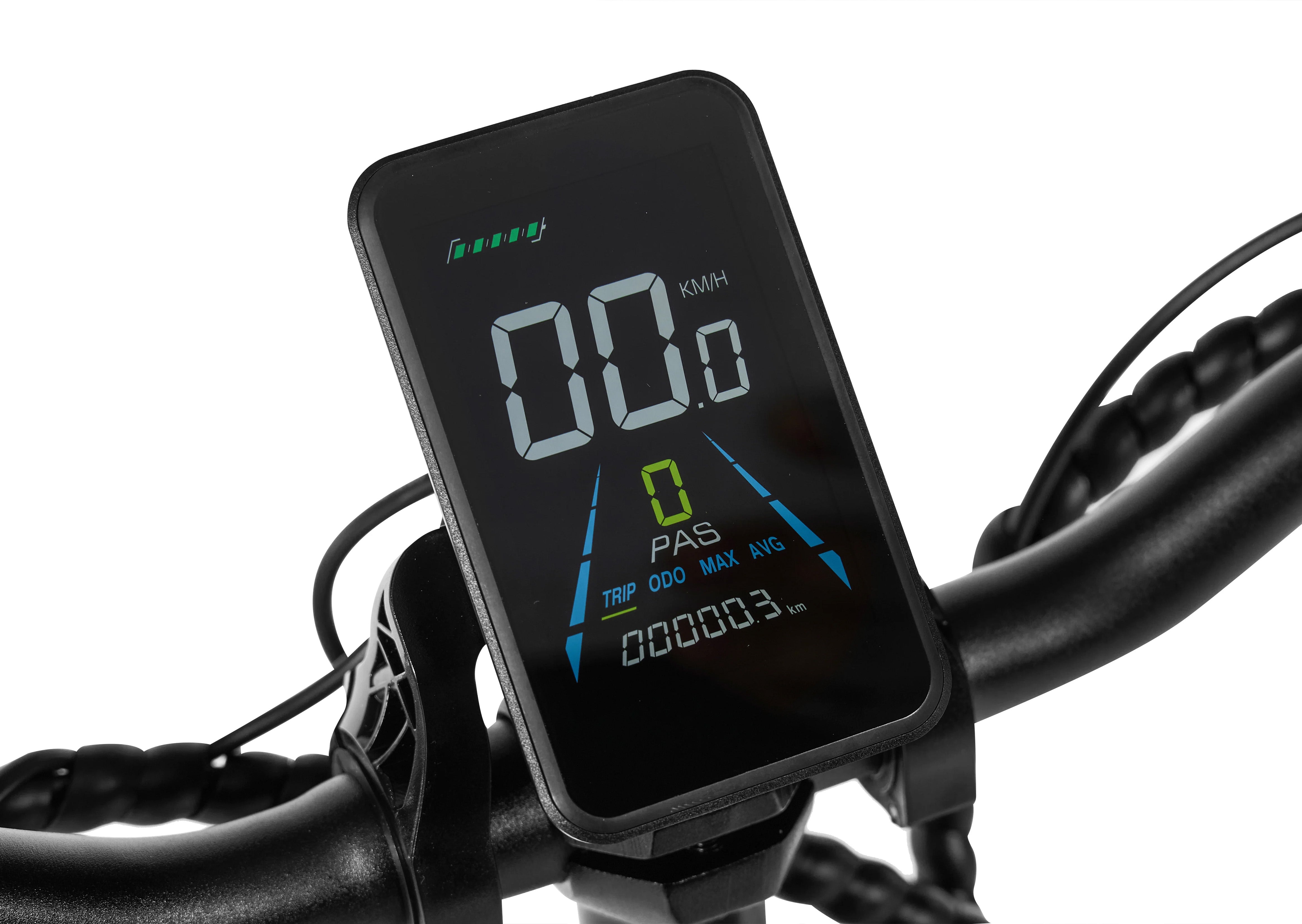

- Centre-mounted LCD display (speed, PAS, battery)

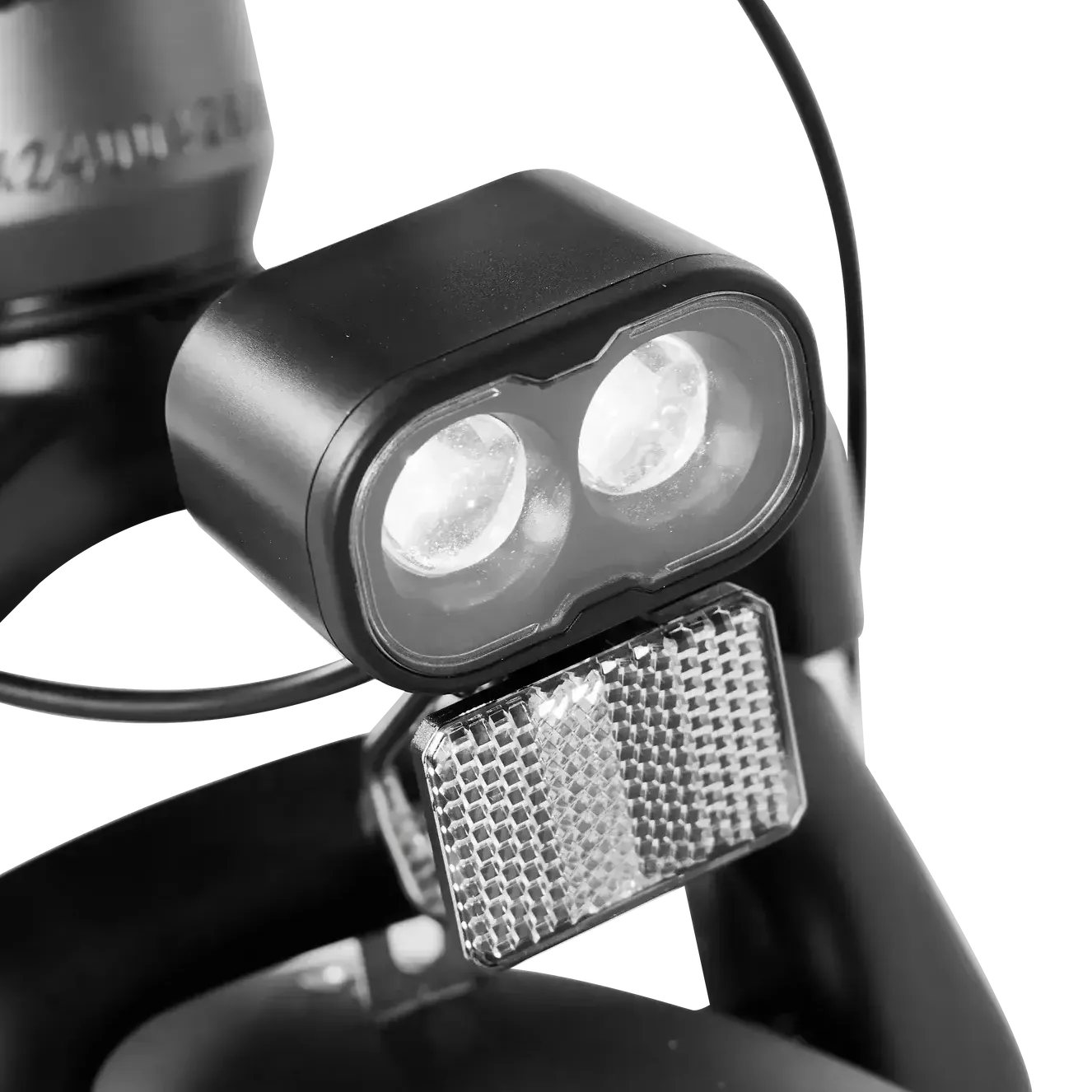

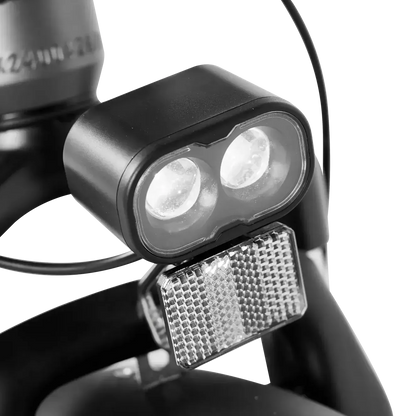

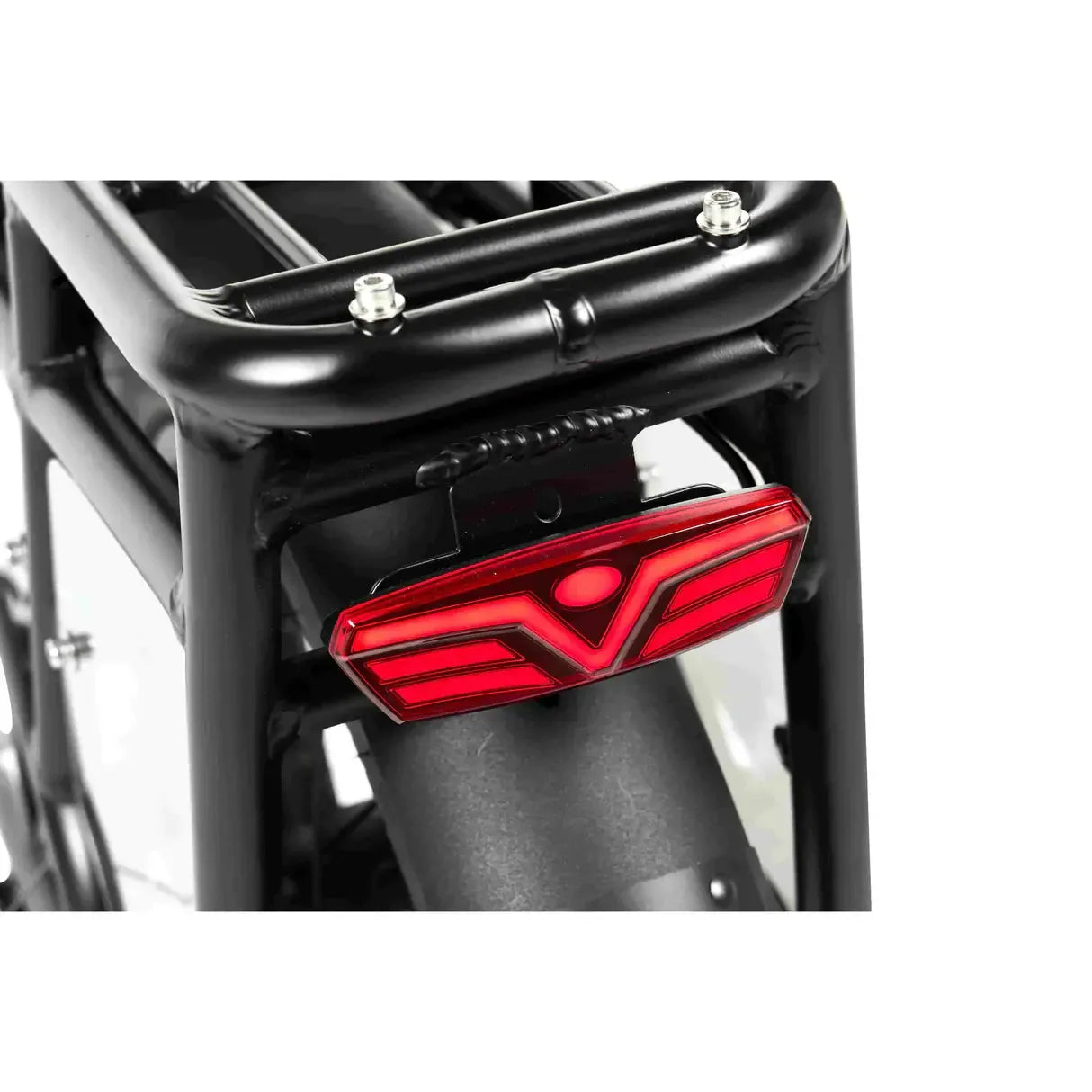

- Front & rear LED lights with waterproof connectors
- Electric horn with handlebar remote
- Rust-resistant screws and waterproof wiring
- Steel kickstand for stability
Full Description
The PIXAR® Plus7 Electric Bike combines a 48V 500W JIABO brushless hub motor with a choice of single or dual battery configurations for outstanding versatility. Riders can choose the standard 48V 10.4Ah battery for everyday commuting or upgrade to the dual-battery system (20.4Ah total, using EVE cells) for extended range. With the dual setup, the Plus7 achieves up to 120 km pedal-assist range and 60 km throttle-only, making it ideal for long rides.
Performance is managed by a 48V 9-tube XI GE SE controller and a centre-mounted LCD display, which provides real-time feedback on speed, PAS level, and battery status. Riders can select from 5 pedal-assist levels, while a half-grip throttle with waterproof disconnect ensures effortless acceleration.
The aluminium alloy frame keeps the bike strong yet lighter than steel alternatives, and its built-in basket mounting holes are compatible with GALAXY baskets for additional storage. A 20″ suspension fork with lockout absorbs shocks on rough surfaces, while 20″ × 3.0″ Chaoyang fat tyres add traction and stability.
The Shimano 7-speed drivetrain (TX50 shifter, RD-TY21 derailleur with protector, ATA freewheel) provides reliable shifting for varied terrains. Safety is supported by mechanical disc brakes (FILAIR) with square pads, paired with front and rear LED lights and an electric horn.
Additional details include rust-resistant screws, pre-connected waterproof wiring, PVC matte black fenders, a steel kickstand, and a heavy-duty rear rack for carrying cargo. The bike weighs 37.5 kg net and supports up to 150 kg load capacity. Charging takes approximately 5.2 hours with the included 54.6V 2A charger.
With IP54 water resistance, a 12-magnet speed sensor, and a practical design, the PIXAR Plus7 is built for riders who need a balance of long range, rugged reliability, and everyday convenience.
What's in the Box?
PIXAR PLUS7
Charger
Tool Kit
User Manual
FAQs
Delivery
2–4 days standard shipping. Need it sooner? Express shipping is available at checkout.
Warranty
Includes a 2-year warranty. Any issues? Just head over to our Warranties page
Payments
We accept all major payment methods—credit & debit cards, PayPal, and more.
Returns
Easy 30-day returns from delivery—just send it back in its original condition for a refund or exchange.
Legal Use Disclaimer
Electric scooters and e-bikes are subject to local laws and regulations, which vary by country, region, and city. Before purchasing or operating this product, it is the customer’s responsibility to check and comply with all applicable road, traffic, and safety regulations in their area.
This product may be restricted to private property use only in some locations. The seller accepts no responsibility for misuse or use that violates local laws. Always wear appropriate safety gear and ride responsibly.
