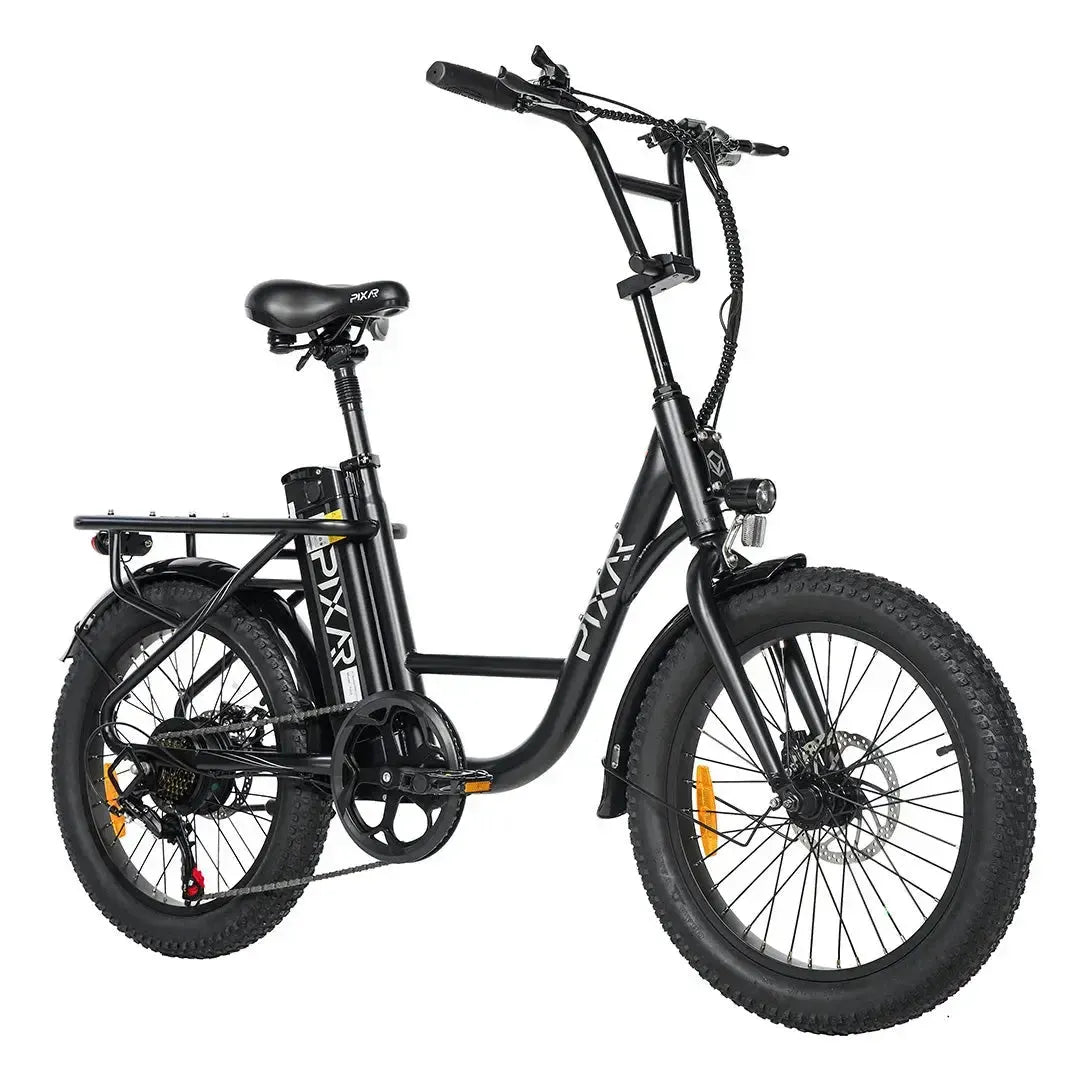

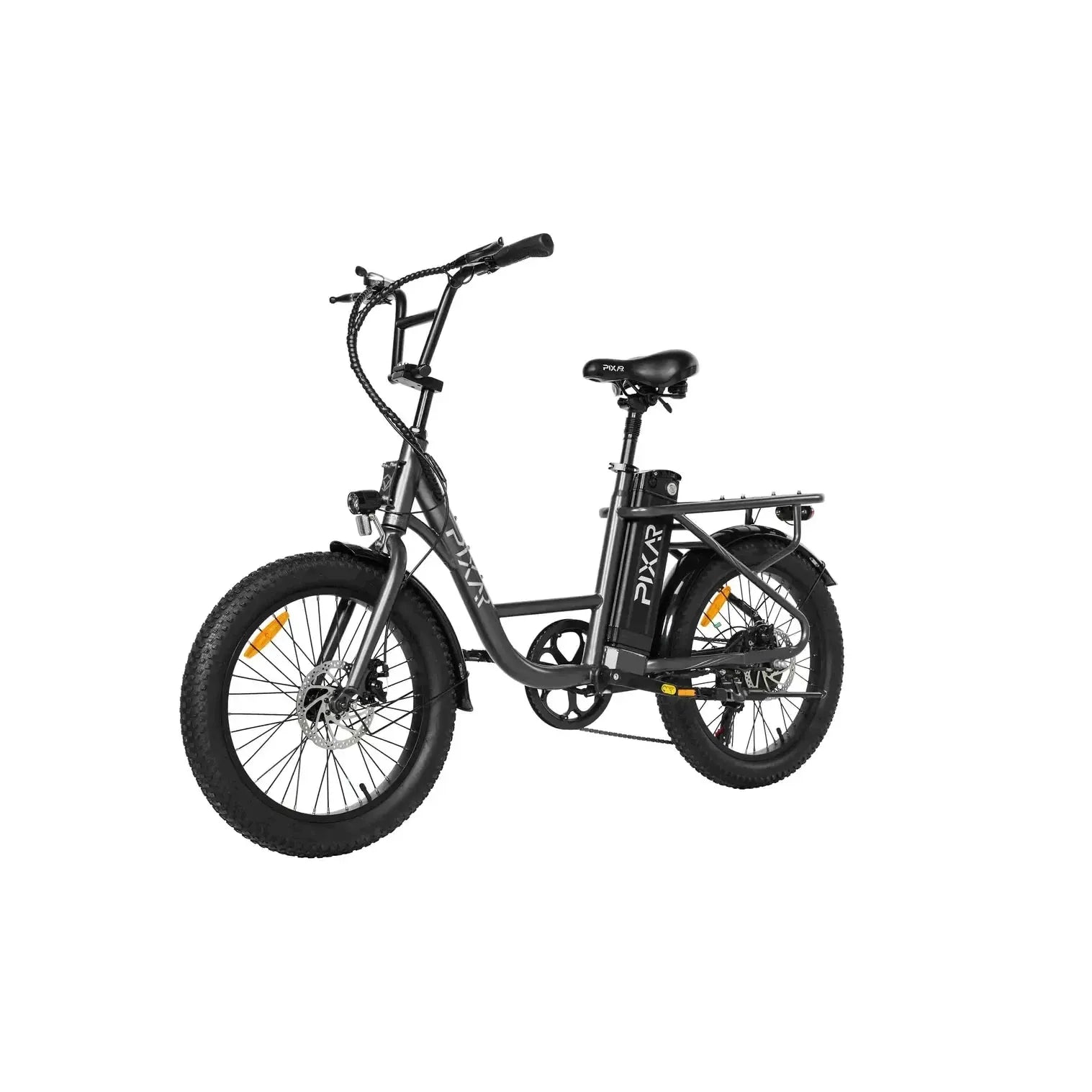

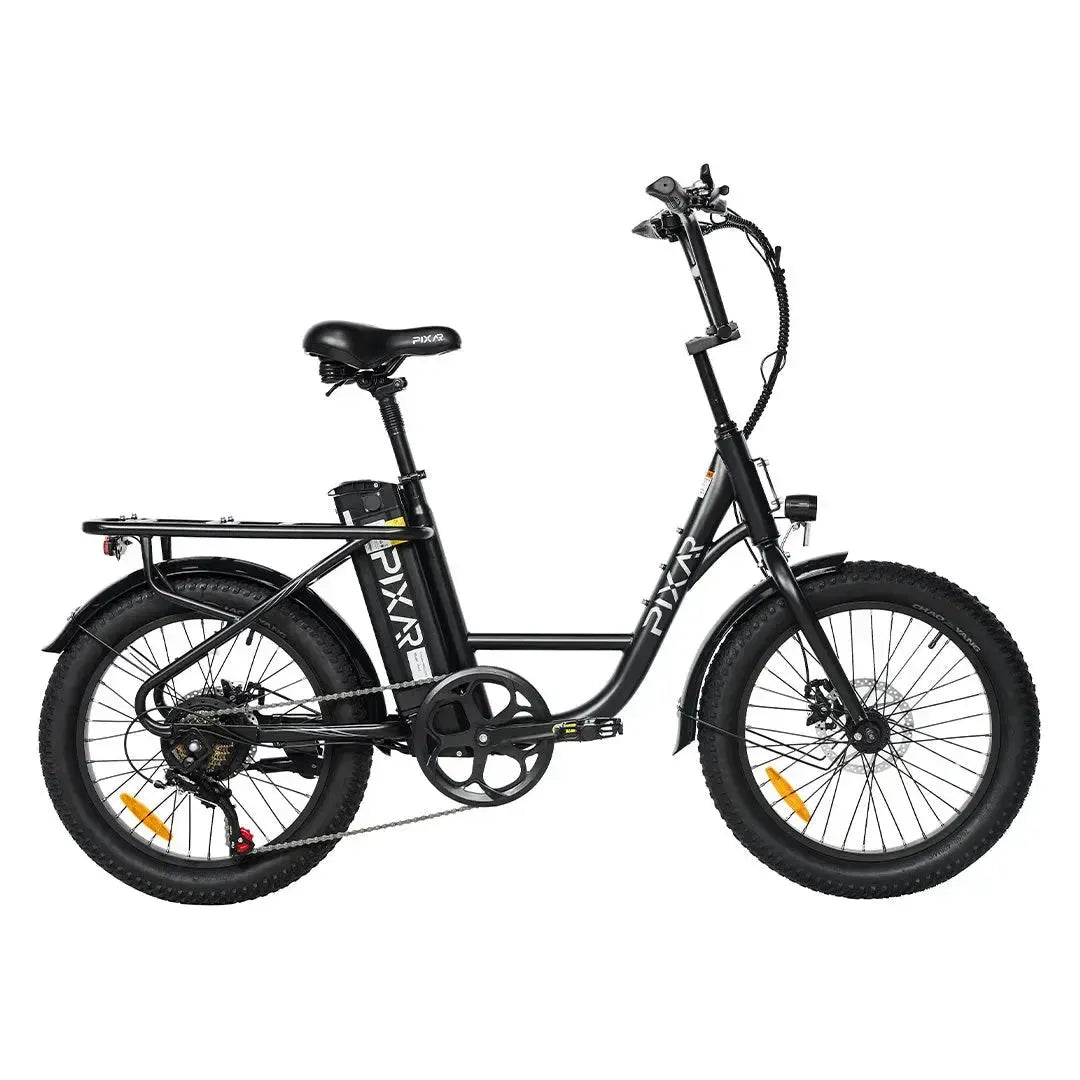

PIXAR® Fun1 Fat Tire Electric Bike
- 36V 350W JIABO Hub Motor
- Up to 60 km Pedal-Assist Range
- Shimano 7-Speed + 5 PAS Levels
- 20″ × 3.0″ Fat Tyres
- Steel Frame with Rear Cargo Rack
- Color:
- Black
Pairs well with
Delivery in 2 to 4 working days
Hassle-Free Returns within 30 Days
2-Year Warranty Coverage
Trusted, Award-Winning Support Team
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Waterproof IP65
Powerful 350W Motor
Fat Tire Stability
Everyday Cargo Ready
Smart LCD Display

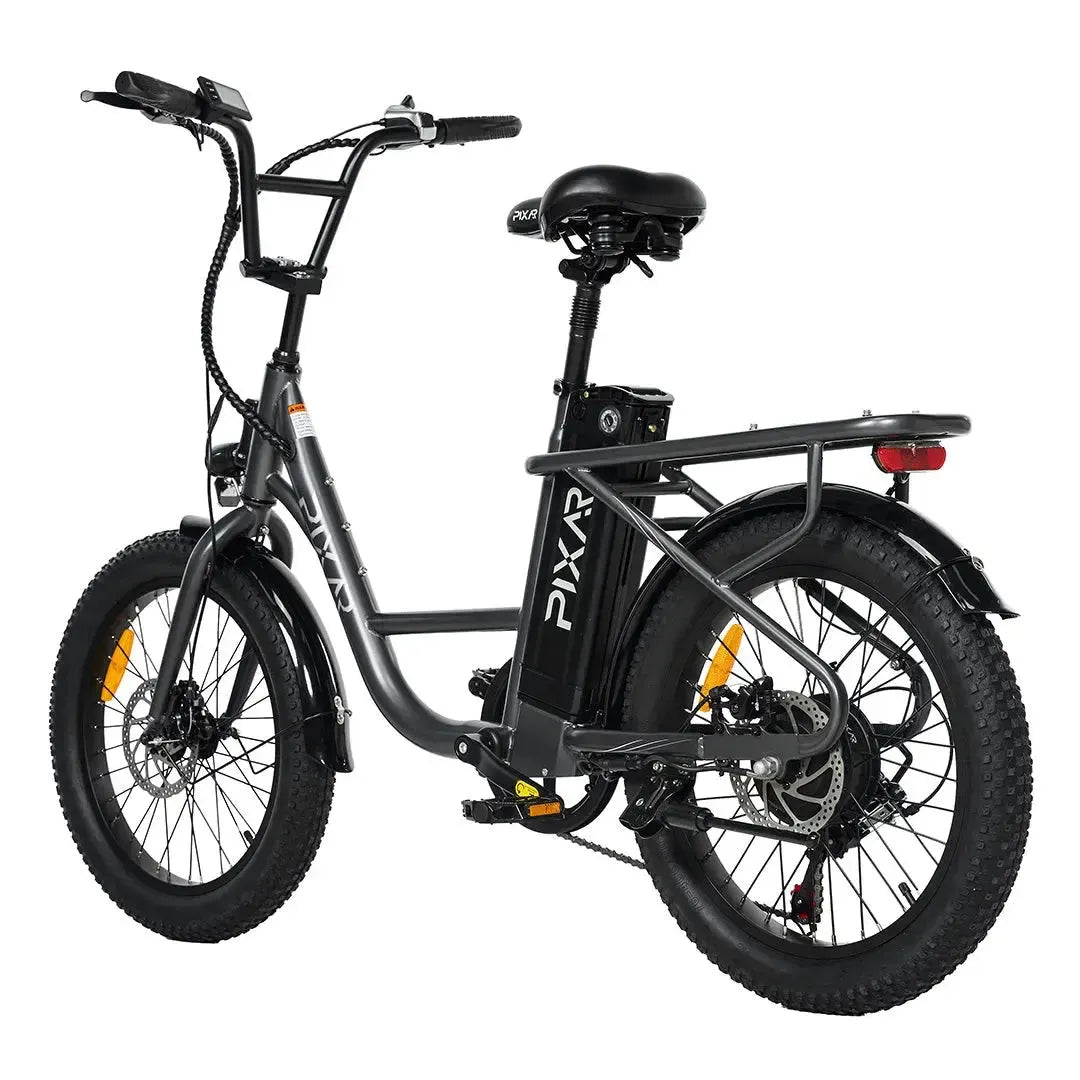

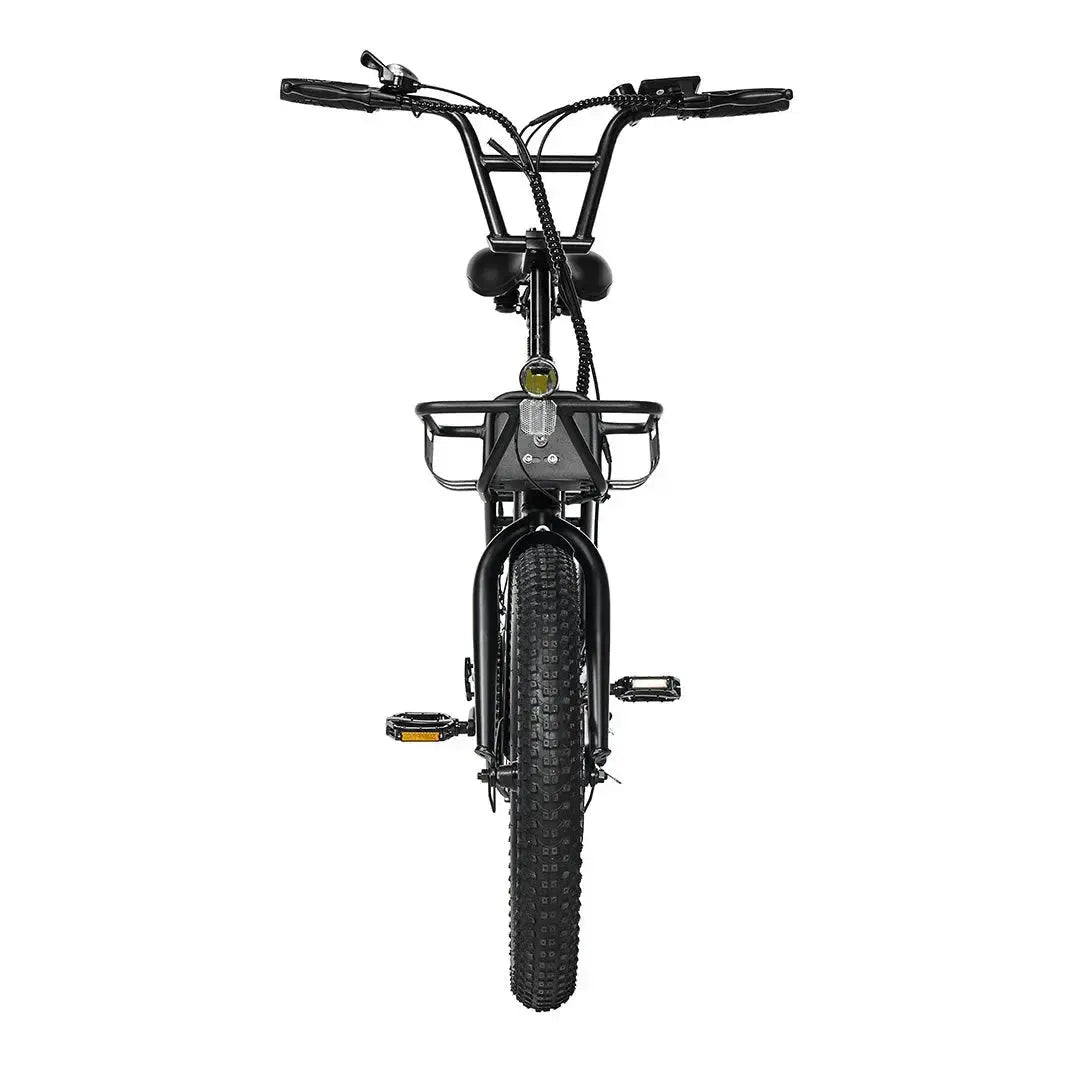

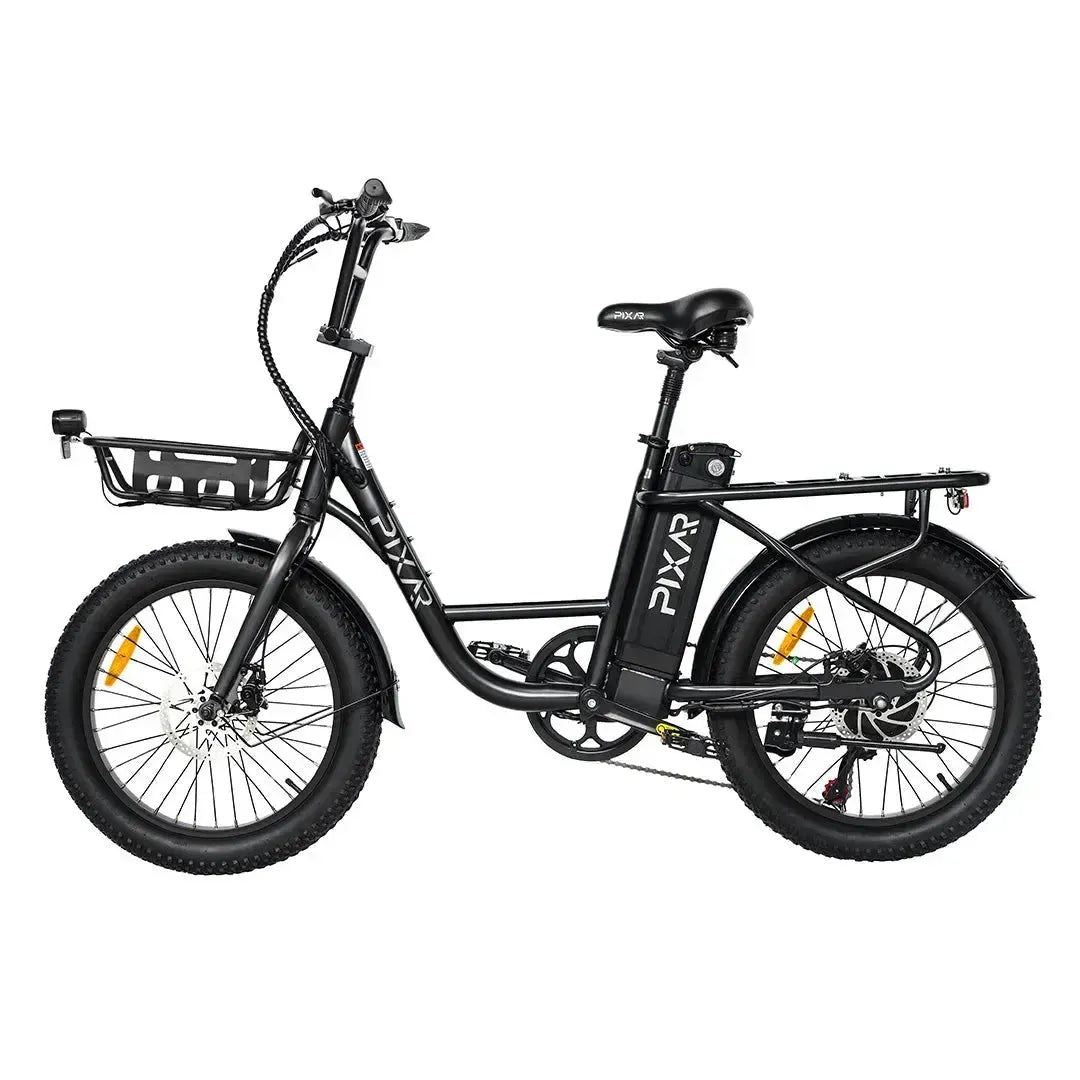

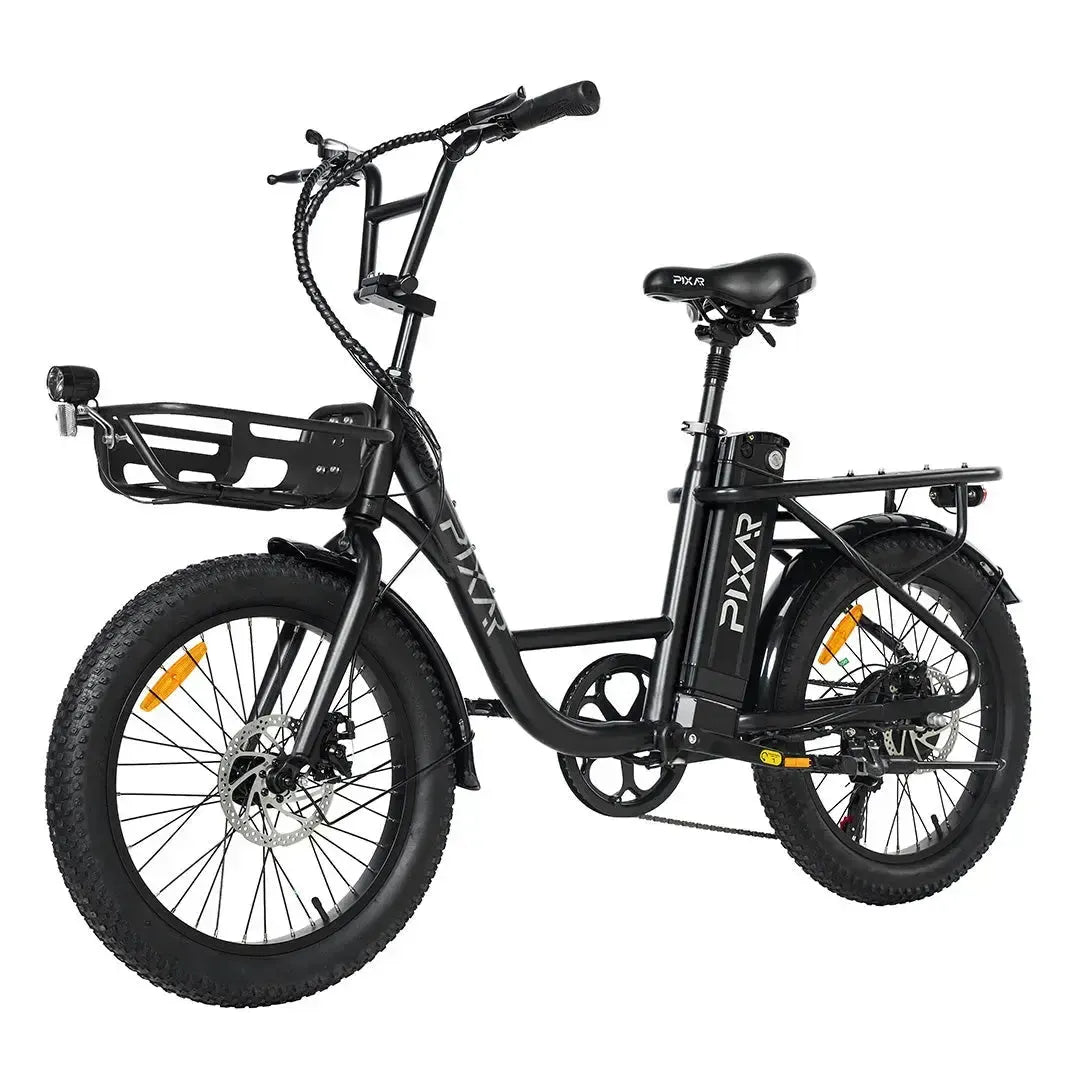

The PIXAR FUN1
The PIXAR® FUN1 Electric Bike brings together rugged design, powerful performance, and everyday practicality. With its 36V 350W JIABO hub motor and 36V 10.4Ah lithium battery (featuring 40 EVE cells), the FUN1 delivers up to 60 km on pedal assist or 30 km on throttle only. Its 20″ × 3.0″ Chaoyang fat tyres and steel frame ensure stability and comfort across urban streets and light trails, while Shimano 7-speed gearing offers flexible riding control. Equipped with mechanical disc brakes, front and rear LED lights, and an integrated rear rack, this e-bike is as safe as it is versatile. Add in IP54 water resistance, a thumb throttle, and a smart LCD with USB-C charging, and the FUN1 becomes the perfect everyday ride for commuting, errands, or weekend fun.
PIXAR
PIXAR E-Bike was founded in 2013, bringing together over a decade of experience in the bicycle industry. The brand is built on three core values: Integrity, Innovation, and Win-Win Collaboration, which shape how they design, produce, and support their e-bikes. From the start, PIXAR has emphasized high-grade materials, rigorous manufacturing standards, and safety compliance to earn a reputation for dependable, premium electric bikes.
Here’s a fun detail: despite sharing a name with the famous animation studio, PIXAR E-Bike is entirely unrelated—they chose the name because it evokes creativity, dynamism, and forward motion, tying nicely into their mission of “powering the e-bike revolution” whether for city commuting, boulevard cruising or weekend getaways.
Specifications
General Details

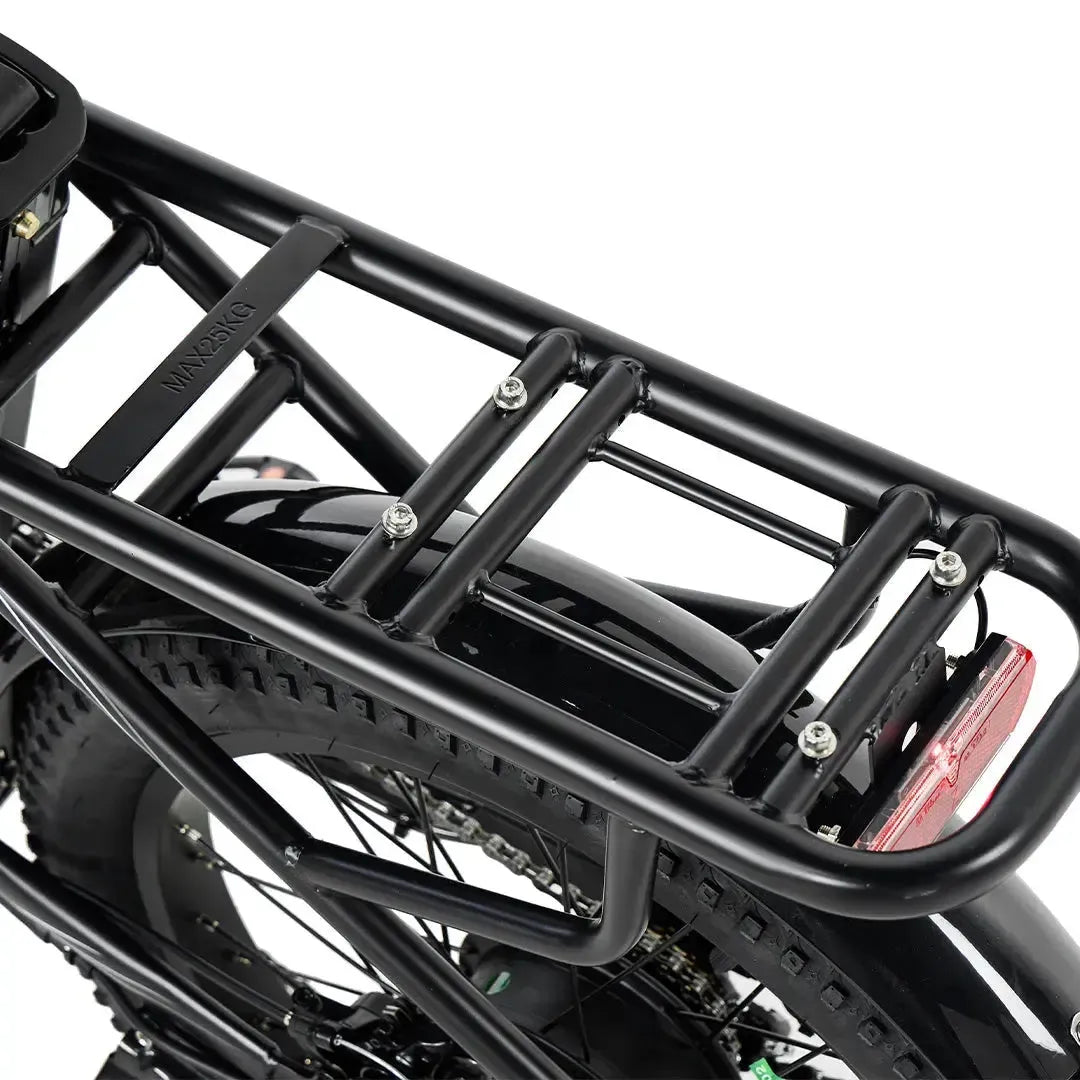

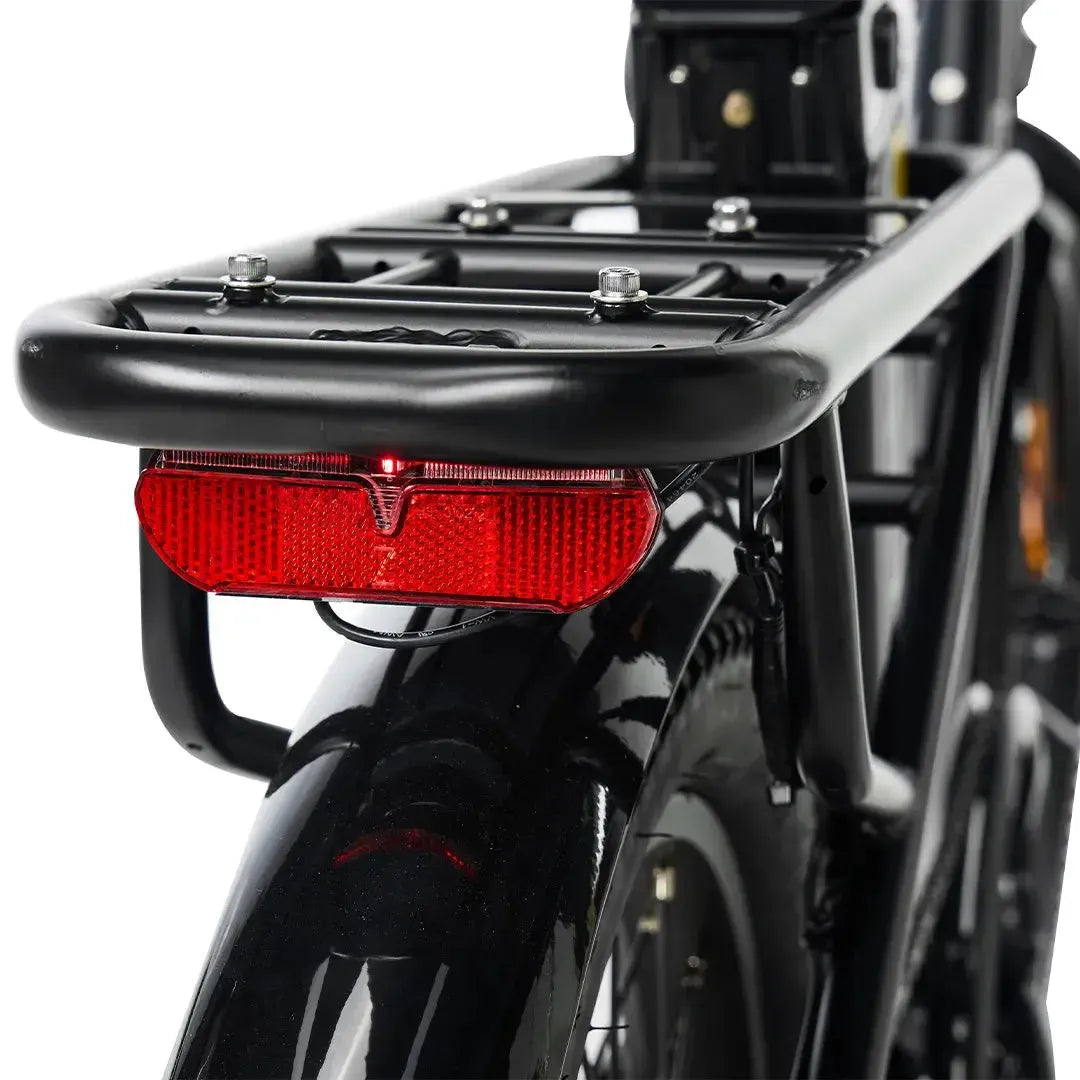

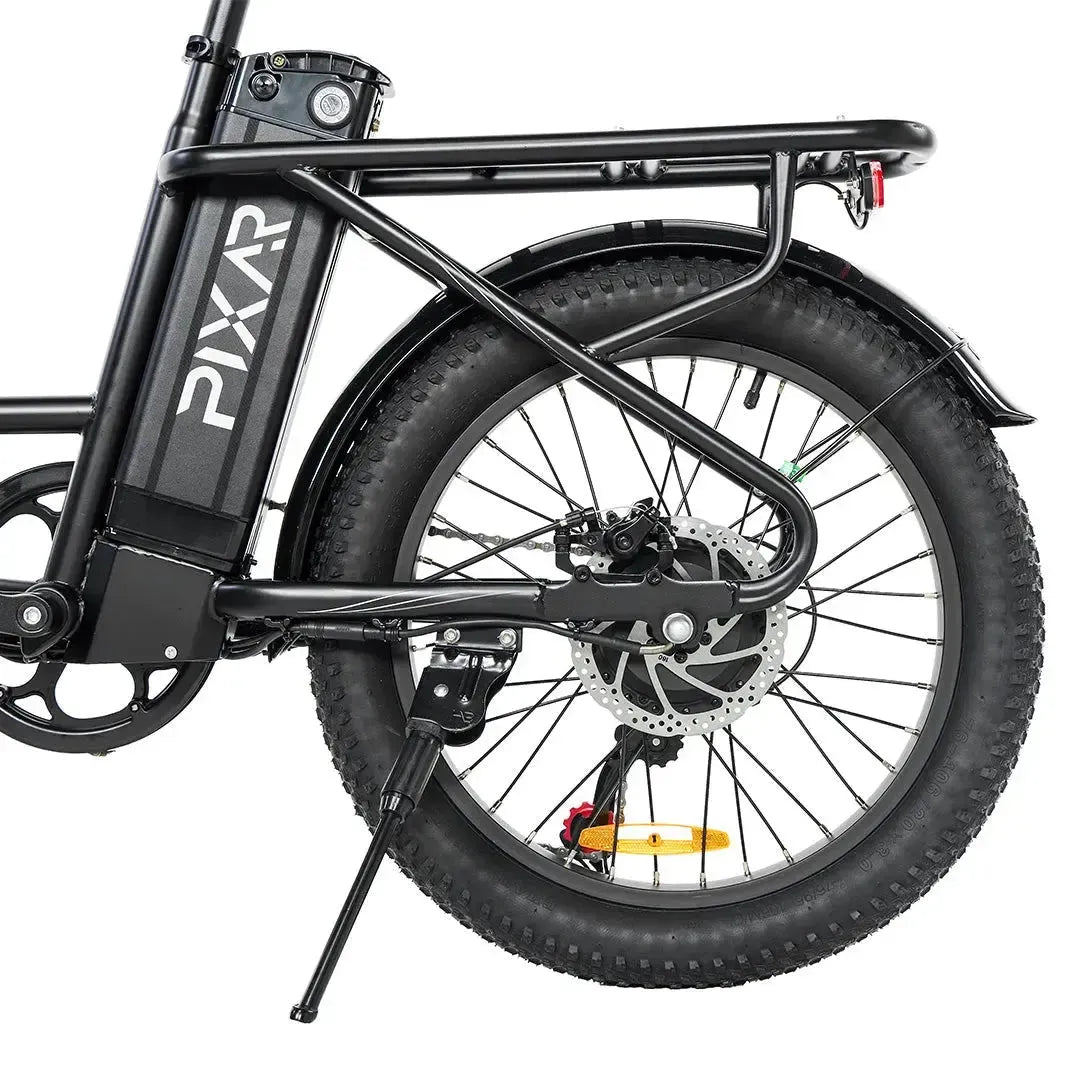

- Steel frame with integrated rear rack

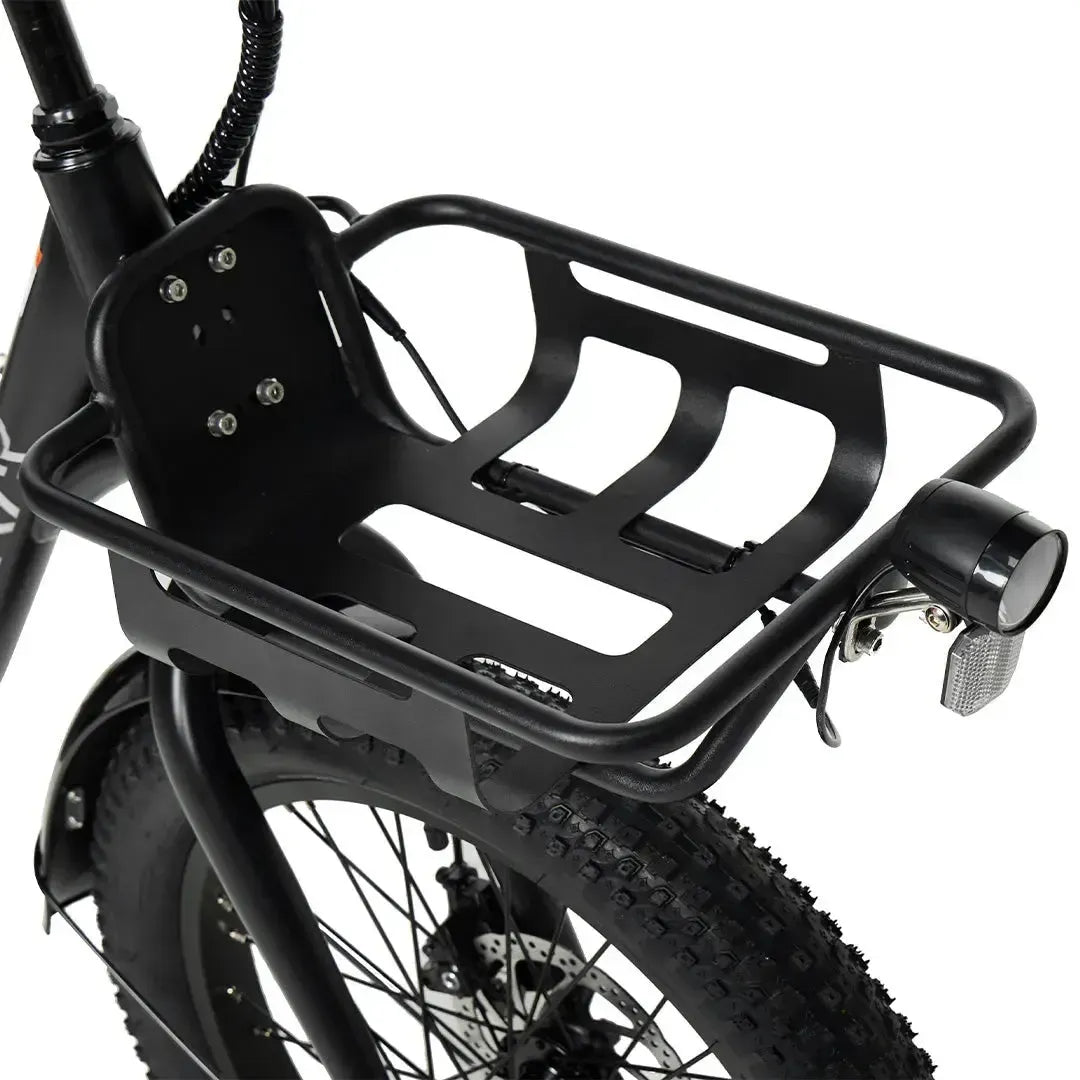

- Basket-compatible mounting holes (GALAXY basket)
- PVC matte black fenders (front & rear)
- IP54 water resistance
- Net weight: 37.5 kg / Gross: 48.2 kg
Performance & Battery
- 36V 350W JIABO brushless hub motor

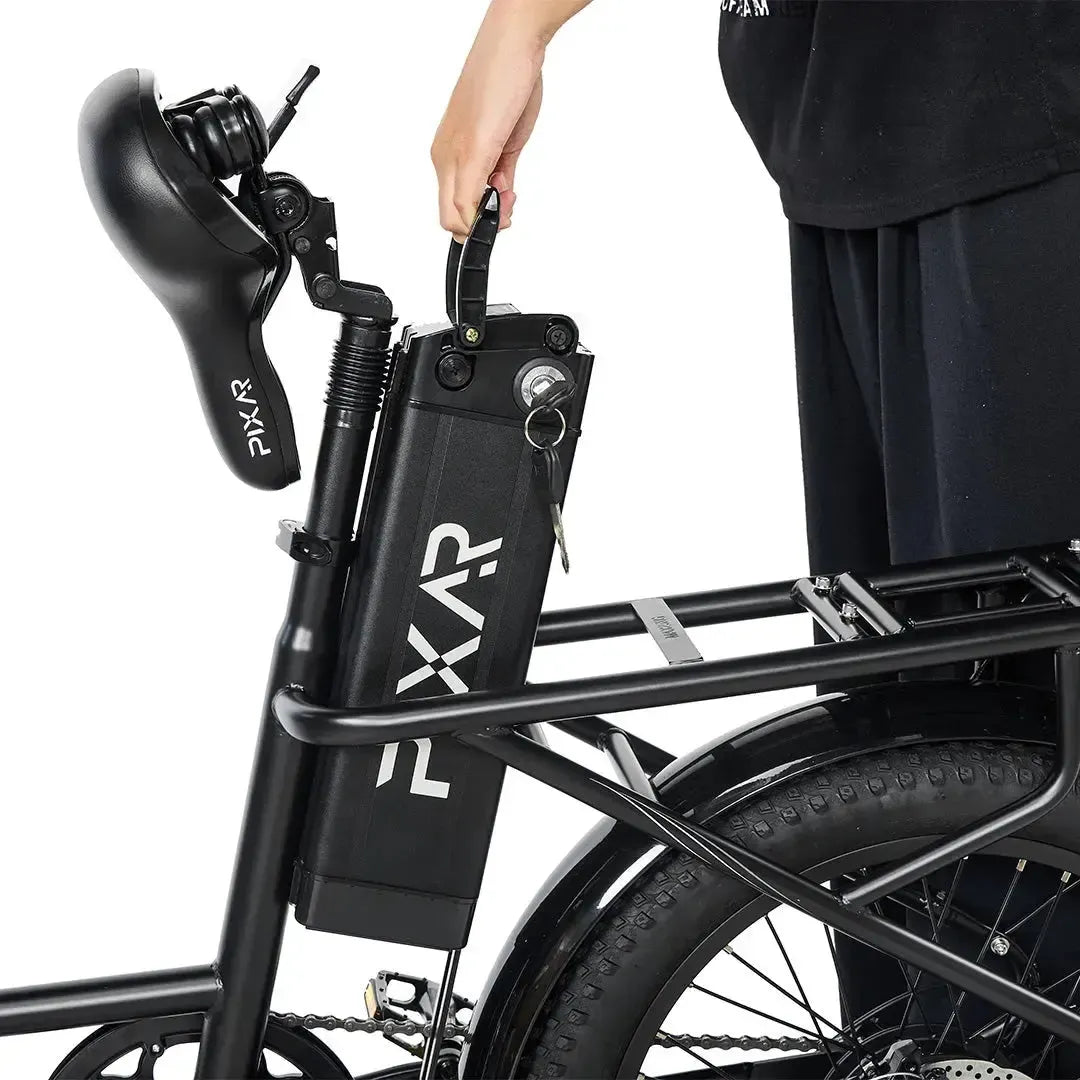

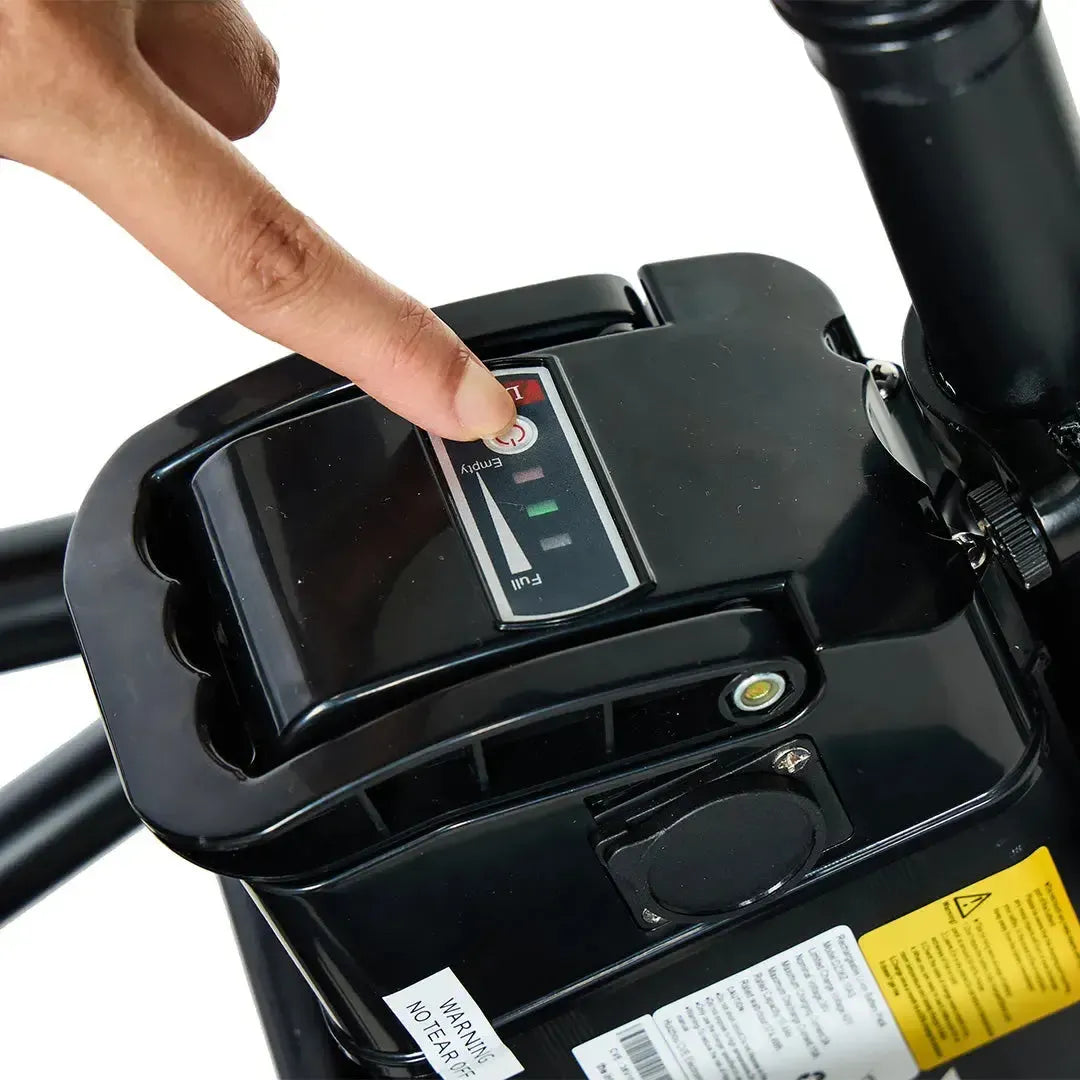

- 36V 10.4Ah lithium battery (40 × EVE 2600 mAh cells)
- Up to 60 km pedal-assist / 30 km throttle-only range
- Charging time: ~5.2 hours (42V 2A charger)
Speed & Motor
- Top speed: 25 km/h (EU-legal), unlockable to 32 km/h
- 5 PAS levels + thumb throttle
- 12-magnet speed sensor for precision
- JINGHUI 36V controller
Dimensions & Weight
- Tyres: 20″ × 3.0″ Chaoyang fat tyres
- Crankset: 52T × 170 mm
- Net weight: 37.5 kg (82.7 lbs)
- Max load: 150 kg (330 lbs)
Load & Climbing
- 350W motor for smooth climbing support

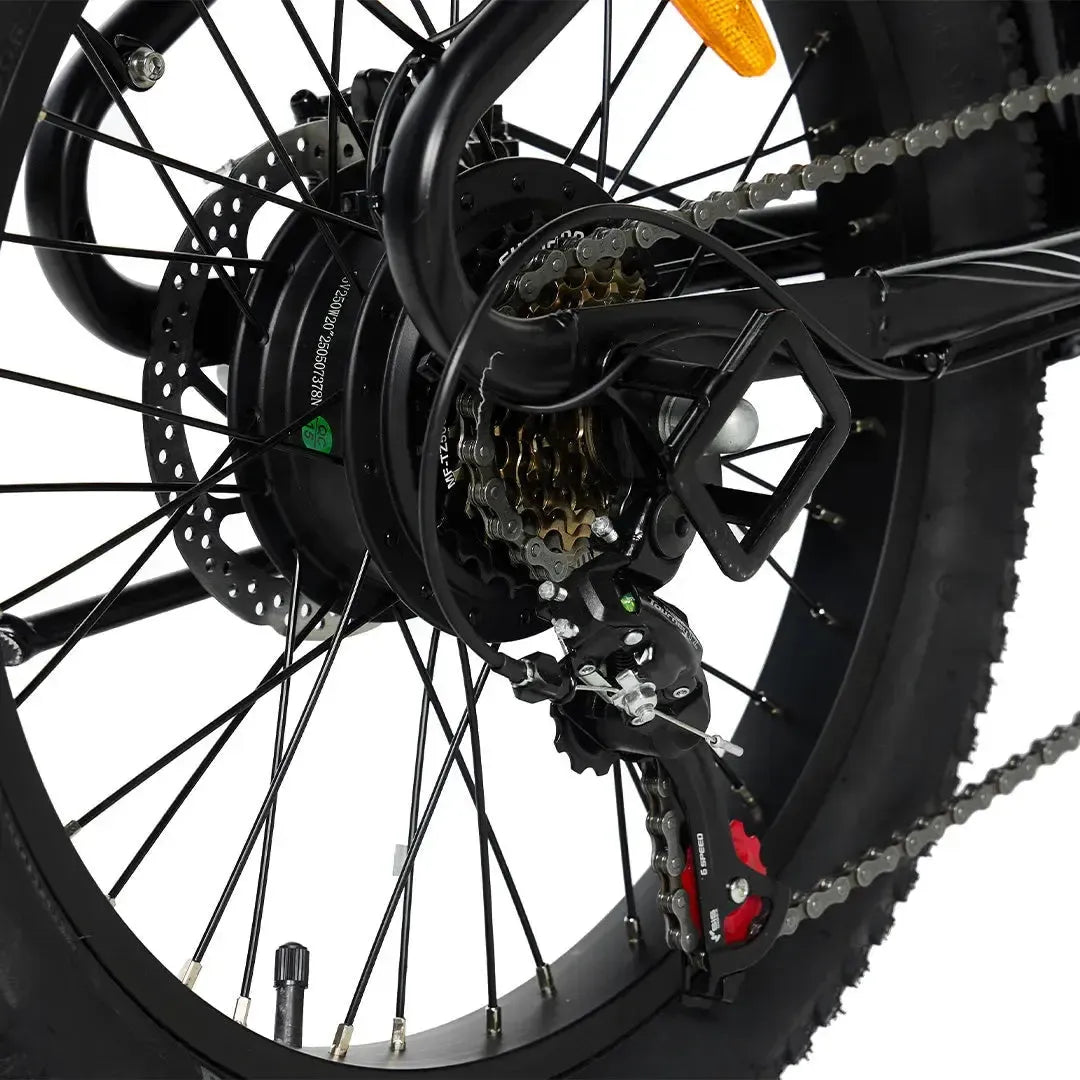

- Shimano 7-speed gearing (TX50 shifter + TZ500 derailleur)
- ATA freewheel with derailleur protector
- Strong steel frame supports cargo and rider loads
Tires, Brakes & Waterproofing

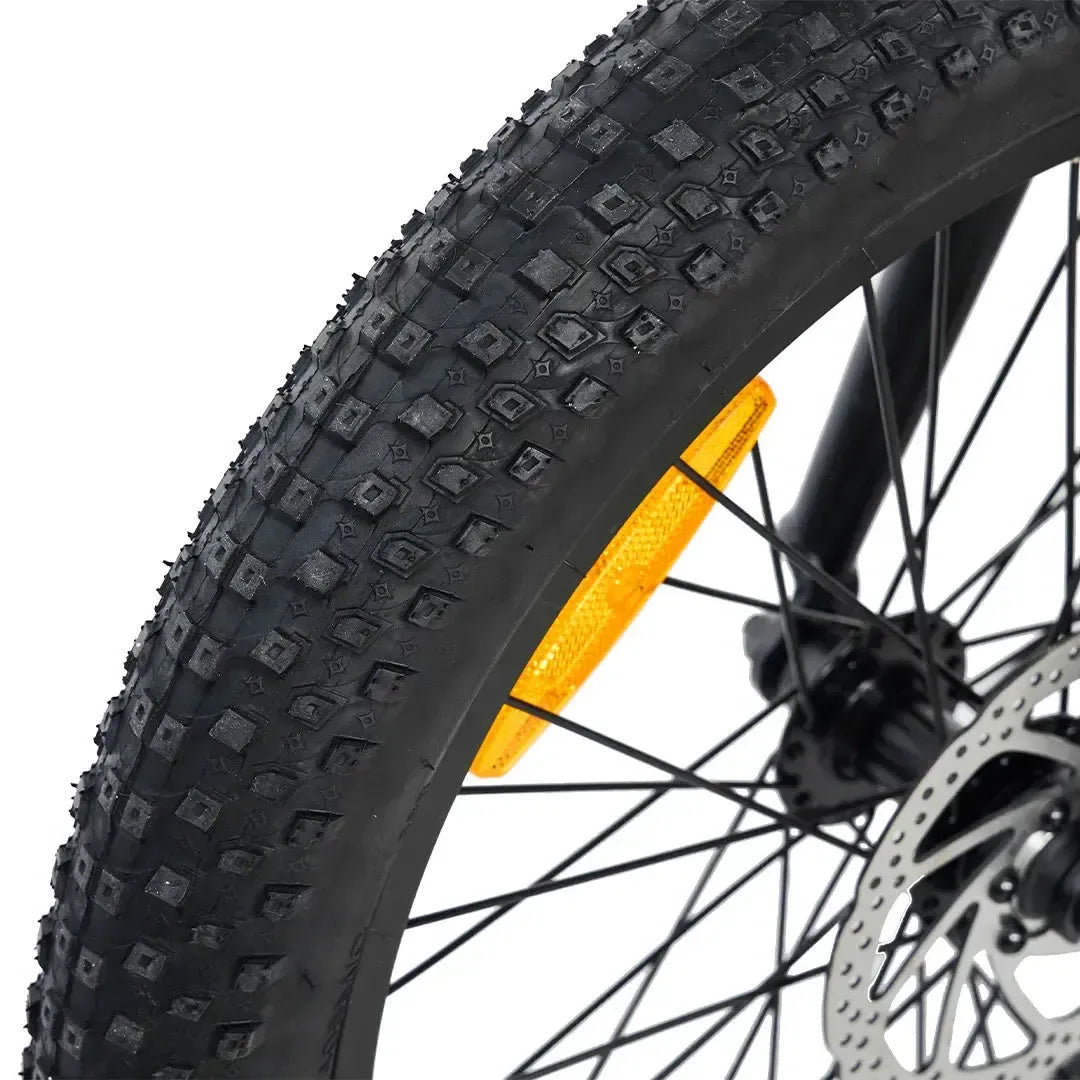

- 20″ × 3.0″ Chaoyang fat tyres for stability
- Front & rear mechanical disc brakes (FILAIR)
- Square brake pads for strong bite
- Rigid fork (steel stanchion + aluminum crown)
More Features

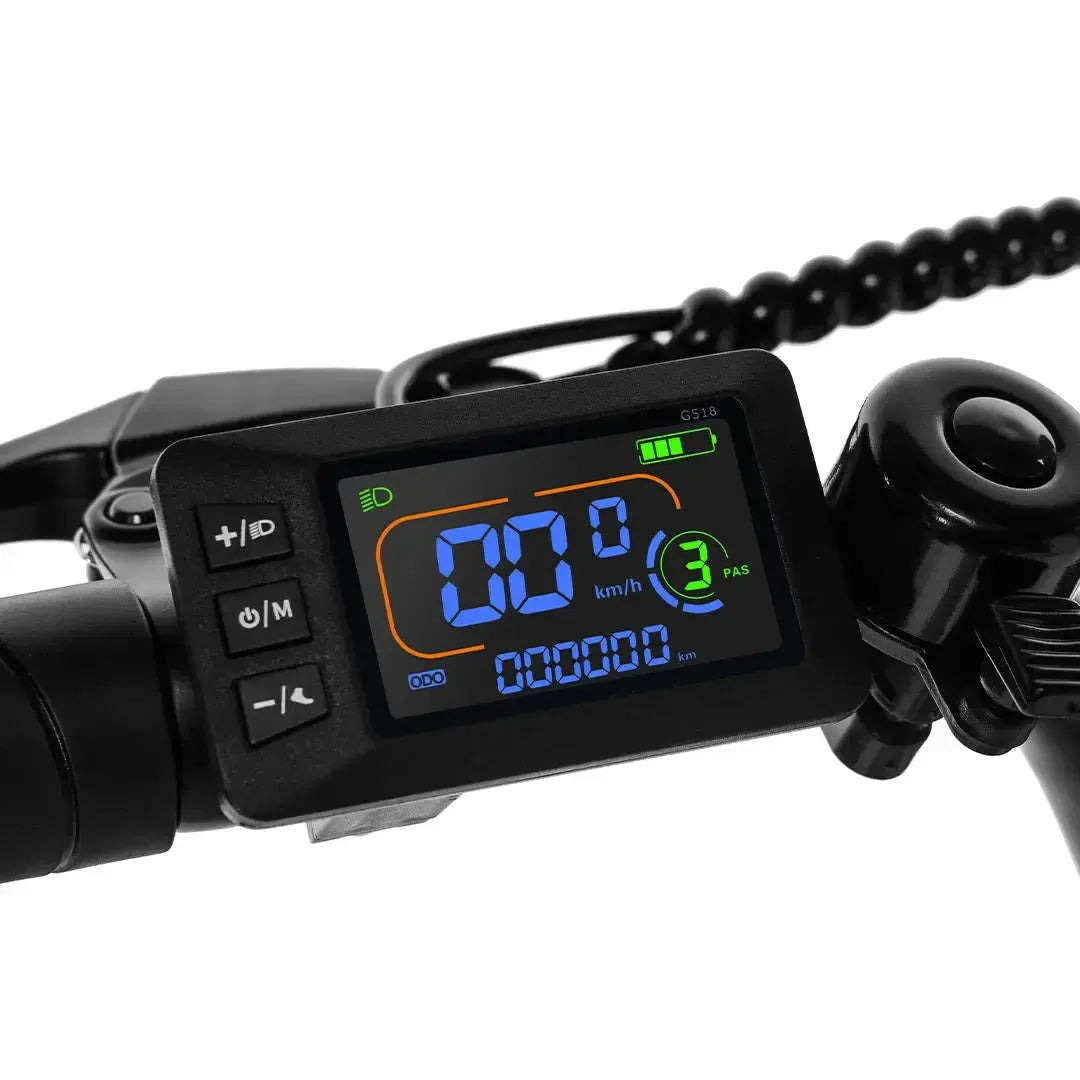

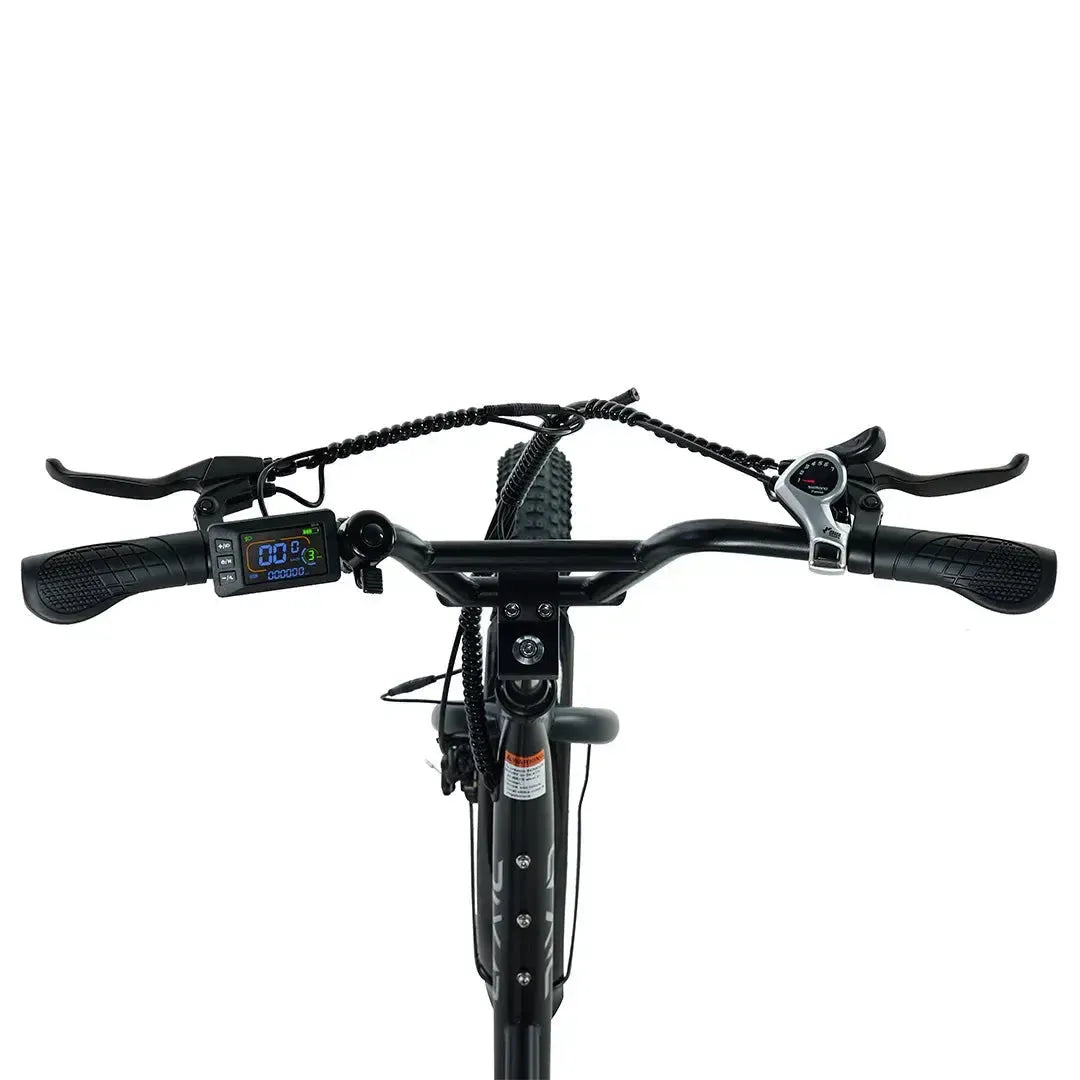

- Left-mounted LCD display (PAS, throttle, pedal modes, USB-C)

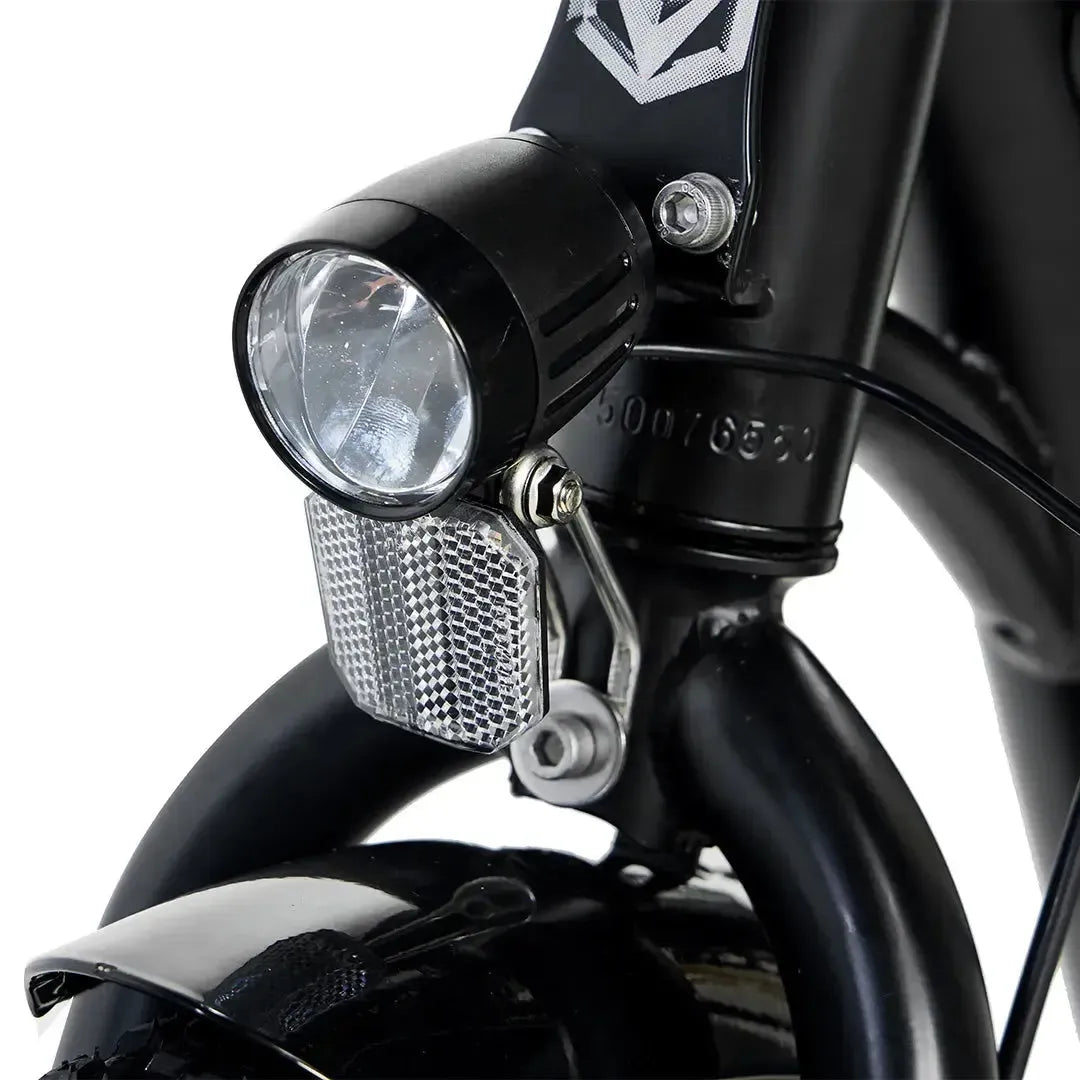

- Front & rear LED lights with waterproof connectors
- Electric horn remote
- Steel kickstand for parking stability
- Pre-connected waterproof wiring for durability
- Included tools and user manual (PDF)
Full Description
The PIXAR® FUN1 Electric Bike is designed for riders who want both utility and fun in one package. Its 36V 350W JIABO brushless hub motor provides smooth power delivery, while the 36V 10.4Ah battery (40 EVE 2600 mAh cells)ensures up to 60 km range on pedal assist or 30 km on throttle only. For extra flexibility, the FUN1 supports 5 pedal-assist levels, walk-assist, and can be unlocked to reach speeds of up to 32 km/h (20 mph).
Built around a strong steel frame, the bike comes with a rear rack, PVC fenders, and basket mounting points for GALAXY baskets, making it practical for carrying loads. A Shimano 7-speed thumb shifter (TX50) and Shimano TZ500 derailleur provide reliable gear changes, while mechanical disc brakes (FILAIR) and square brake pads deliver dependable stopping power.

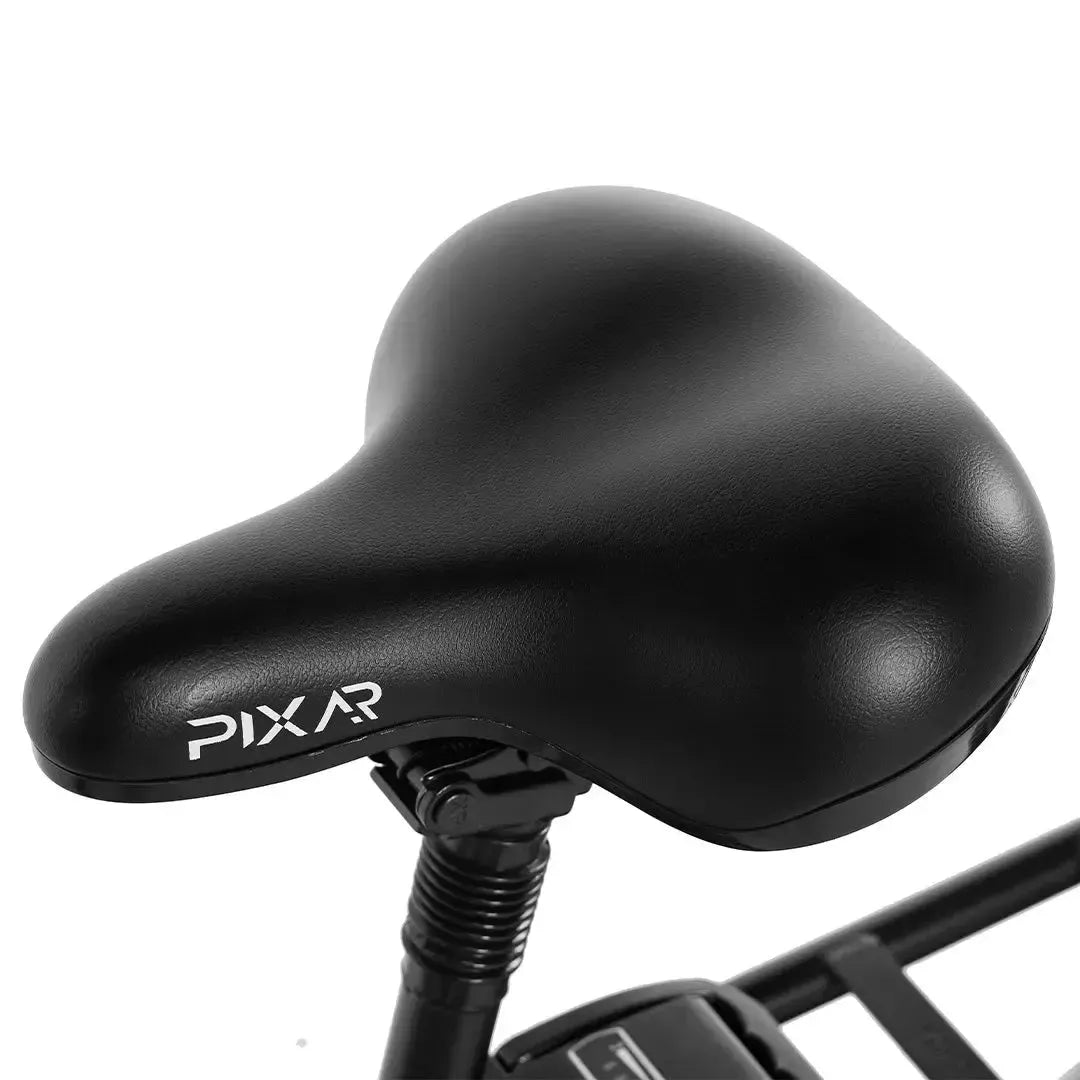

The FUN1’s ride comfort is supported by 20″ × 3.0″ Chaoyang fat tyres, a comfort saddle, and upright geometry, though its steel fork is rigid for durability. At 37.5 kg net weight and with a 150 kg load capacity, it can handle heavier riders and cargo with ease.
Additional features include an LCD display with PAS, throttle, and pedal mode indicators, plus a USB Type-C charging port for devices. A 12-magnet speed sensor ensures precise pedal-assist responsiveness. Safety is reinforced with front and rear LED lights, a steel kickstand, rust-resistant screws, and an electric horn remote. Charging takes around 5.2 hours with the included 42V 2A charger.
With IP54 water resistance, pre-connected waterproof wiring, and included tools, the PIXAR FUN1 is built for everyday convenience, blending modern e-bike technology with a practical, rugged design.
What's in the Box?
PIXAR FUN1
Charger
Tool Kit
User Manual
FAQs
Delivery
2–4 days standard shipping. Need it sooner? Express shipping is available at checkout.
Warranty
Includes a 2-year warranty. Any issues? Just head over to our Warranties page
Payments
We accept all major payment methods—credit & debit cards, PayPal, and more.
Returns
Easy 30-day returns from delivery—just send it back in its original condition for a refund or exchange.
Legal Use Disclaimer
Electric scooters and e-bikes are subject to local laws and regulations, which vary by country, region, and city. Before purchasing or operating this product, it is the customer’s responsibility to check and comply with all applicable road, traffic, and safety regulations in their area.
This product may be restricted to private property use only in some locations. The seller accepts no responsibility for misuse or use that violates local laws. Always wear appropriate safety gear and ride responsibly.
