PIXAR City1 Urban Electric Bike
- 36V 250W JIABO Hub Motor
- Up to 60 km Pedal-Assist Range
- Shimano 7-Speed (SL-M315 Shifter)
- Lightweight Aluminium Alloy Frame
- 700C × 40 mm City Tyres
- Color:
- Black
Pairs well with
Delivery in 2 to 4 working days
Hassle-Free Returns within 30 Days
2-Year Warranty Coverage
Trusted, Award-Winning Support Team
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Waterproof IP65
Urban Commuter

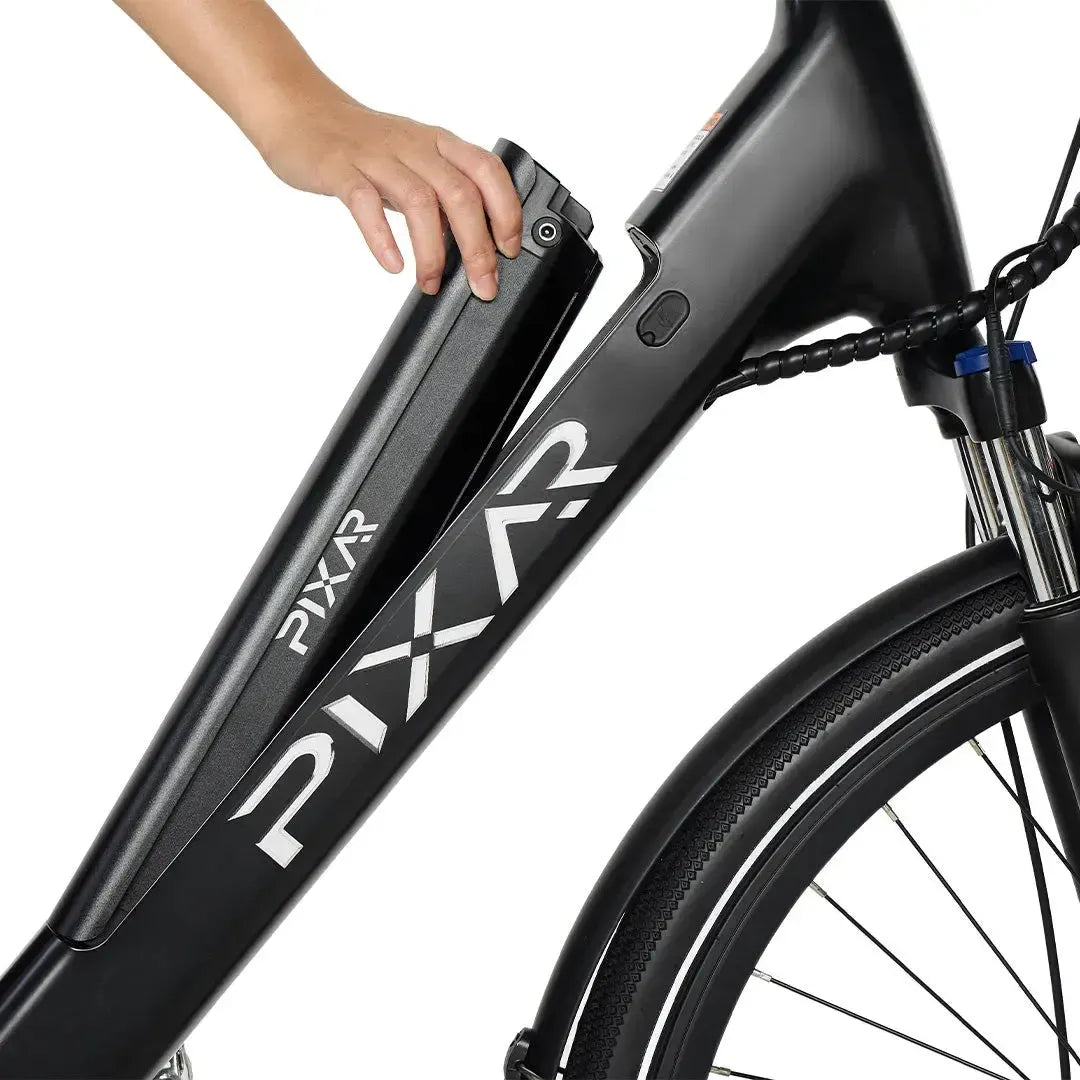

Removable Battery
Shimano Gears
Smart LCD Display

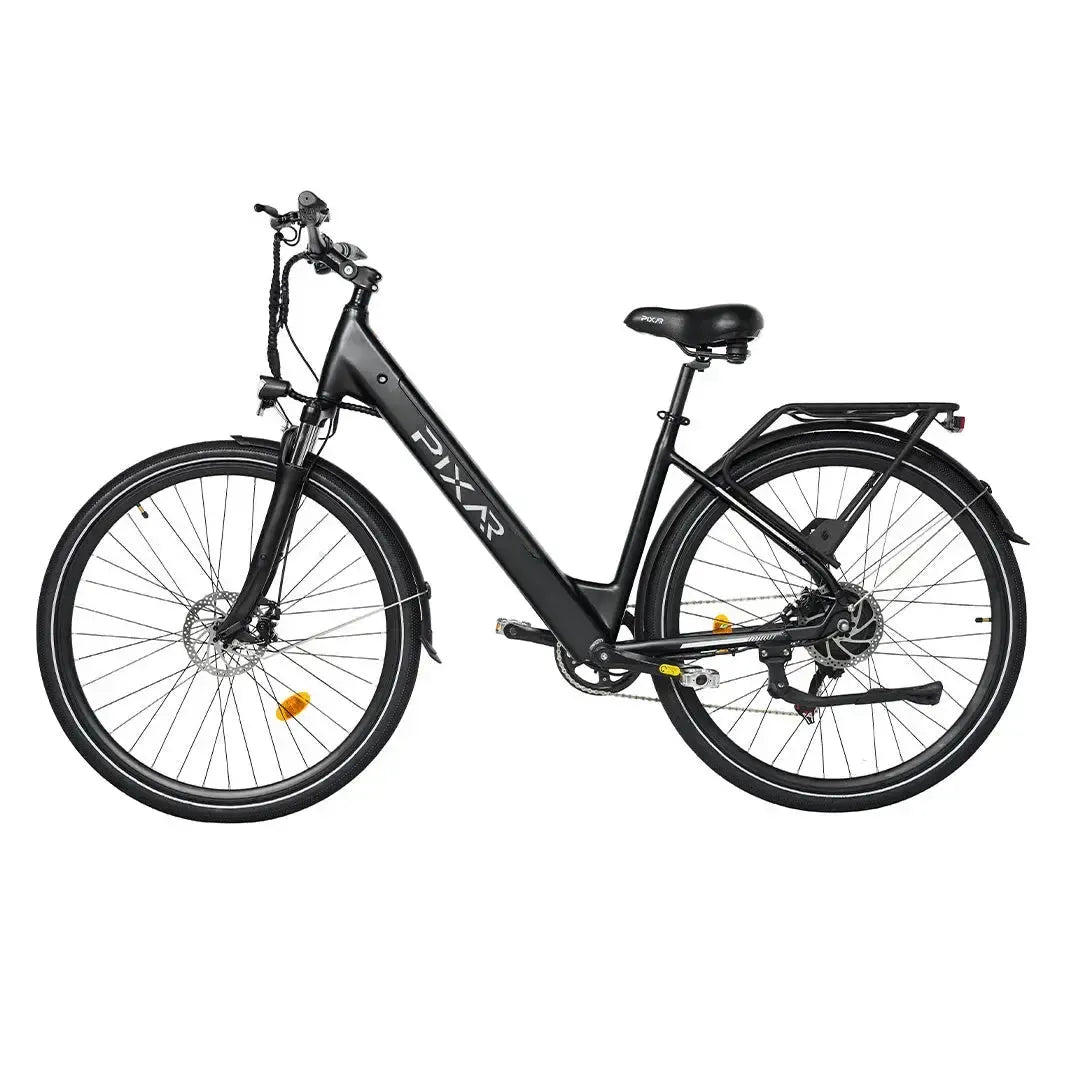

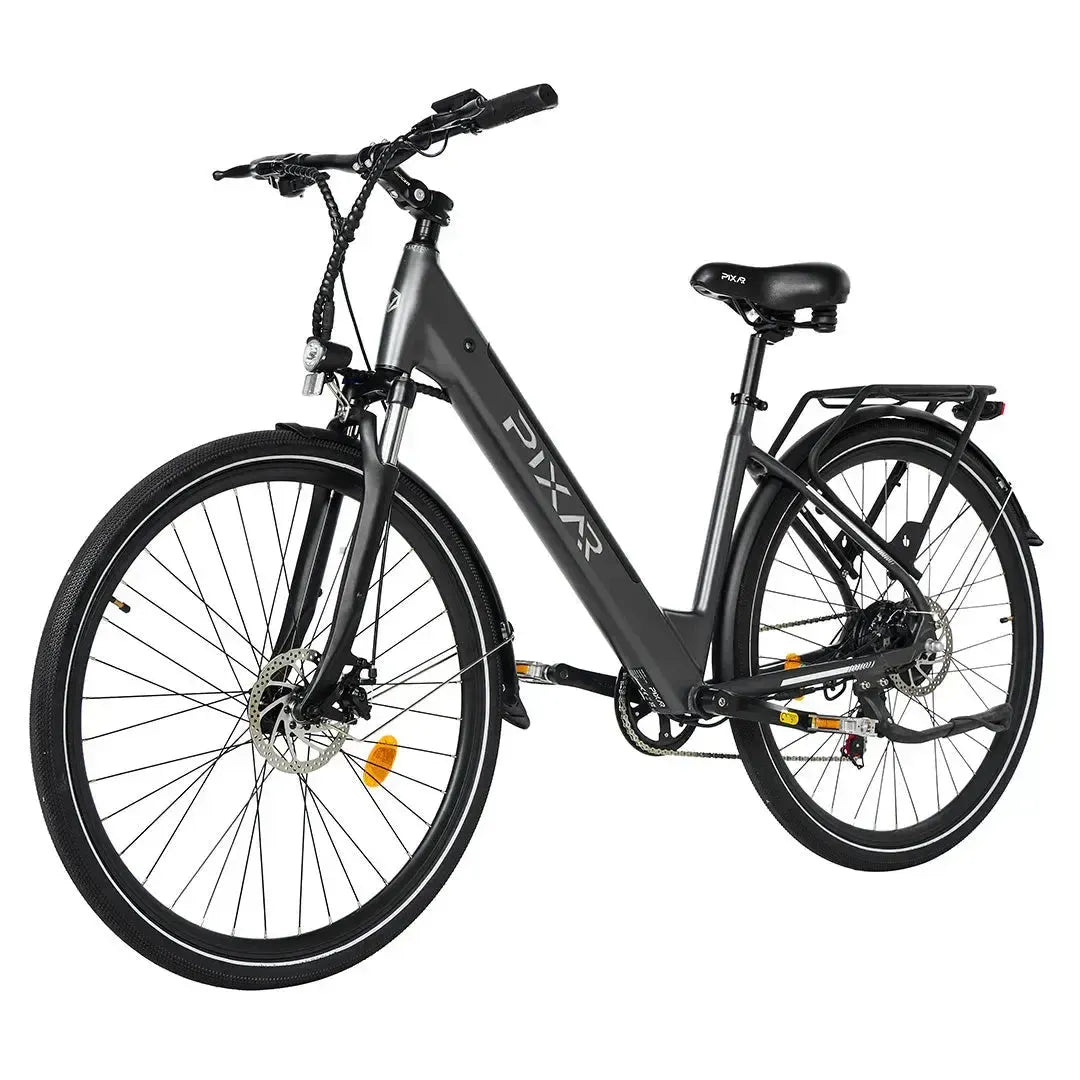

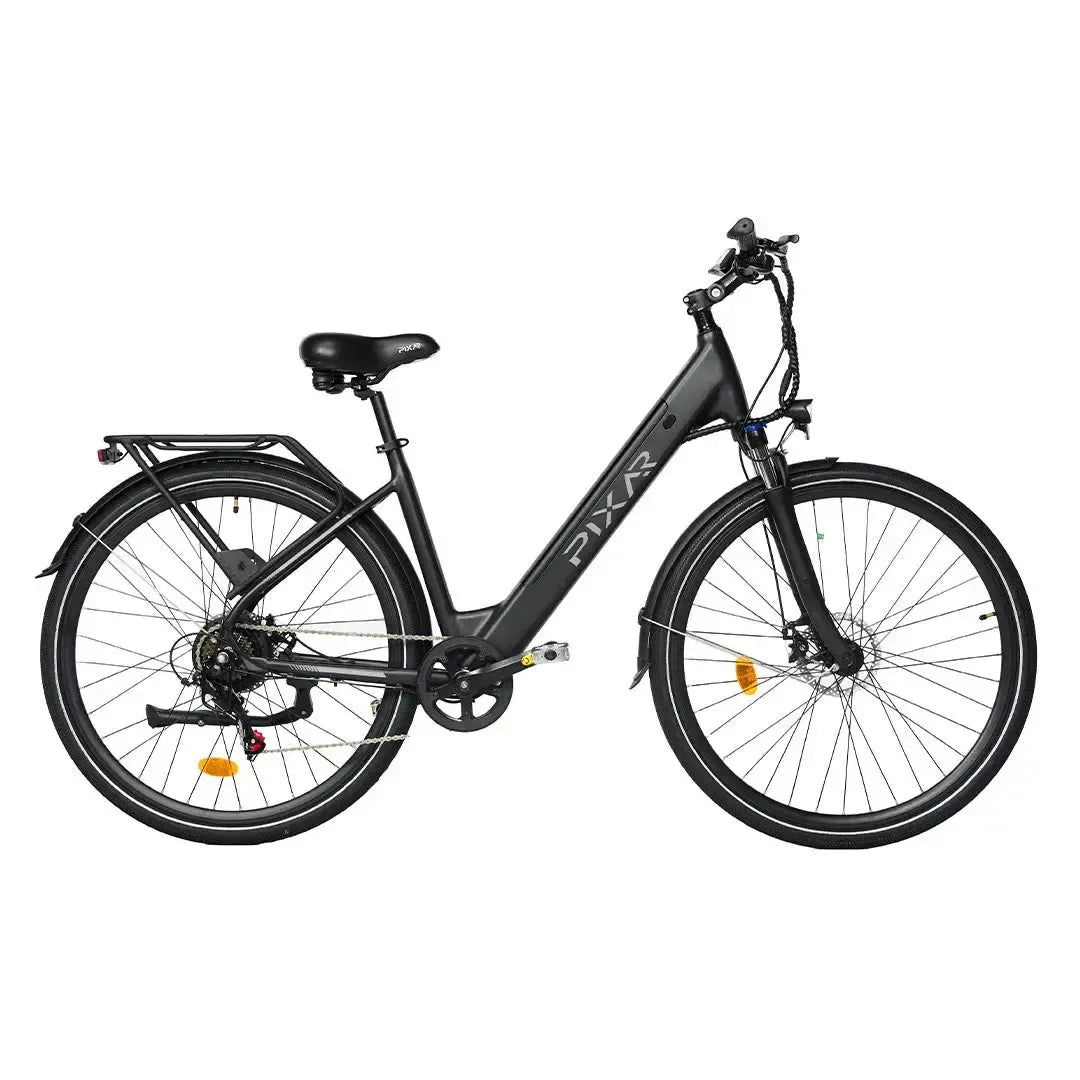

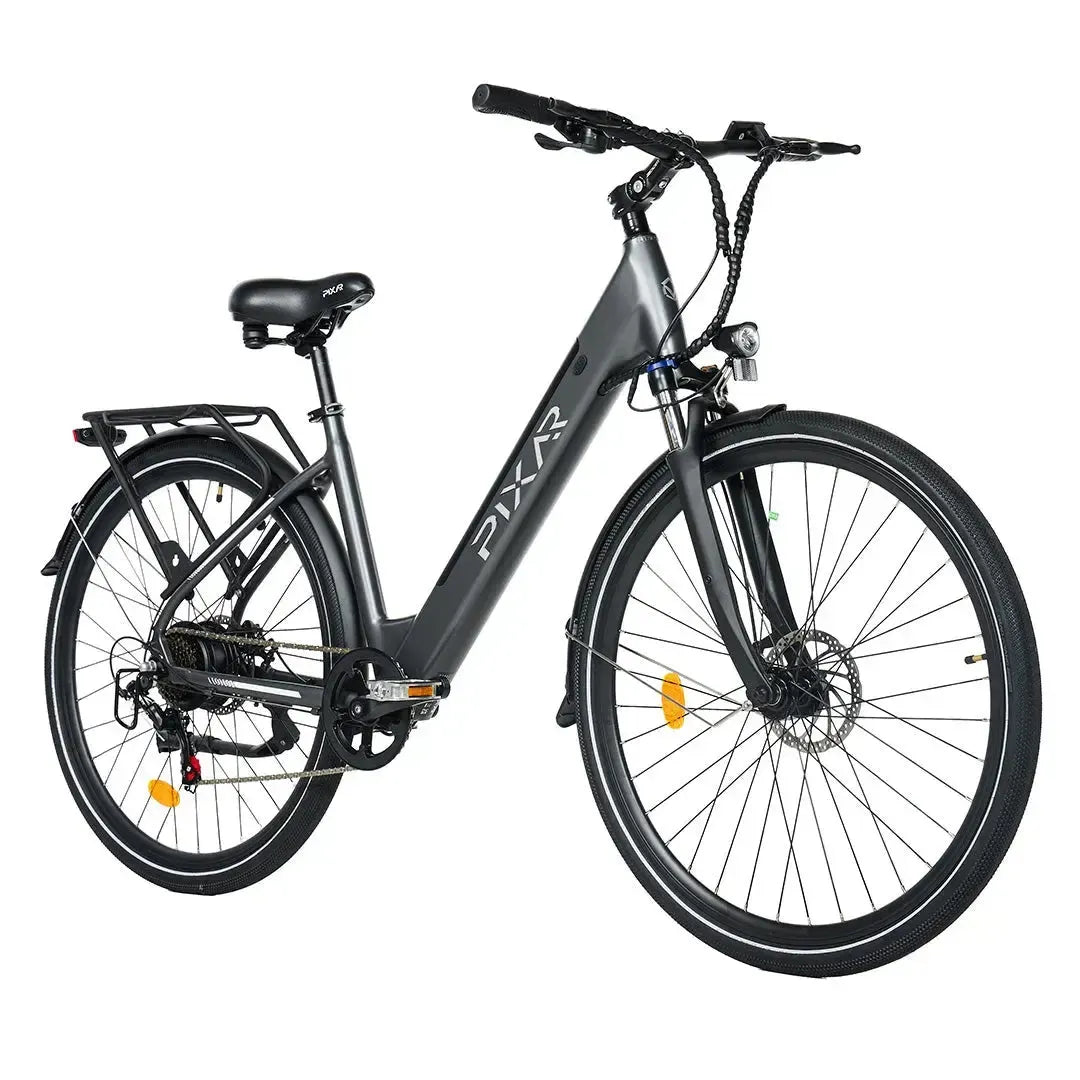

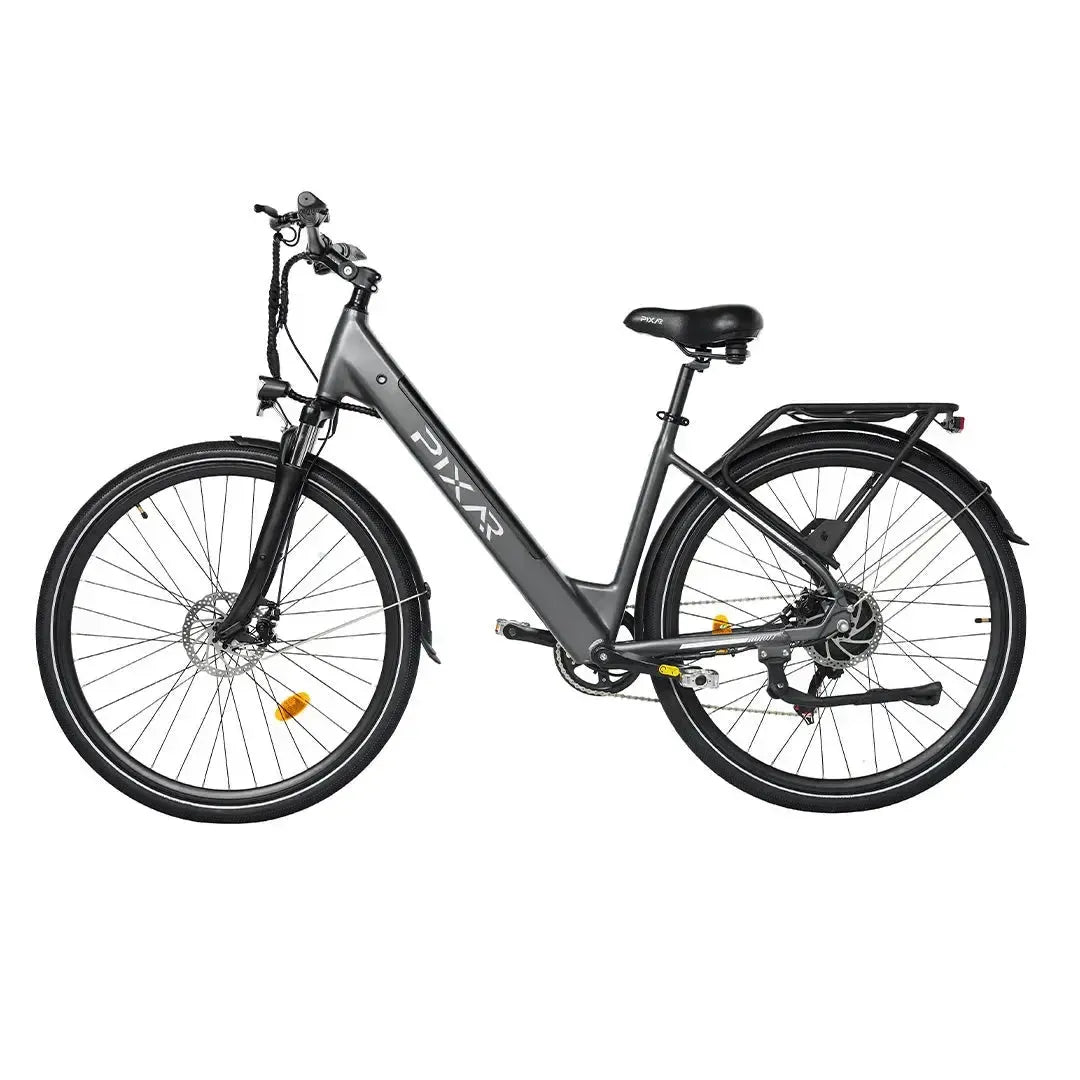

The PIXAR City1
The PIXAR® City1 Electric Bike is built for modern commuting, combining lightweight design, efficiency, and practicality. Its 36V 250W JIABO brushless hub motor, paired with a 36V 10.4Ah lithium battery (EVE cells), delivers up to 60 km of pedal-assist range or 30 km throttle-only. With 700C × 40 mm Chaoyang tyres, a suspension fork with lockout, and a Shimano 7-speed drivetrain, the City1 ensures smooth, comfortable, and adaptable riding through busy streets. Features such as mechanical disc brakes, integrated LED lights, a strong steel rack, and an electric horn make it safe and commuter-ready. Designed for everyday reliability, the City1 blends city practicality with dependable performance.
PIXAR
PIXAR E-Bike was founded in 2013, bringing together over a decade of experience in the bicycle industry. The brand is built on three core values: Integrity, Innovation, and Win-Win Collaboration, which shape how they design, produce, and support their e-bikes. From the start, PIXAR has emphasized high-grade materials, rigorous manufacturing standards, and safety compliance to earn a reputation for dependable, premium electric bikes.
Here’s a fun detail: despite sharing a name with the famous animation studio, PIXAR E-Bike is entirely unrelated—they chose the name because it evokes creativity, dynamism, and forward motion, tying nicely into their mission of “powering the e-bike revolution” whether for city commuting, boulevard cruising or weekend getaways.
Specifications
General Details
- Aluminium alloy frame with basket mounts (GALAXY compatible)
- Suspension fork with lockout
- Net weight: 28.5 kg / Gross: 35.3 kg
- Max load: 150 kg
- Toolkit & PDF manual included
Performance & Battery
- 36V 250W JIABO hub motor
- 36V 10.4Ah lithium battery (40 × EVE cells)
- Range: 60 km PAS / 30 km throttle
- Charging time: ~5.2 hours (42V 2A charger)
Speed & Motor
- EU-legal 25 km/h, unlockable to 32 km/h
- 5 pedal-assist levels
- Thumb throttle with waterproof connector
- 12-magnet speed sensor
Dimensions & Weight
- Tyres: Chaoyang 700C × 40 mm (~28″ × 1.6″)
- Crankset: 52T × 170 mm
- Net weight: 28.5 kg
- Max load capacity: 150 kg
Load & Climbing
- 250W motor for efficient city riding
- Shimano 7-speed gearing for versatile use

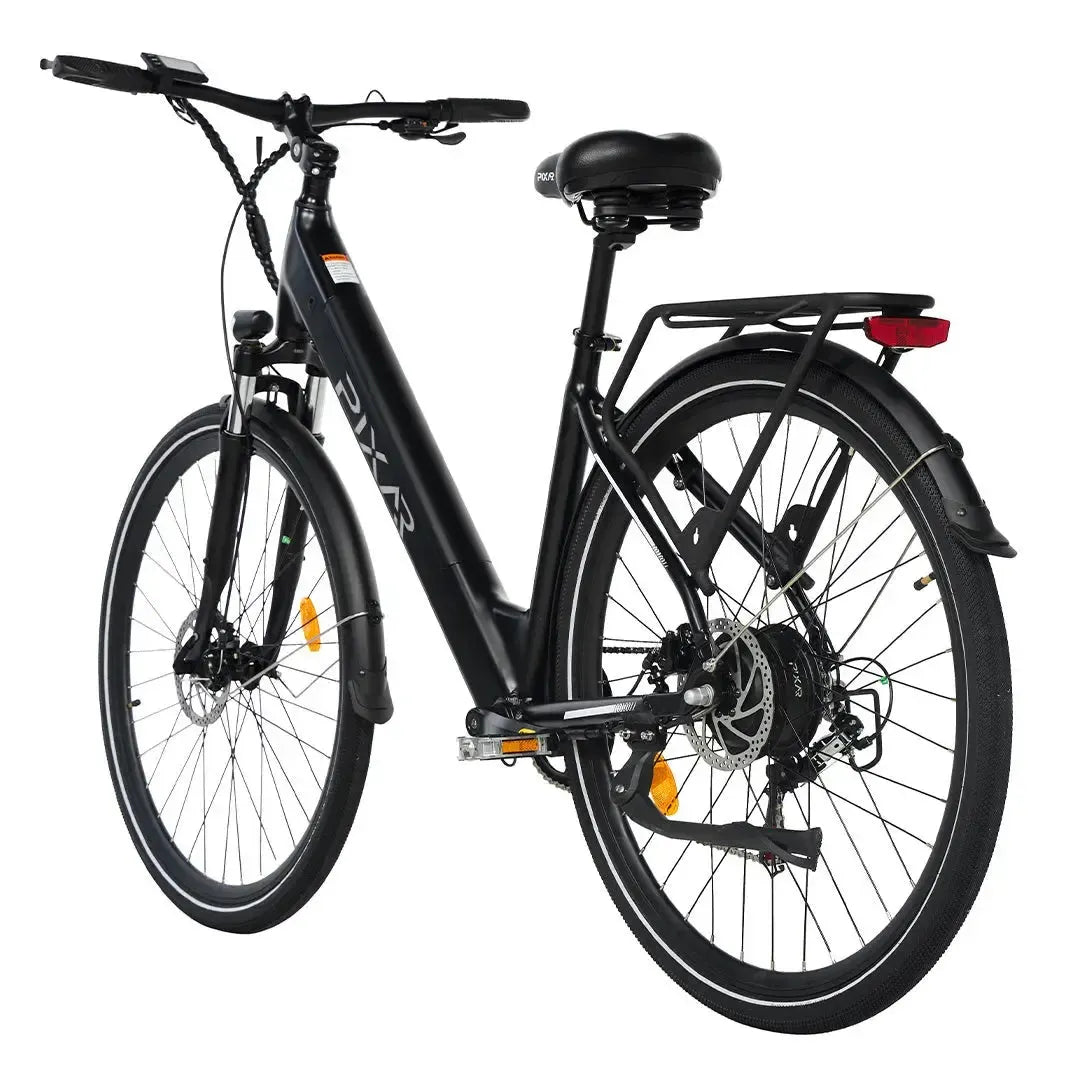

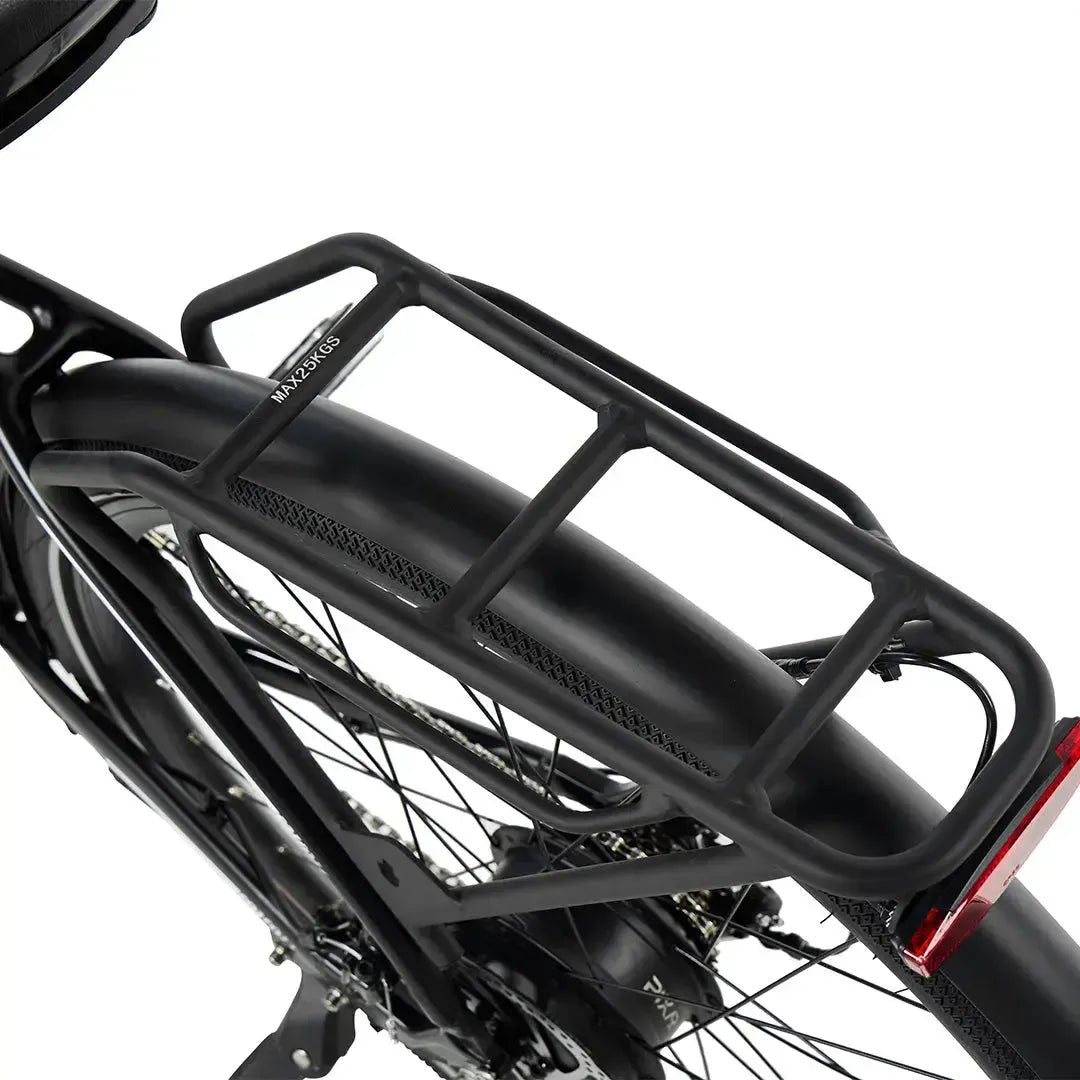

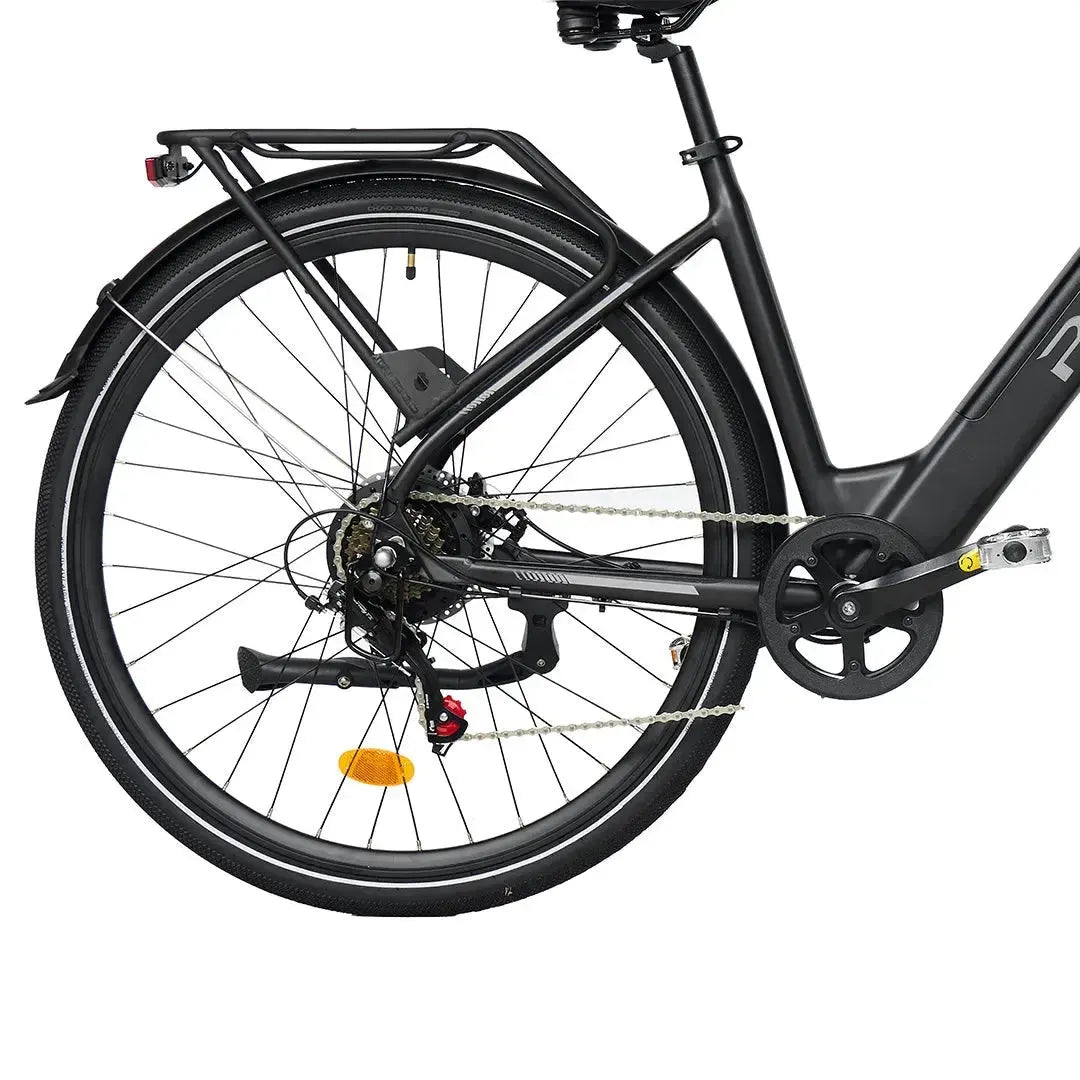

- Strong rear rack for cargo or panniers
- Lightweight frame with commuter geometry
Tires, Brakes & Waterproofing

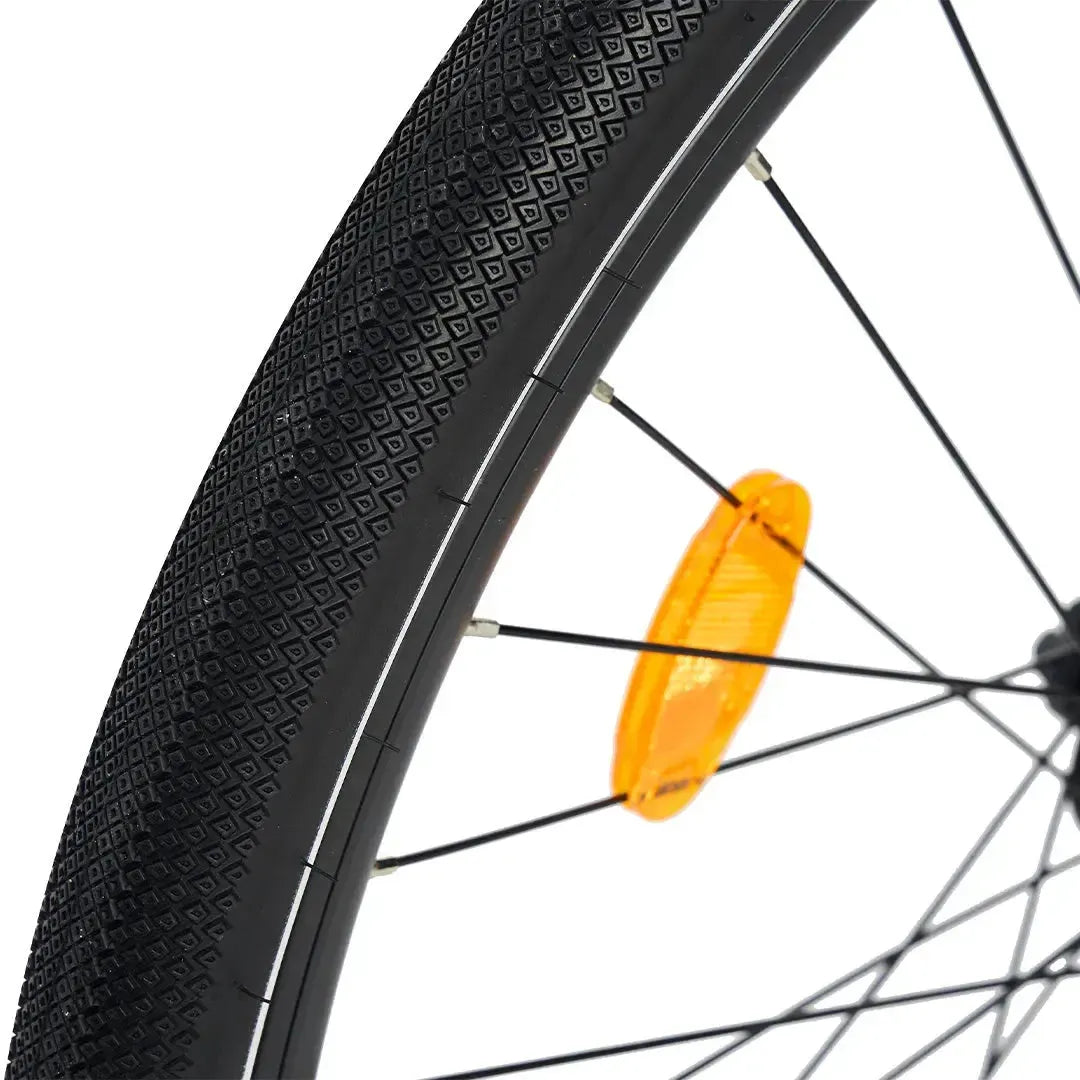

- Chaoyang 700C × 40 mm tyres

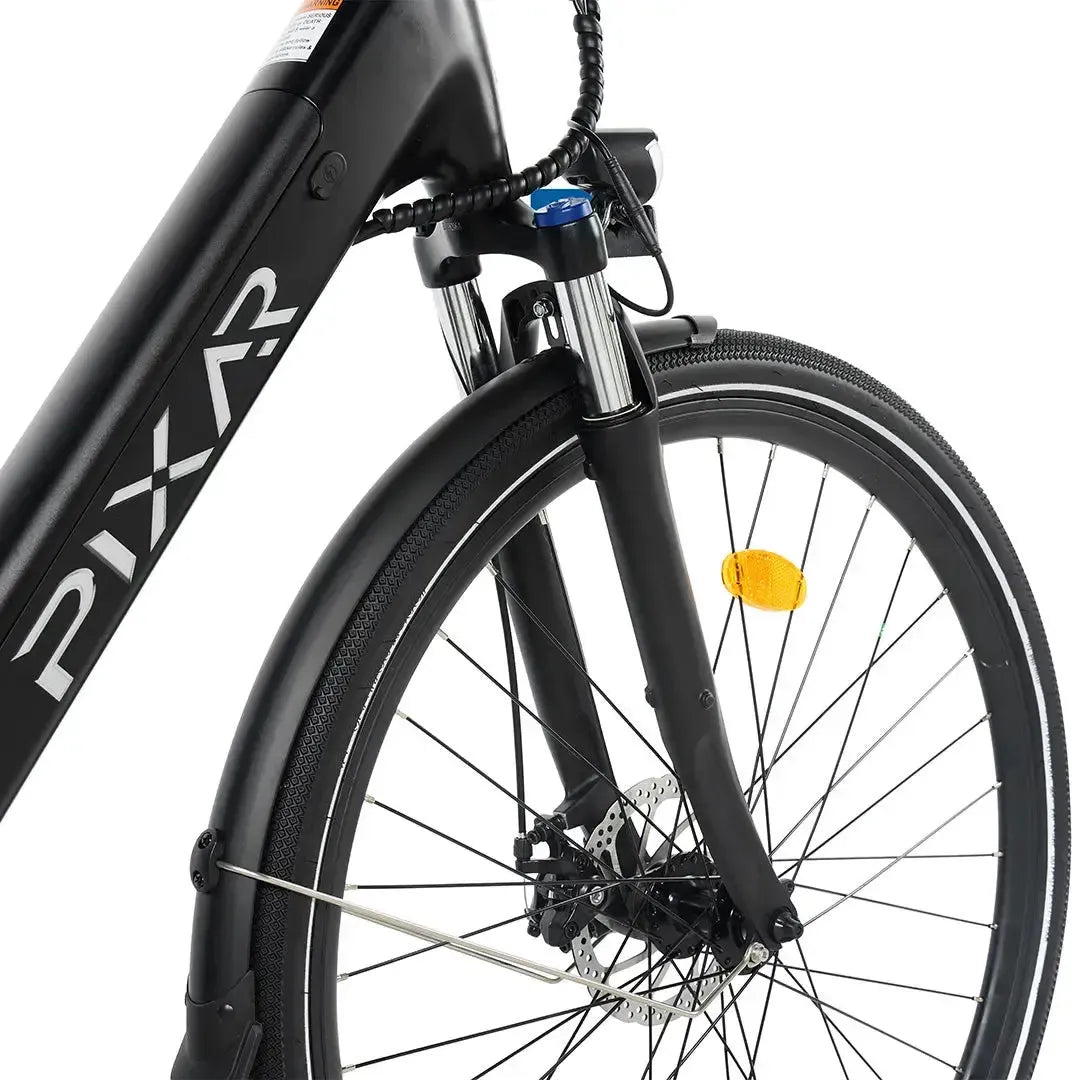

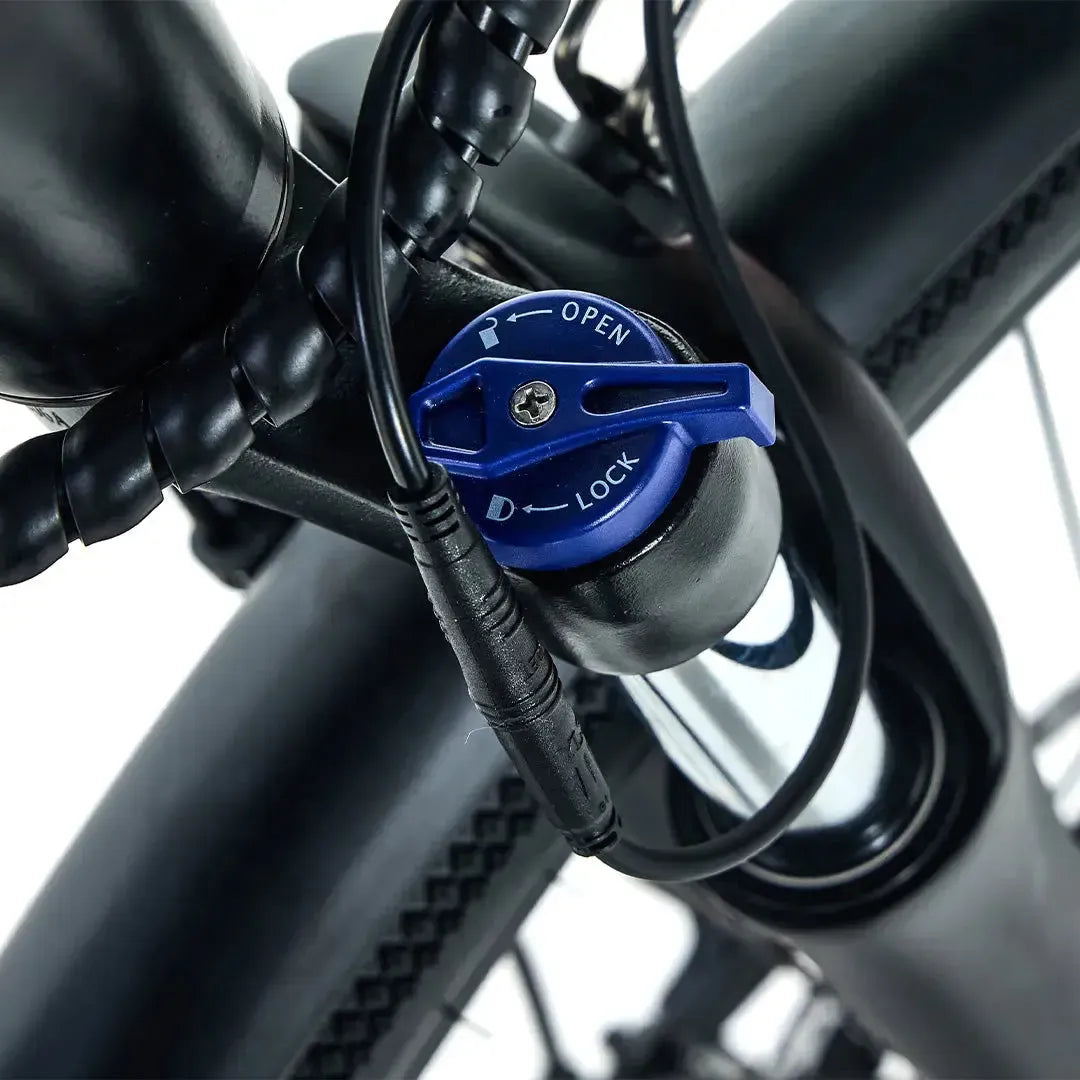

- Suspension fork (steel stanchion + aluminium crown)
- Mechanical disc brakes (FILAIR) with square pads
- Front & rear PVC fenders (matte black)
More Features

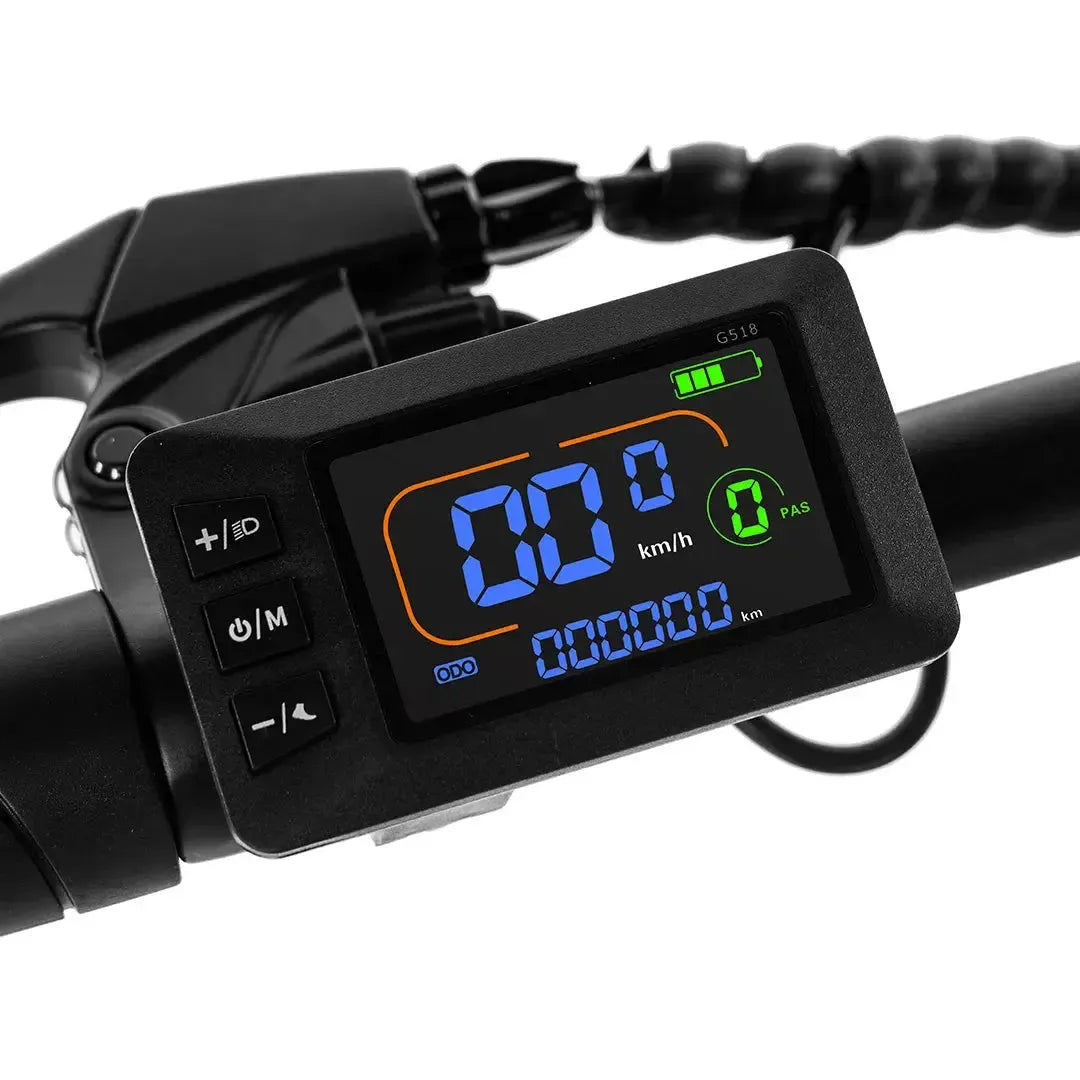

- Left-mounted LCD display (PAS, speed, battery)

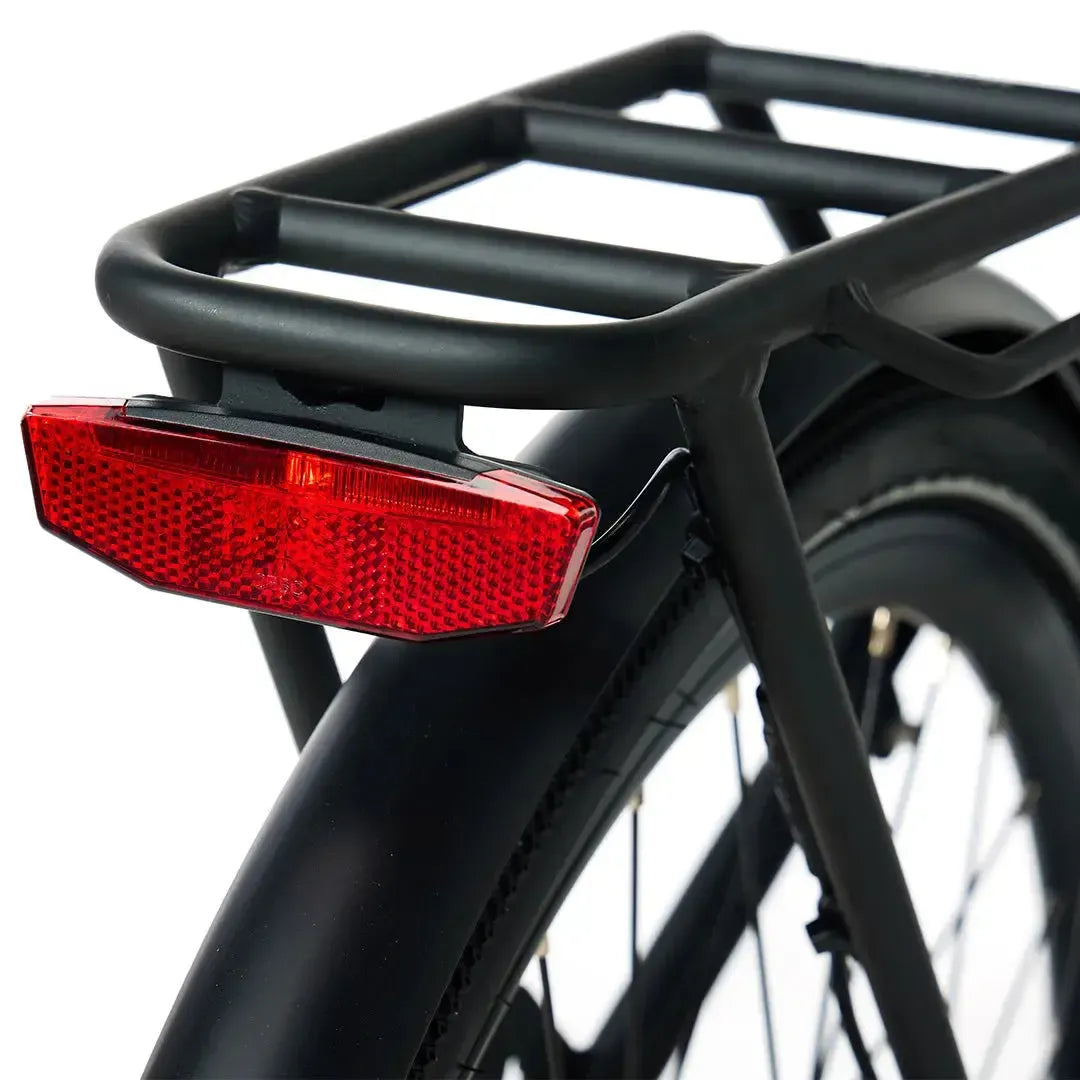

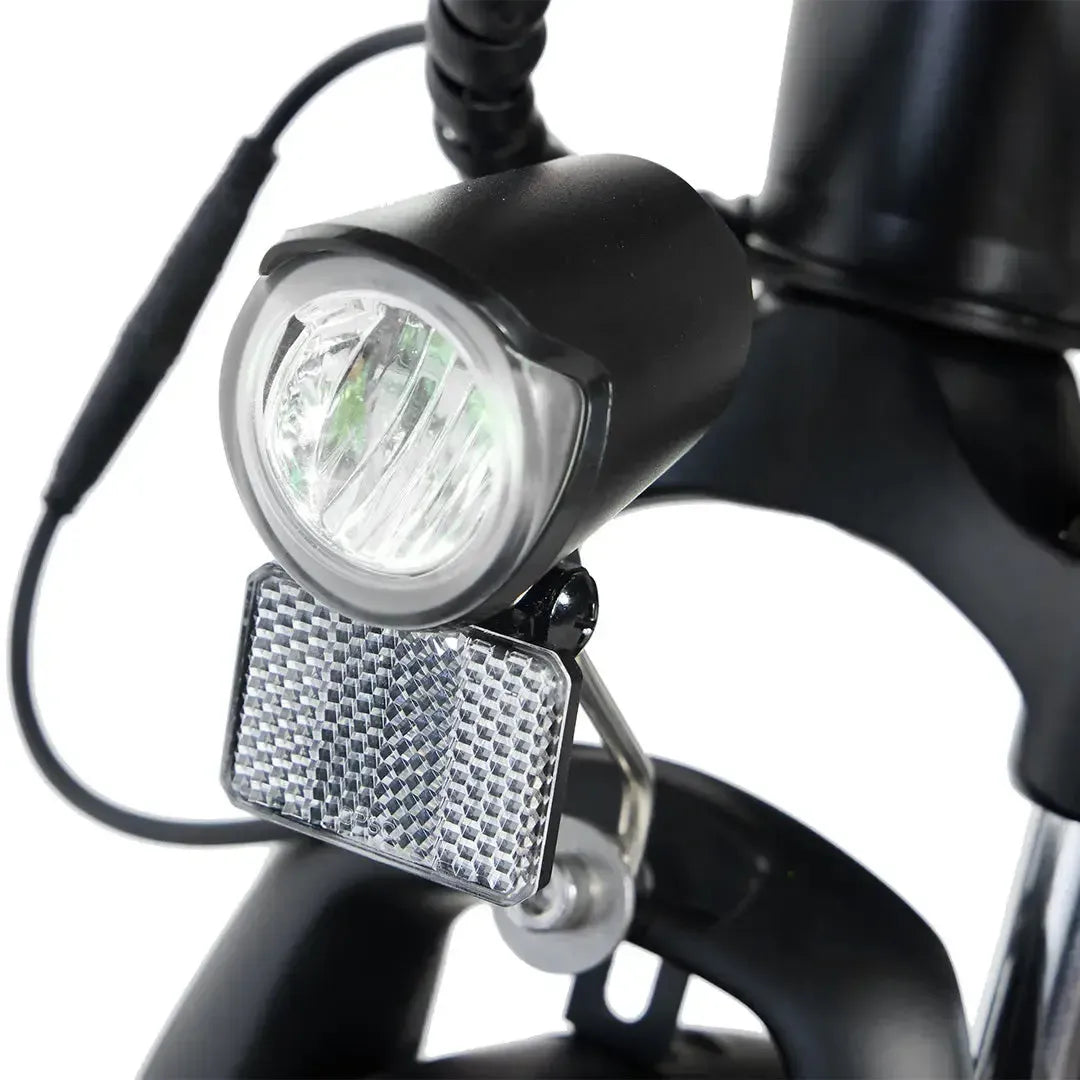

- Front & rear LED lights with waterproof connectors
- Electric horn with remote
- Rust-resistant screws and waterproof wiring

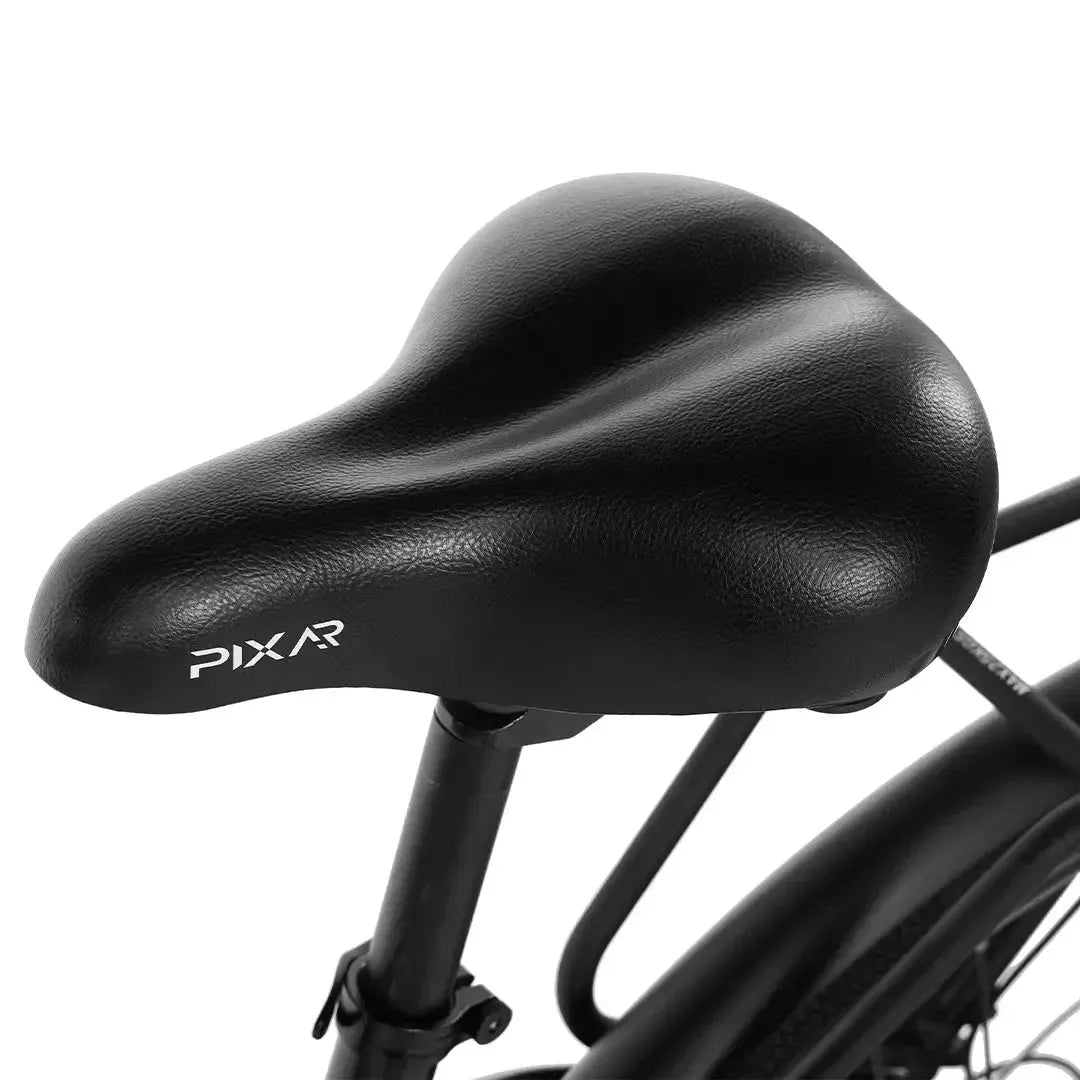

- Steel kickstand and comfort saddle
Full Description
The PIXAR® City1 Electric Bike is the perfect choice for urban commuters and everyday riders who value comfort and efficiency. Powered by a 36V 250W JIABO brushless hub motor and a 36V 10.4Ah battery (40 × 2600 mAh EVE cells), it provides up to 60 km pedal-assist range or 30 km throttle-only. The KCHQ 36V 6-tube controller ensures reliable performance management, while the left-mounted LCD display tracks PAS level, speed, and battery status.
The bike supports a top speed of 25 km/h (unlockable to 32 km/h), with 5 pedal-assist levels, a thumb throttle, and a 12-magnet speed sensor for responsive control.
The aluminium alloy frame keeps the bike strong but lightweight at 28.5 kg, and it integrates basket mounting holes for GALAXY basket compatibility. A suspension fork with lockout smooths out uneven terrain, while 700C × 40 mm Chaoyang tyres provide efficiency and grip on city roads.

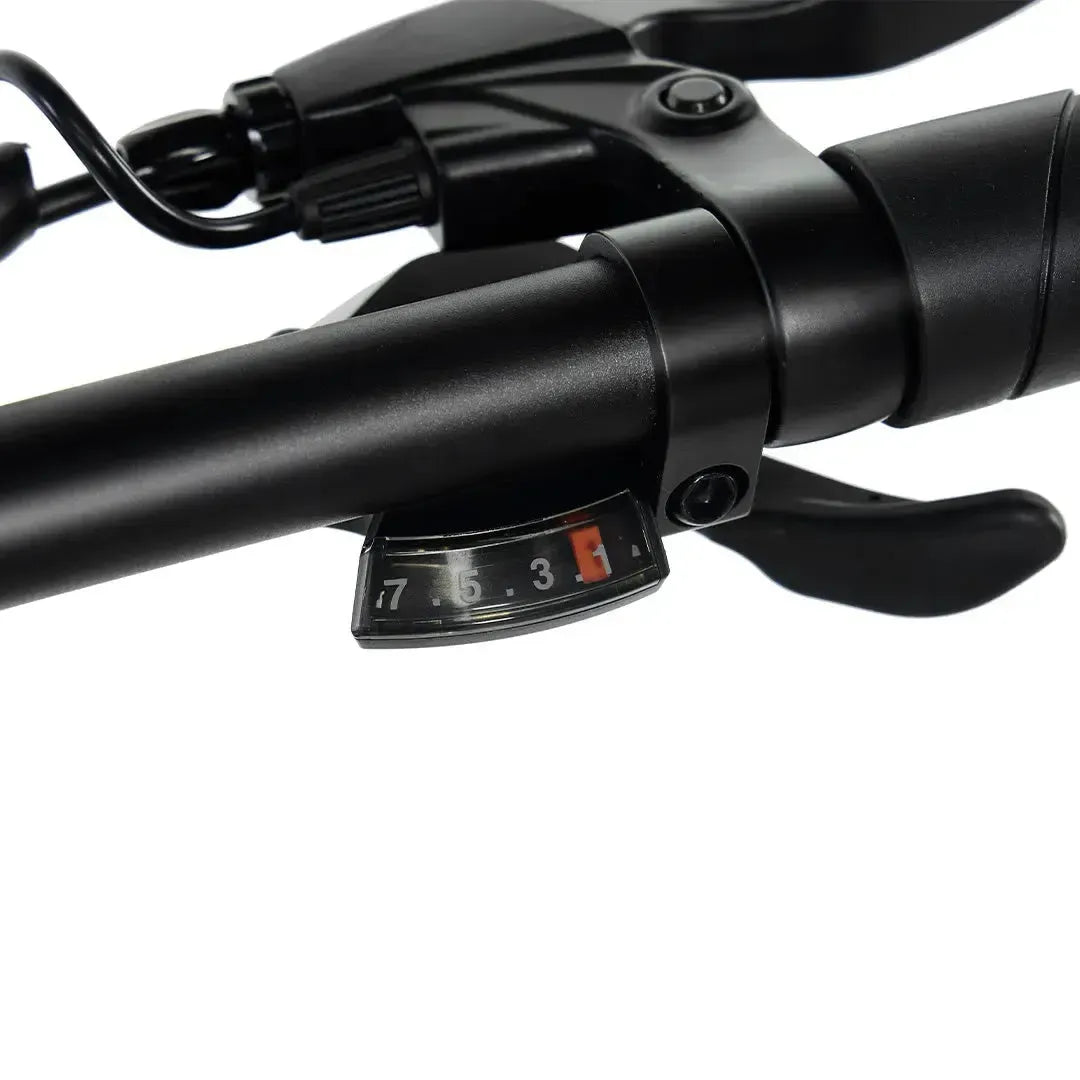

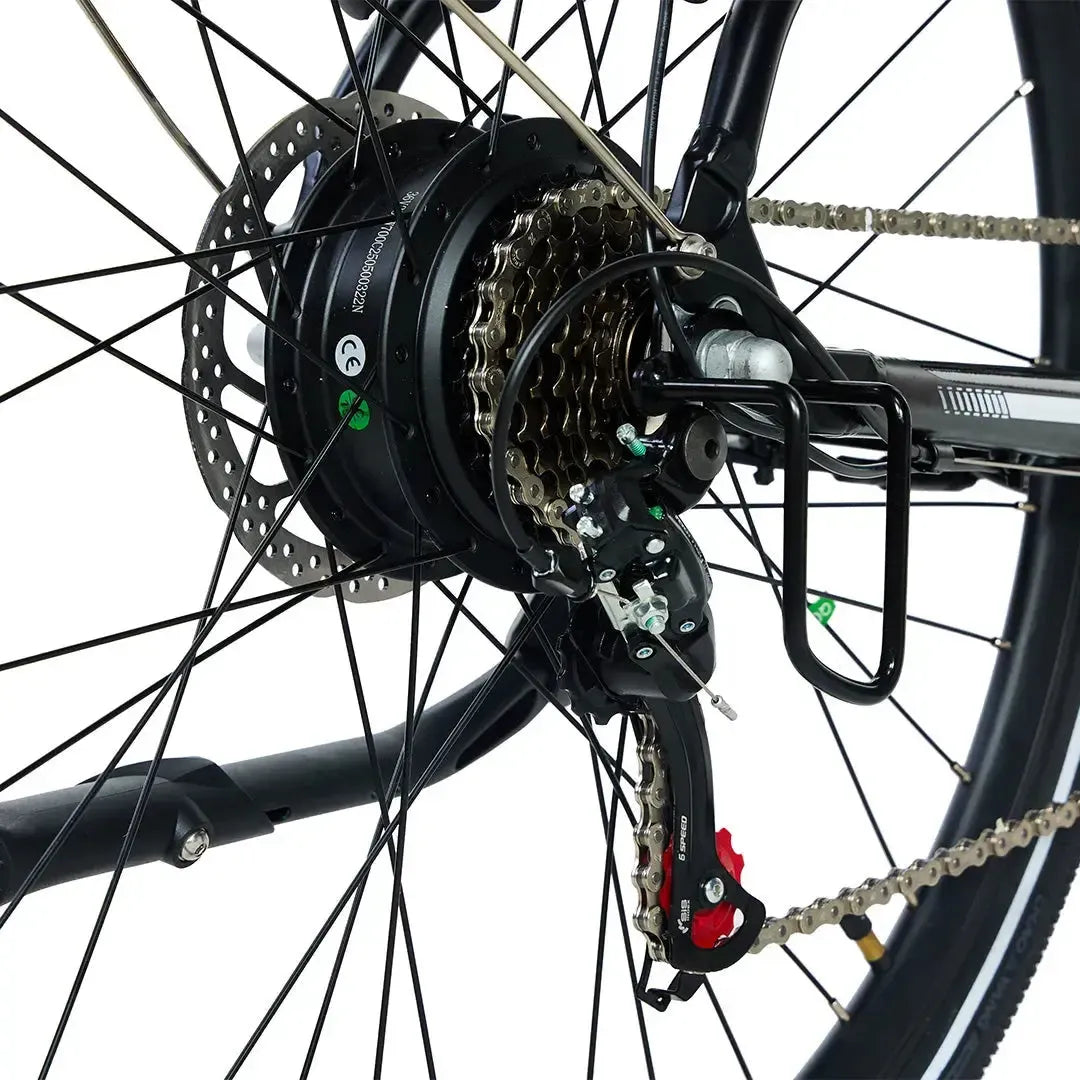

The Shimano 7-speed system (SL-M315 thumb shifter, TZ500 derailleur with protector, ATA freewheel) ensures flexible gearing. For safety, the City1 is equipped with mechanical disc brakes (FILAIR) with square pads, front & rear LED lights, and an electric horn.
Extra commuter-friendly features include rust-resistant screws, waterproof wiring with quick-disconnects, PVC matte black fenders, a strong steel rear rack, a steel kickstand, and a comfort saddle. Charging takes around 5.2 hours with the included 42V 2A charger.
With a 150 kg load capacity, IP54 water resistance, and included toolkit and PDF manual, the PIXAR City1 is a dependable and practical city e-bike built for the demands of everyday riding.
What's in the Box?
PIXAR CITY1
Charger
Tool Kit
User Manual
FAQs
Delivery
2–4 days standard shipping. Need it sooner? Express shipping is available at checkout.
Warranty
Includes a 2-year warranty. Any issues? Just head over to our Warranties page
Payments
We accept all major payment methods—credit & debit cards, PayPal, and more.
Returns
Easy 30-day returns from delivery—just send it back in its original condition for a refund or exchange.
Legal Use Disclaimer
Electric scooters and e-bikes are subject to local laws and regulations, which vary by country, region, and city. Before purchasing or operating this product, it is the customer’s responsibility to check and comply with all applicable road, traffic, and safety regulations in their area.
This product may be restricted to private property use only in some locations. The seller accepts no responsibility for misuse or use that violates local laws. Always wear appropriate safety gear and ride responsibly.
