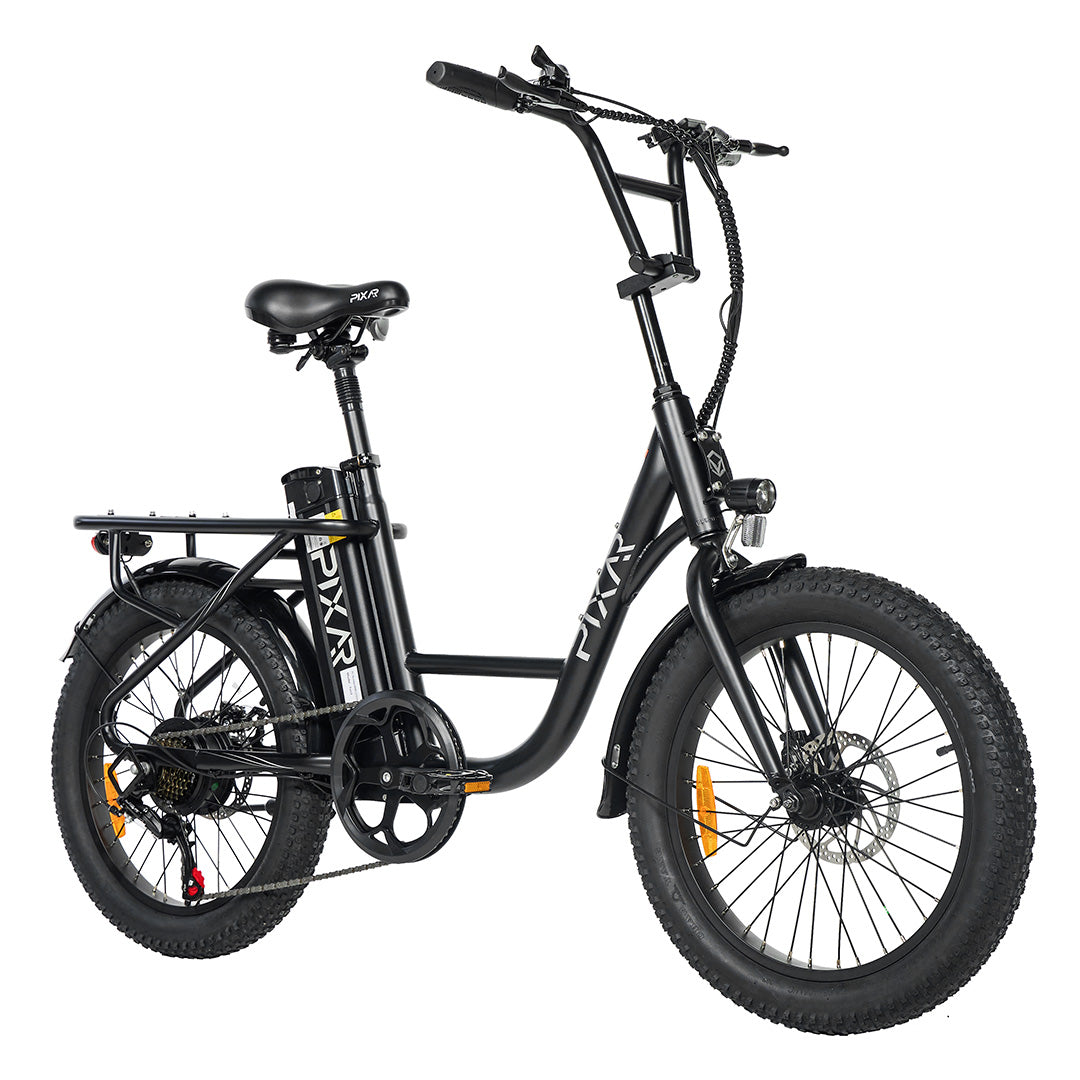

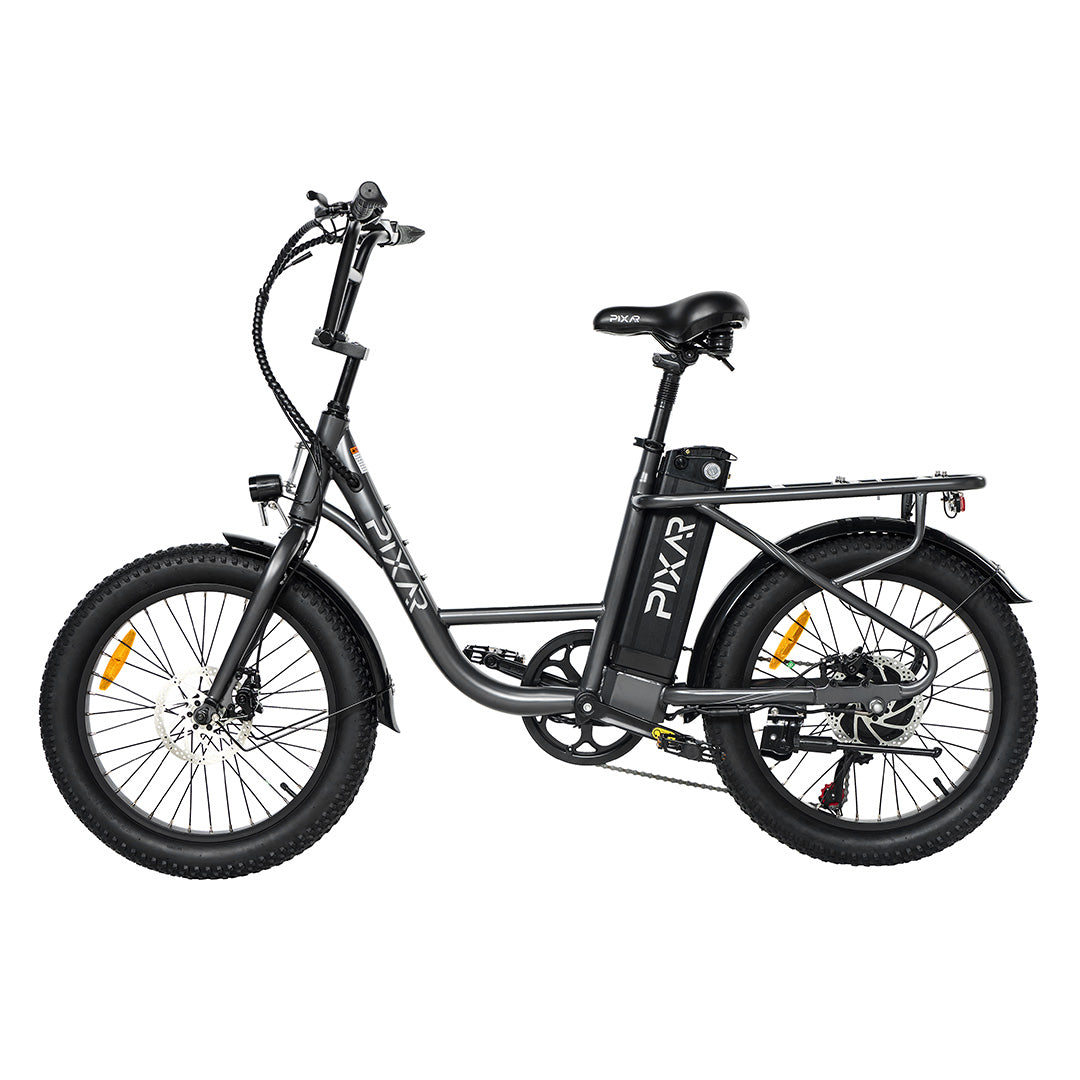

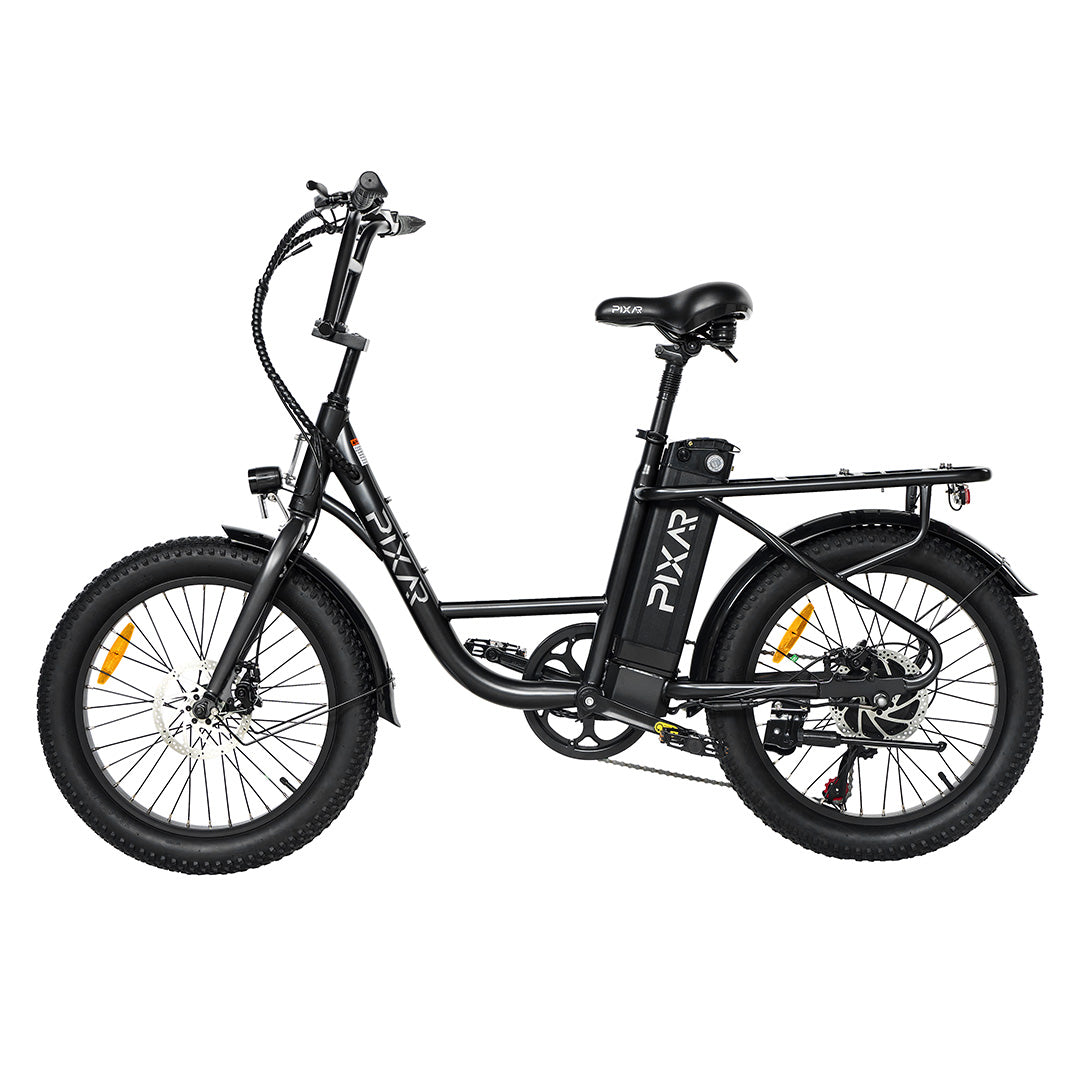

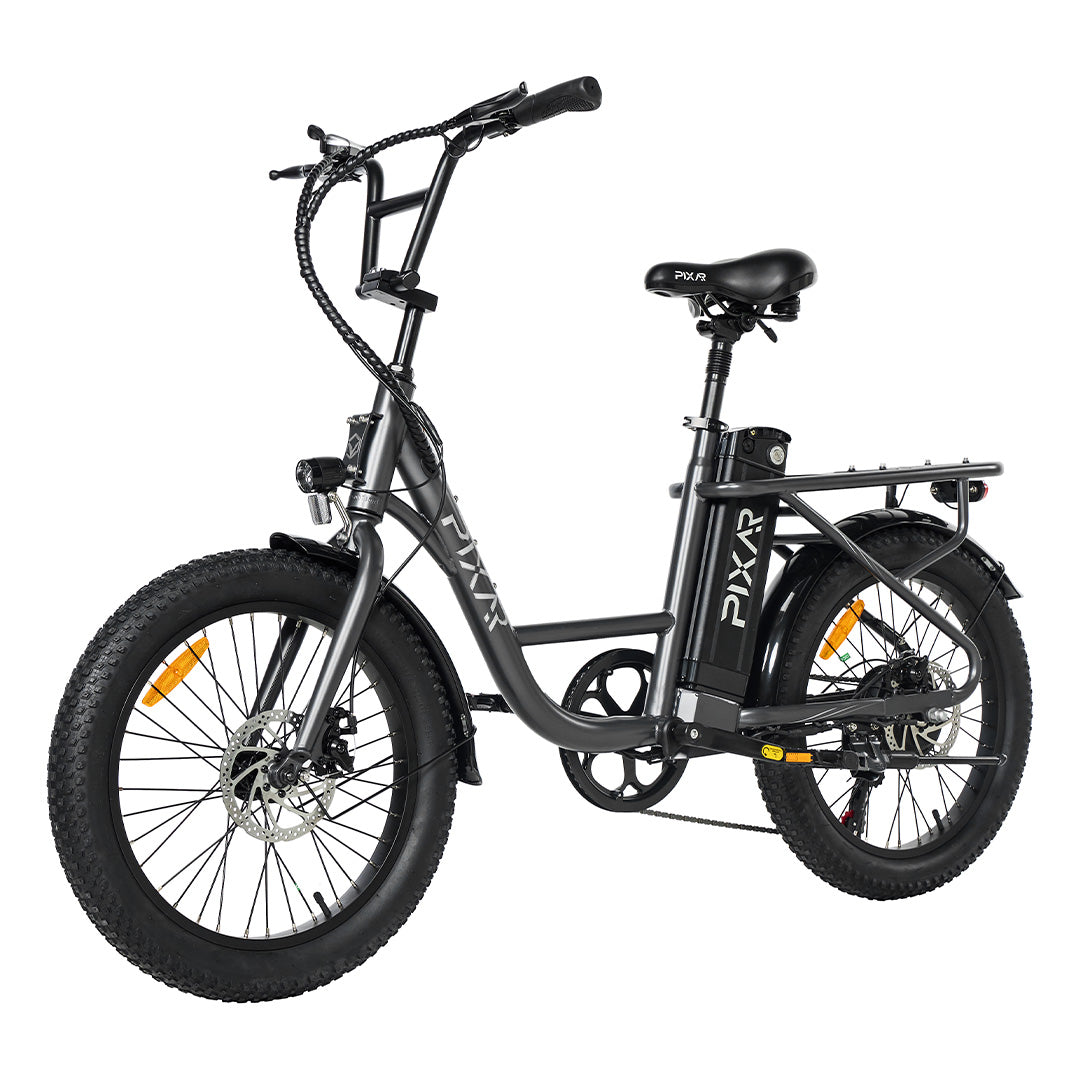

PIXAR® Fun1 Compact Fat-Tyre Electric Bike – 36V 350W Motor, 10.4Ah Battery, 7-Speed, 25 km/h (15.5 mph)

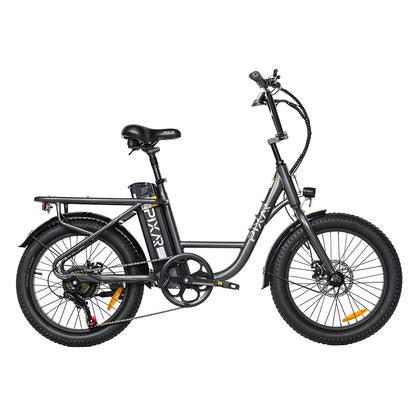

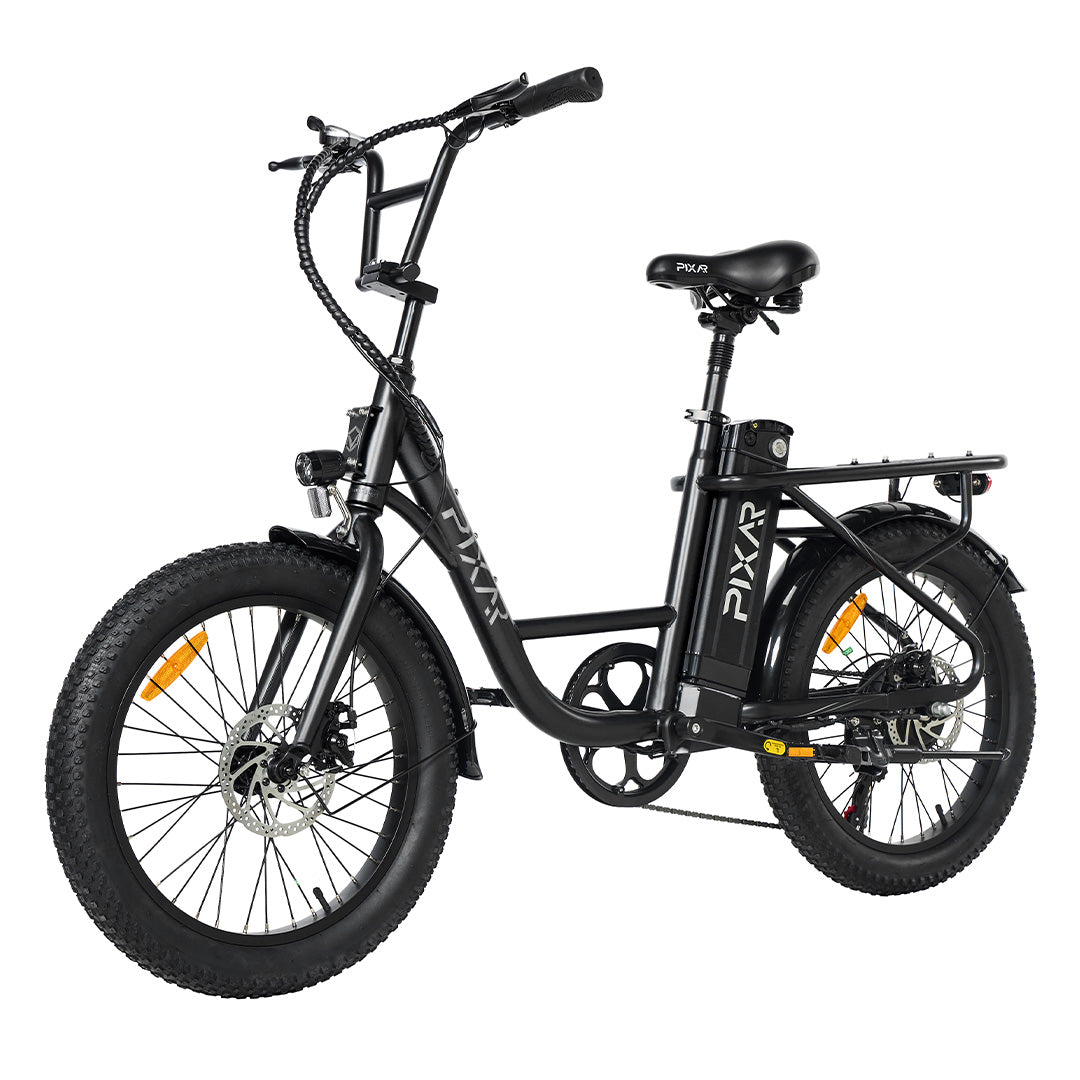

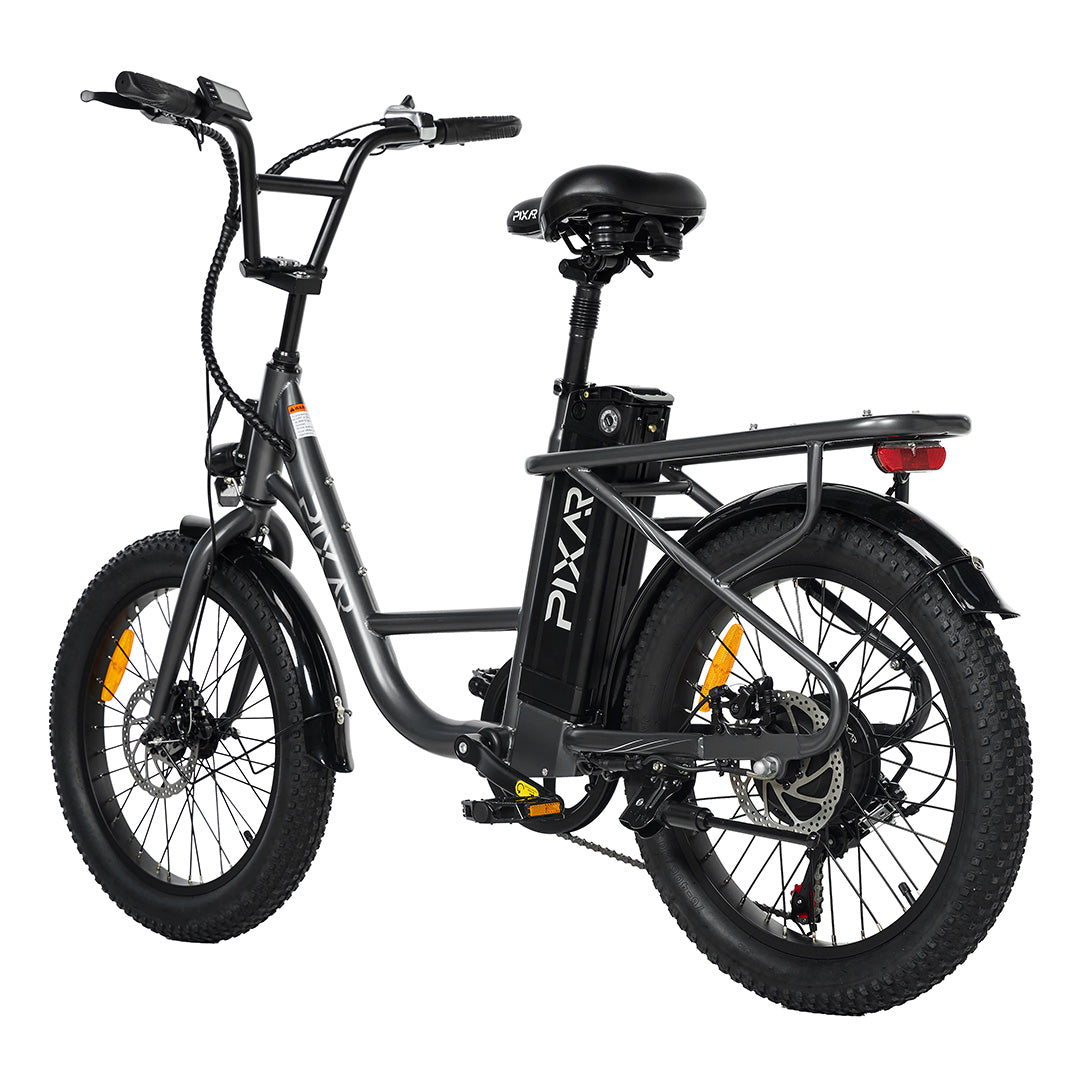

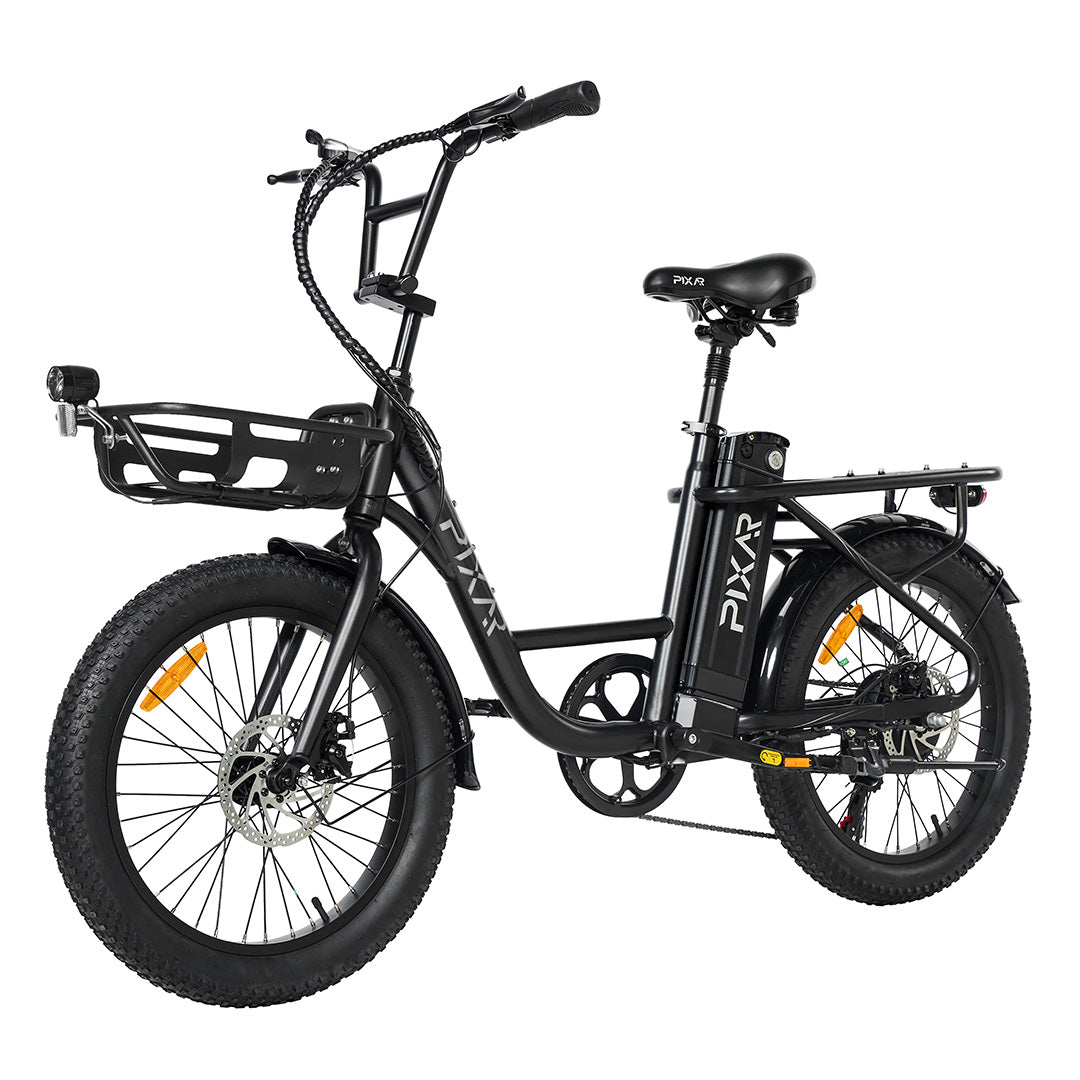

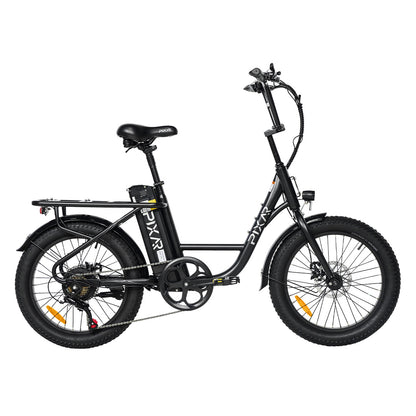

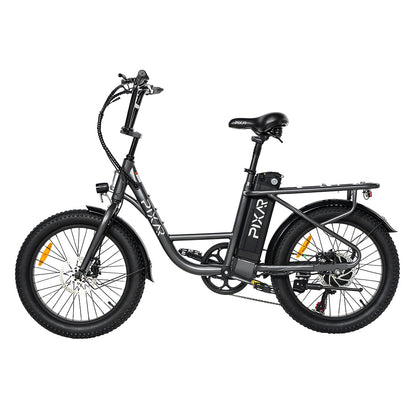

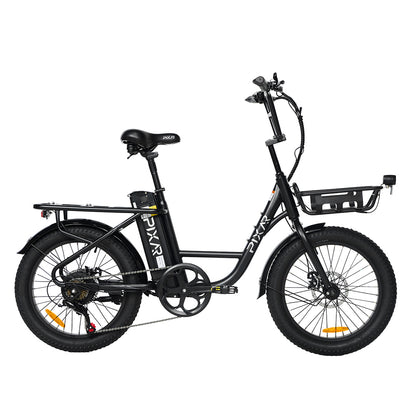

PIXAR® Fun1 – Compact, Versatile & Fun Fat-Tyre Electric Bike
The PIXAR® Fun1 is a compact and stylish fat-tyre e-bike built for riders who want a smaller frame without sacrificing performance. Powered by a 36V 350W brushless hub motor (JIABO brand) and a 36V 10.4Ah lithium battery (EVE cells × 40), the Fun1 delivers up to 60 km (37 mi) pedal assist range or 30 km (19 mi) on throttle-only mode.
Its 20” × 3.0” (50.8 × 7.6 cm) Chaoyang fat tyres provide stability and grip across light trails, gravel, sand, or compact ground, while the steel frame ensures long-lasting durability. With Shimano 7-speed gearing, mechanical disc brakes (Filair brand), and integrated lighting, the Fun1 is well-equipped for short-range adventures.
A left-mounted LCD display shows speed, PAS level, and battery status, and even includes a USB Type-C port for on-the-go charging. Added features such as a steel rear rack, derailleur protector, PVC fenders, and a comfortable saddle make the Fun1 a practical and versatile choice.
Key Features
-
Motor: 36V 350W Brushless hub motor (JIABO brand)
-

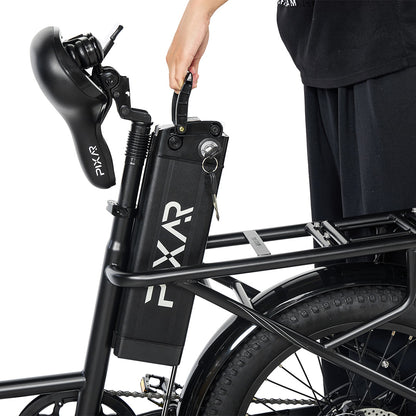

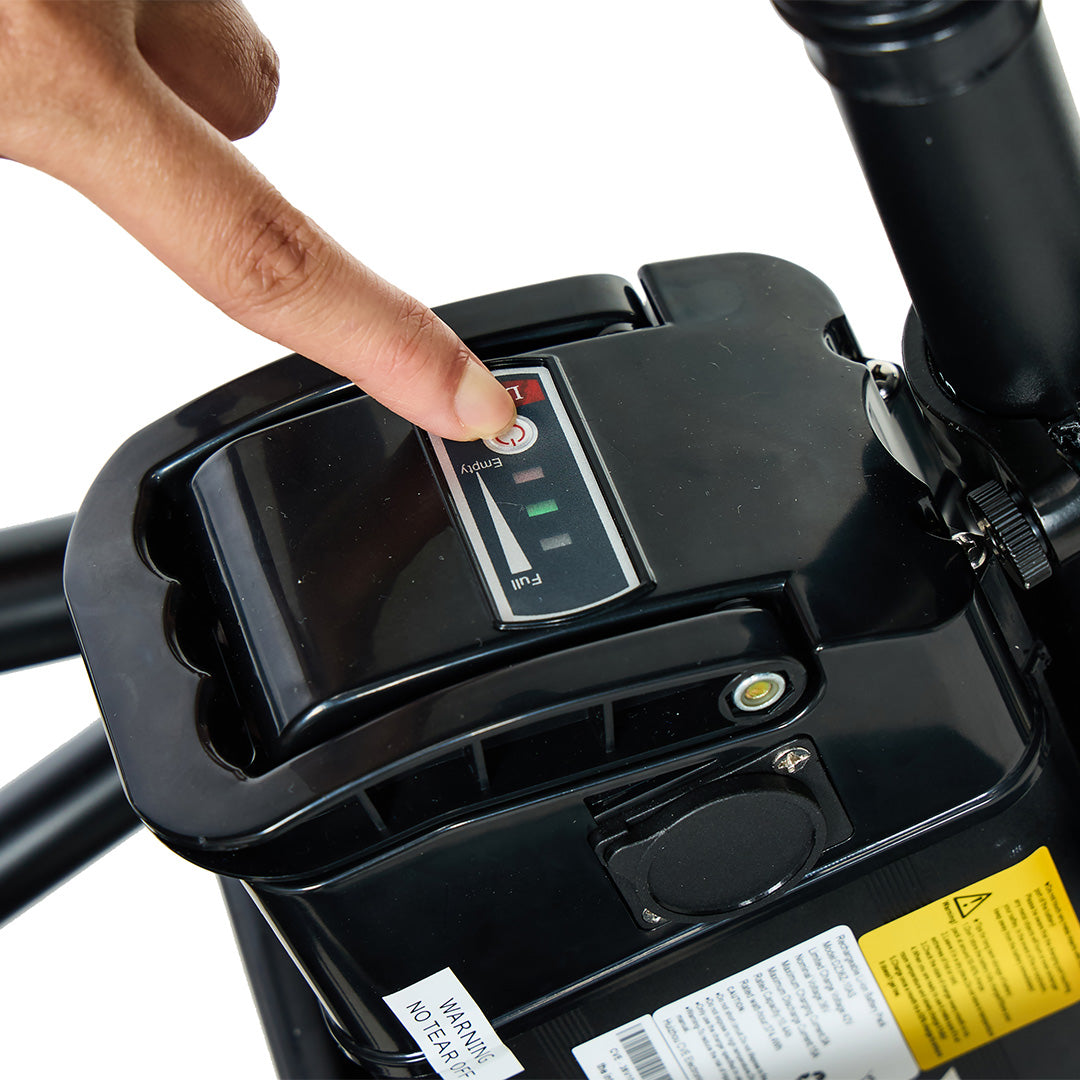

Battery: 36V 10.4Ah (EVE cells × 40 pcs)
-
Range: Up to 30 km (19 mi) throttle-only / 60 km (37 mi) pedal assist
-
Top Speed: 25 km/h (15.5 mph)
-
Frame: Durable steel frame with basket mount option
-
Gears: Shimano 7-speed (TX50)
-
Brakes: Mechanical disc brakes (Filair brand)
-
Tyres: Chaoyang 20” × 3.0” (~50.8 × 7.6 cm) fat tyres
-

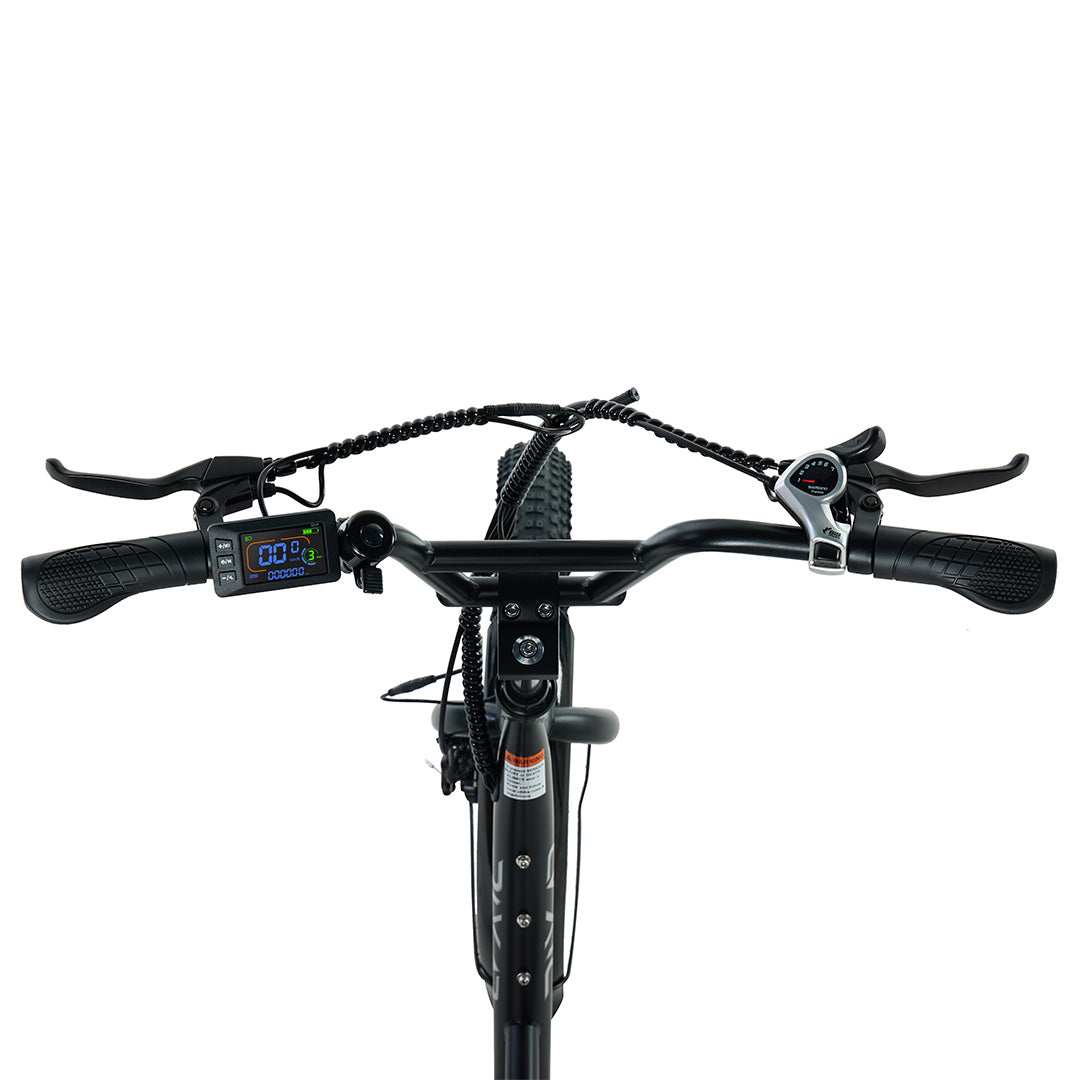

Display: Left-mounted LCD with riding modes + USB Type-C port
-
PAS: 5 assist levels
-

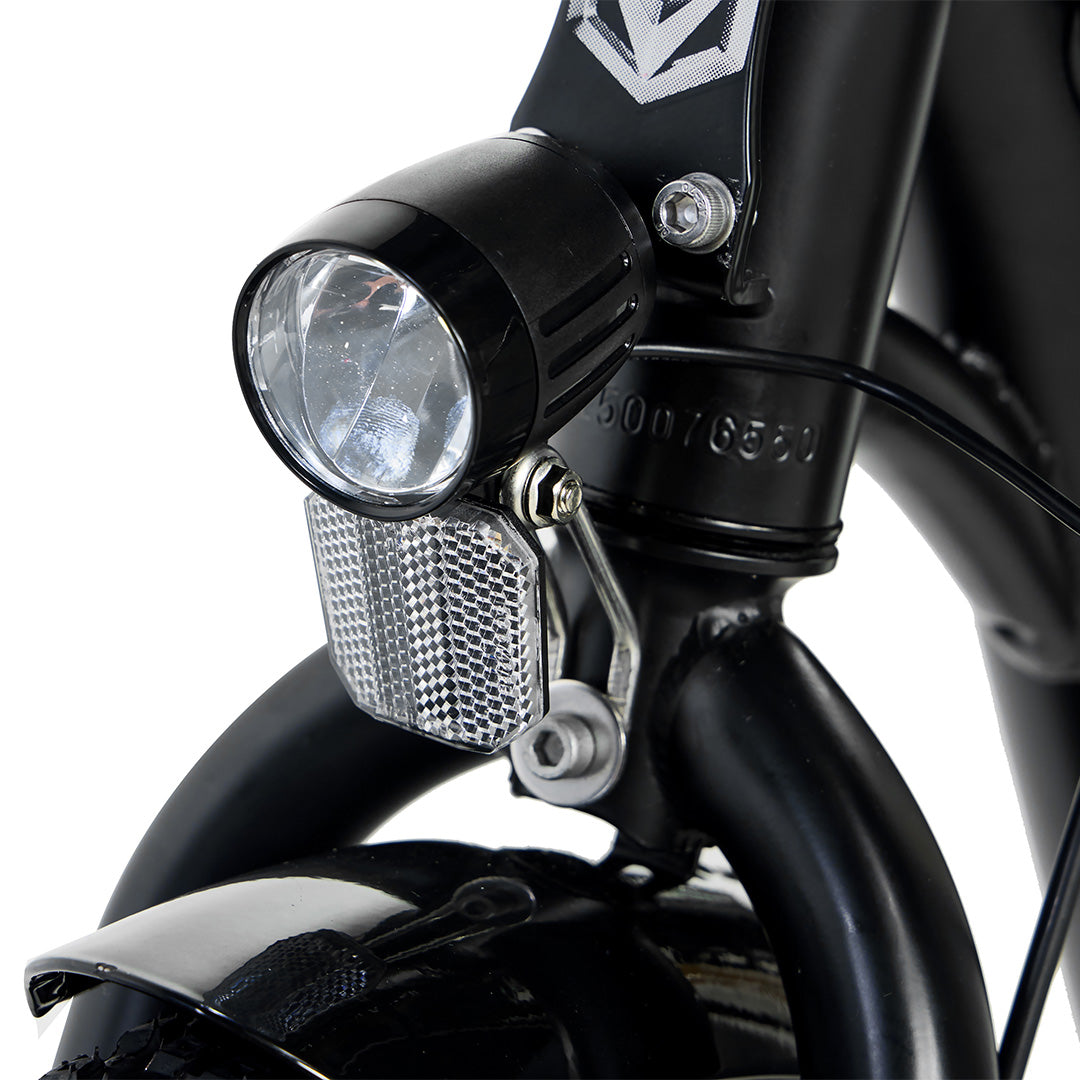

Lighting: Front & rear lights with waterproof connectors
-
Extras: Steel rear rack, PVC fenders, derailleur protector, steel kickstand
Specifications
-
Battery Capacity: 36V 10.4Ah (EVE 2600mAh × 40 cells)
-
Controller: 36V (Jinghui brand)
-
Charger: 42V 2A
-
Charging Time: ~5.2 hours
-
Crankset: 52T × 170 mm (≈6.7 in)
-
Weight: Net 37.5 kg (82.7 lbs) / Gross 48.2 kg (106.3 lbs)
-
Max Load: 150 kg (330 lbs)
-
Fork: Steel stanchion with aluminium crown (rigid, no suspension)
-
Fenders: PVC matte black (front & rear)
-

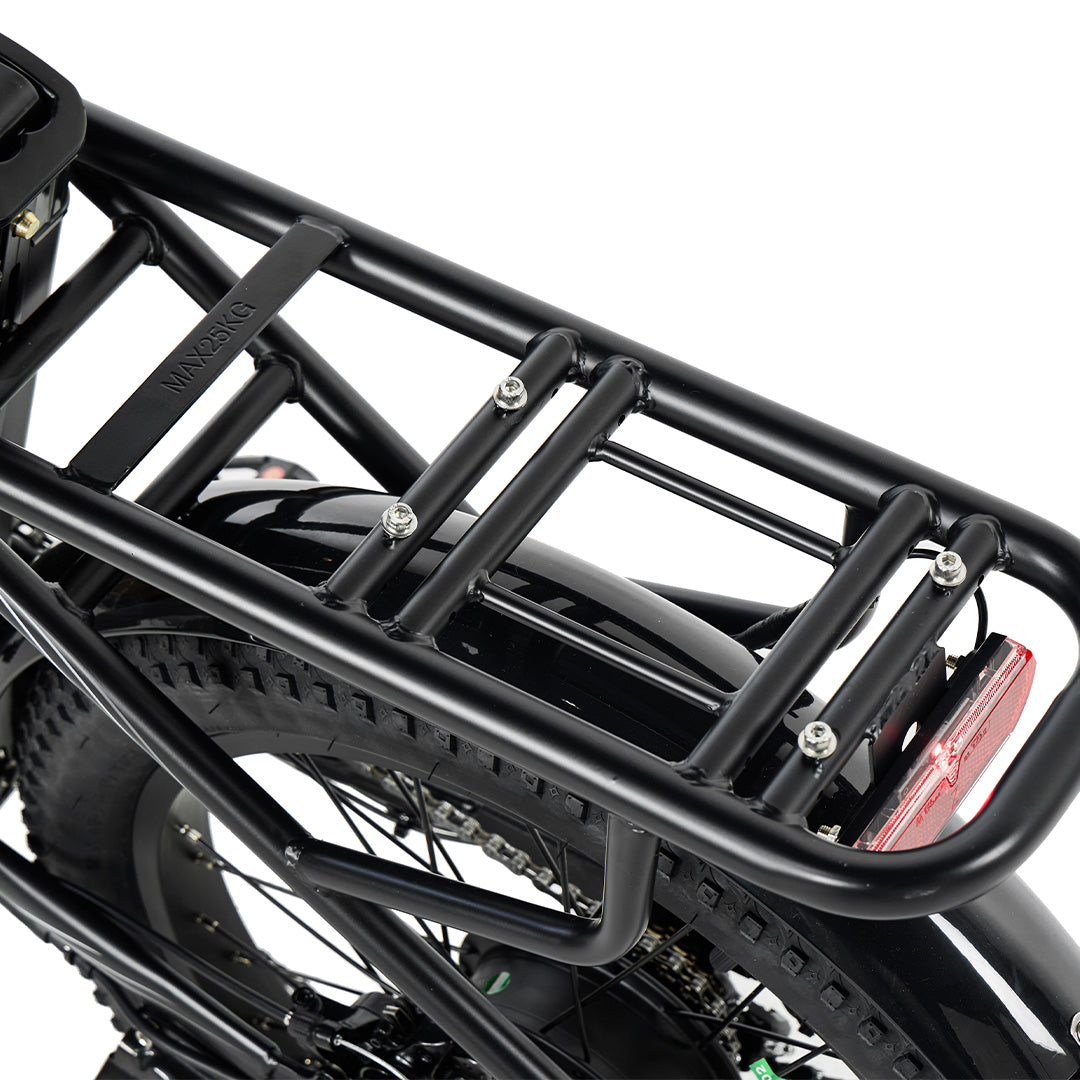

Rack: Strong steel rear rack
-
Pedals: Plastic with reflectors
-
Bell: Electric horn remote
-
Waterproof Rating: IP54
-
Tools & Manual: Included (tool kit + PDF manual)
What’s in the Box
-
1 × PIXAR® Fun1 Electric Bike
-
1 × 36V 10.4Ah Battery
-
1 × Charger (42V 2A)
-
1 × User Manual (PDF)
-
1 × Tool Kit
-
1 × Warranty Card
The PIXAR® Fun1 Compact Fat-Tyre Electric Bike combines convenience, comfort, and durability in a smaller frame. With its efficient motor, Shimano 7-speed gearing, and sturdy build, the Fun1 is ideal for riders looking for a compact and versatile e-bike that’s easy to handle and fun to ride.
- Color:
- Black
Pairs well with
Delivery in 2 to 4 working days
Hassle-Free Returns within 30 Days
2-Year Warranty Coverage
Trusted, Award-Winning Support Team
What’s Included
Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.
Product Specifications
Brand: PIXAR®
Type: Cruiser Electric Bike
Pedal Assist Range: 120+ km / 75+ miles
Electric-Only Range: 58 km / 36 miles
Top Speed: 25 km/h / 15.5 mph (EU legal)
Dimensions: 183 × 66 × 104 cm / 72 × 26 × 41 in
Max Load Capacity: 250 kg / 550 lbs
Net Weight: 29 kg / 64 lbs
Motor: 250 W peak rear hub brushless motor
Max Torque: 45 N·m / 33 lb-ft
Maximum Output: 48 V 23 A with temperature protection
Battery: Samsung 36 V 12.8 Ah
IP Rating: IPX6 waterproof, CE-certified
Battery Weight: 3.5 kg / 7.7 lbs
Charging Time: ~4–5 hours
Front Suspension: Aluminum adjustable shocks, 100 mm travel / 4 in
Handlebar: Riser; 104 mm grip length / 4 in; 66 cm total width / 26 in
Pedals: 9/16” with reflectors
Chain: 1/2” × 3/32”, 118 links, 21-speed indexing
Crankset: 170 mm cranks / 6.7 in with 48T chainring
Display: LCD with USB charging port
PAS Levels: 0–5
Throttle: Half-twist, optional thumb throttle
Sensor: Speed sensor
Drivetrain: Shimano 7-speed indexing (14–28T), rear derailleur
Charger: UL-certified 2 A smart charger
Rims: Alloy 26” with 13G, 36H spokes
Tires: CST 26” × 2” pneumatic, 45 psi
Brakes: Front & rear mechanical disc brakes, 180 mm rotors / 7 in
Kickstand: Heavy-duty aluminum
Specifications may vary depending on terrain, rider weight, and usage conditions.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Waterproof IP65
350 Watt Motor
Unlockable Speed
10.5Ah Battery
Cruise Control
Collage
Share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.
Image with text
Share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.
Image with text
Share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.
Product details
Collapsible row 1
Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.
Collapsible row 2
Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.
Collapsible row 3
Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.
Collapsible row 4
Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.
FAQs
Please read our FAQs page to find out more.
Frequently asked question
Use this text to answer questions in as much detail as possible for your customers.
Frequently asked question
Use this text to answer questions in as much detail as possible for your customers.
Frequently asked question
Use this text to answer questions in as much detail as possible for your customers.
Frequently asked question
Use this text to answer questions in as much detail as possible for your customers.
Frequently asked question
Use this text to answer questions in as much detail as possible for your customers.
Weight | 25 kgs (45 lbs) |
Payload Capacity | 120 kgs (265 lbs) |
Top Speed | 120 kgs (265 lbs) |
Range | 120 kgs (265 lbs) |
SPECIFICATIONS
| Frame | Steel |
|---|---|

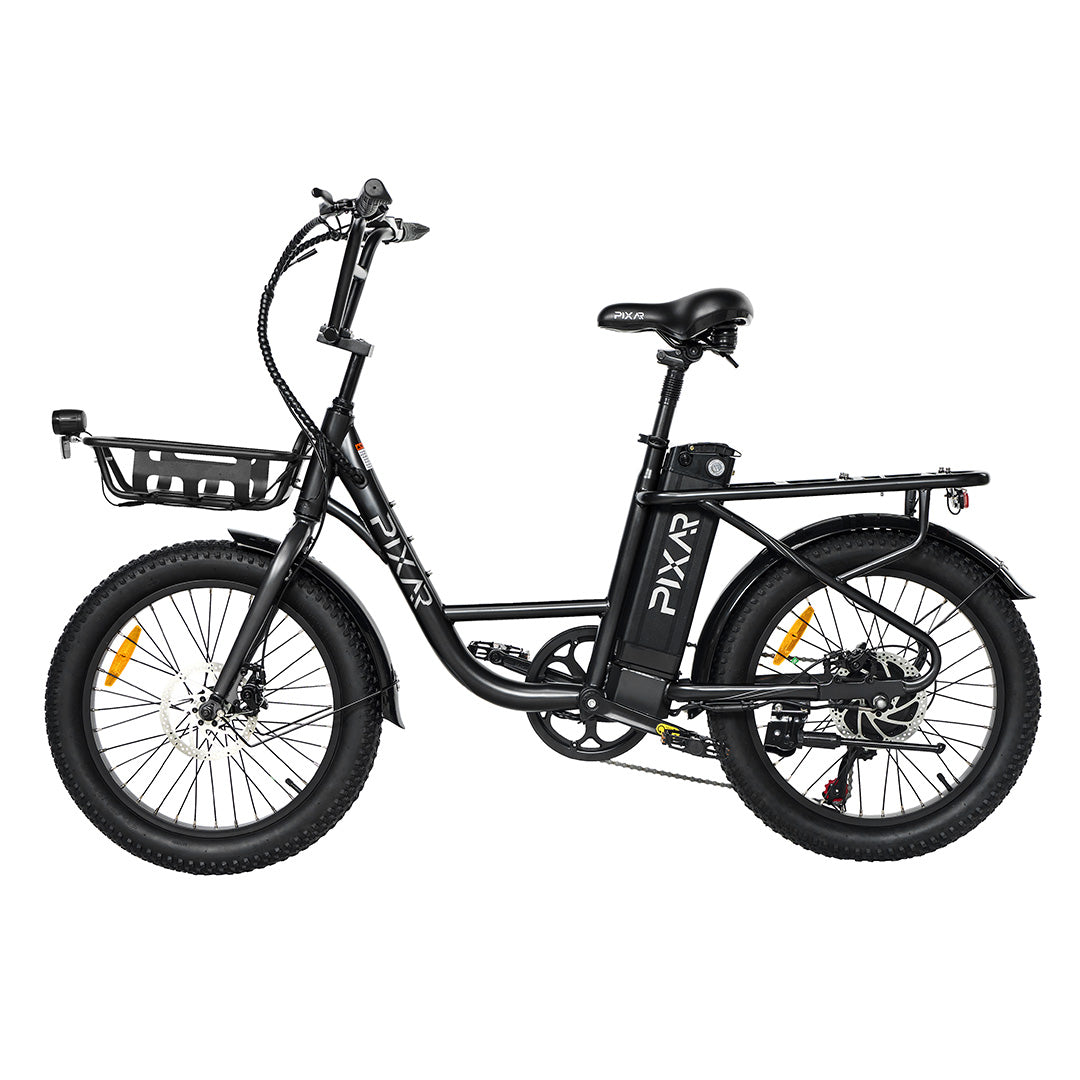

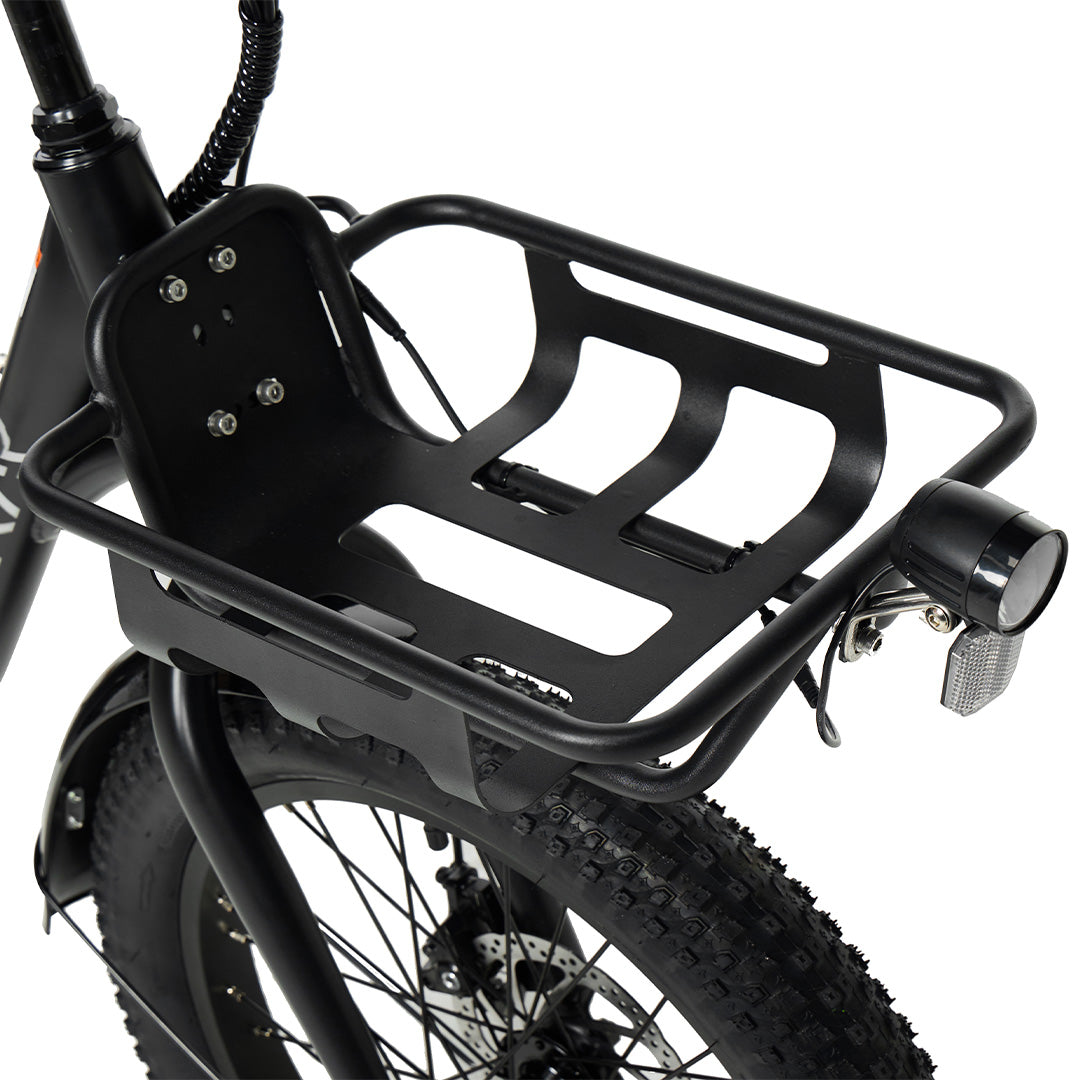

| Basket Mounting (Frame) | Head tube mounting holes compatible with GALAXY basket |
| Motor | 36V 350W Brushless Hub Motor (JIABO brand) |
| Battery | 36V 10.4Ah Lithium (EVE cells × 40) |
| Battery Cells | EVE 2600mAh × 40 |
| Range (Throttle Only) | Up to 30 km (19 mi) |
| Range (Pedal Assist) | Up to 60 km (37 mi) |
| Top Speed | 25 km/h (15.5 mph), unlockable up to 32 km/h (20 mph) |
| Controller | 36V Controller (JINGHUI brand) |

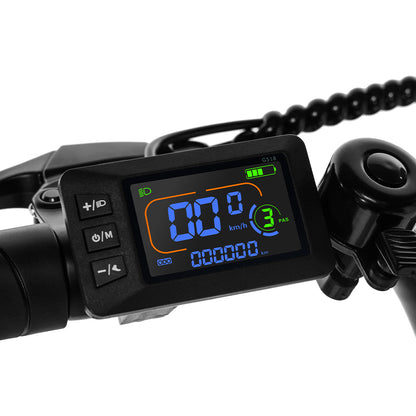

| Display | Left-mounted LCD (Electric, PAS, Pedal Modes, USB Type-C) |
| Charger | 42V 2A |
| Stem | Alloy and steel stem |
| Shifter | Shimano Thumb Shifter, 7-Speed (TX50) |
| Brakes | Mechanical Disc Brakes (FILAIR brand) |
| Brake Levers | Left lever = rear brake, right lever = front brake |

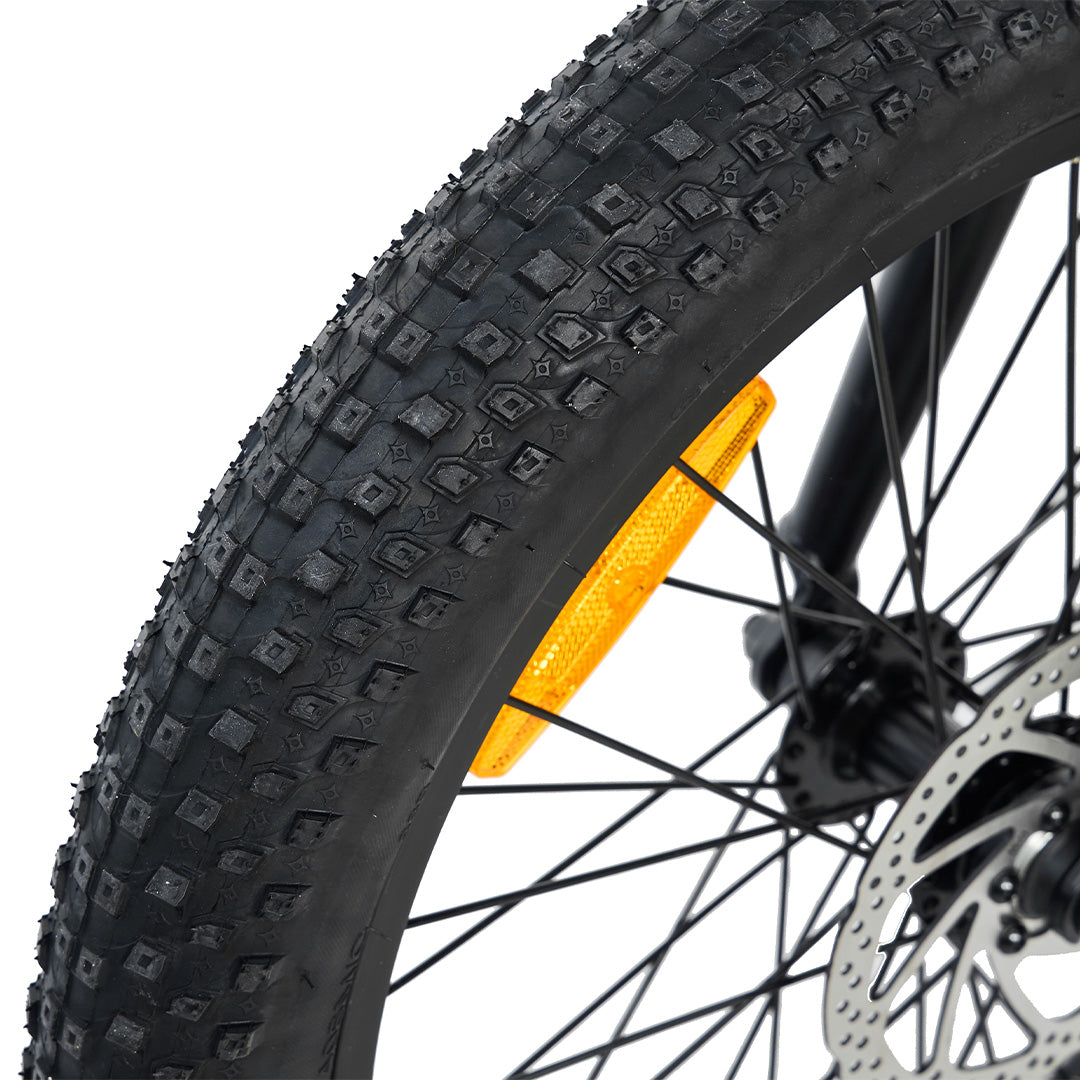

| Tyres | Chaoyang 20″ × 3.0″ Fat Tyres (~50.8 × 7.6 cm) |
| Pedals | Plastic pedals with reflectors |
| Chain | Standard chain |

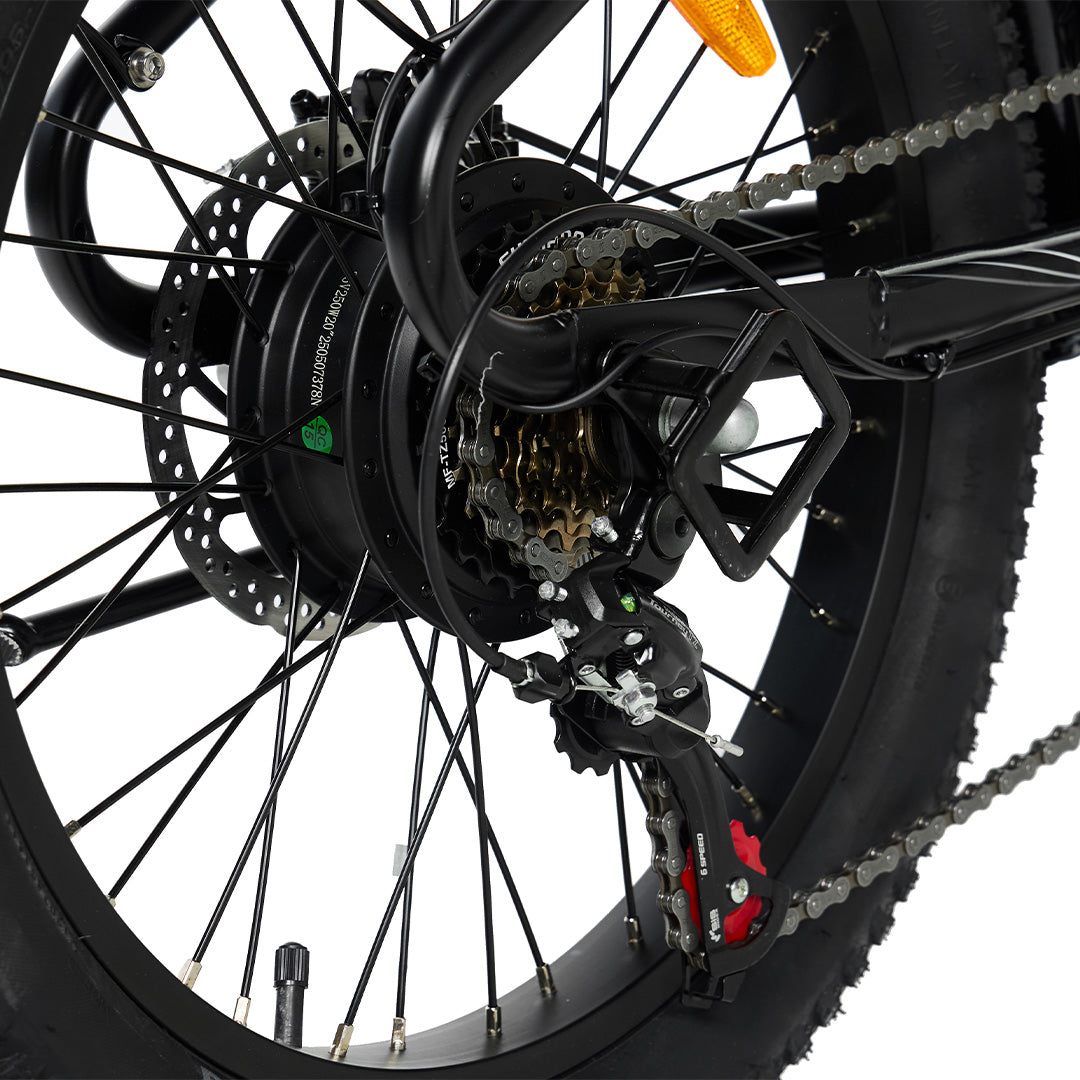

| Derailleur | Shimano TZ500 rear derailleur with protector + ATA freewheel |
| Fasteners | Rust-resistant screws |
| Crankset | 52T × 170 mm (≈6.7 in) |
| Wiring | Pre-connected with waterproof connectors |
| Front Light | LED front light with waterproof connector |

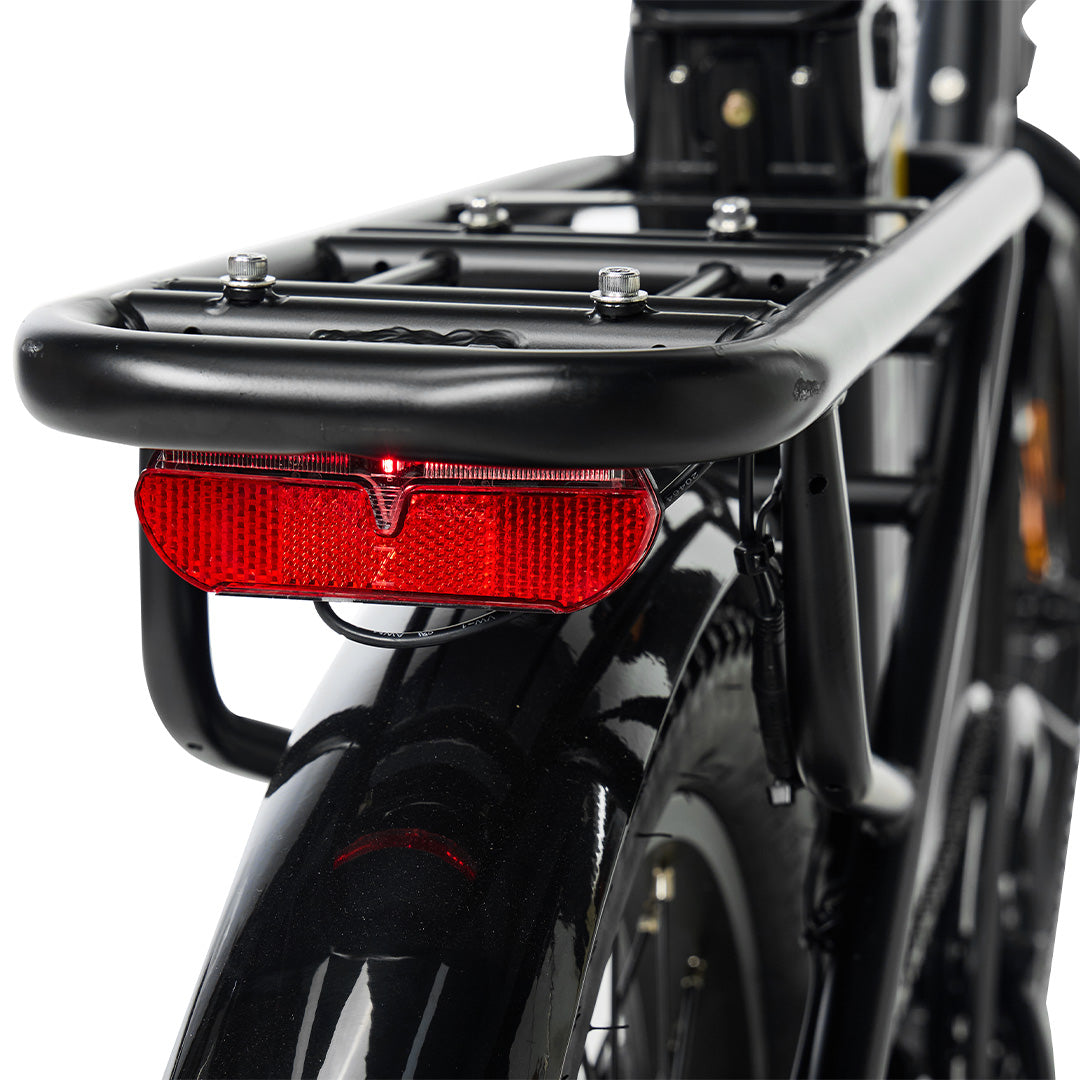

| Rear Light | LED rear light with waterproof connector |
| Fenders | PVC, matte black (front & rear) |

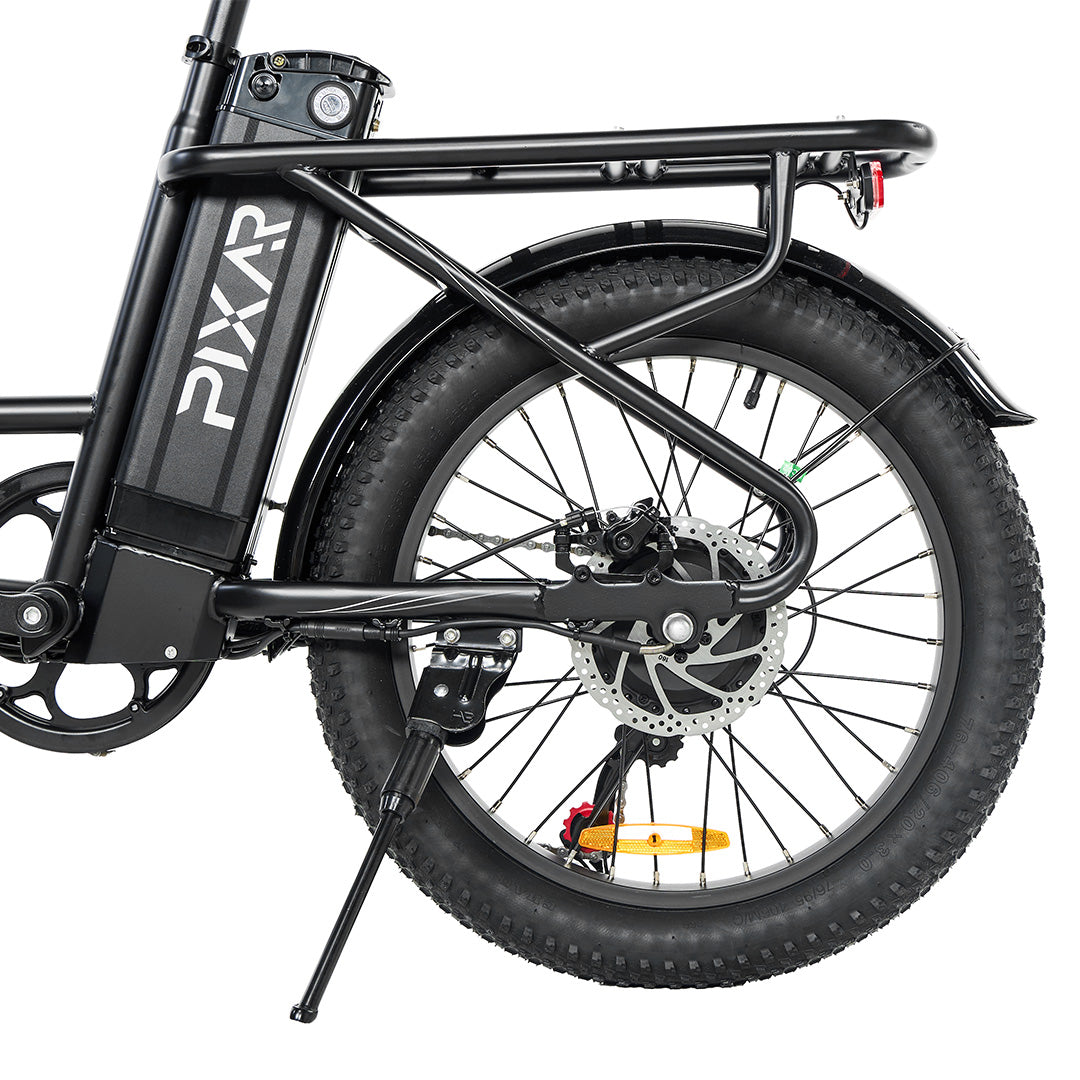

| Rack | Strong steel rear rack |

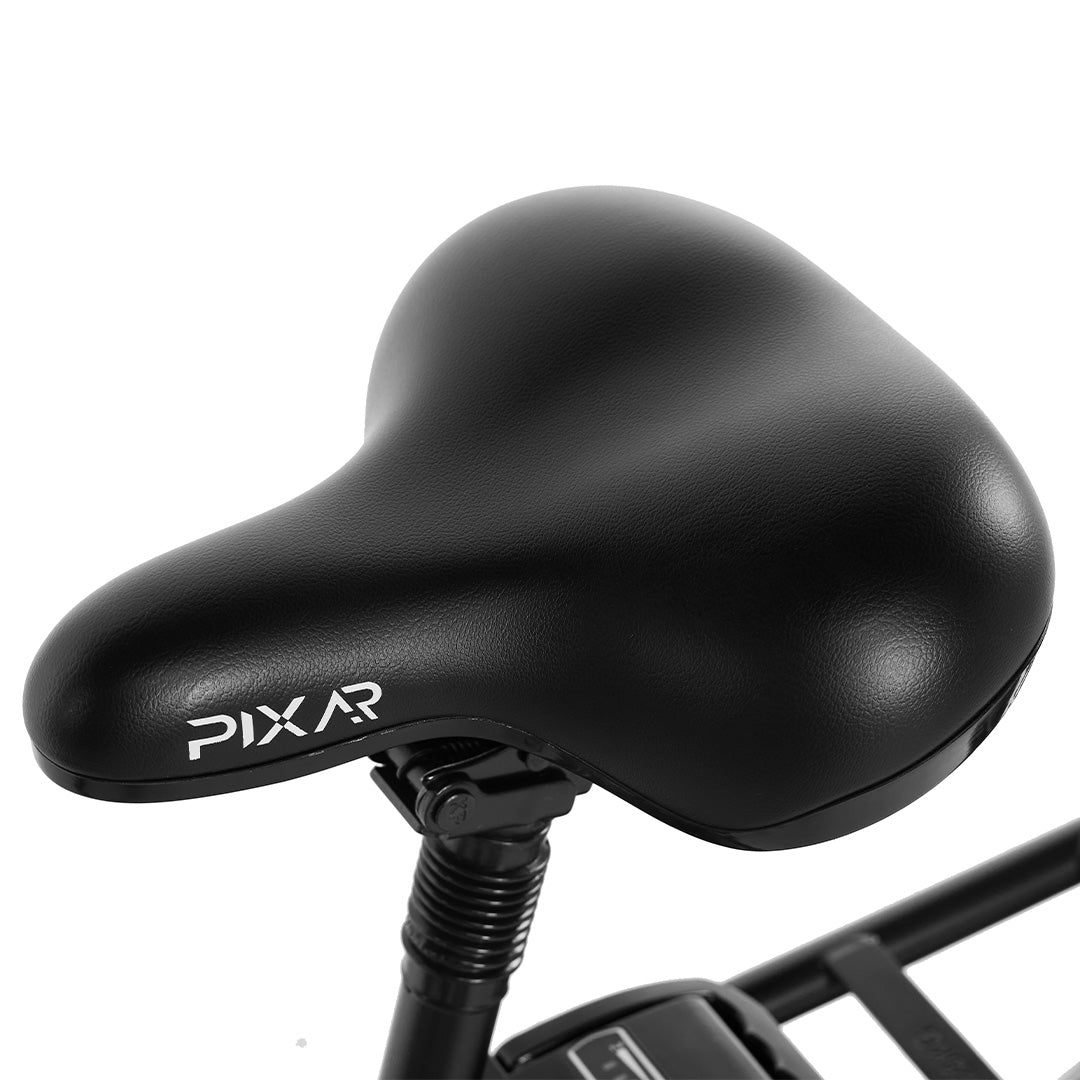

| Seat | Comfort saddle |
| Fork | Rigid fork (steel stanchion with aluminium crown, no suspension) |
| Brake Pad Shape | Square |
| Charging Time | Approx. 5.2 hours |
| Kickstand | Steel kickstand |
| Bell | Electric horn remote |
| Manual | User manual (PDF) |
| Tools | Included |
| Throttle | Thumb throttle with waterproof connector |
| Weight | Net: 37.5 kg (82.7 lbs) / Gross: 48.2 kg (106.3 lbs) |
| Max Load | 150 kg (330 lbs) |
| Sensor | 12-Magnet Speed Sensor |
| PAS | 5 Levels |
| Water Resistance | IP54 |
*Specifications may vary depending on terrain, rider weight, and usage conditions.
