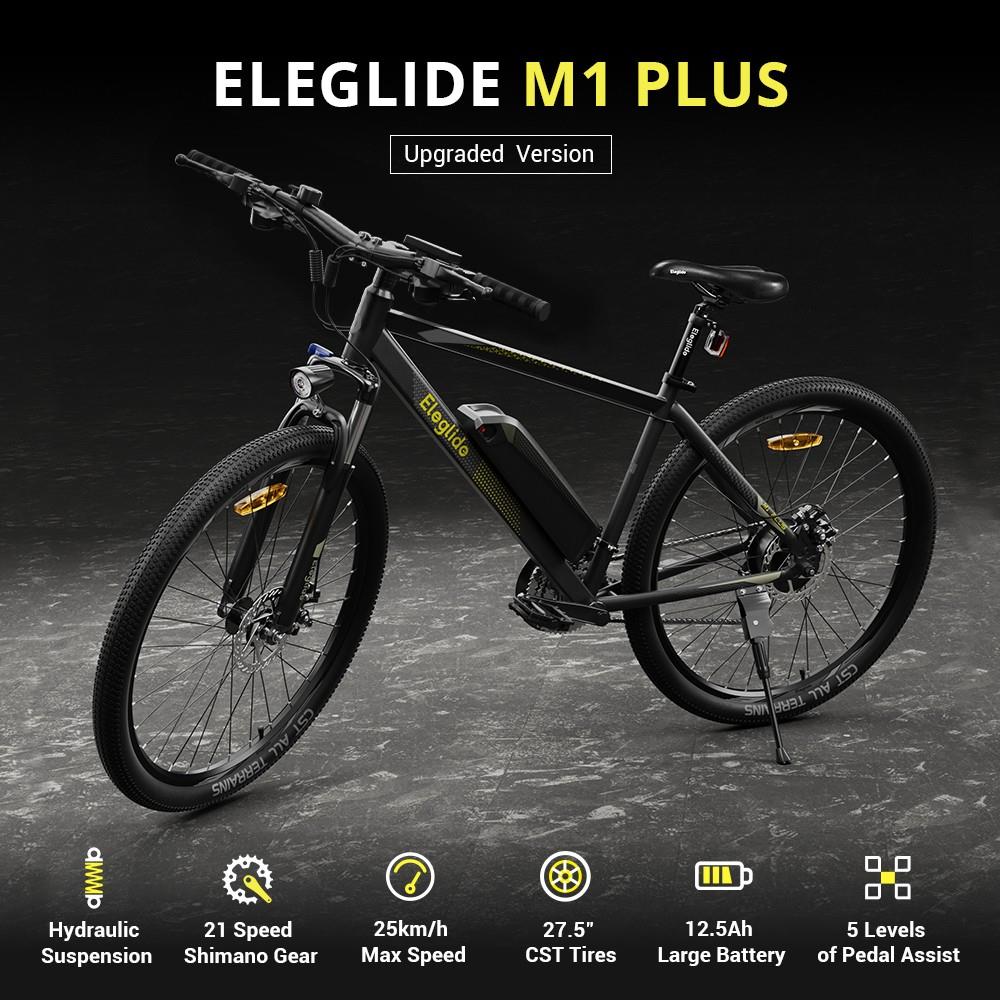

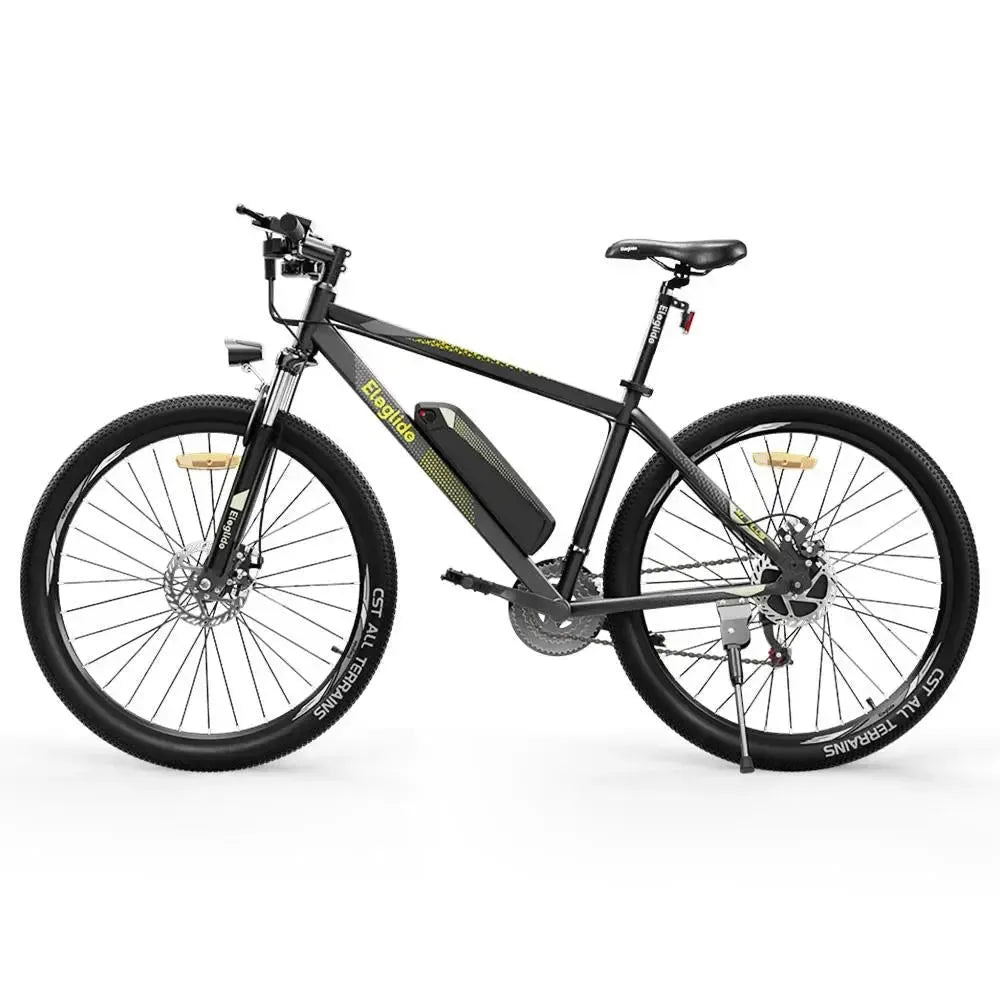

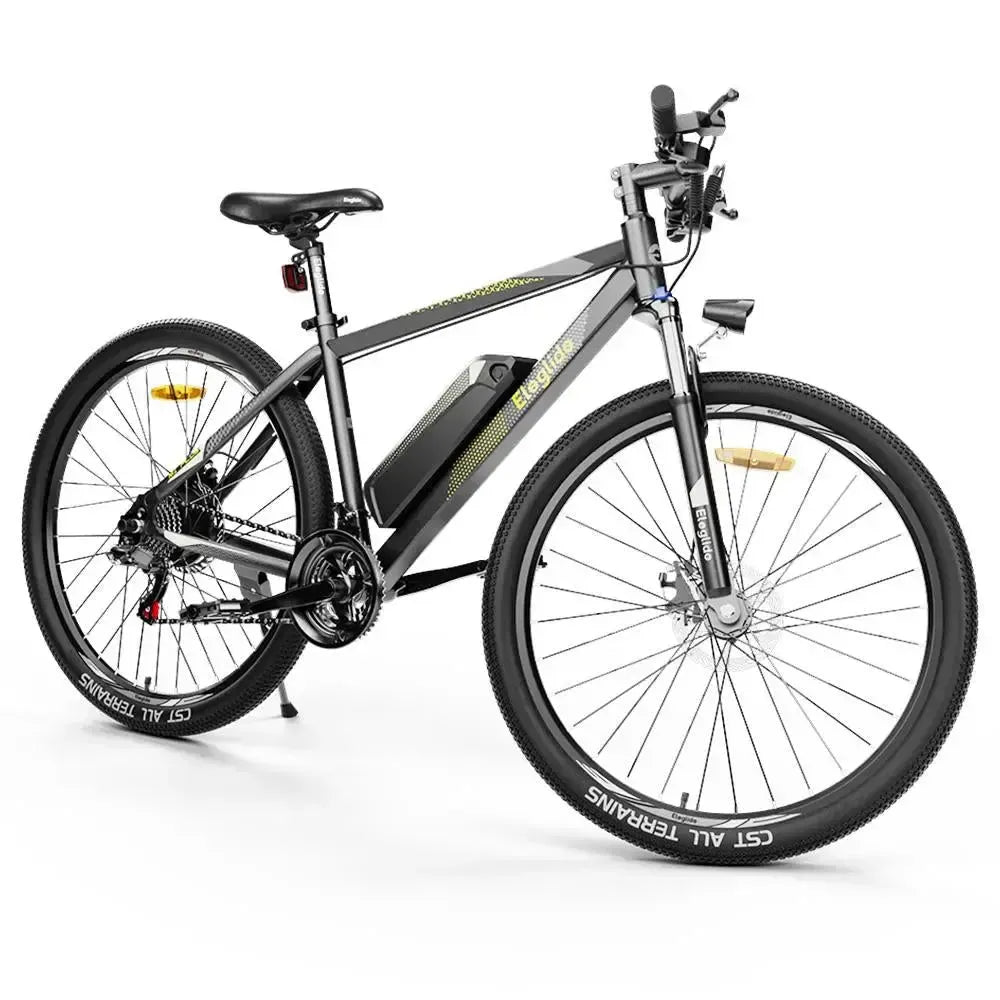

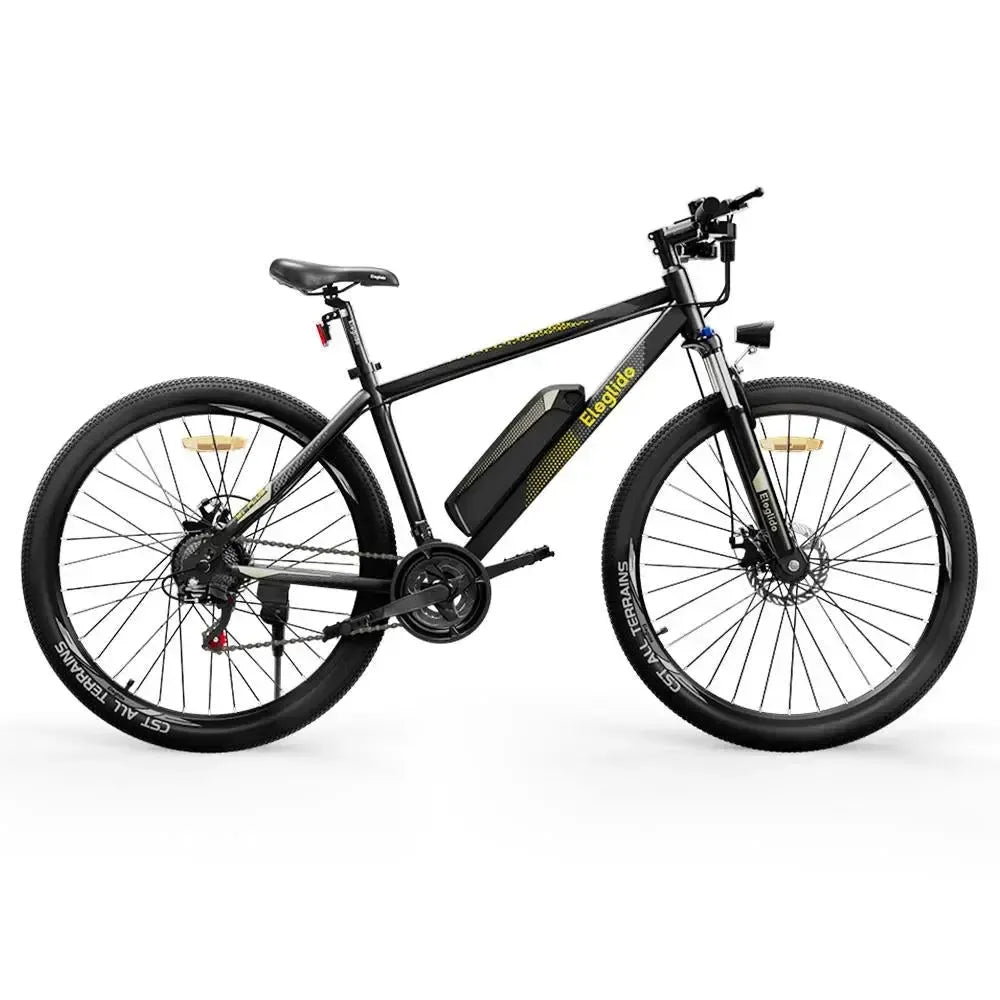

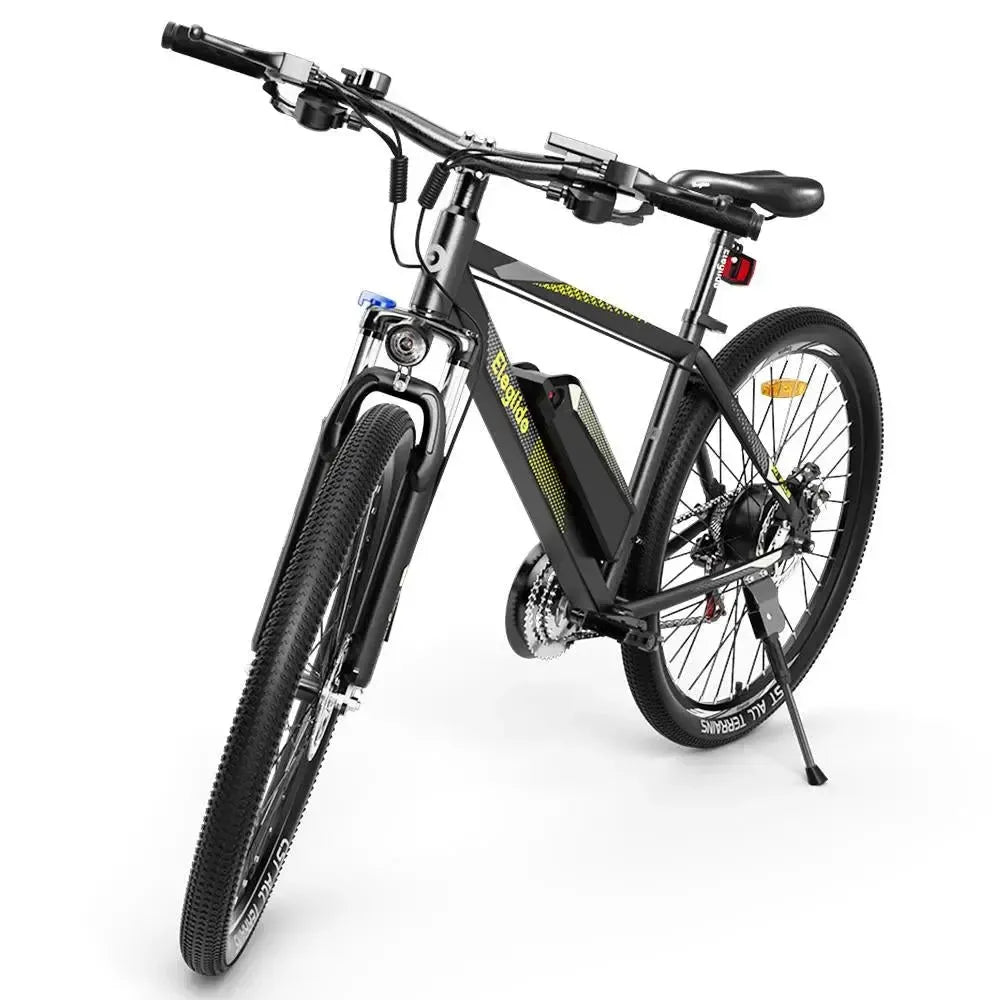

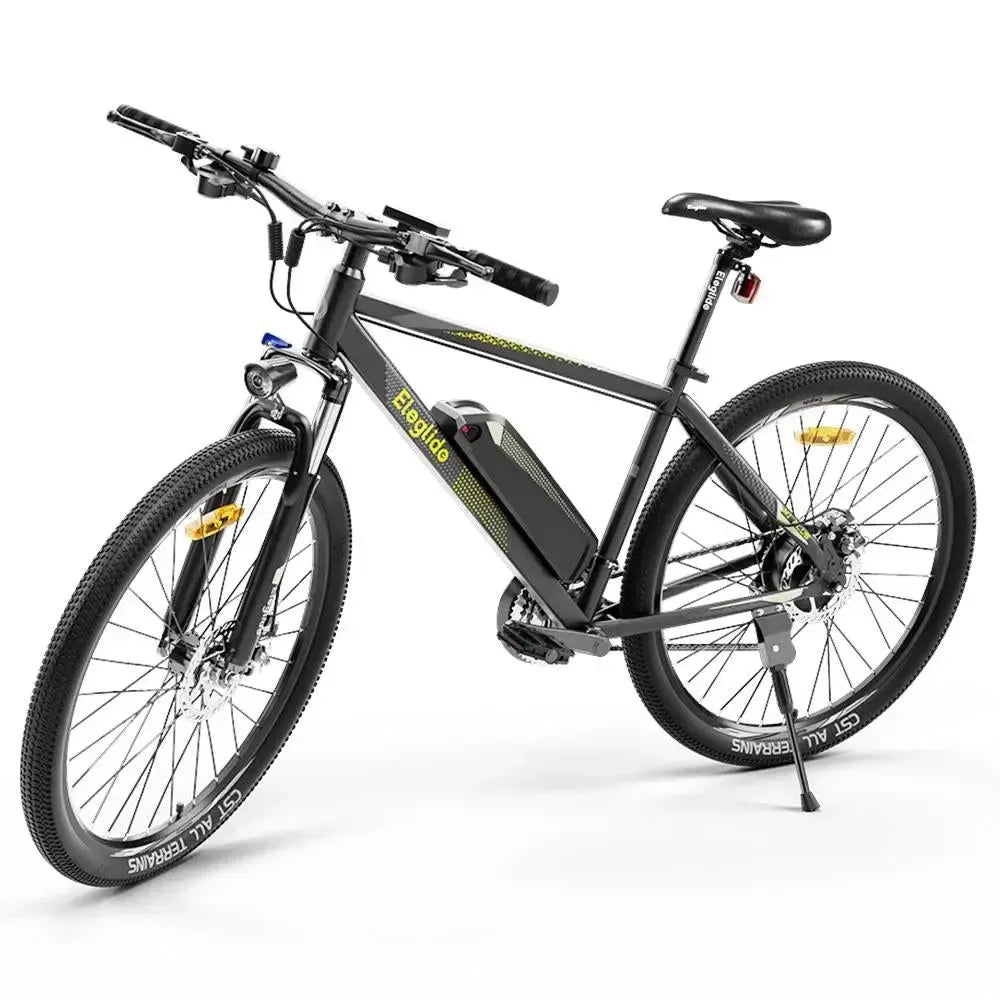

Eleglide M1 Plus Mountain Electric Bike

• Brand: Eleglide
• Model: M1 Plus
• Type: Mountain E-Bike
• Frame: 6061 Aluminum Alloy, durable and lightweight

• Category: Hardtail e-MTB (sizes M 27.5″ / L 29″)
• Frame: AL6061 aluminium alloy
• App: Eleglide (iOS/Android) for lock/unlock, lights, assist levels, password, brightness, more
• Ride controls: 5 PAS levels + 6 km/h (3.7 mph) walk mode
• Legal note: 25 km/h (15.5 mph) speed cap for EU/UK compliance

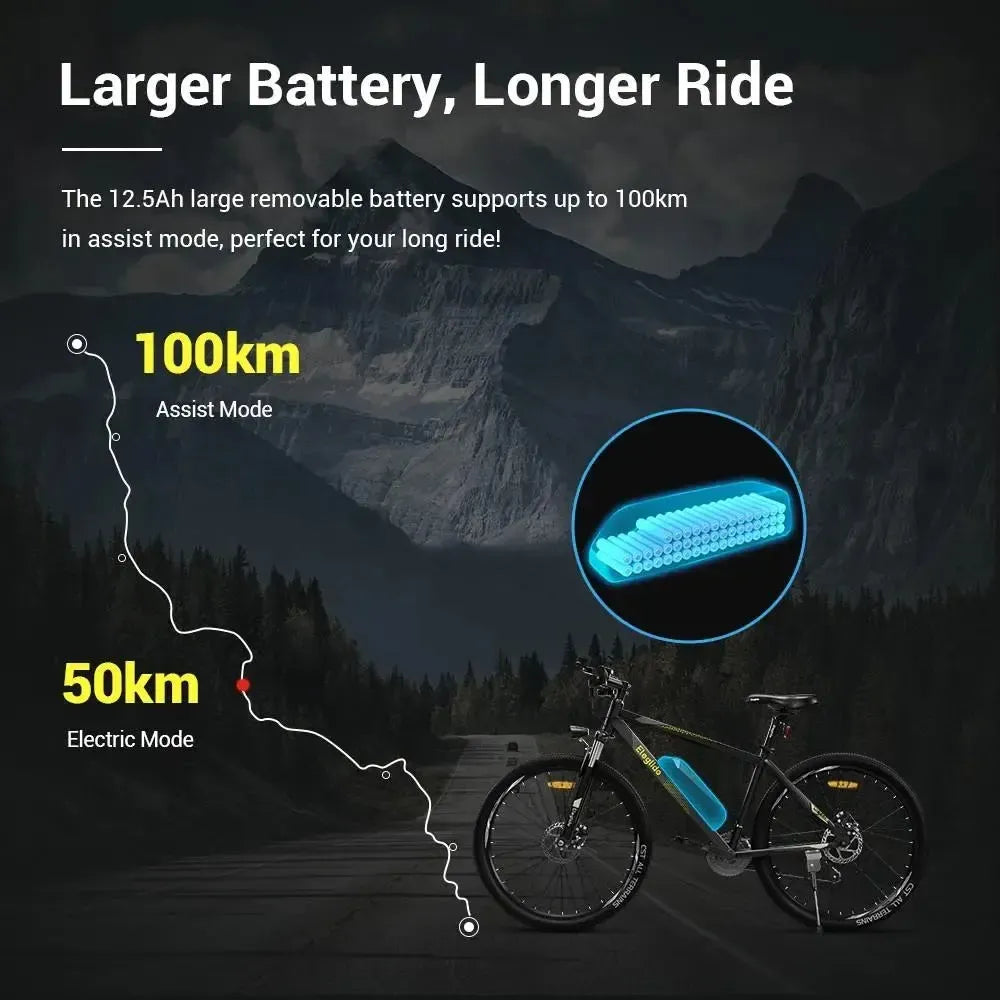

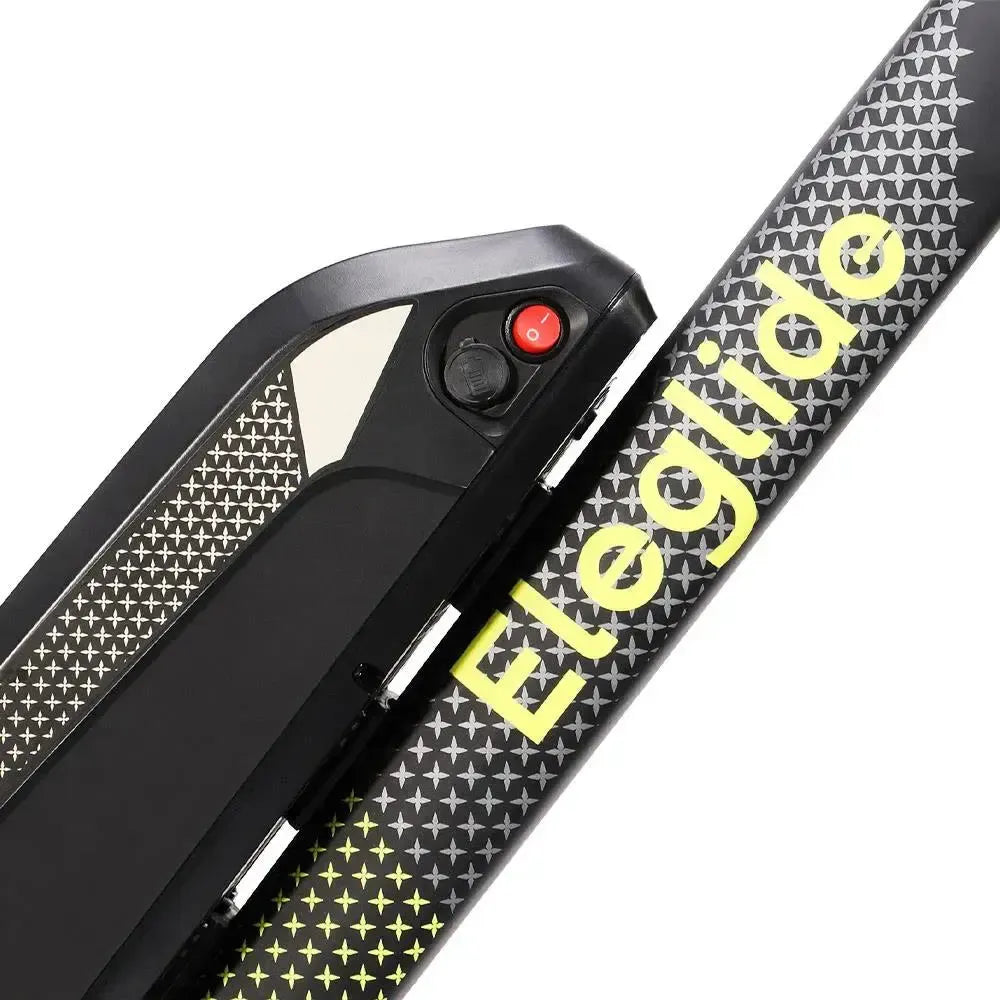

• Battery: 36 V 13 Ah (≈450 Wh) removable Li-ion with protection system
• Range: up to 100 km (62 mi) in Assist Mode (tested at ~75 kg rider, 15 km/h on flat, 26 °C)

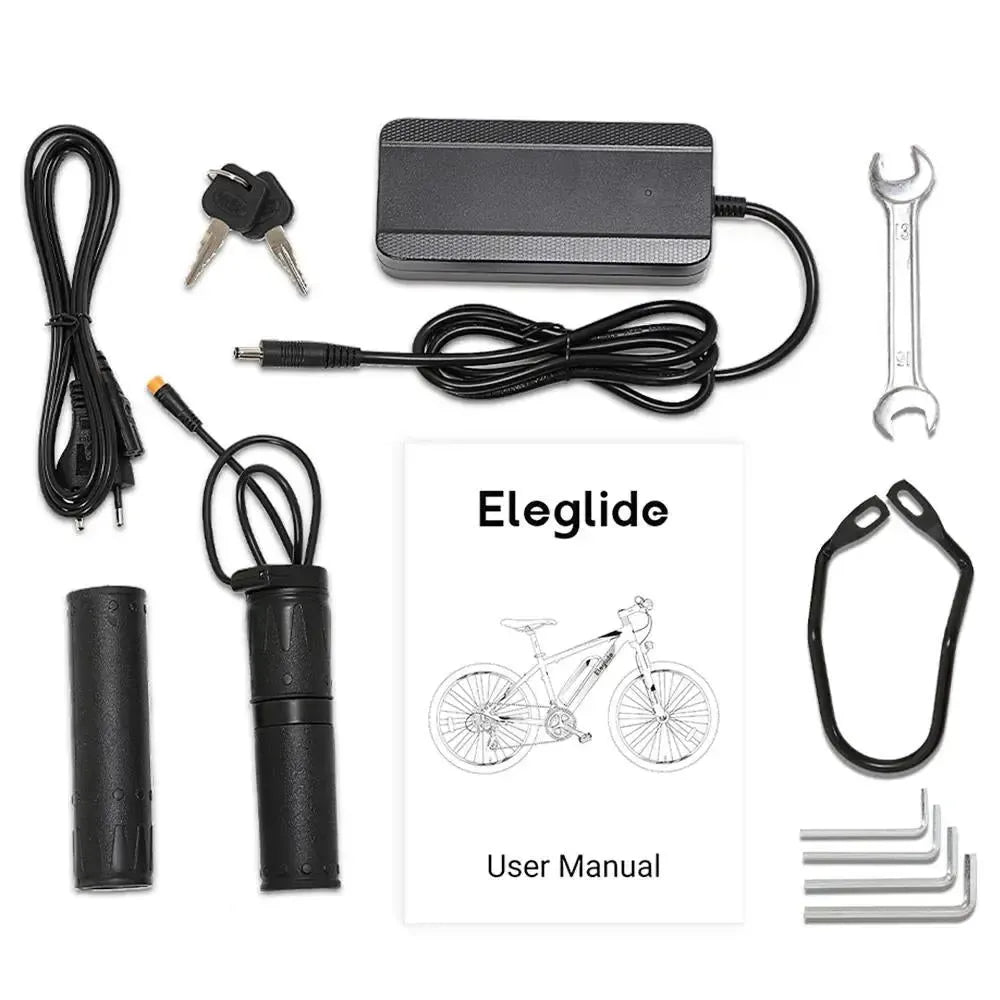

• Charging: ~7 hours (charger 42 V / 2 A)

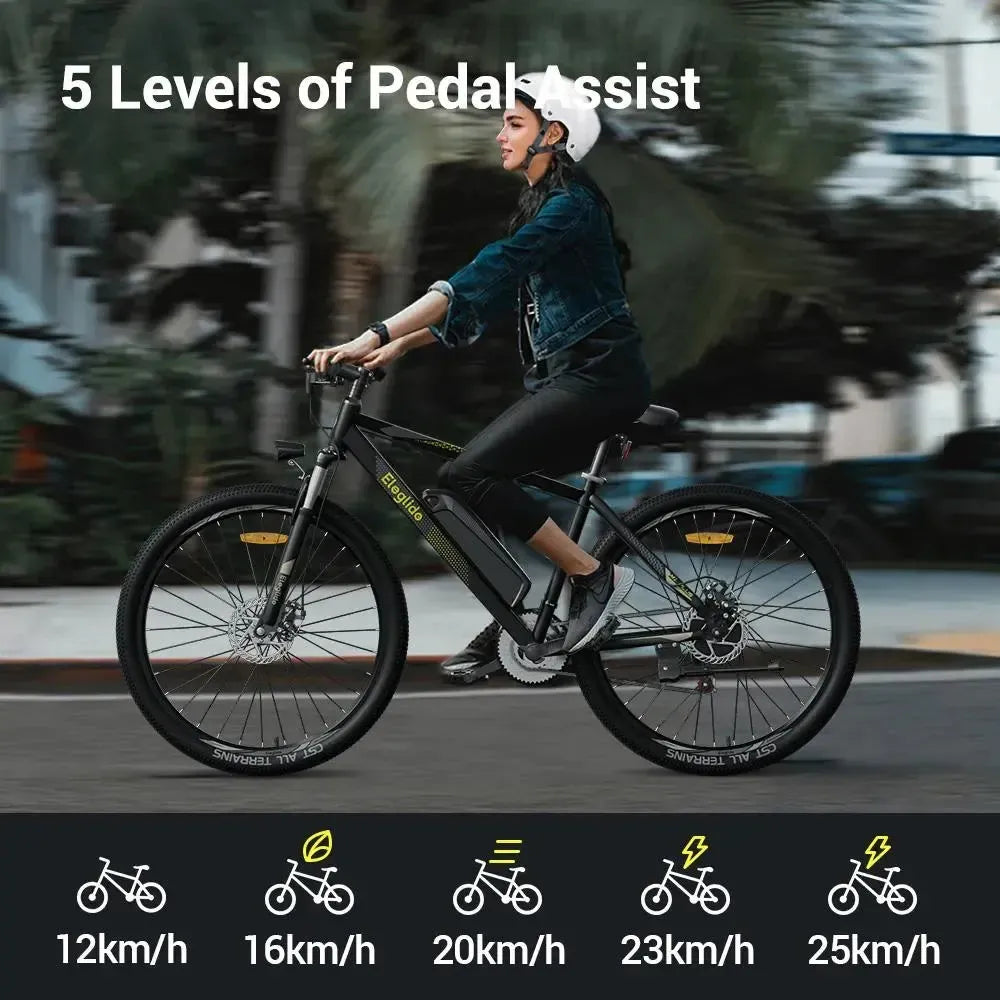

• PAS speed steps: 12 / 16 / 20 / 23 / 25 km/h (7.5 / 10 / 12.4 / 14.3 / 15.5 mph)

• Top speed: 25 km/h (15.5 mph)

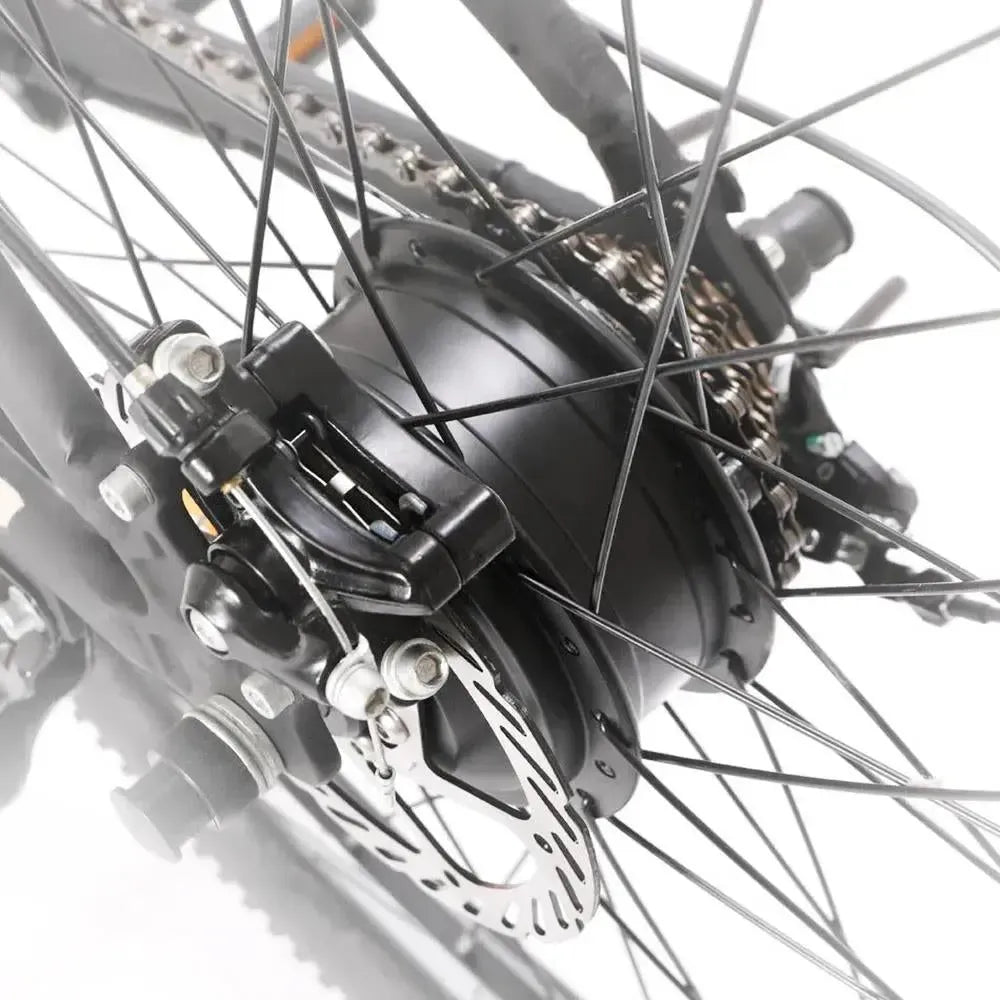

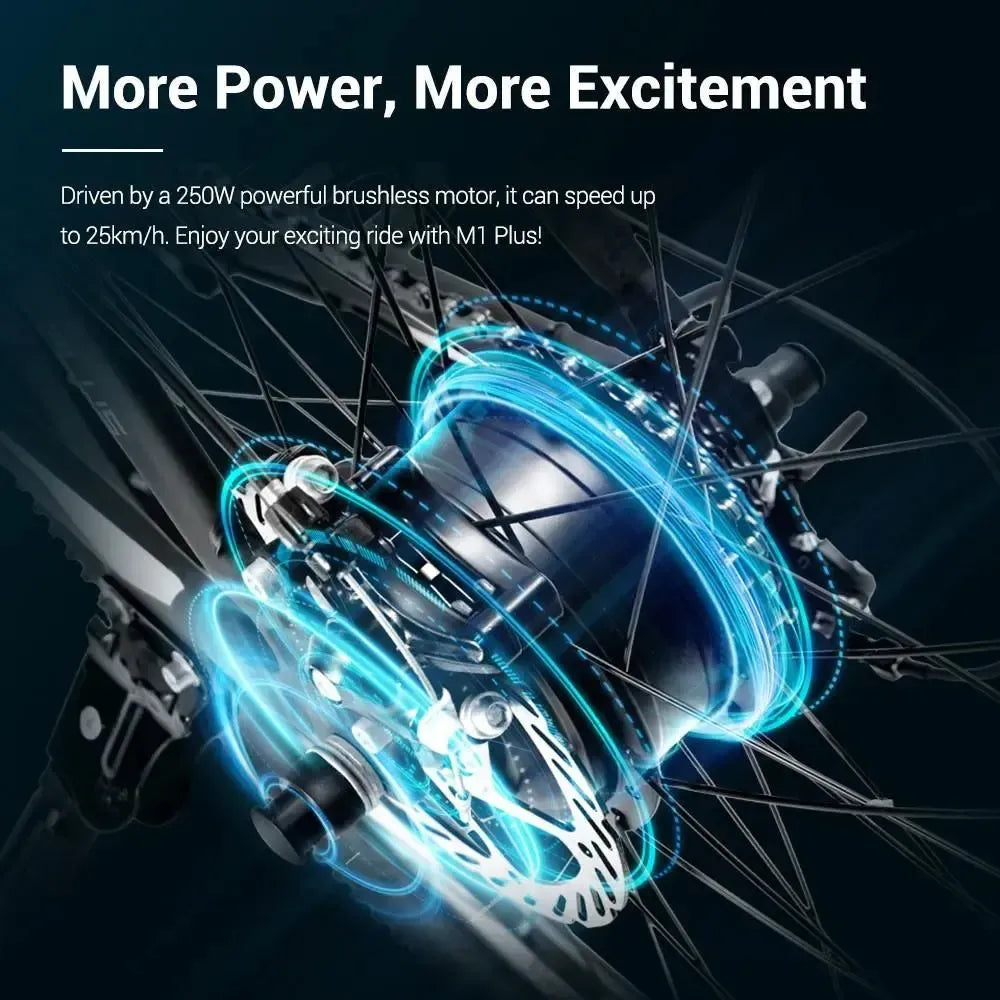

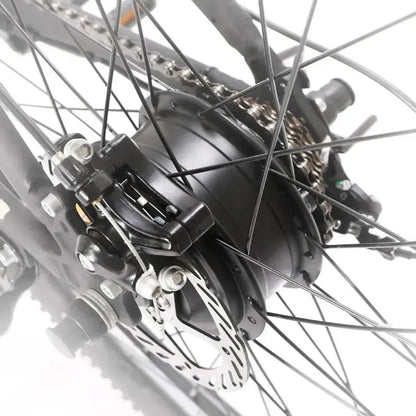

• Motor: 250 W, 36 V XOFO rear-hub (400 W max instant), ~210 RPM
• Torque: up to 45 Nm
• Sensor: Cadence sensor (PAS)

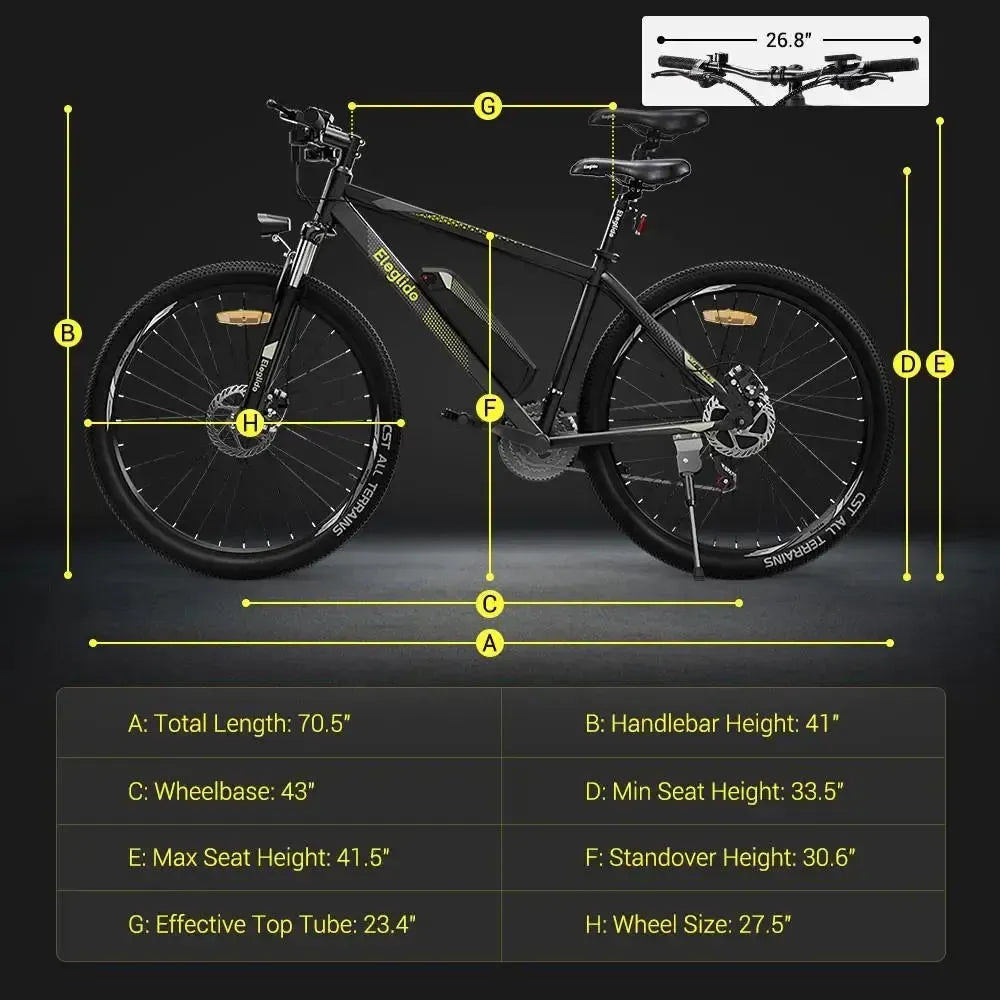

Size M (27.5″):

• Unfolded: 1790 × 680 × 1041 mm (70.5 × 26.8 × 41.0 in)
• Saddle height (from ground): 850–1050 mm (33.5–41.3 in)
• Handlebar length: 680 mm (26.8 in)
• Net/Gross: 21.7 / 27.0 kg (47.8 / 59.5 lb)
• Package: 1480 × 240 × 770 mm (58.3 × 9.4 × 30.3 in)

Size L (29″):

• Unfolded: 1810 × 700 × 1080 mm (71.3 × 27.6 × 42.5 in)
• Saddle height (from ground): 870–1050 mm (34.3–41.3 in)
• Handlebar length: 700 mm (27.6 in)
• Net/Gross: 22.8 / 29.8 kg (50.3 / 65.7 lb)
• Package: 1480 × 230 × 790 mm (58.3 × 9.1 × 31.1 in)

• Max load (M / L): 100 kg (220 lb) / 120 kg (265 lb)
• Max climb: 15° (approx.)

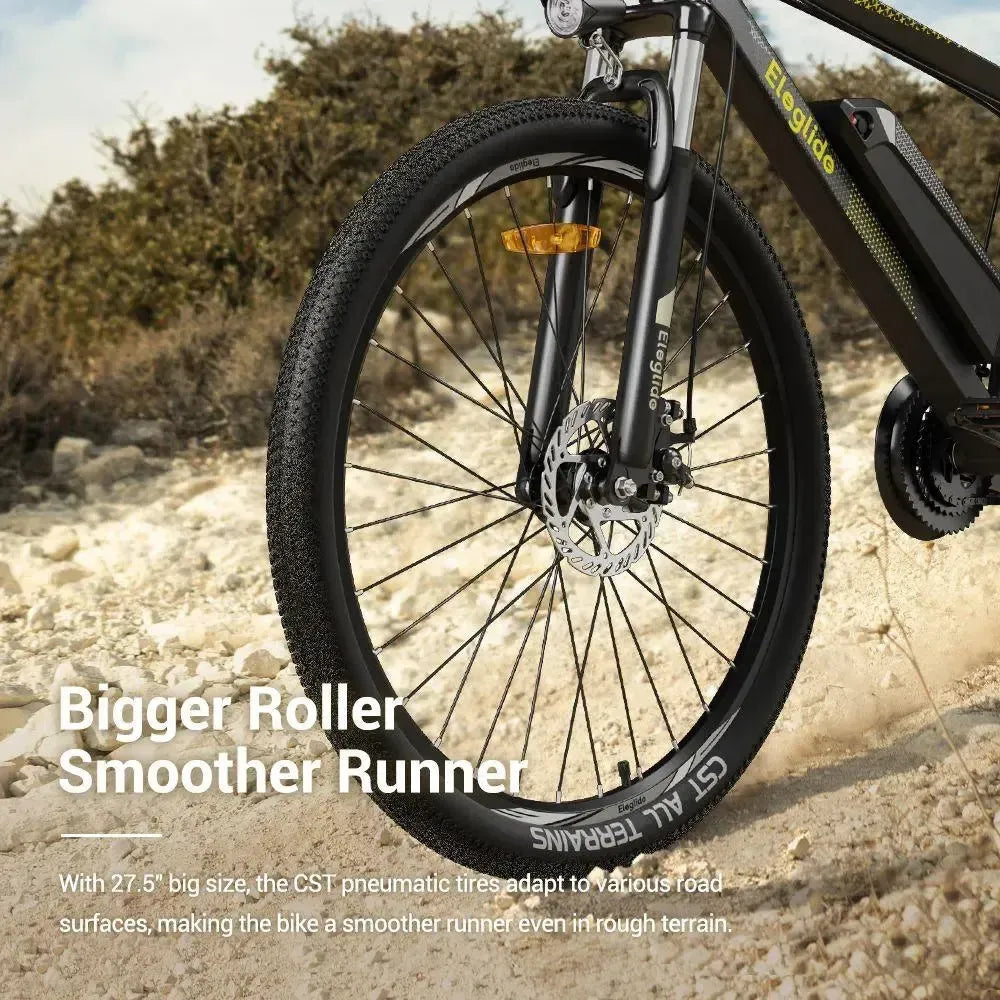

• Tires: CST pneumatic — M: 27.5″ × 2.35″, L: 29″ × 2.35″; 40–65 PSI (best ~50 PSI front / 55 PSI rear)

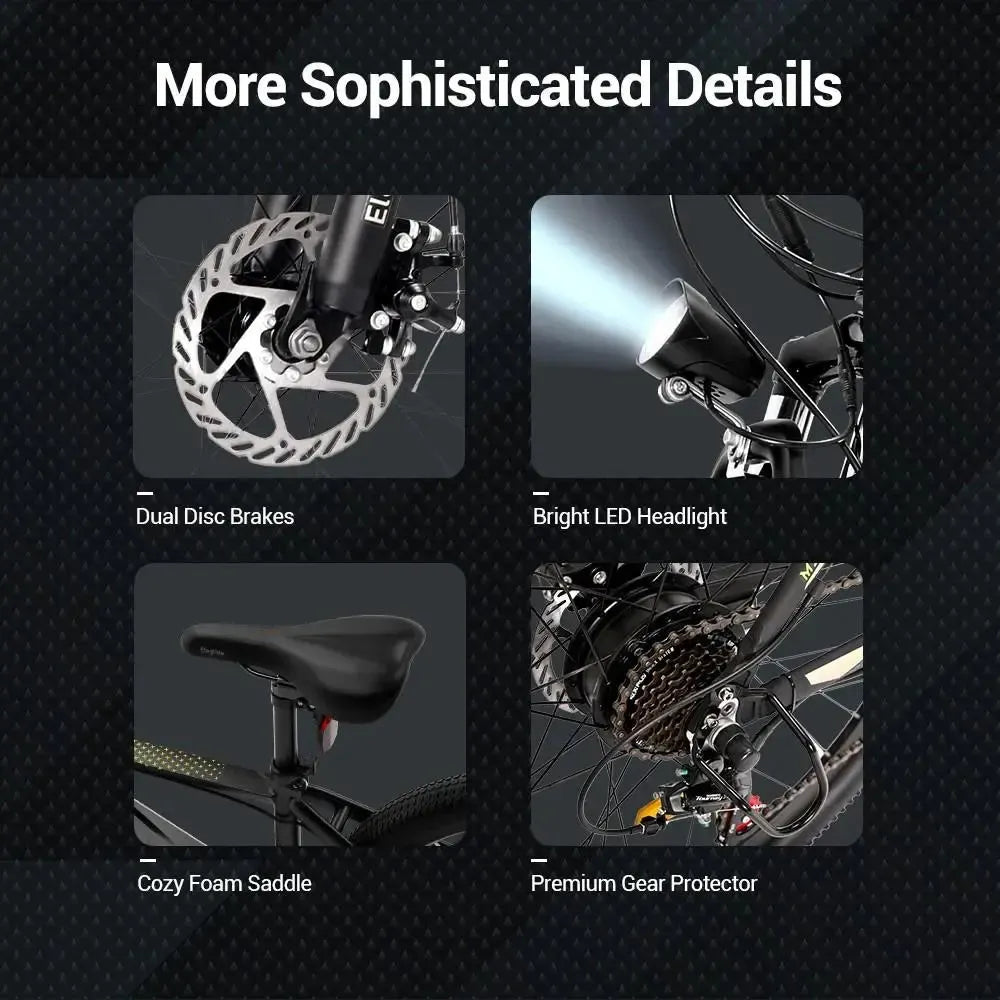

• Brakes: Dual mechanical disc, 160 mm rotors with power-off safety
• Waterproof: IPX4 (splash-resistant)

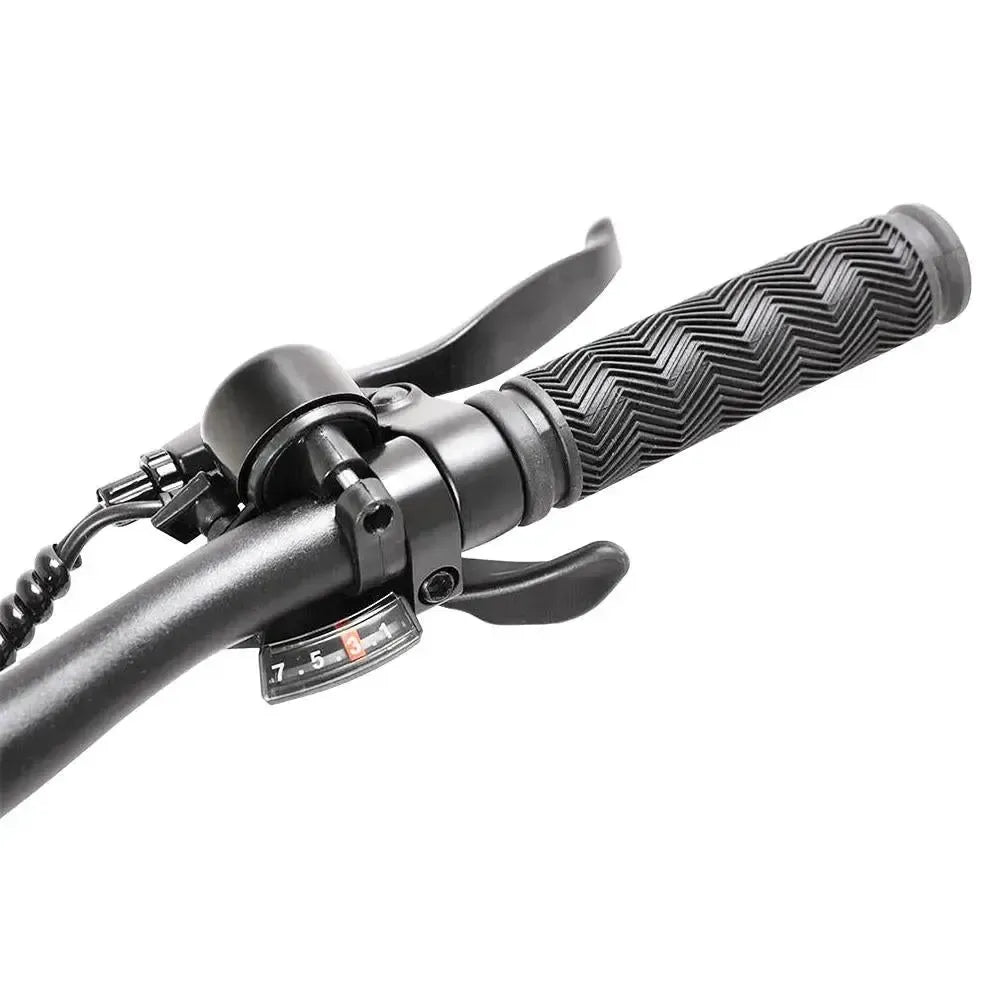

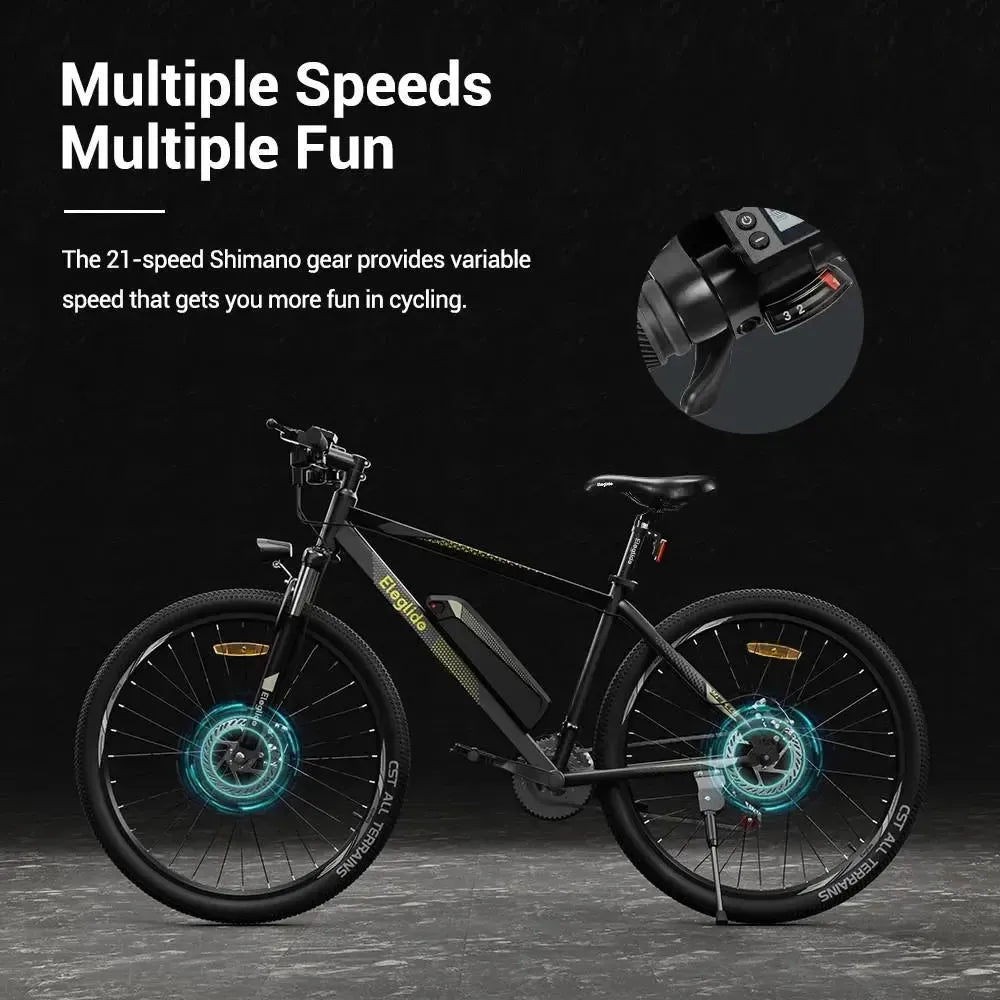

• Drivetrain: Shimano 21-speed

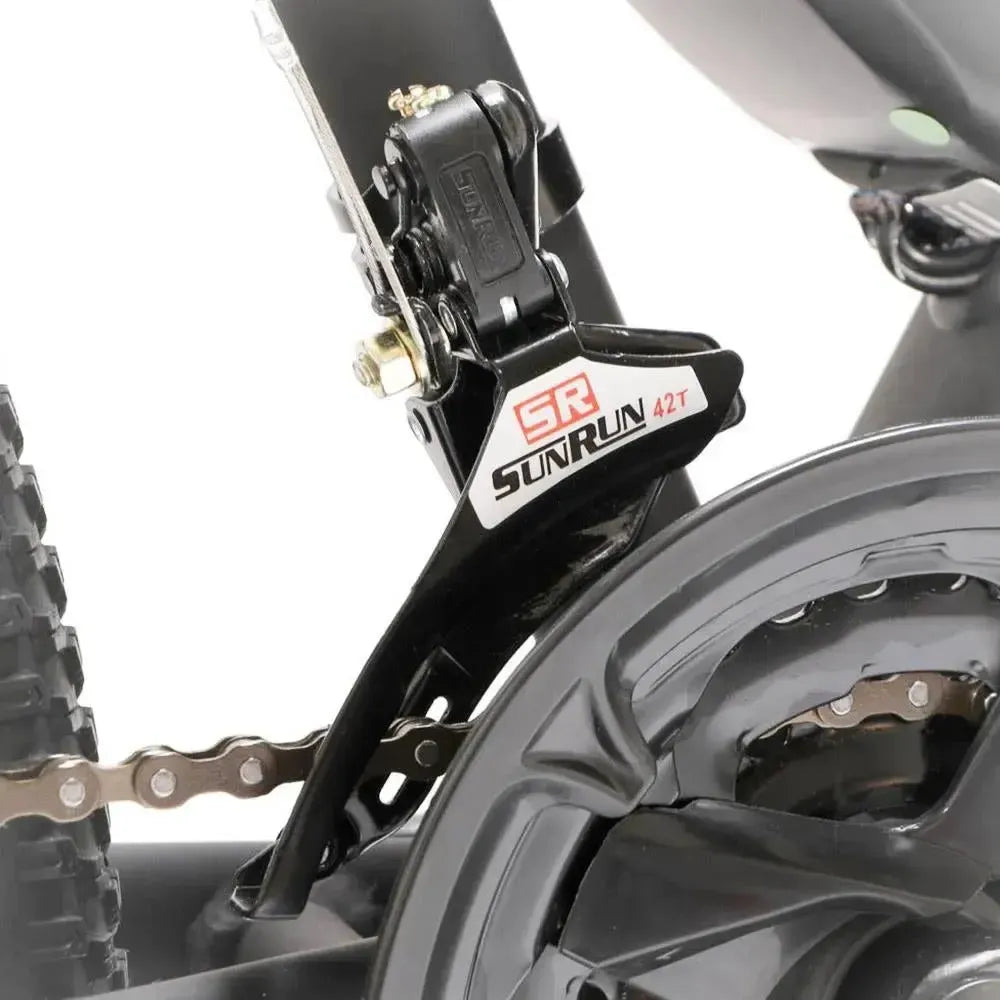

• Chainrings: 42T / 34T / 24T
• Rear freewheel: multi-sprocket (7-speed)
• Bottom bracket & cranks: standard square-taper (class typical)

• Front light: LED, 1.65 W, ~20° beam (~0.5 m² area)

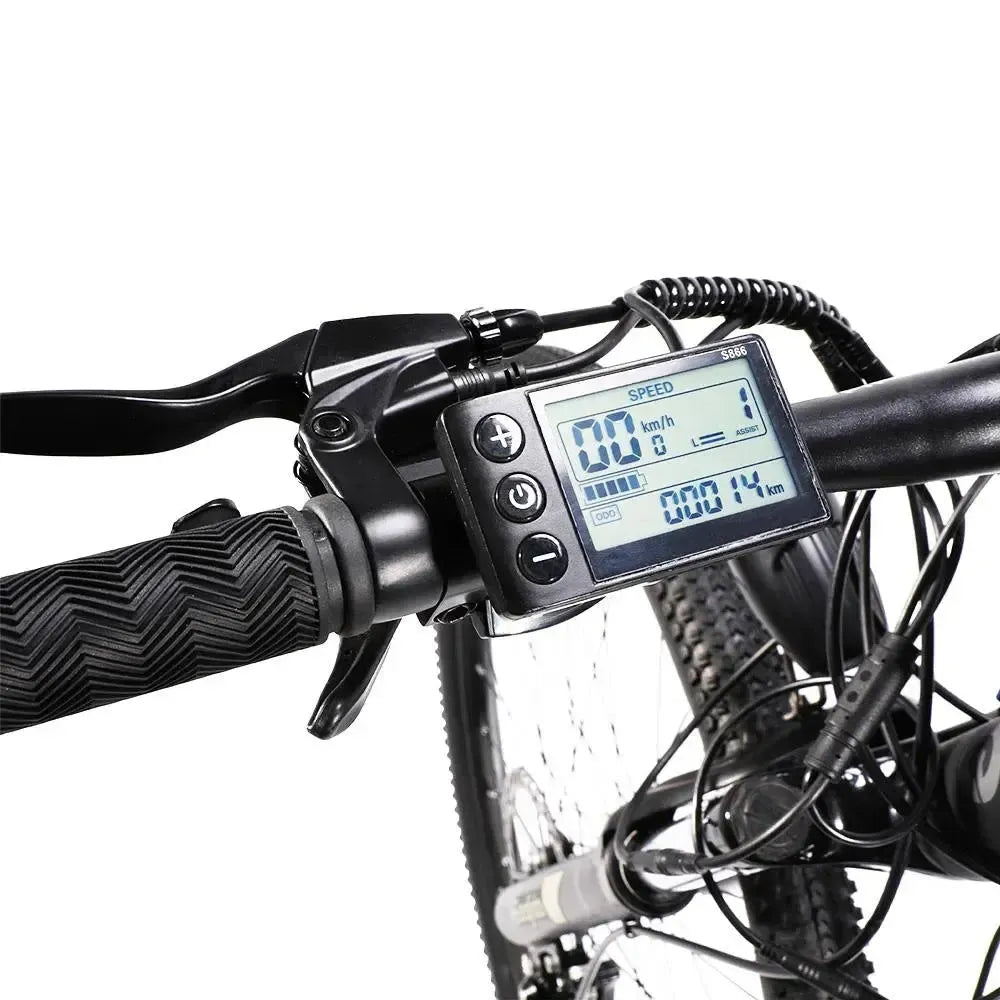

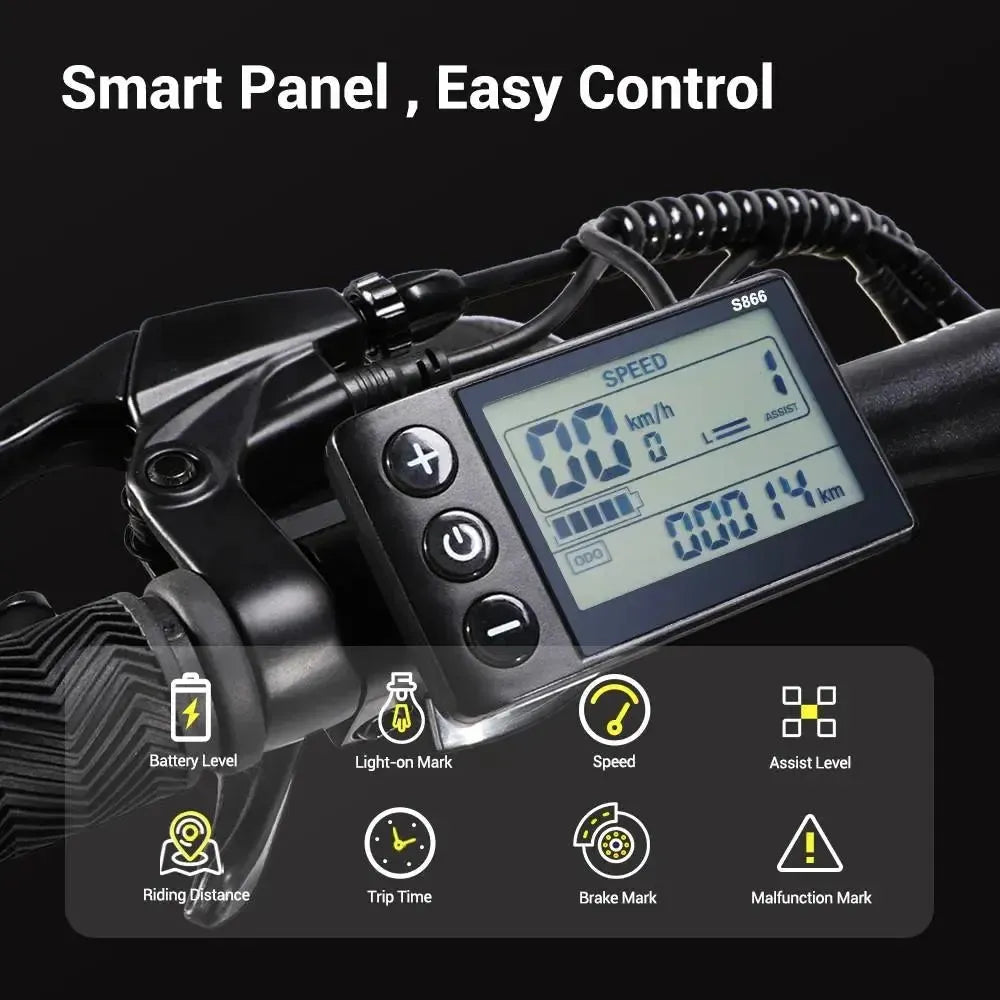

• Display: 1.8″ LCD (speed, battery, trip/ODO, PAS level, push mode, light, error, brake/malfunction)
• Display controls: power, lights, assist level, walk mode, ODO reset, screen timeout

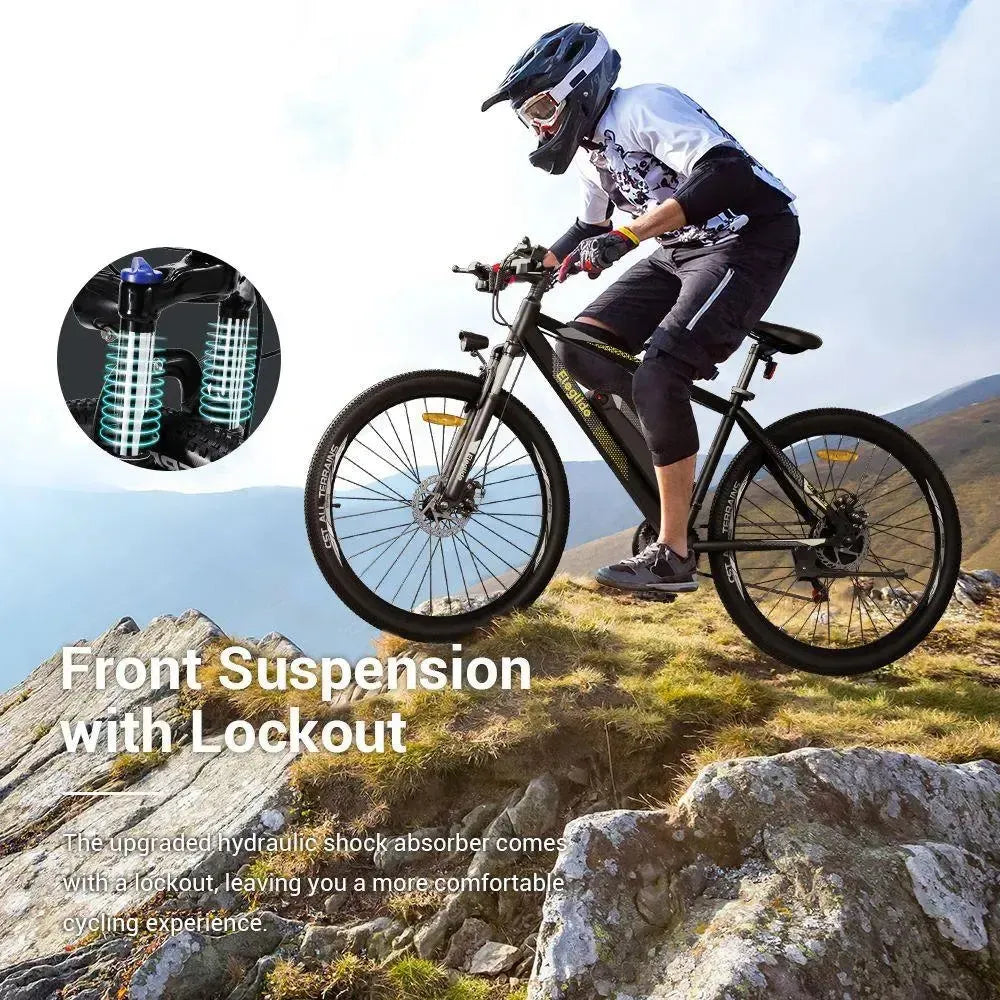

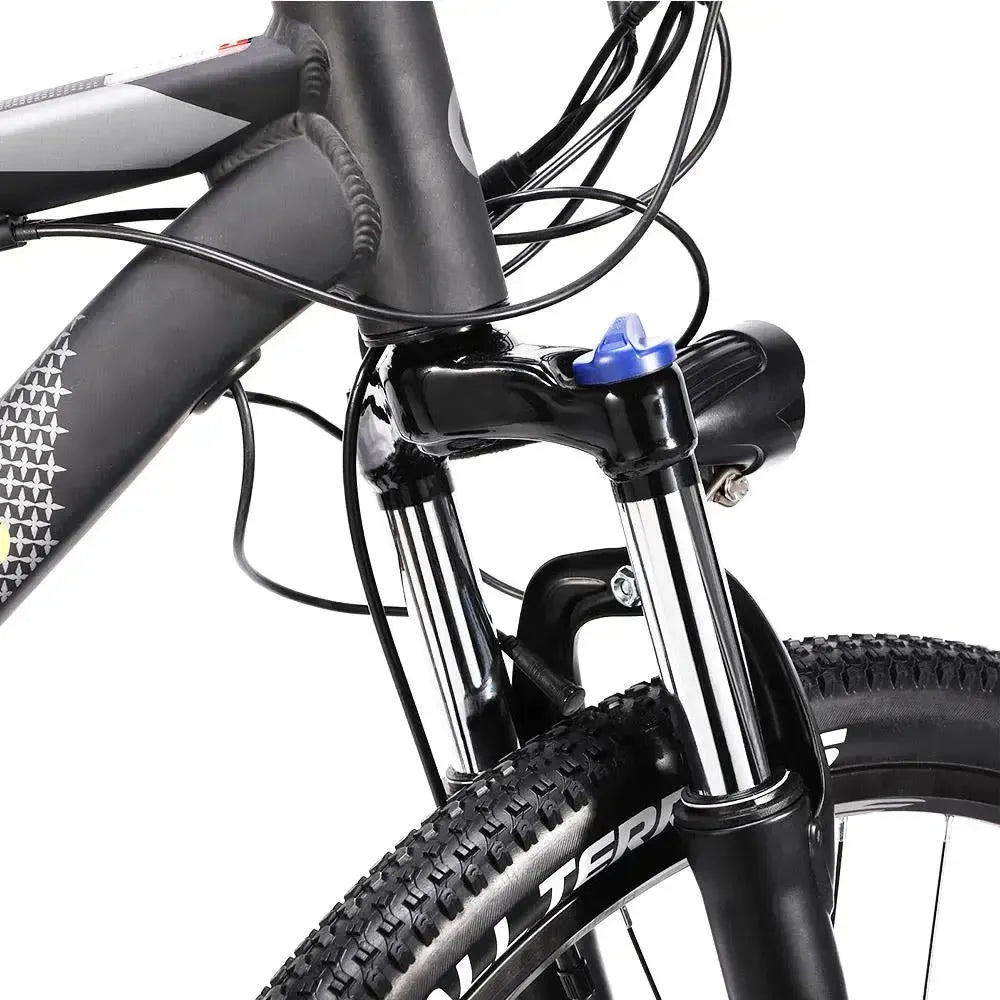

• Hydraulic fork with lockout, 100 mm travel
• Power-cut brake levers for added safety
• App pairing for quick settings and anti-tamper lock
• Walk-assist for ramps and garages

Eleglide’s M1 Plus brings modern e-MTB tech to everyday riders with a lightweight AL6061 frame, a dependable 250 W XOFO rear-hub motor, and a removable 36 V 13 Ah battery that can deliver up to 100 km (62 mi) in Assist Mode. The bike’s hydraulic lockout fork and 100 mm travel soak up trail chatter, while the Shimano 21-speed drivetrain gives you the right cadence whether you’re cruising fire roads or climbing to a viewpoint.

Braking confidence comes from dual mechanical discs with power-off cut-off for quicker stops. The CST tires (27.5″ or 29″) roll fast on tarmac and grip predictably on gravel, and the tidy 1.8″ LCD keeps key metrics in view. Pair the Eleglide app to fine-tune assist levels, lock the bike, and manage lights. With IPX4 splash protection and a practical 6 km/h walk-assist, the M1 Plus is as capable on weekend trails as it is on weekday commutes.
