DUOTTS F26 Electric Bike
- Color:
- Silver/White
Specifications Breakdown
Model: DUOTTS F26
Bike Type: Electric fat-tire / off-road e-bike

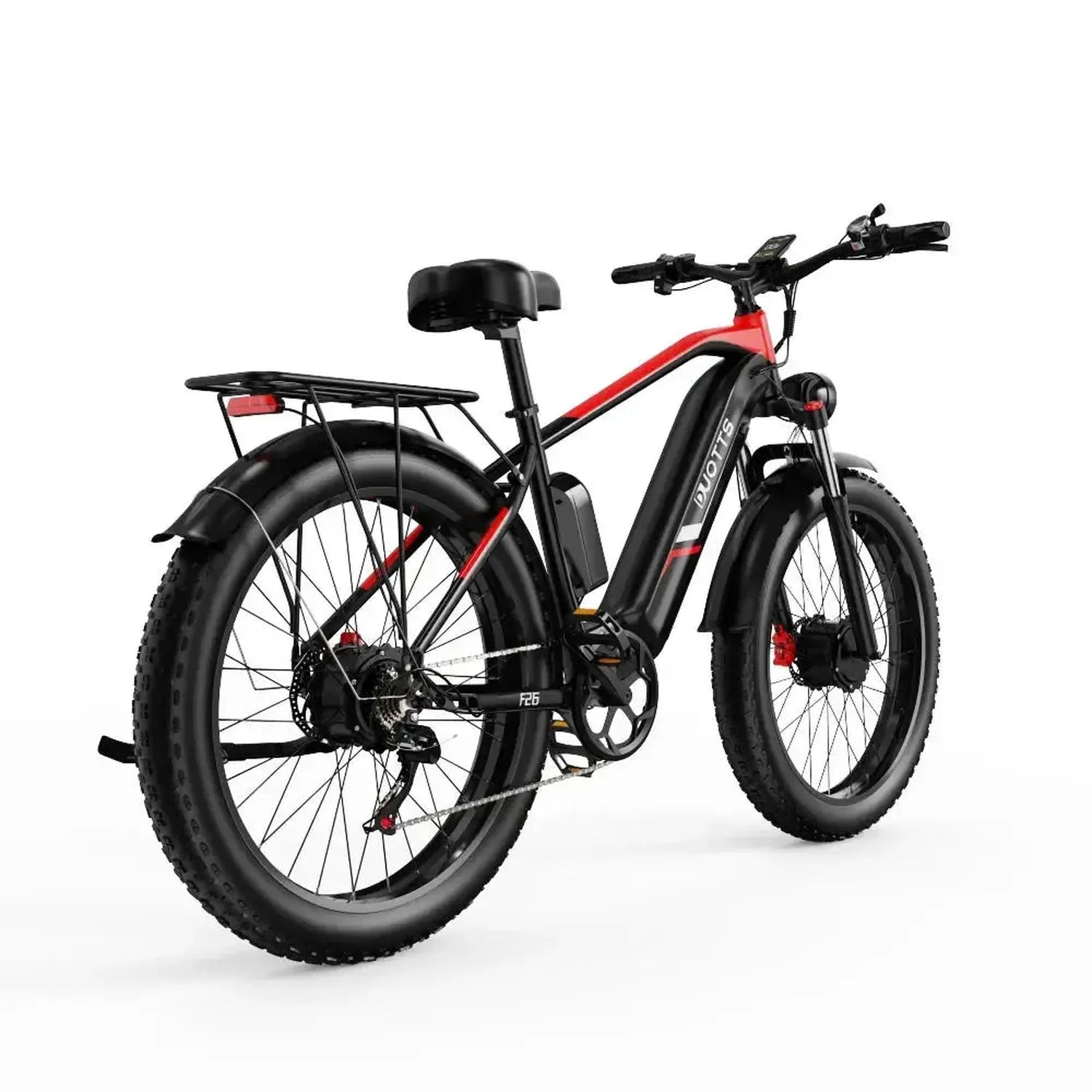

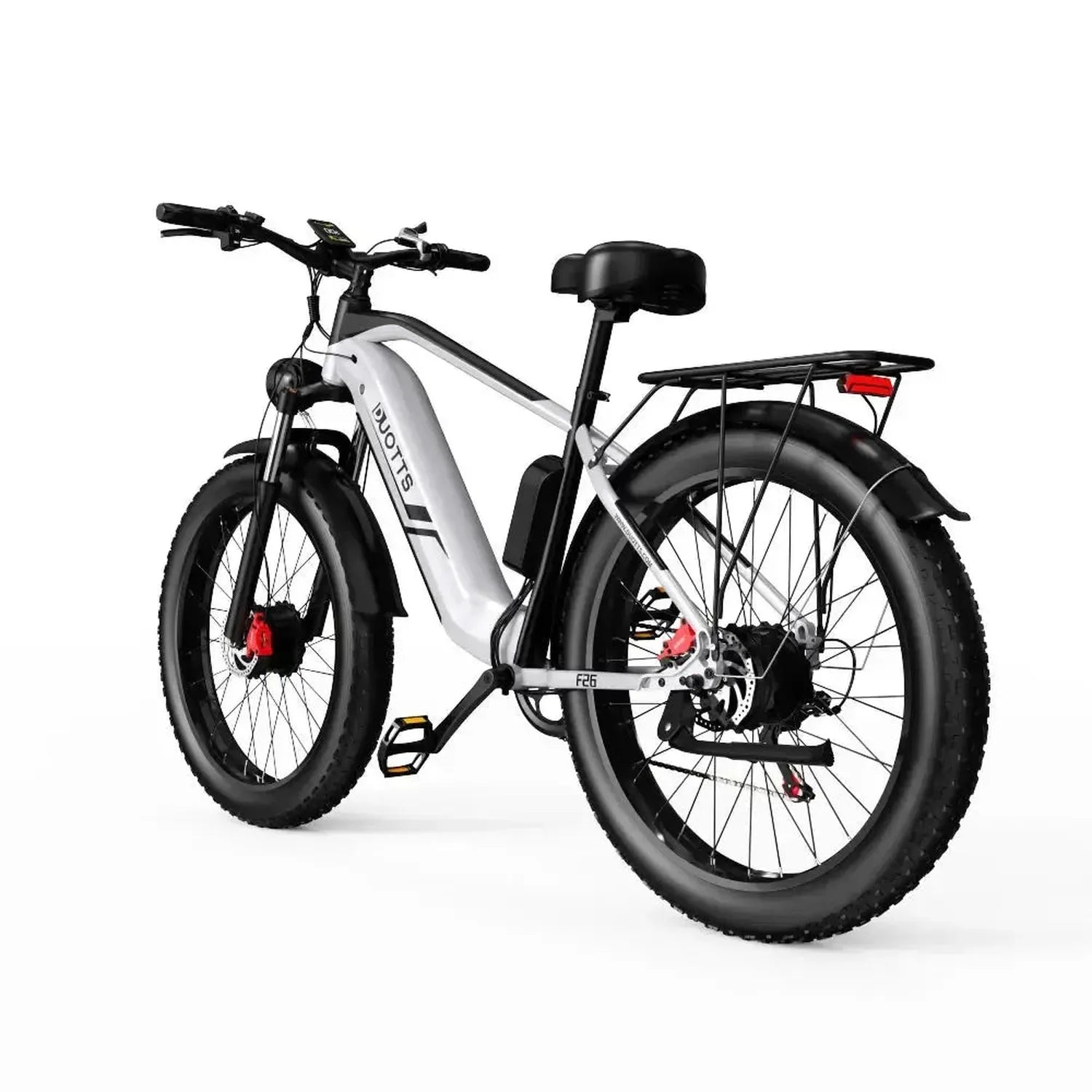

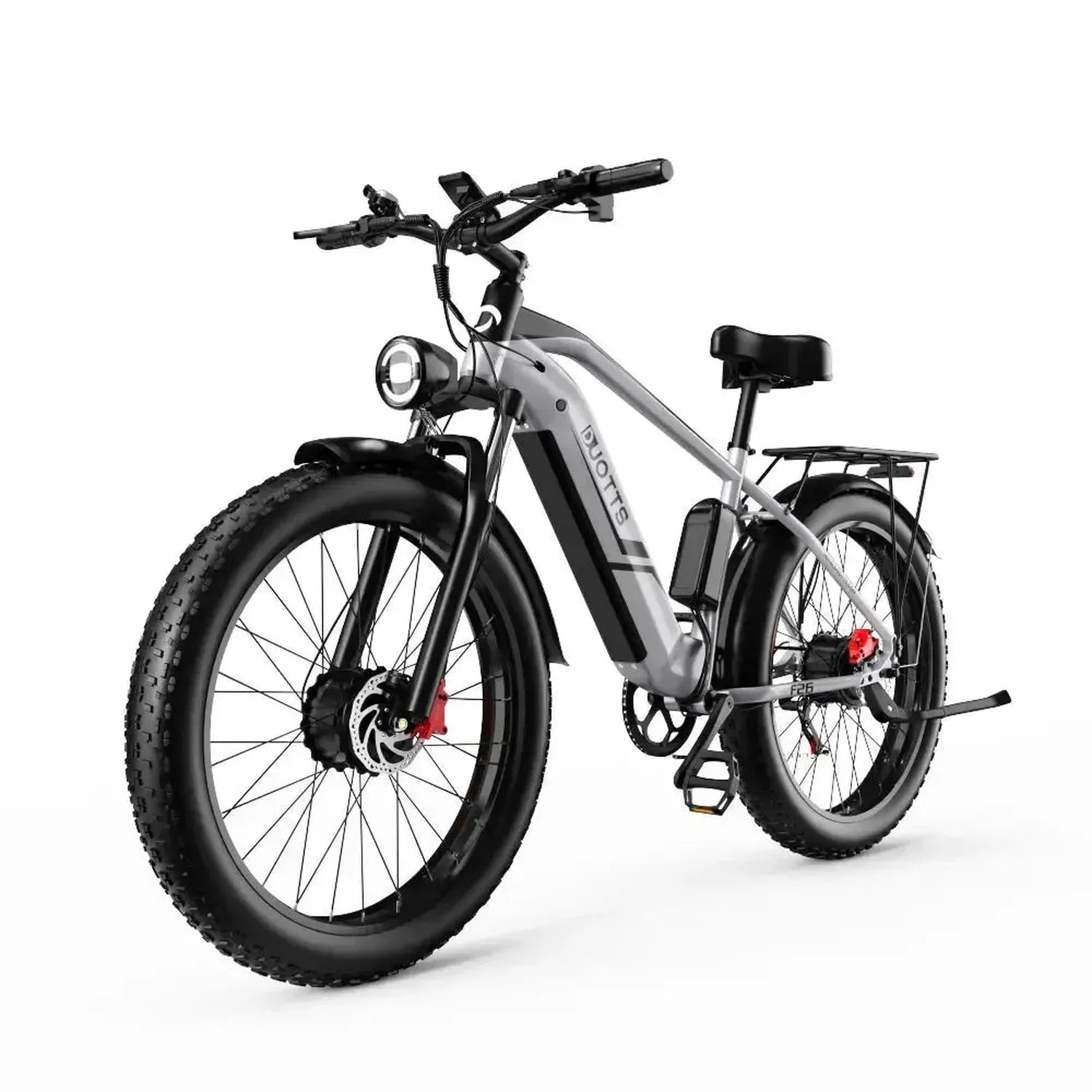

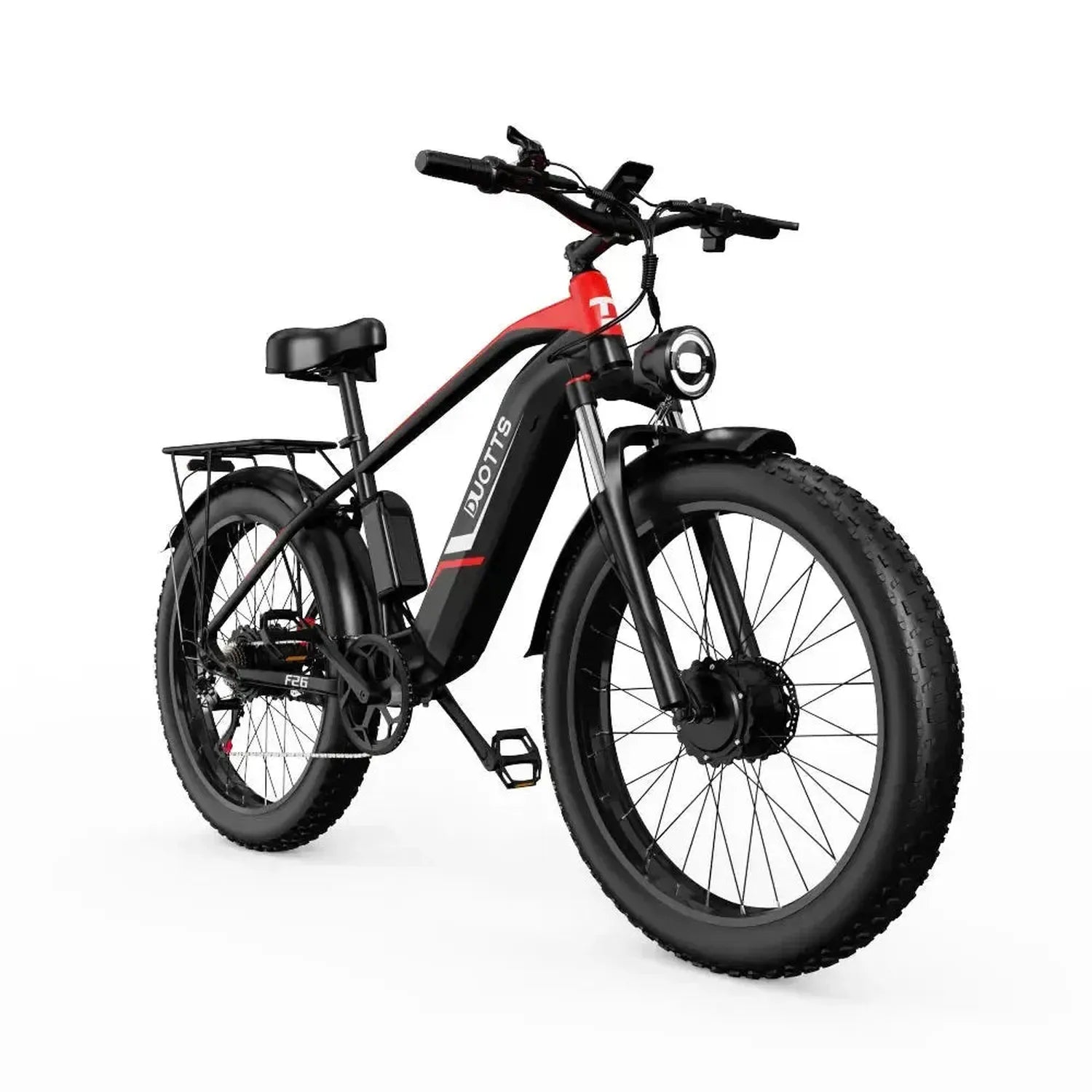

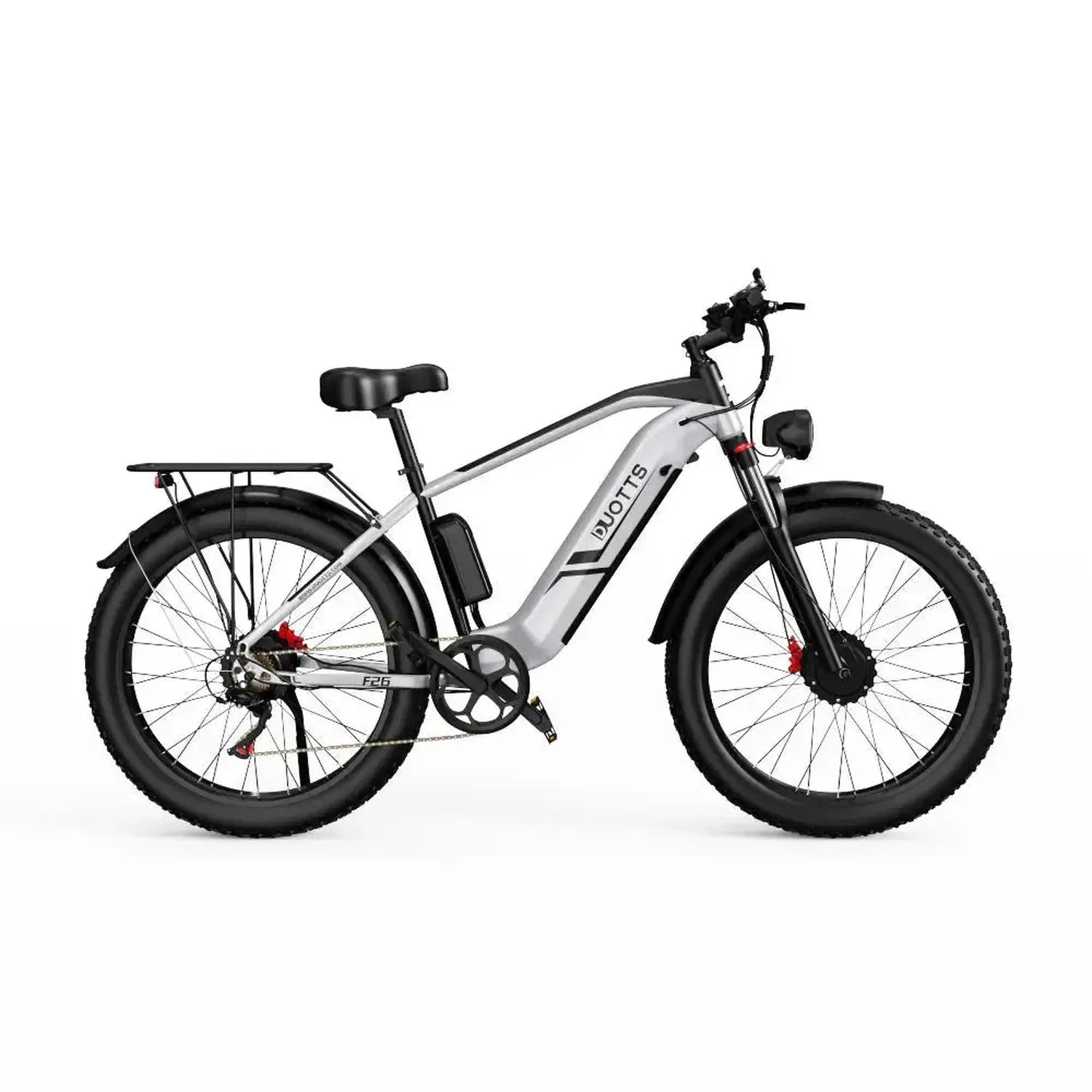

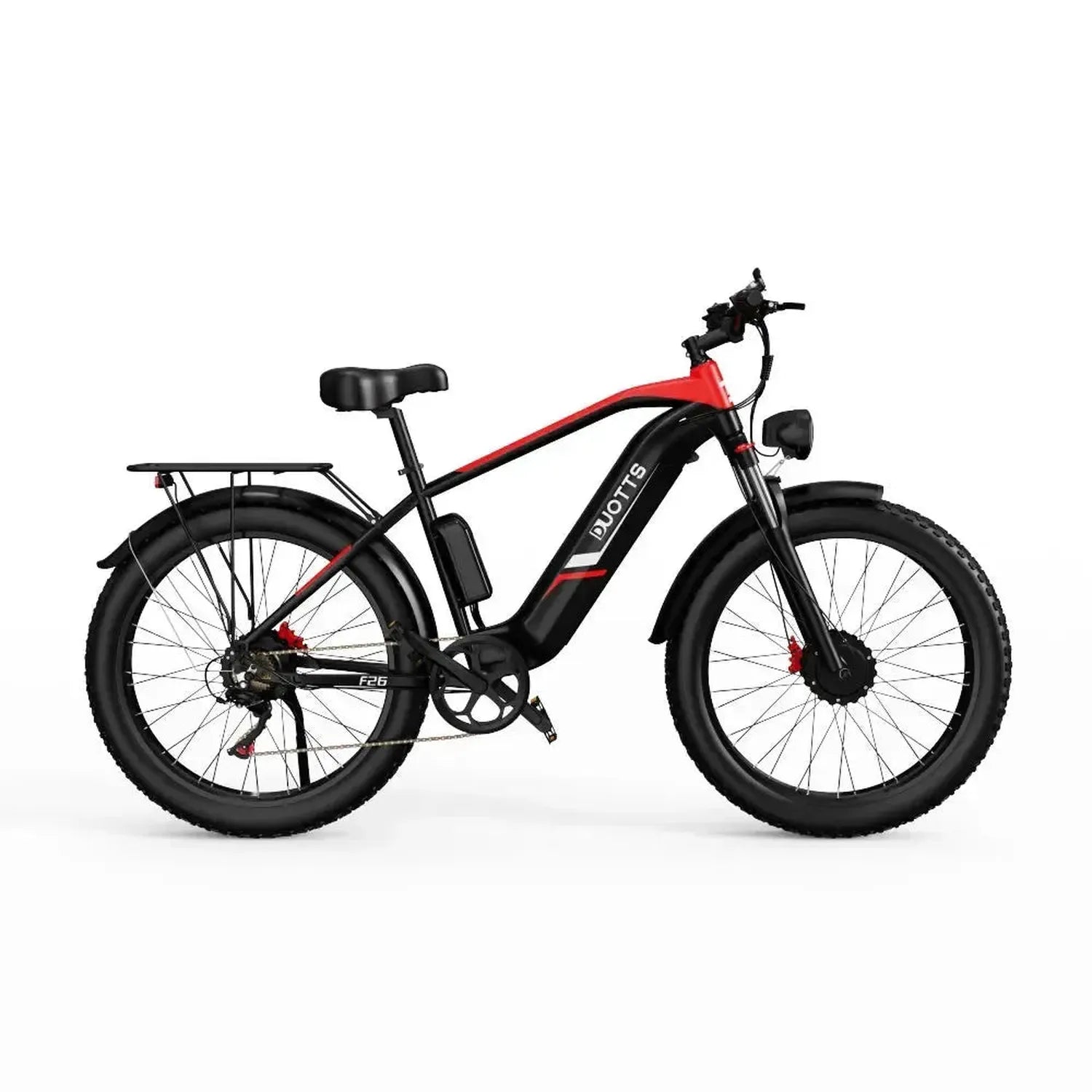

Colour: Black / Red, Silver / Black
Motor Power: Dual 750W brushless motors
Total Motor Output: 1500W
Peak Motor Output: Up to 2000W peak
Torque: 65 Nm
Top Speed: Up to 50–55 km/h (31–34 mph)
Battery: Samsung 48V 20Ah lithium-ion battery
Battery Capacity: 960Wh
Range: Up to 40–60 km (25–37 miles) in pure electric mode
Pedal Assist Range: Up to 100–120 km (62–75 miles)
Charging Time: Approx. 6–8 hours
Wheel Size: 26-inch wheels
Tyres: 26 × 4.0-inch fat tyres
Suspension: Front suspension fork
Brakes: Hydraulic disc brakes
Display: LCD display with Bluetooth
App Control: DUOTTS app support
Transmission: Shimano 7-speed gear system

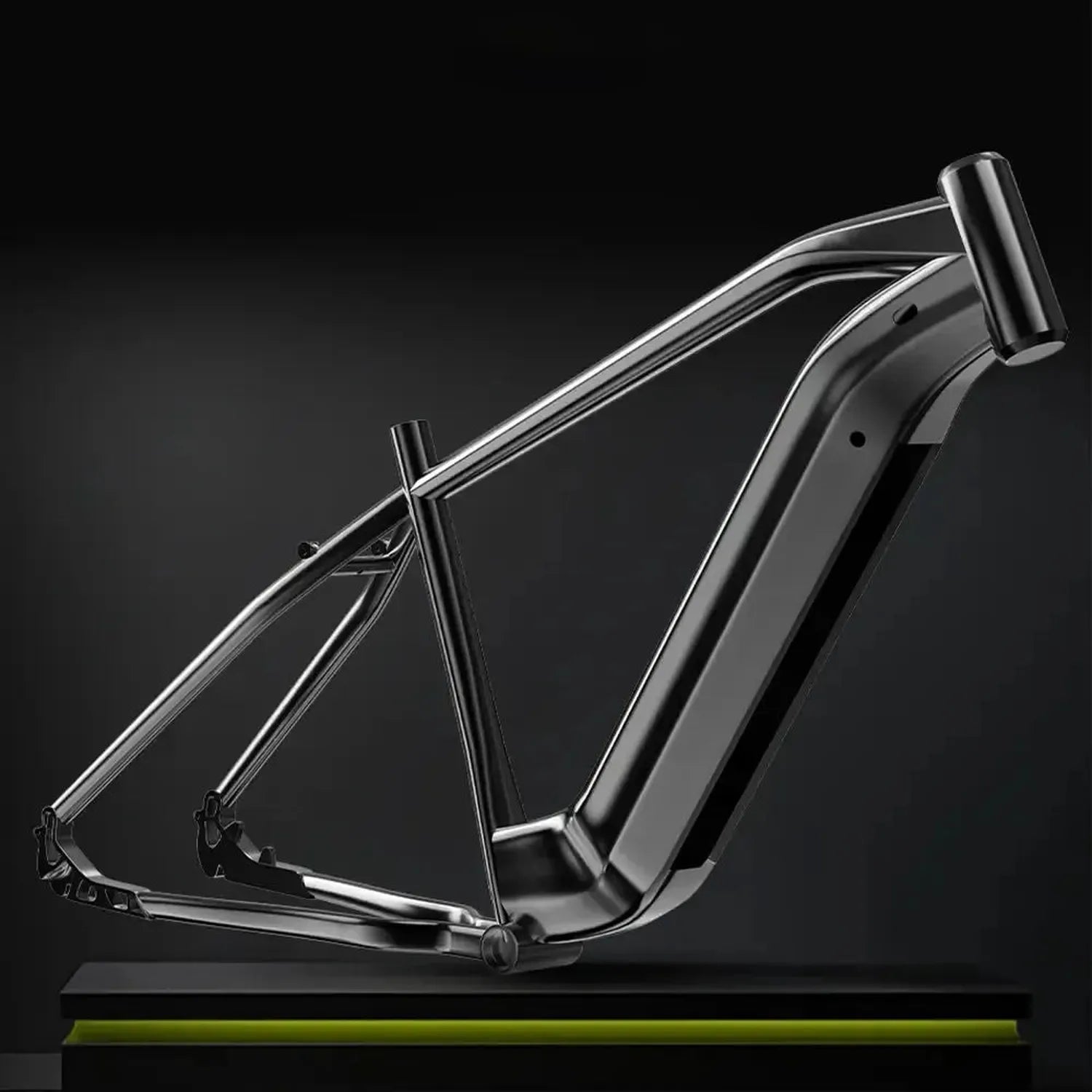

Frame Material: Aluminium alloy frame
Lighting: Front light
Water Resistance: IPX4
Maximum Load: 150 kg (330 lbs)
What’s in the Box
1 × DUOTTS F26 Electric Bike
1 × Charger
1 × Tool kit
1 × User manual
FAQs
What motor setup does the DUOTTS F26 use?
It uses dual 750W brushless motors, giving 1500W total motor output and up to 2000W peak power.
How far can the DUOTTS F26 go on one charge?
Up to 40–60 km (25–37 miles) in pure electric mode and up to 100–120 km (62–75 miles) with pedal assist.
What battery does the DUOTTS F26 have?
Samsung 48V 20Ah lithium-ion battery with 960Wh capacity.
What is the top speed of the DUOTTS F26?
Up to 50–55 km/h (31–34 mph).
What tyres does the F26 use?
It uses 26 × 4.0-inch fat tyres.
Does the DUOTTS F26 have suspension?
Yes, it comes with a front suspension fork.
What brakes does it have?
Hydraulic disc brakes.
Does the F26 have gears?
Yes, it comes with a Shimano 7-speed gear system.
Does the DUOTTS F26 support app control?
Yes, it supports Bluetooth connection with the DUOTTS app.
What colours does the DUOTTS F26 come in?
Black / Red and Silver / Black.

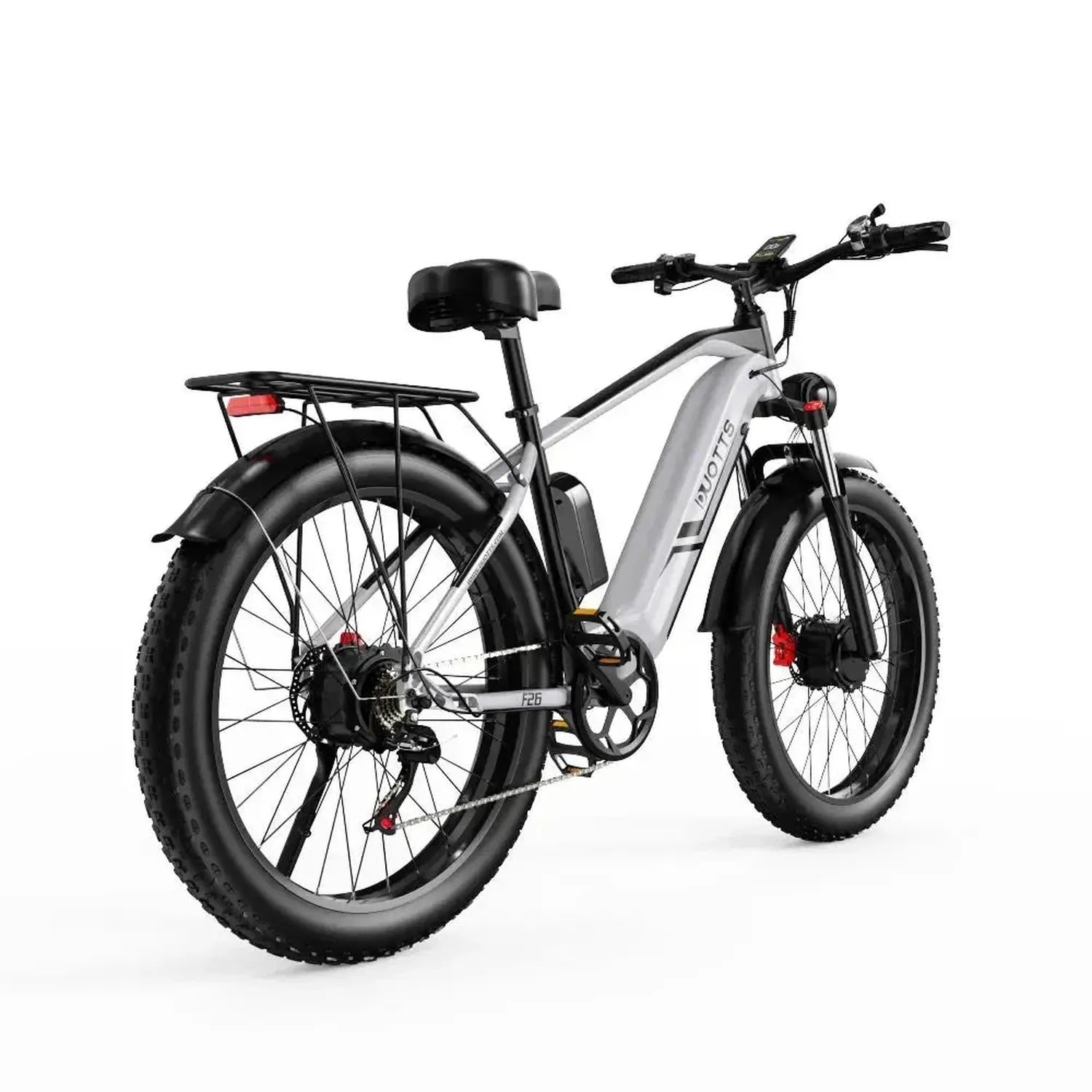

The DUOTTS F26
The DUOTTS F26 Electric Bike is built for riders who want long-range performance, comfort, and versatility across a wide range of terrain. Powered by a 48V 20Ah Samsung lithium battery, it delivers an impressive range of up to 100–120 km (62–75 miles) per charge, making it ideal for commuting, extended rides, and outdoor adventures. With IPX4 water resistance, it is designed to handle light rain and typical riding conditions with confidence.
Designed for stability and control, the F26 features 26×4.0-inch fat tyres, providing excellent grip across city roads, gravel paths, sand, and light off-road terrain. Combined with a front suspension fork, it helps absorb bumps and uneven surfaces, delivering a smoother and more comfortable ride on both short trips and longer journeys.
For enhanced safety and braking performance, the F26 is equipped with hydraulic disc brakes, offering strong, responsive, and reliable stopping power in a variety of riding conditions. This makes it well suited to both urban commuting and more demanding terrain.
The bike also includes a Shimano 7-speed gear system, allowing smooth and efficient shifting to adapt easily to hills, flat roads, and changing riding conditions. This adds flexibility and control across different routes and environments.

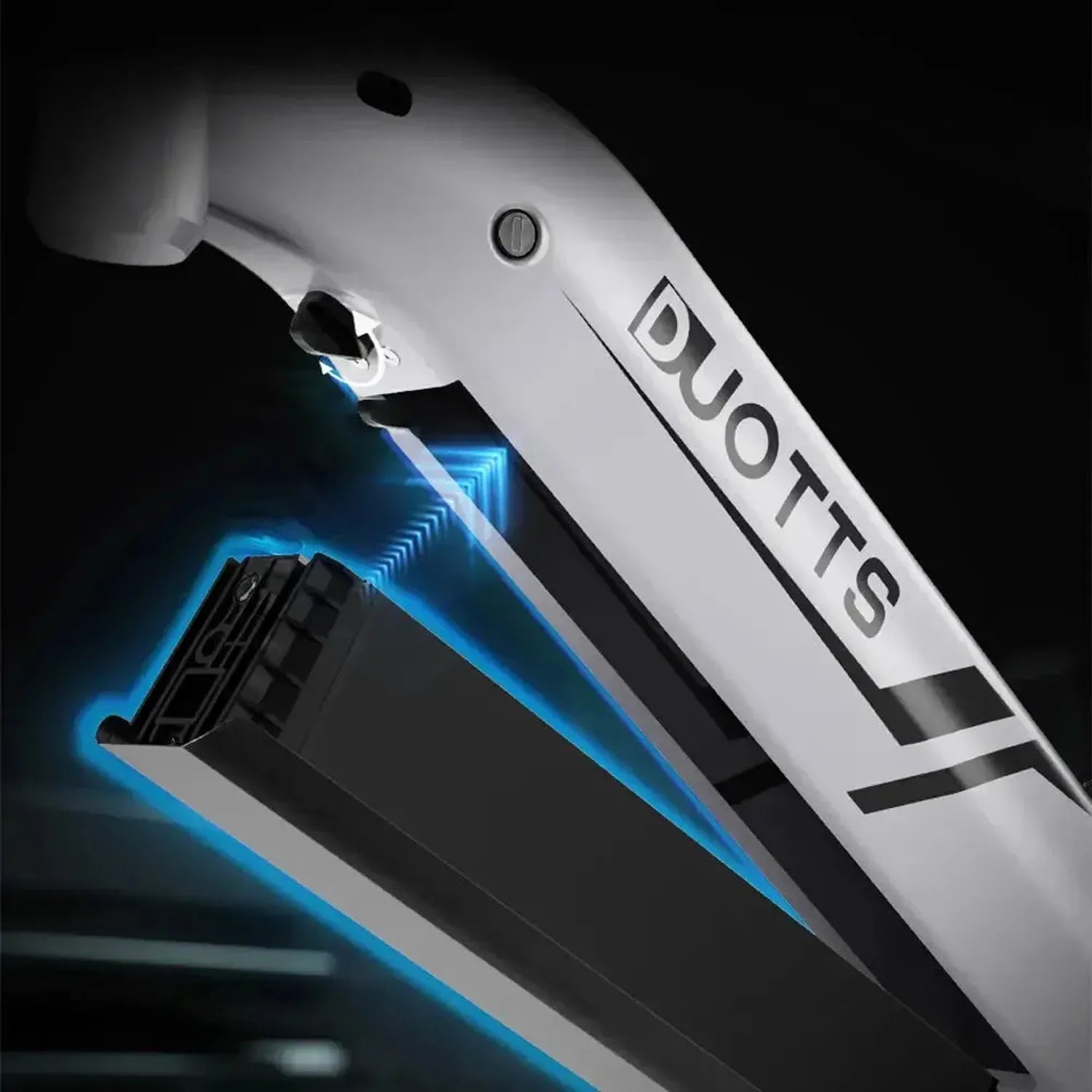

Designed with practicality in mind, the F26 features a clear LCD display with Bluetooth connectivity, allowing riders to access ride data and key information easily. It also includes integrated lighting for improved visibility and a removable battery for convenient charging at home or work.
DUOTTS
Founded in 2014, DUOTTS is a brand dedicated to redefining short-distance travel with powerful, stylish, and eco-friendly electric bikes. With a focus on performance and reliability, their models feature premium components such as Samsung batteries, hydraulic disc brakes, and fat off-road tires designed for both urban commuting and adventurous terrain. Today, DUOTTS ships worldwide, combining innovative design with strong customer support, making their e-bikes a trusted choice for riders who want efficiency, durability, and fun in every ride.
Specifications
General Details
- Model: DUOTTS F26
- Frame: Aluminum alloy frame
- Transmission: Shimano 7-speed

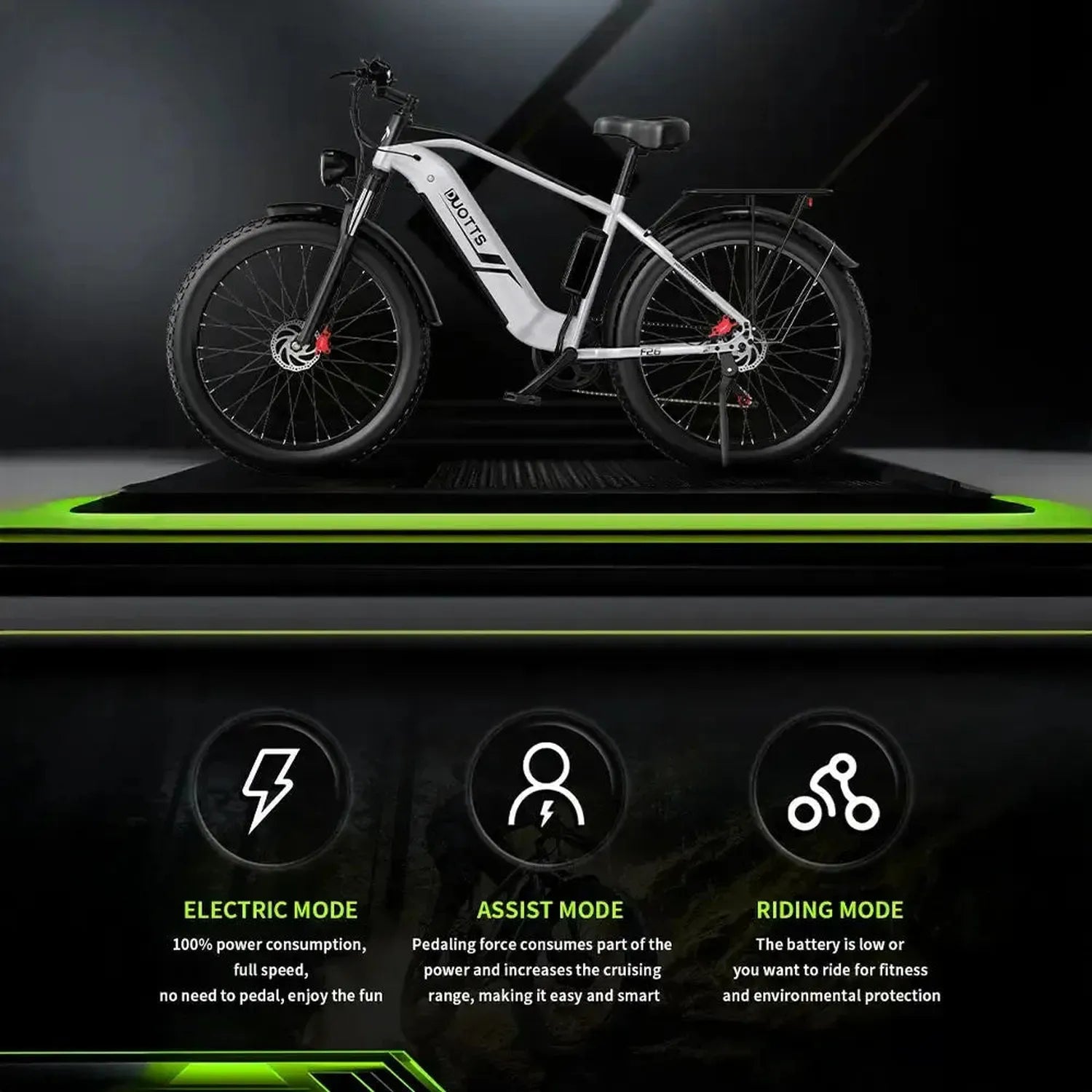

- Assist Levels: 5 pedal assist levels
- Certification: CE (EN15194) certified
- Connectivity: Bluetooth-enabled via DUOTTS App
Performance & Battery

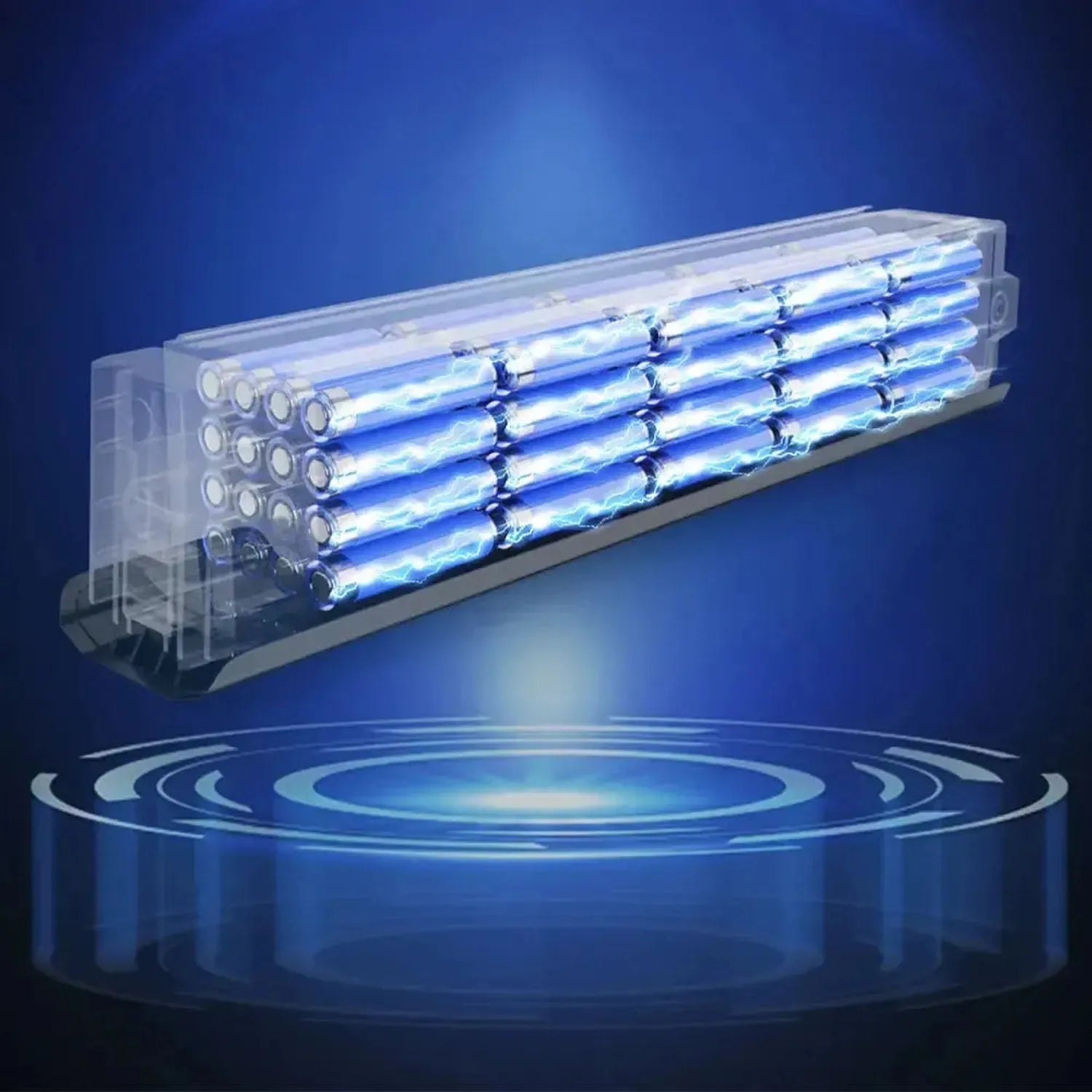

- Battery: 48V 20Ah lithium-ion with Samsung cells (~960Wh)
- Range: 40–60 km (25–37 mi) pure electric; 100–120 km (62–75 mi) with pedal assist
- Charger: 54.6V 3A charger, ~6–8 hours charging time
- Sensor: Speed sensor for smooth assist control
Dimensions & Weight

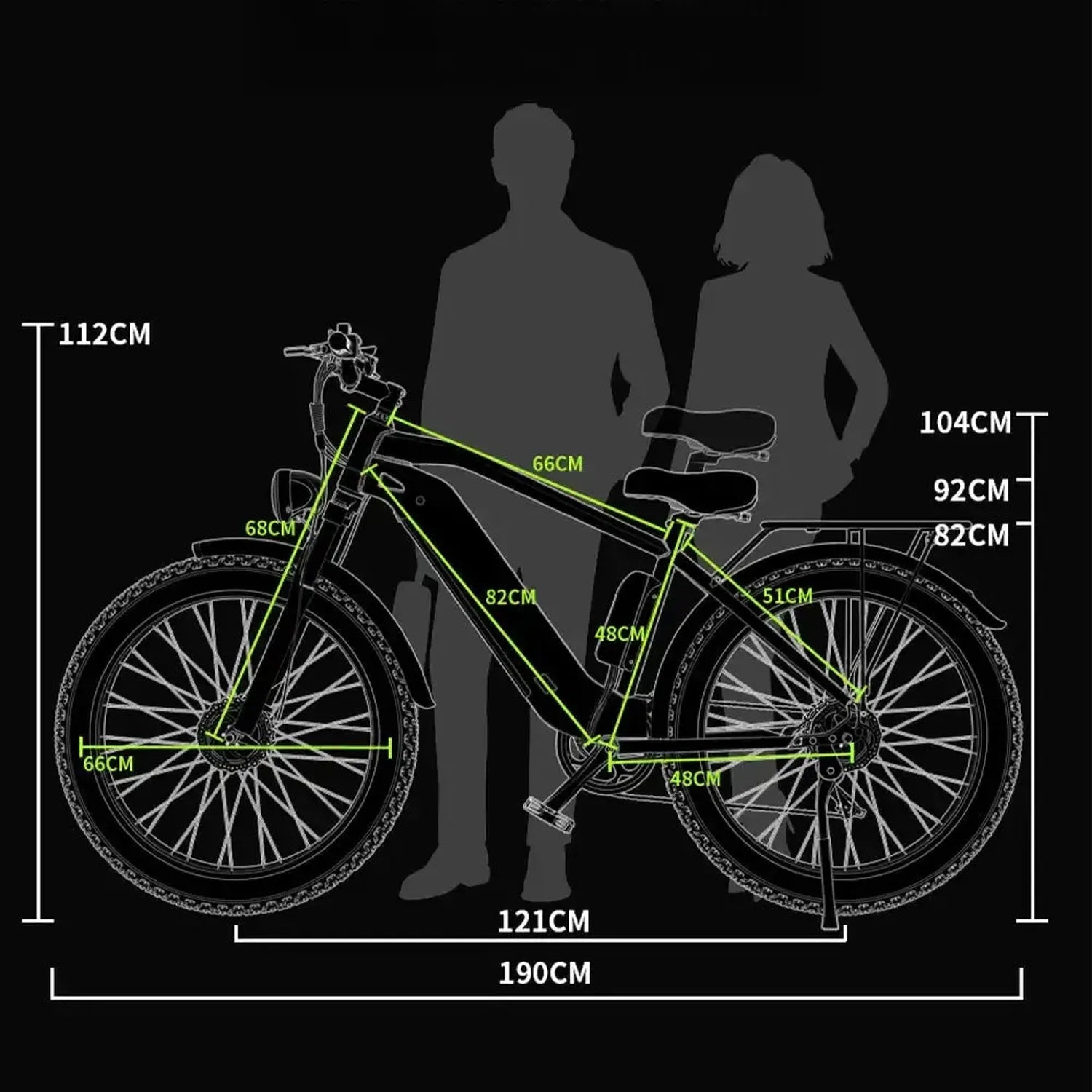

- Product Size: 1900 × 1120 × 710 mm (74.8 × 44.1 × 28.0 in)
- Net Weight: 40 kg (88 lb)
- Package Size: Approx. 1550 × 340 × 830 mm (61.0 × 13.4 × 32.7 in)
- Gross Weight: ~45 kg (99 lb)
Load & Climbing
- Max Load: 150 kg (330 lb)
- Climbing Ability: Handles gradients up to 30°
Tires, Brakes & Waterproofing
- Tires: Chaoyang 26 × 4.0 in fat tires, 30 TPI, with inner tubes

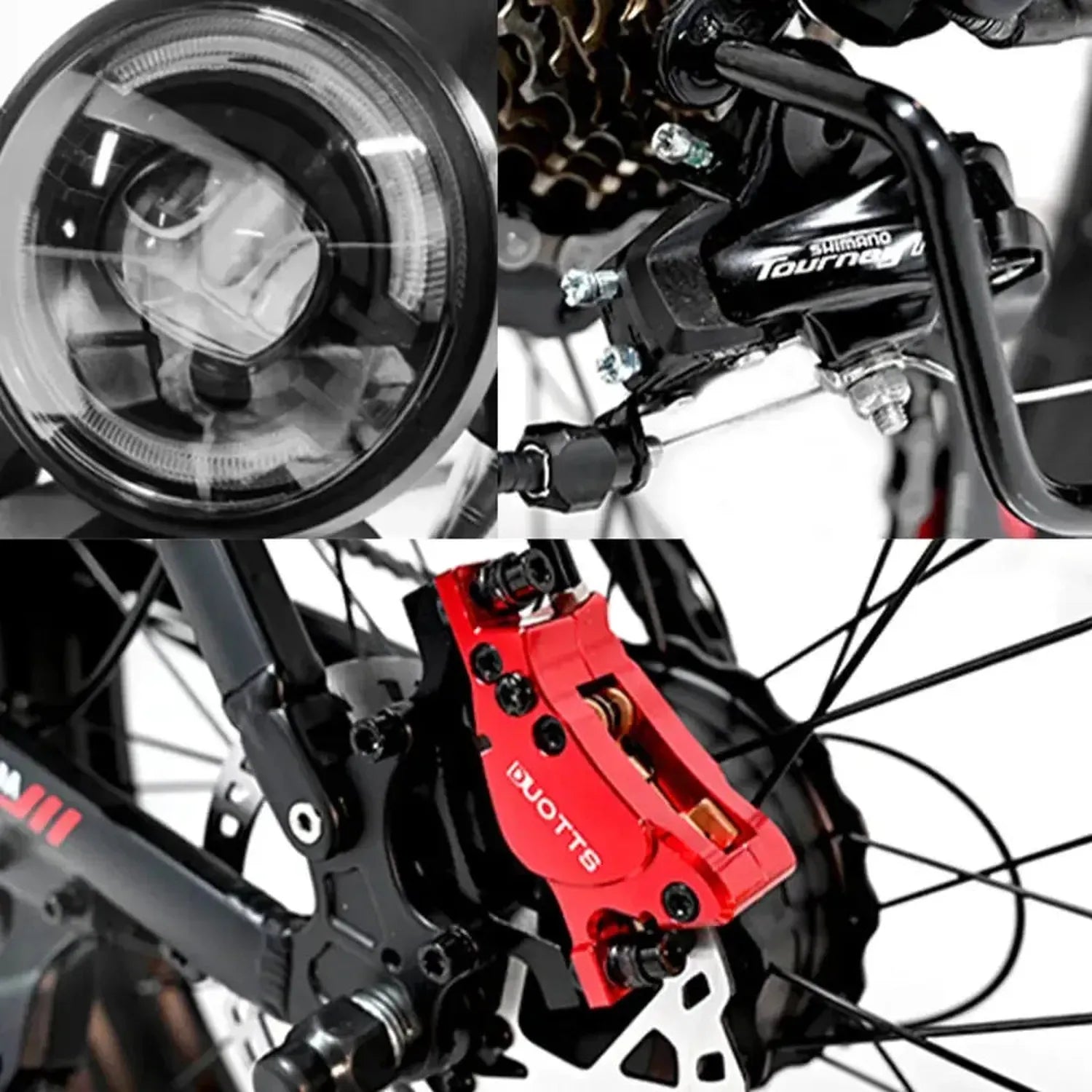

- Brakes: Hydraulic disc brakes with 160 mm rotors (front & rear)
- Waterproofing: Waterproof IPX4 rated
More Features

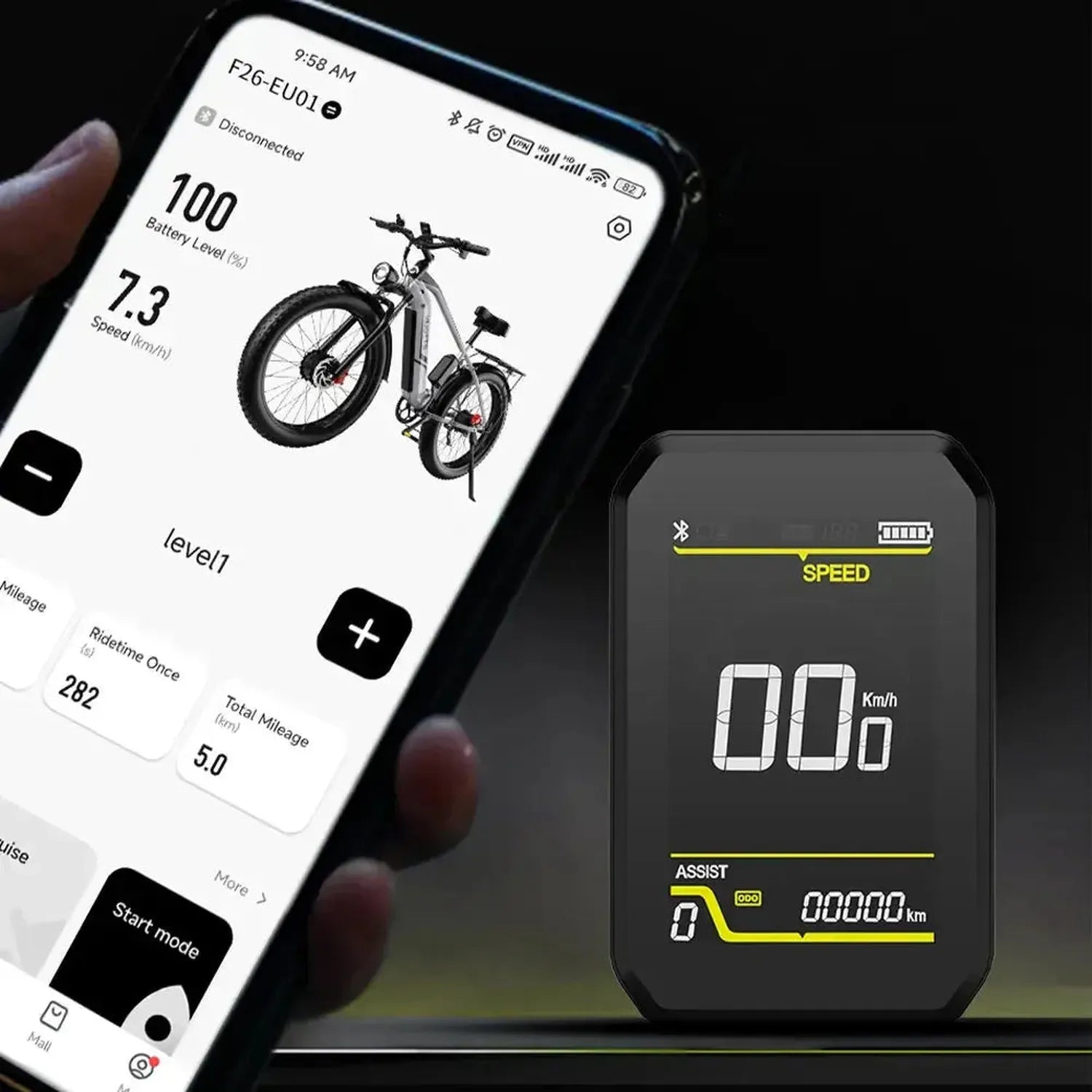

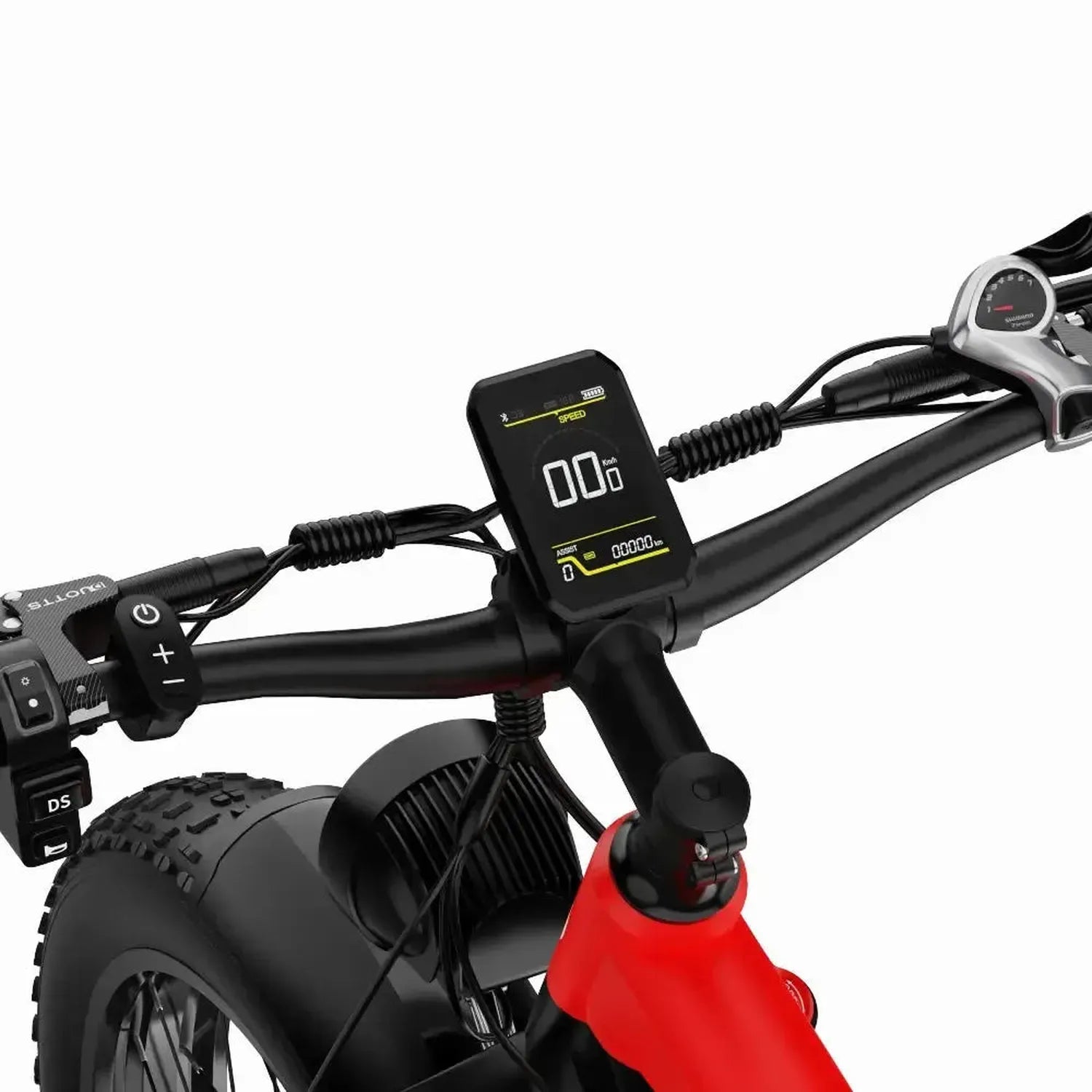

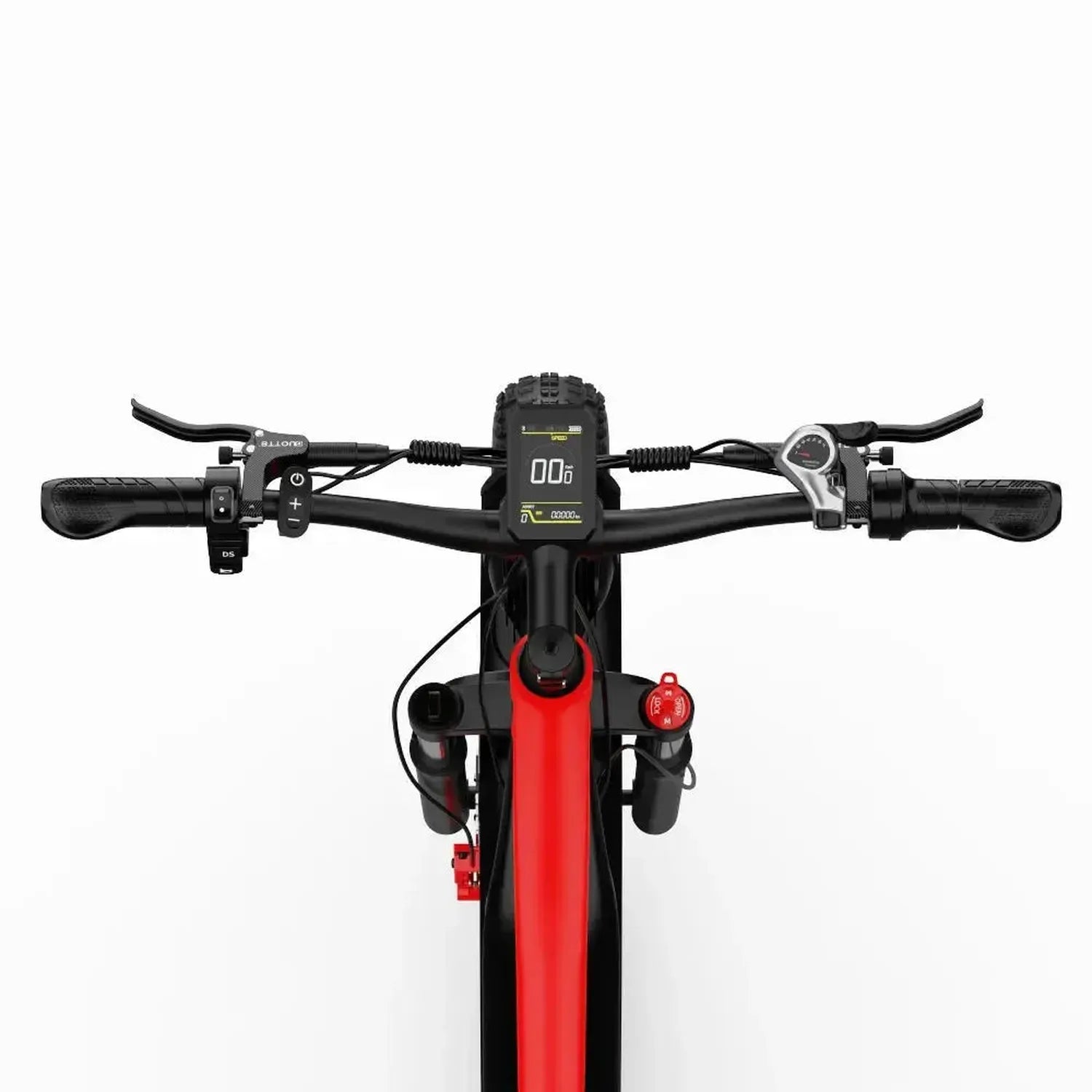

- Display: 3.2” HD color LCD display
- Functions: Speed, battery, pedal assist level, trip data
- App Features: Bluetooth connectivity for ride stats and adjustments
- Headlight: Stainless steel front light
- Taillight: Stainless steel integrated rear light
- Fenders: Plastic mudguards (front & rear)
- Rear Carrier: Steel rear rack, max load 25 kg
- Pedals: Aluminum alloy with reflectors

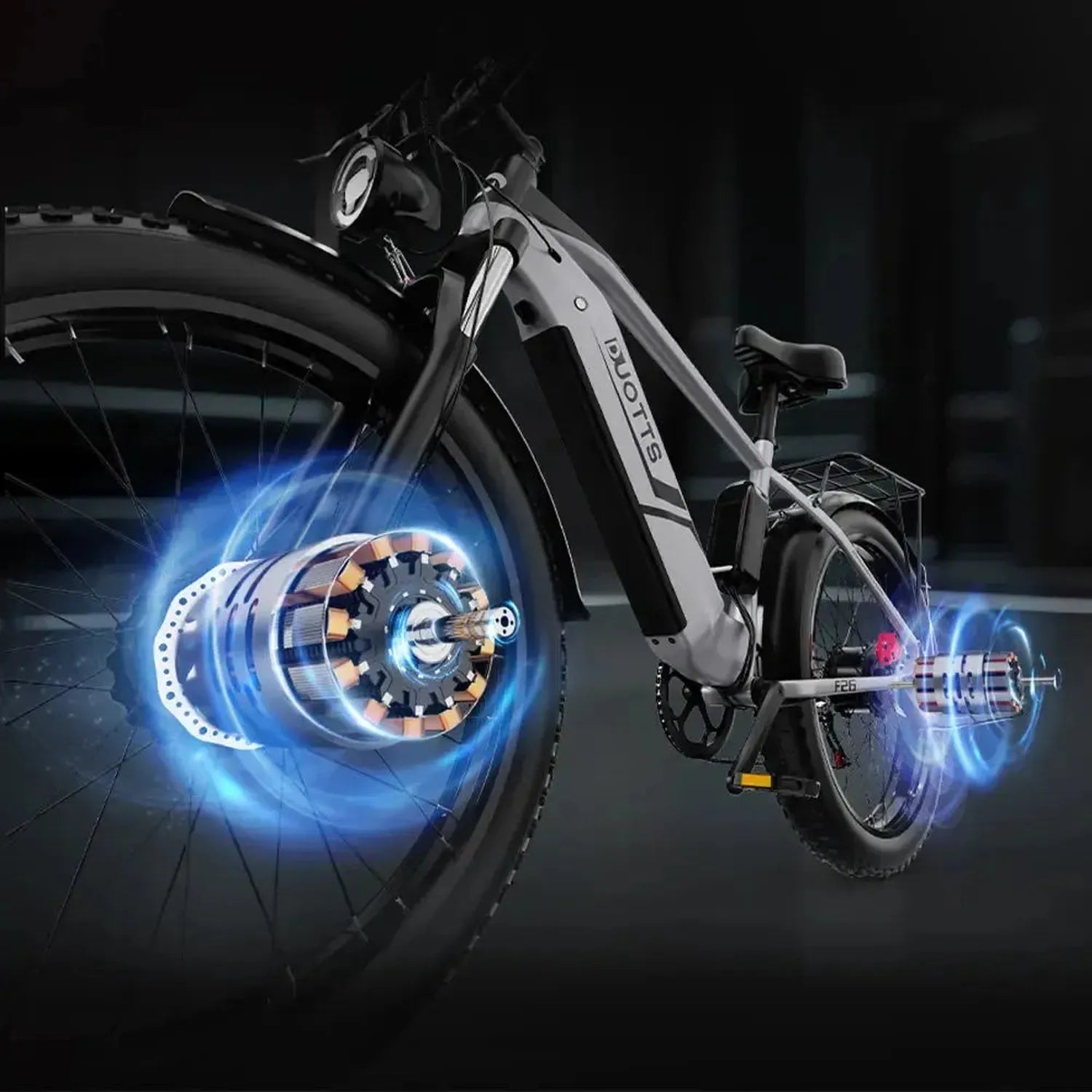

- Dual-motor system for added torque and traction
- Spring front suspension fork (80 mm travel)
- Bluetooth-enabled display with smart features
- CE-certified for safety compliance
Full Description
The DUOTTS F26 is designed for riders who want strong performance, comfort, and long-range capability. Powered by a 48V 20Ah Samsung lithium battery, it supports rides of up to 120 km with pedal assist or around 60 km in pure electric mode, making it ideal for daily commuting, longer journeys, and weekend exploration. Whether you’re travelling through city streets or heading onto light off-road paths, the F26 delivers dependable performance and endurance.
The bike is equipped with 26×4.0″ fat tires, providing excellent traction and stability across a variety of surfaces including pavement, gravel, and trails. A front suspension fork helps absorb bumps for a smoother ride, while hydraulic disc brakes offer reliable stopping power and control in different riding conditions.
Practical features such as a rear cargo rack, integrated lighting, and a Bluetooth-enabled LCD display add everyday convenience, making the DUOTTS F26 a versatile electric bike suited for commuting, recreational rides, and outdoor adventures.
What's in the Box?
DUOTTS F26
Charger
Tool Kit
User Manual
